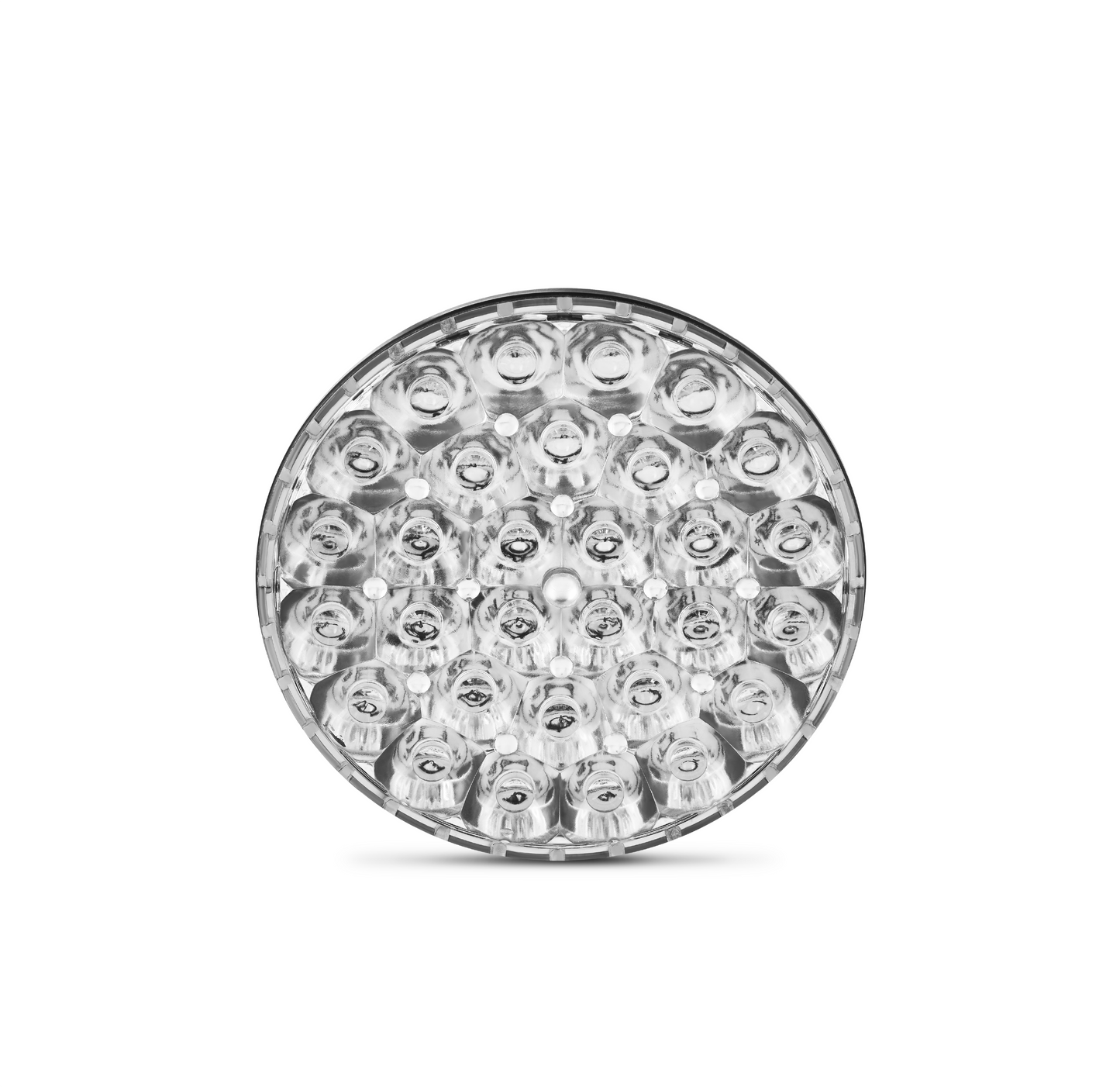

SUNSPOT 46 LX/HX LED Landing Light

SUNSPOT 46 LX/HX LED Landing Light

Discontinued: AeroLEDs SunSpot 46 85W delivers exceptional performance for landing operations, ensuring superior visibility and safety:

  • Landing Light: 150,000+ candela, 20°x20° bright white beam for improved ground visibility and air recognition up to 30 miles.

Designed for reliability, this light produces vivid, true-to-life illumination, consumes less power, and is vibration-resistant. Installation is seamless with standard PAR46 mounts and existing electrical connections.

HX Model Features:

  • Built-in Pulse (wig-wag) mode for enhanced recognition, aiding in collision avoidance and reducing bird strikes.
  • Reduces electrical load by 50% in multi-light installations.

Specifications:

  • Power Consumption: 85 watts max
  • Voltage Range: 9-30VDC
  • Lifespan: 30,000+ hours MTBF
  • Lens: UV-hardcoated polycarbonate
  • Construction: Aluminum, black powder-coated heat sink
  • Approvals: FAA-PMA/STC certified

Upgrade your aircraft lighting with the SunSpot 46 85W for unparalleled visibility, efficiency, and durability.

Part Numbers
Contact Reseller
View full details

46 LX/HX Landing Lights-

Important Update

As part of our efforts to streamline our offerings, we will be discontinuing this product, effective January 1, 2025.

In place of this product, we will be offering the Whelen Aerospace Technologies Parmetheus™ G3 Series at a comparable price point, along with alternative AeroLEDs high-powered lighting options.



Tech Specs

Documents

  • Max Current: 6A@14VDC, 2.85A@28VDC
  • Weight: 1.4 lbs.
  • Length: 5.6" Width: 5.6" Depth: 1.9"
Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals

SunSpot 46-LX

Discontinued Please see Parmetheus™ G3 Replacement or SunSpot 46-4000

 01-2130-LX SUNSPOT PAR 46 LANDING LIGHT 9-30V.

CANDELA: 150,000

LUMENS: 9,250

 20ºx20º No FAA-PMA/STC

SunSpot 46-HX

Discontinued Please see Sunspot 46-4000 with pulse Replacement

 01-2130-HX SUNSPOT PAR 46 LANDING LIGHT WITH WIGWAG 9-30V.

CANDELA: 150,000

LUMENS: 9,250

 20ºx20º Yes FAA-PMA/STC

Tech Specs

  • Max Current: 6A@14VDC, 2.85A@28VDC
  • Weight: 1.4 lbs.
  • Length: 5.6" Width: 5.6" Depth: 1.9"
Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals

SunSpot 46-LX

Discontinued Please see Parmetheus™ G3 Replacement or SunSpot 46-4000

 01-2130-LX SUNSPOT PAR 46 LANDING LIGHT 9-30V.

CANDELA: 150,000

LUMENS: 9,250

 20ºx20º No FAA-PMA/STC

SunSpot 46-HX

Discontinued Please see Sunspot 46-4000 with pulse Replacement

 01-2130-HX SUNSPOT PAR 46 LANDING LIGHT WITH WIGWAG 9-30V.

CANDELA: 150,000

LUMENS: 9,250

 20ºx20º Yes FAA-PMA/STC


Documents

WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit aeroleds.com/regulatory.

Product Data Sheet
