SUNBEACON II LED BEACON

SUNBEACON II LED BEACON

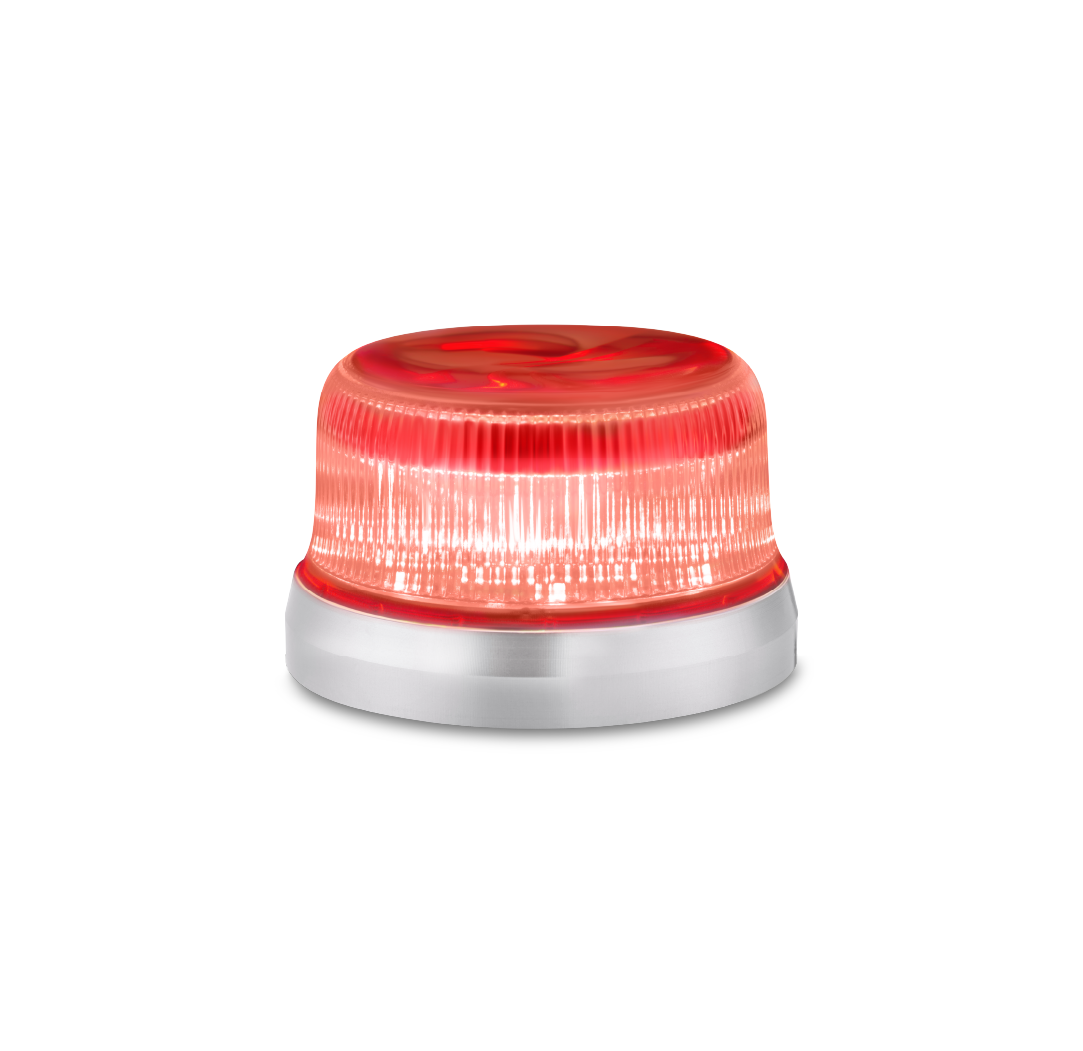

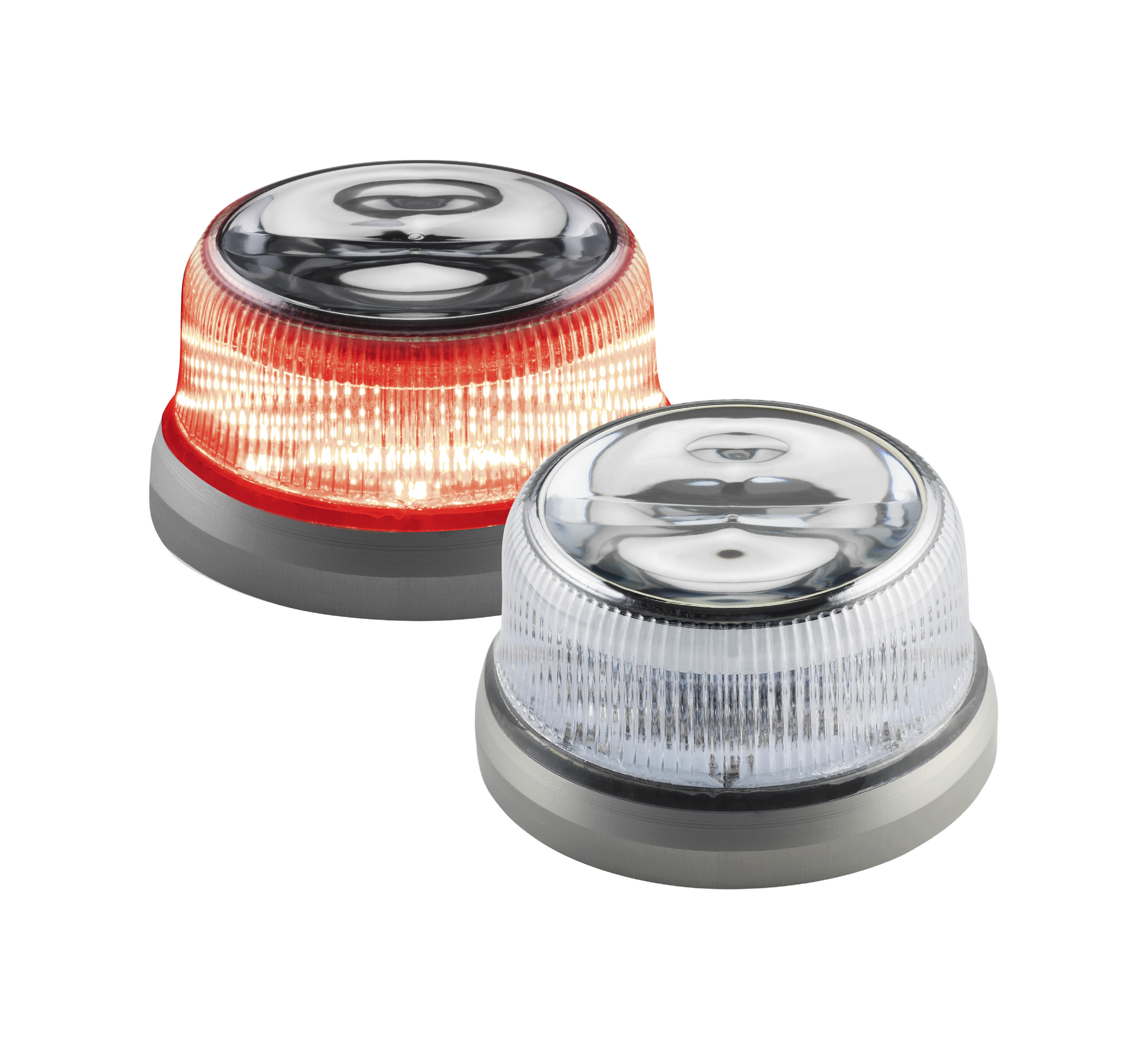

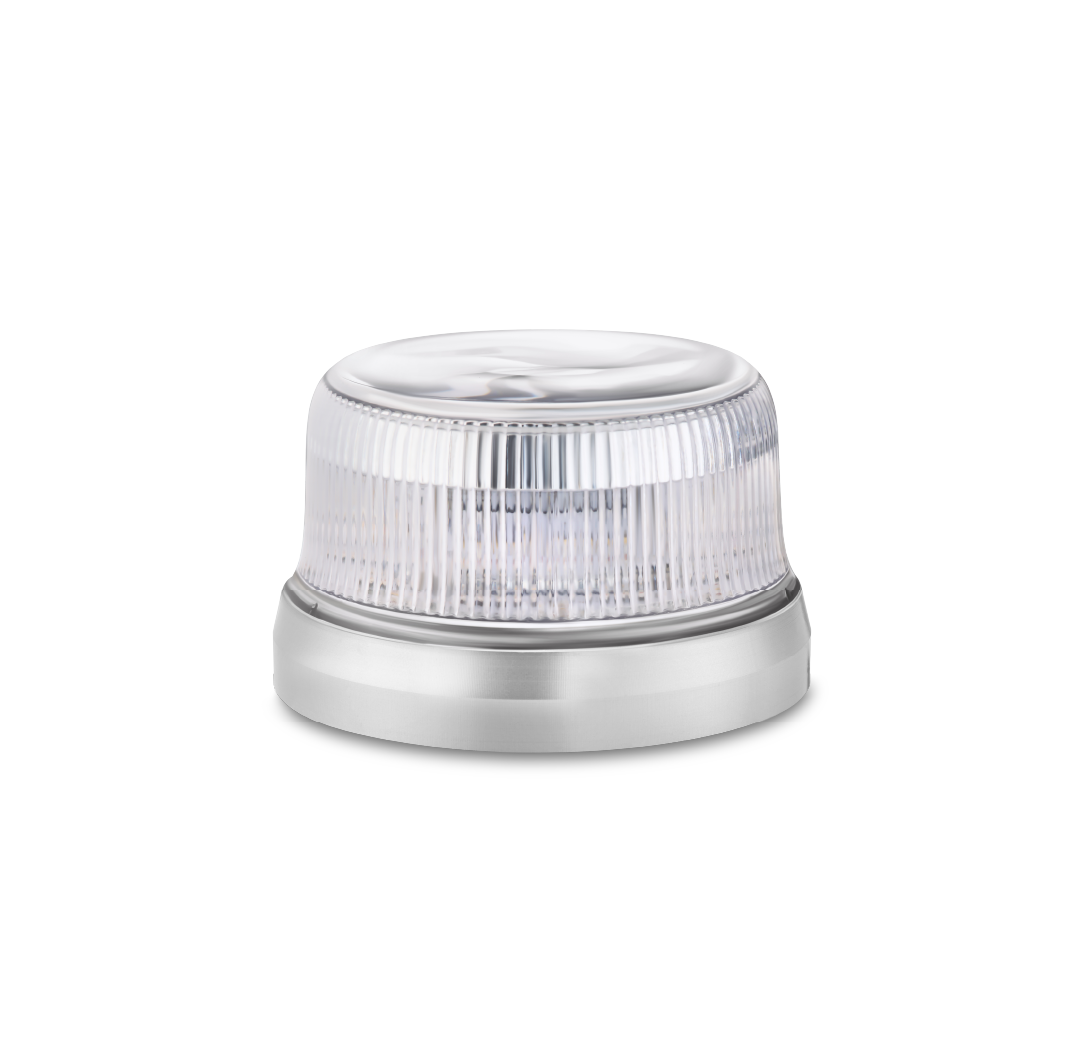

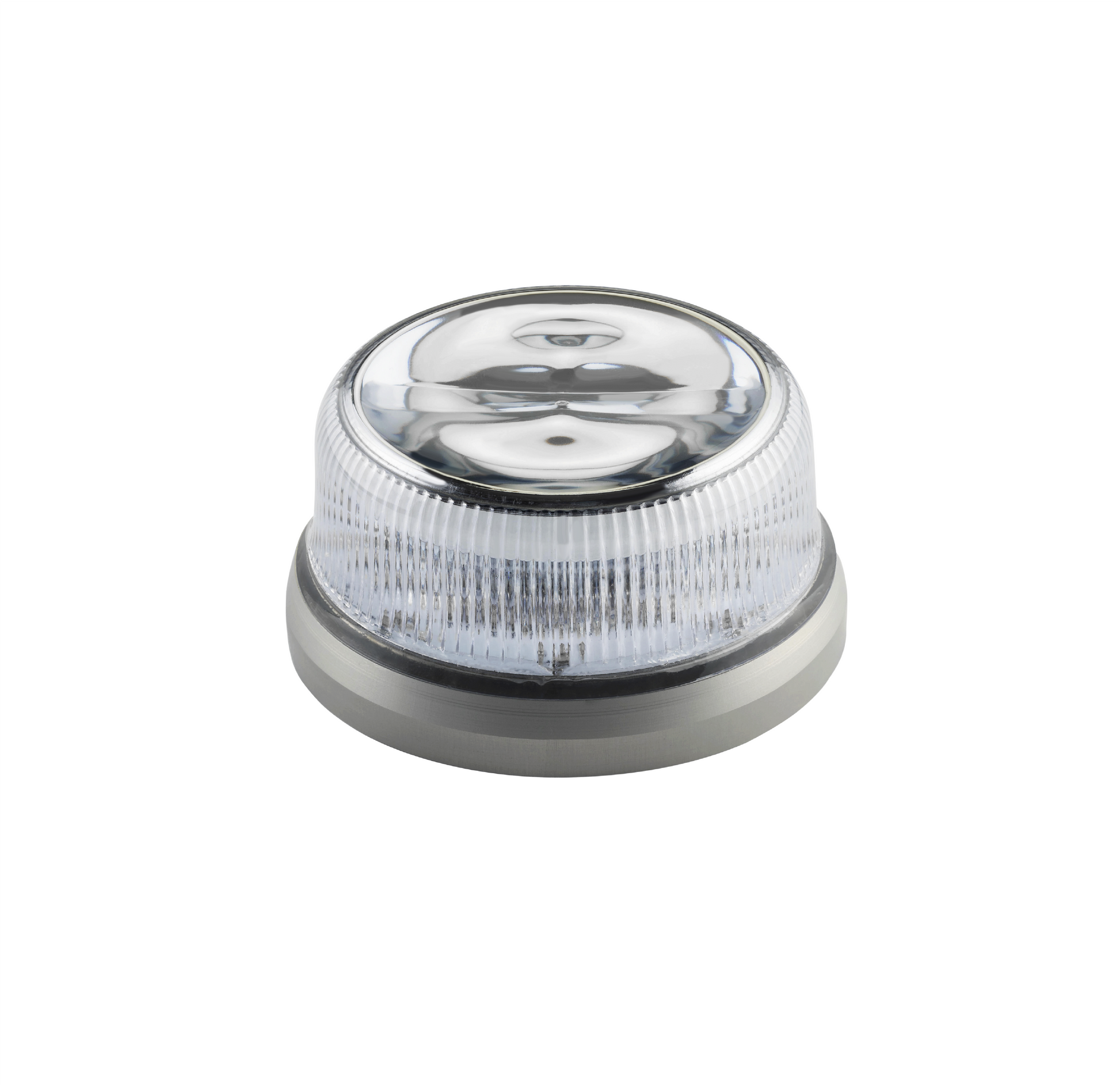

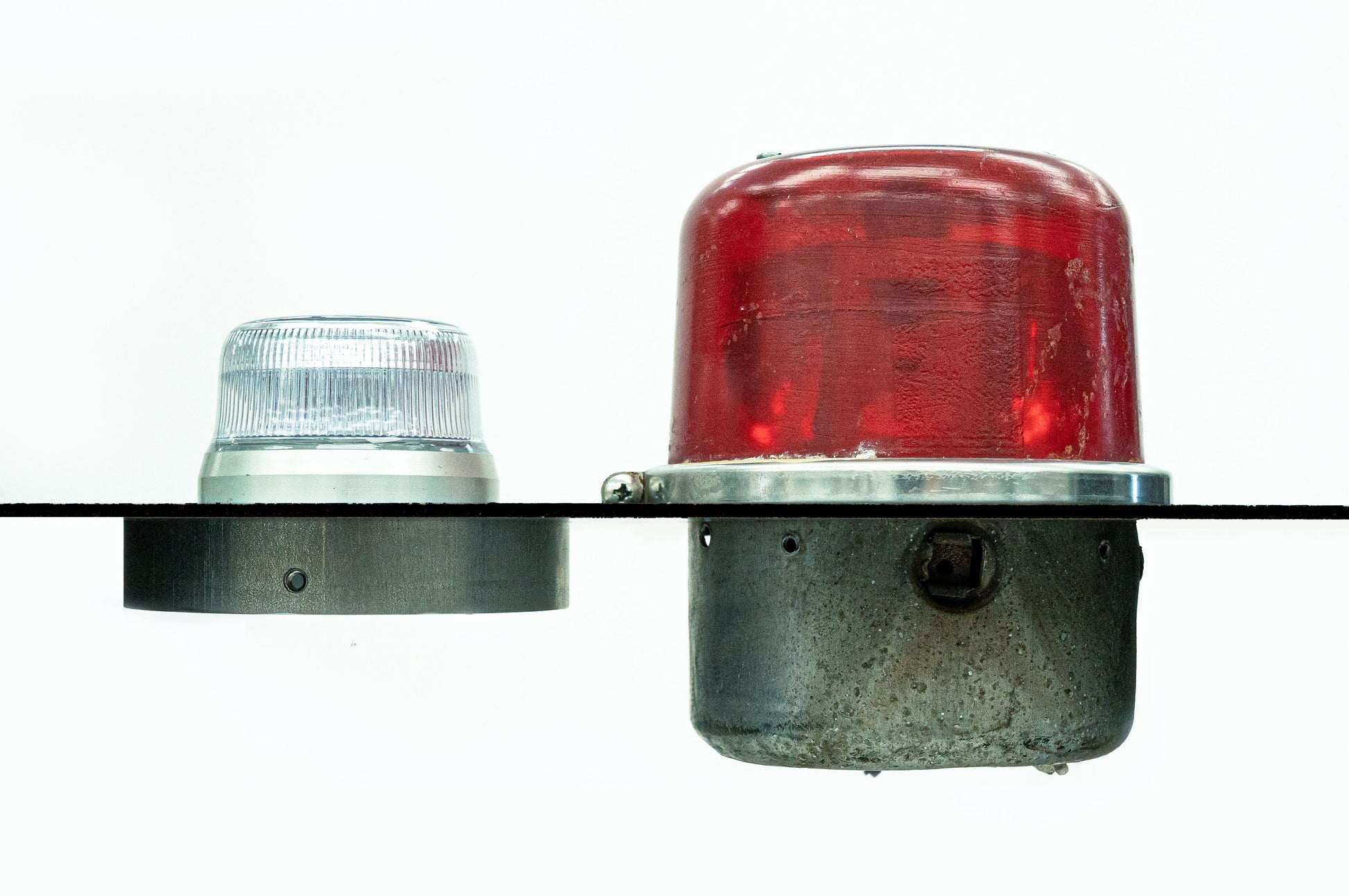

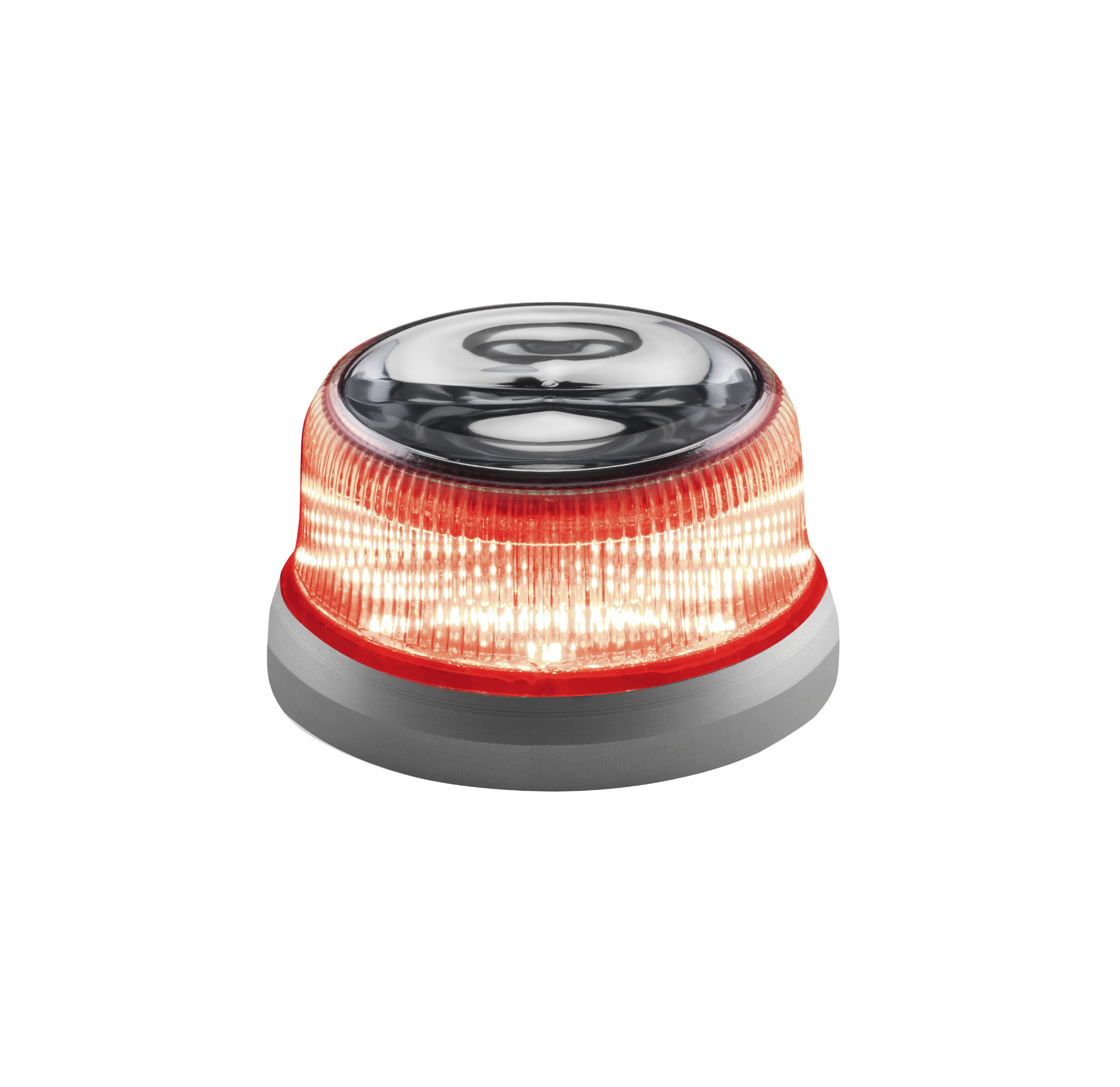

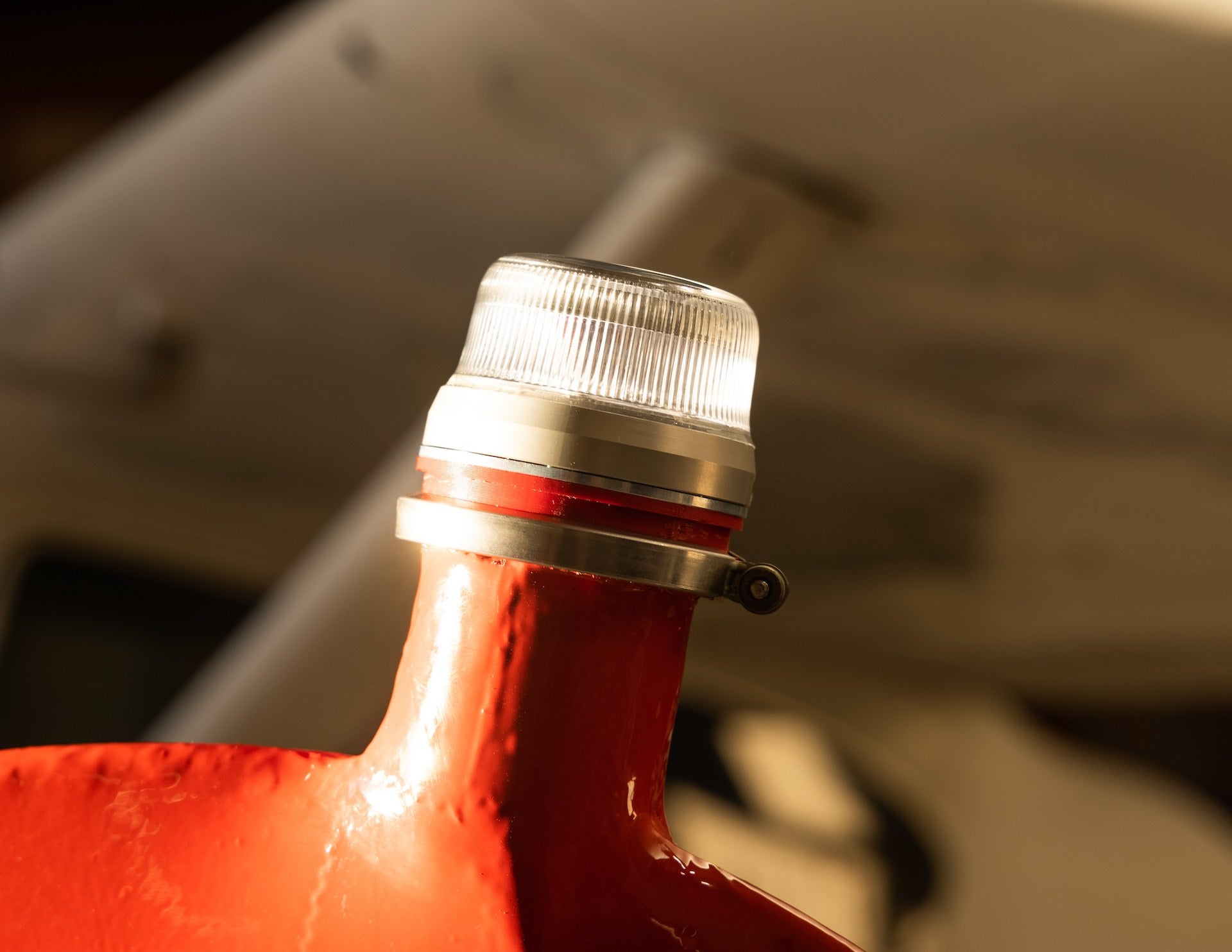

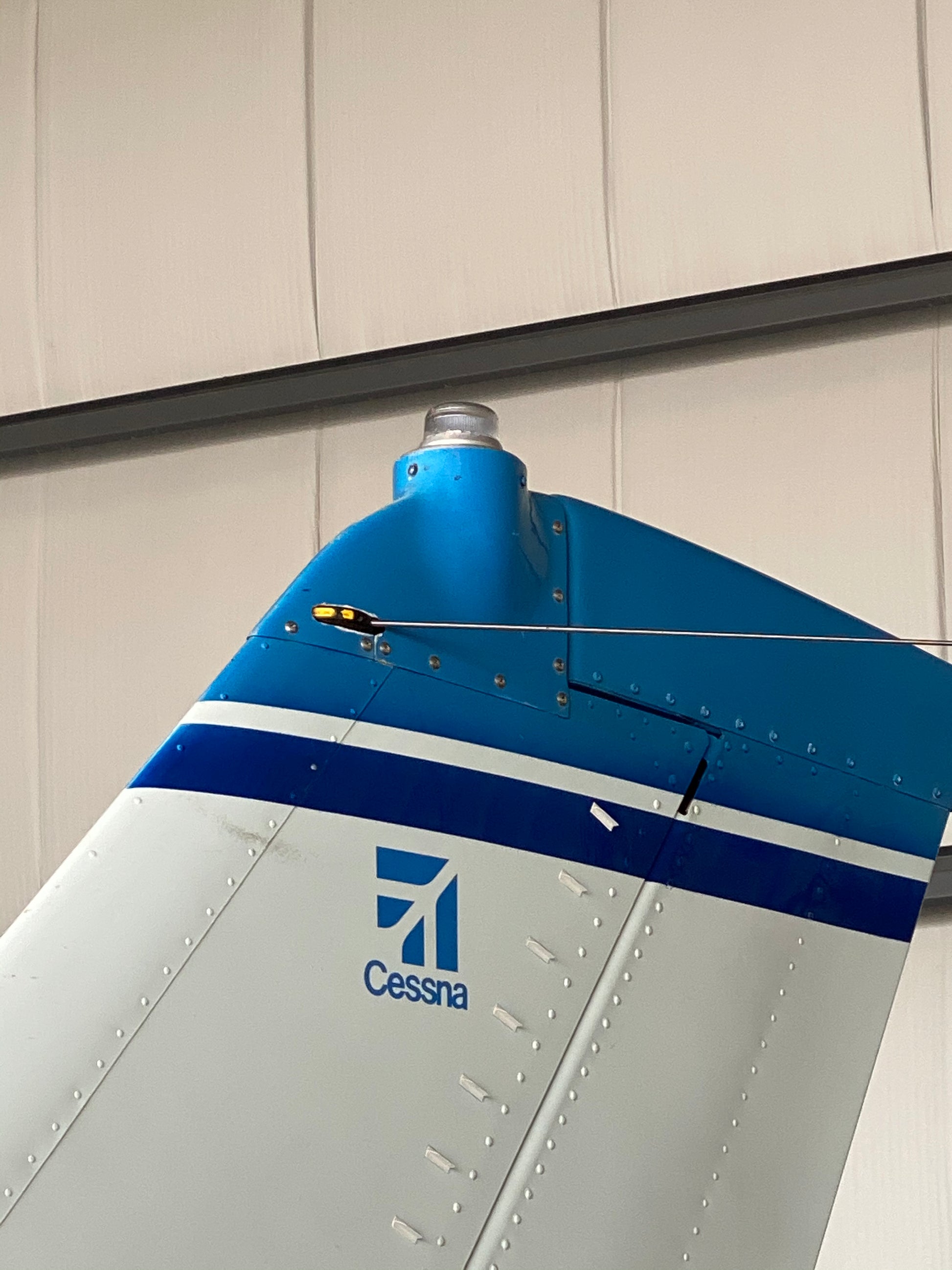

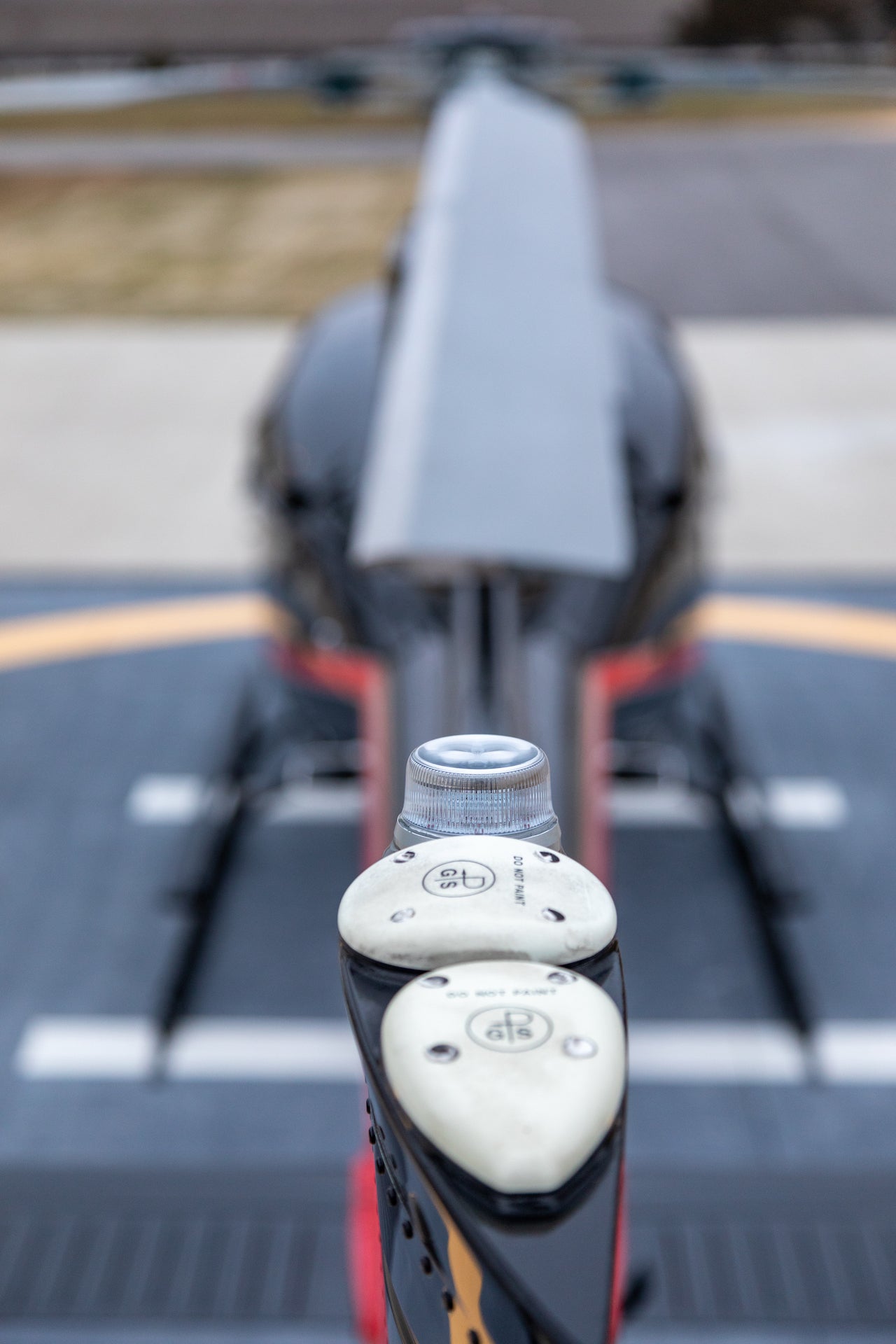

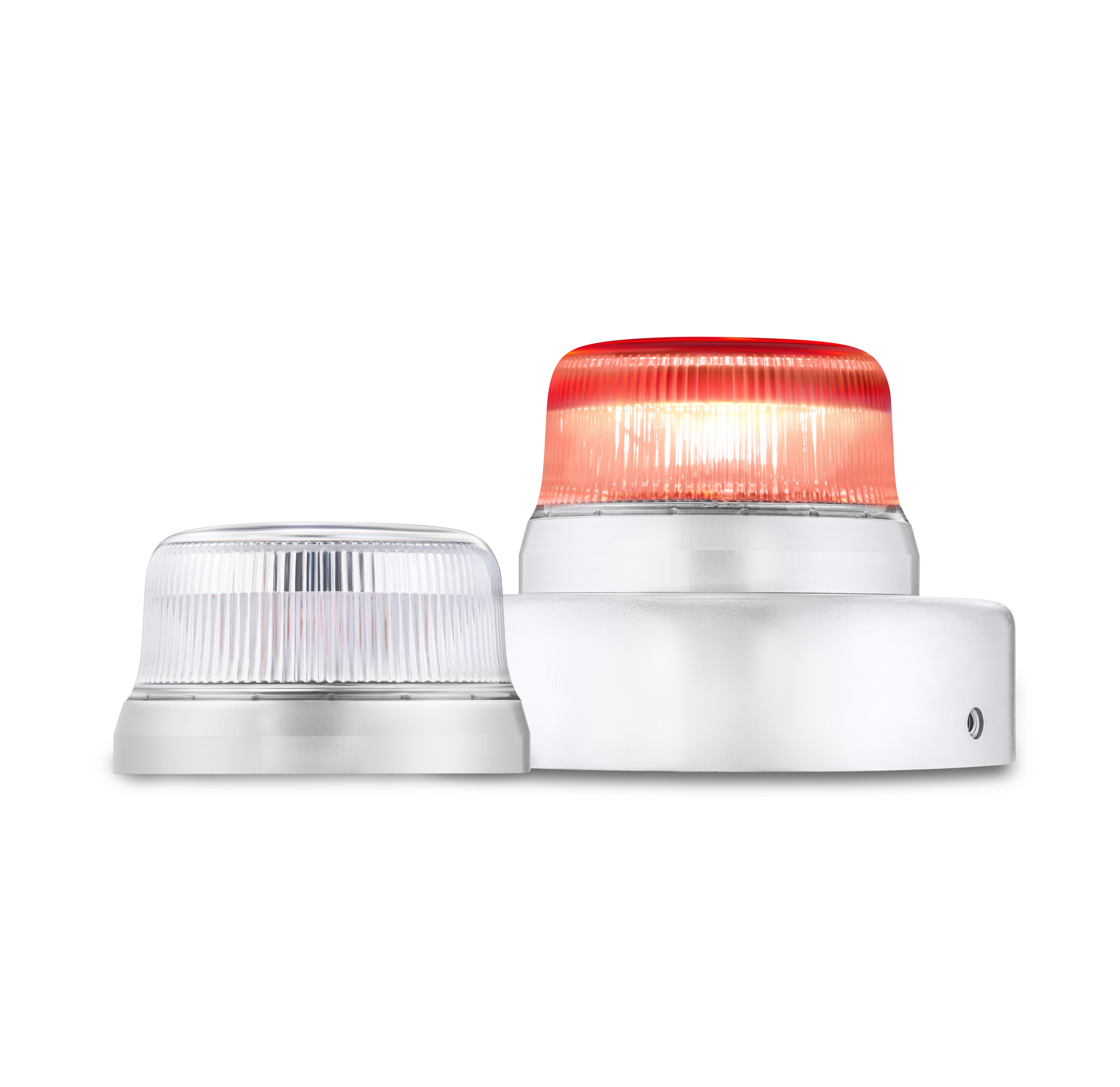

The SunBeacon II™ is a high-performance 360-degree LED aircraft beacon, offering superior anti-collision visibility with enhanced light output and lower power consumption. Available with either white or red LEDs and a standard clear lens, it’s a direct replacement for traditional rotating or flashing aircraft beacons.

Designed with a low-profile compact form, the SunBeacon II™ reduces drag and requires zero maintenance, making it an ideal choice for modern aircraft. It meets or exceeds TSO C96a Class I & III (Red) and Class II (White) standards, ensuring reliable performance and safety compliance.

Key Features:

  • 360-Degree Illumination: Superior visibility with anti-collision strobe.
  • Power Options: Compatible with 12V and 24V systems.
  • Energy Efficient: Low power consumption with no external power supply required.
  • Strobe Synchronization: Available for multi-light setups.

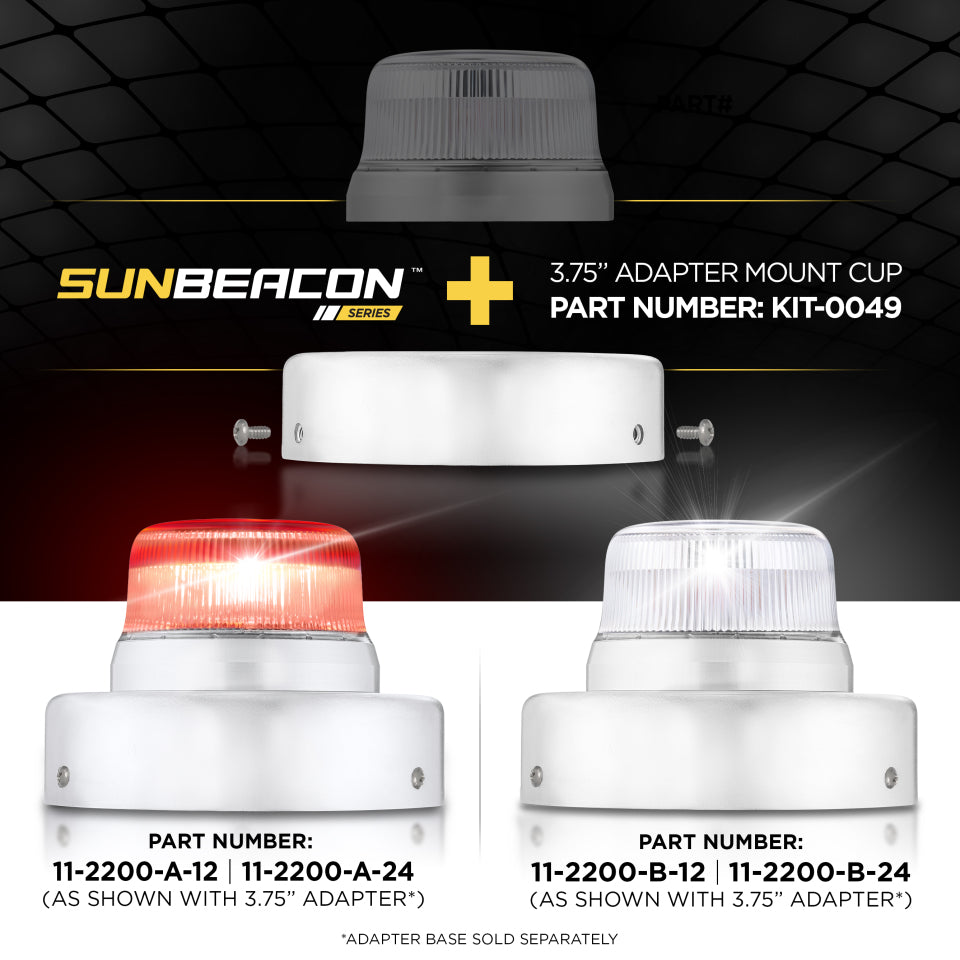

  • Easy Installation: Includes optional twist mount or 3.75” cup mount.
  • Certified: FAA-TSO/STC approved.

Part Numbers
View full details

CERTIFIED - LED BEACONS



Tech Specs

Documents

Video

  • Max Current: 1.2A@14VDC(average) 4.4A@14VDC(peak), 0.6A@28VDC(average) 2.3A@28VDC(peak)
  • Weight: 0.22 lbs.
  • Length: 2.5" Width: 2.5" Depth: 1.6"
Model Part # Description Approvals
SunBeacon II - 14V RED 11-2200-A-12
RED
CERTIFIED LED BEACON, 14 VDC
FAA-TSO/STC
SunBeacon II - 28V RED 11-2200-A-24
RED
CERTIFIED LED BEACON, 28 VDC
FAA-TSO/STC
SunBeacon II - 14V WHITE 11-2200-B-12
WHITE
CERTIFIED LED BEACON, 14 VDC
FAA-TSO/STC
SunBeacon II - 28V WHITE 11-2200-B-24

WHITE
CERTIFIED LED BEACON, 28 VDC

FAA-TSO/STC







Tech Specs

  • Max Current: 1.2A@14VDC(average) 4.4A@14VDC(peak), 0.6A@28VDC(average) 2.3A@28VDC(peak)
  • Weight: 0.22 lbs.
  • Length: 2.5" Width: 2.5" Depth: 1.6"
Model Part # Description Approvals
SunBeacon II - 14V RED 11-2200-A-12
RED
CERTIFIED LED BEACON, 14 VDC
FAA-TSO/STC
SunBeacon II - 28V RED 11-2200-A-24
RED
CERTIFIED LED BEACON, 28 VDC
FAA-TSO/STC
SunBeacon II - 14V WHITE 11-2200-B-12
WHITE
CERTIFIED LED BEACON, 14 VDC
FAA-TSO/STC
SunBeacon II - 28V WHITE 11-2200-B-24

WHITE
CERTIFIED LED BEACON, 28 VDC

FAA-TSO/STC
