AeroSun VXi Wingtips - FOR VANS RV-4 | VANS RV-6 | VANS RV-7 | VANS RV-8 | VANS RV-10 | VANS RV-14

AeroSun VXi Wingtips - FOR VANS RV-4 | VANS RV-6 | VANS RV-7 | VANS RV-8 | VANS RV-10 | VANS RV-14

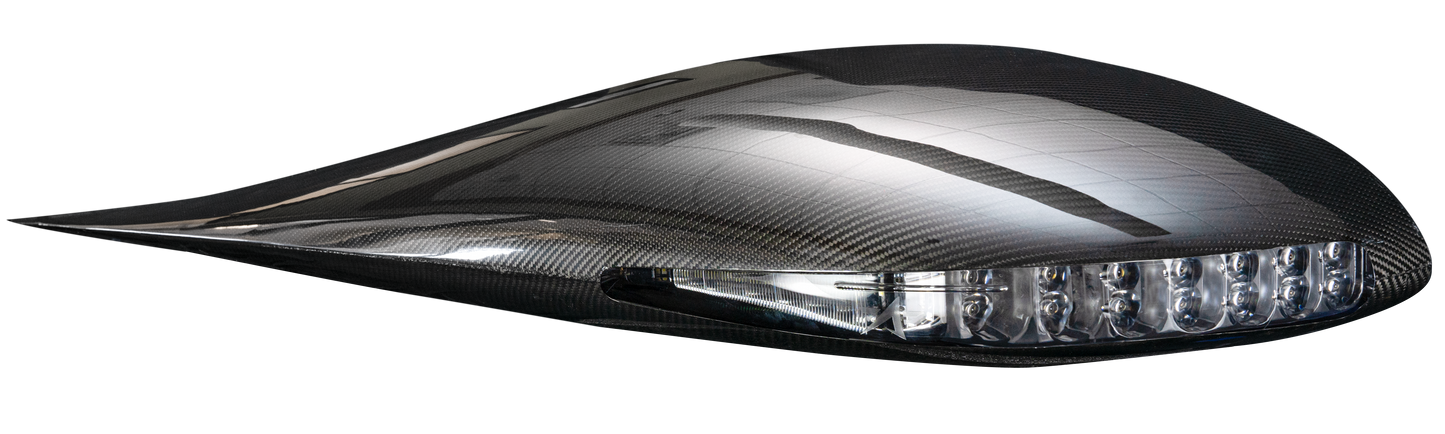

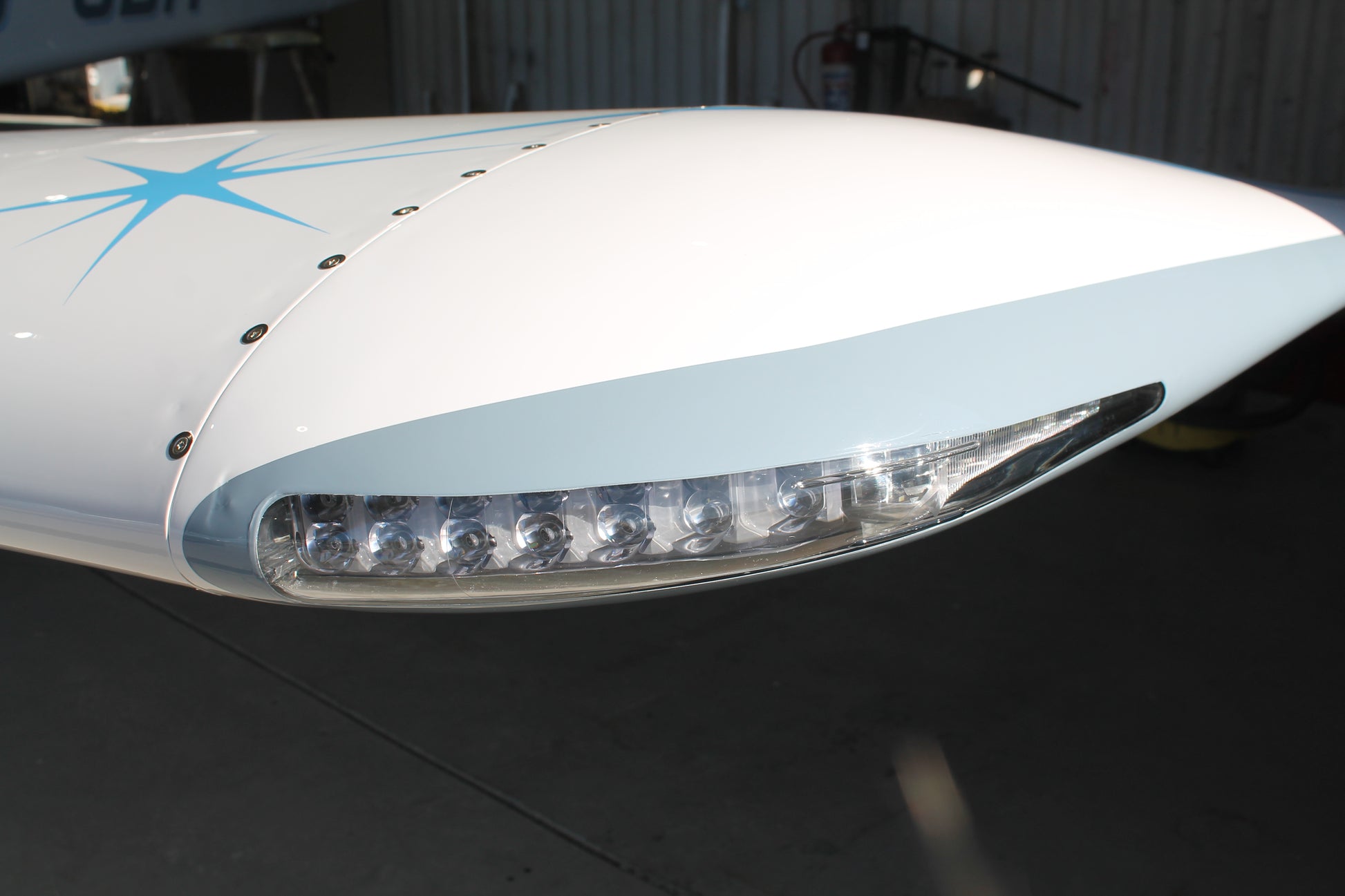

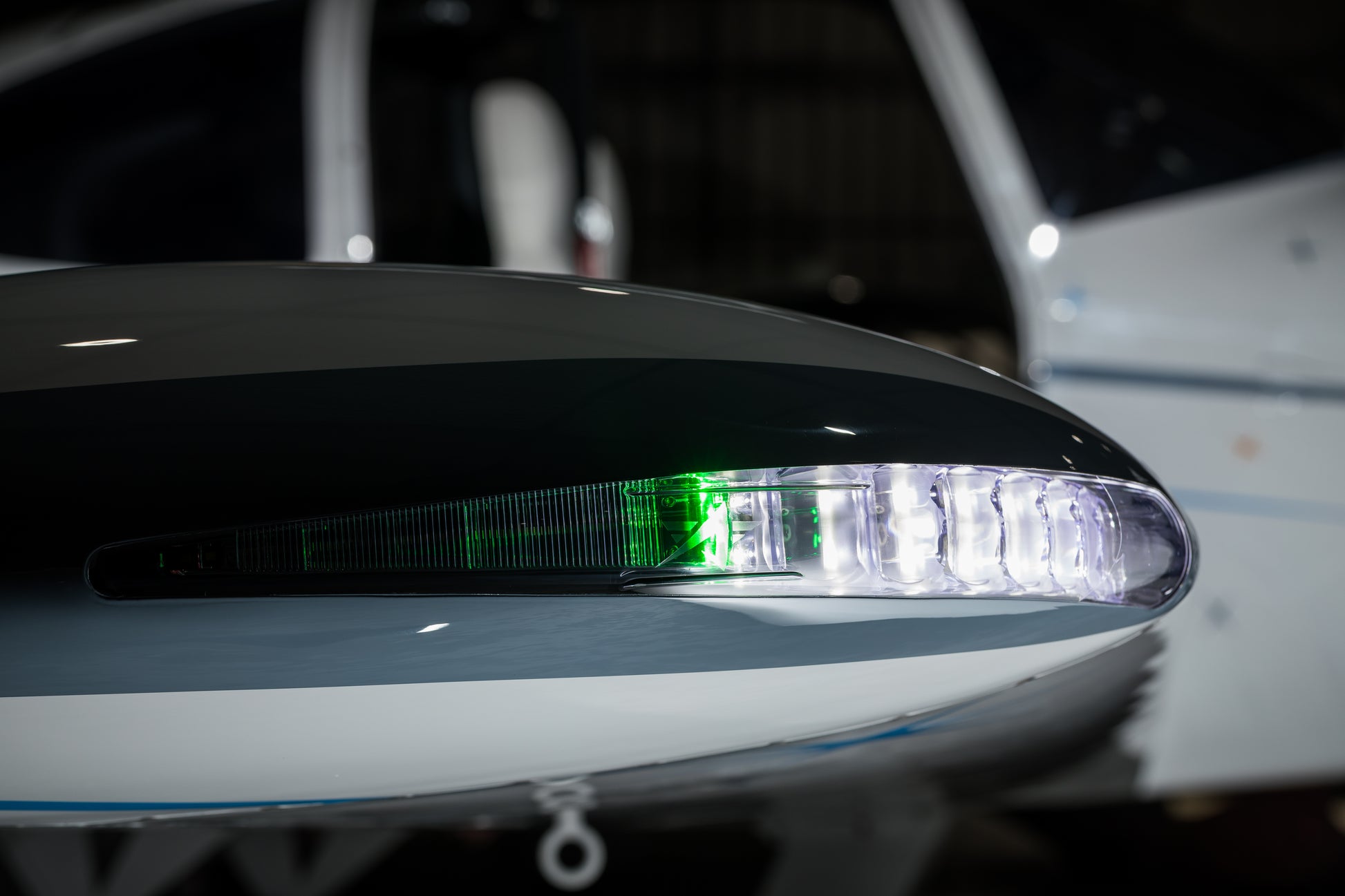

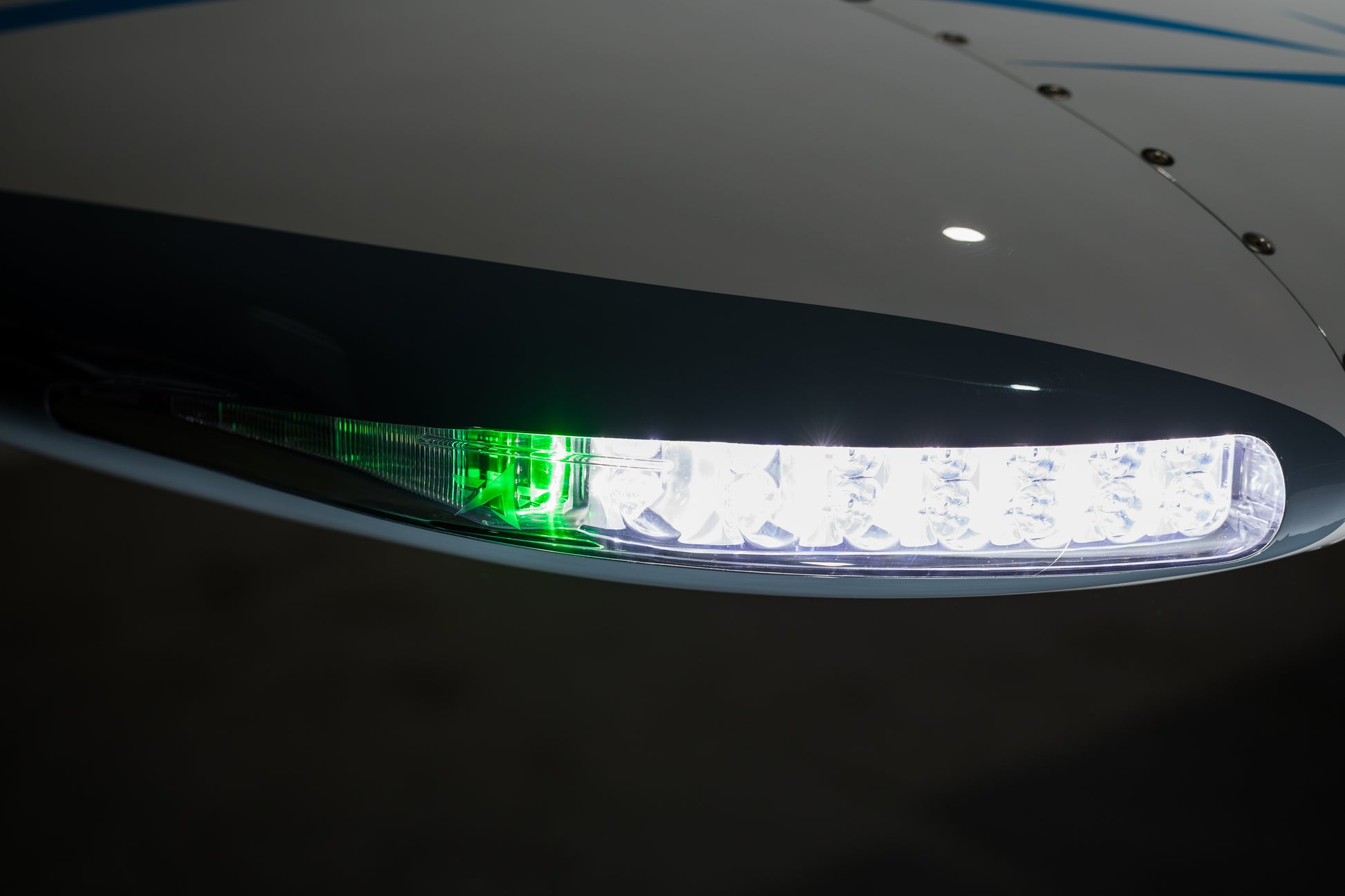

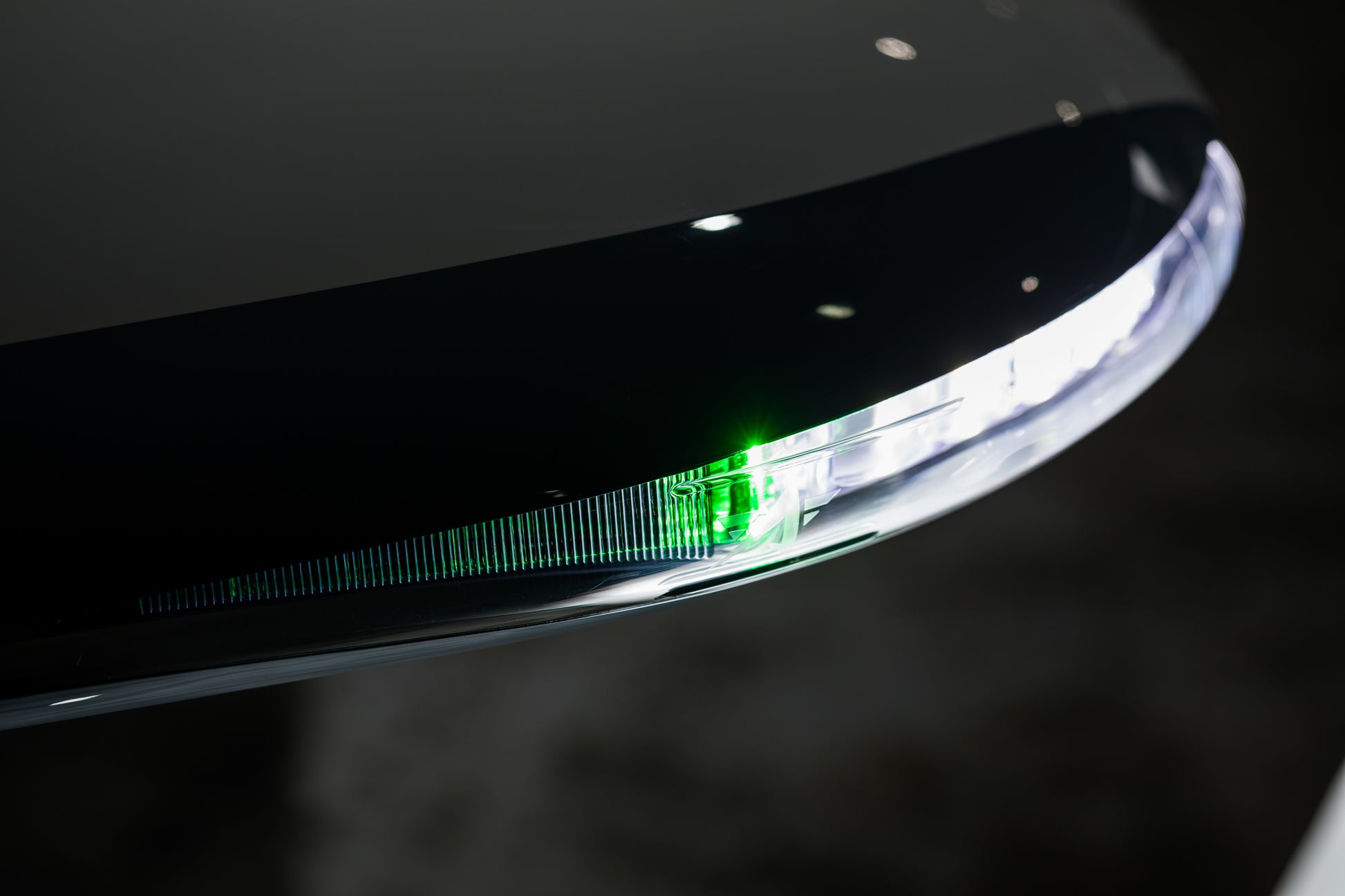

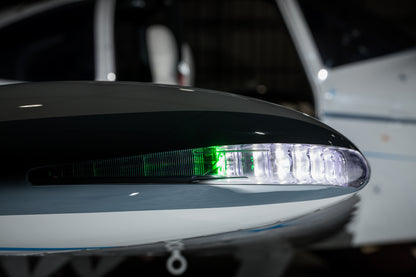

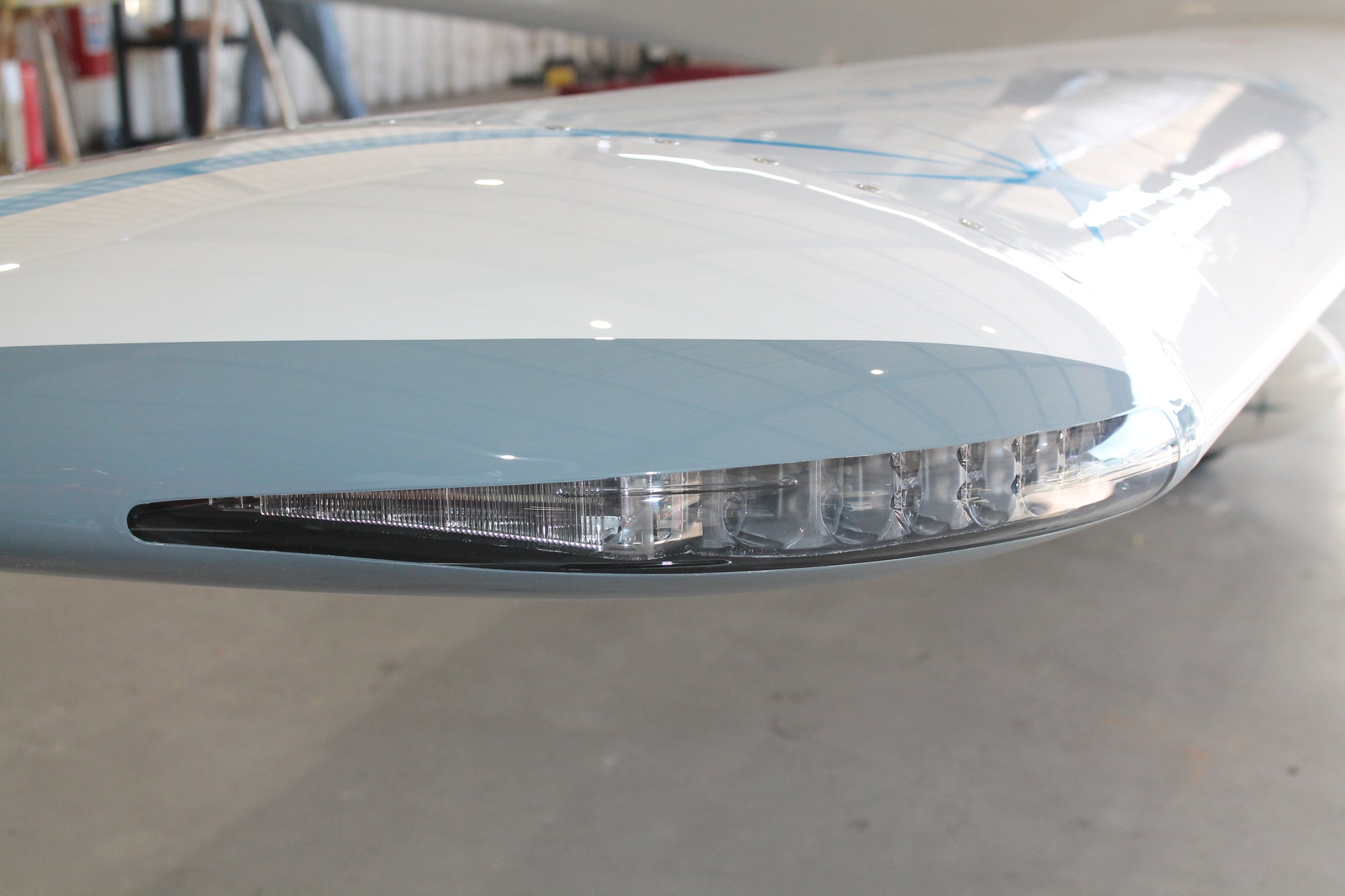

Upgrade your Vans aircraft with the AeroSun VXi Wingtip, a fully integrated lighting system developed in partnership with Vans Aircraft. Designed with precision and versatility, the AeroSun VXi is available in Carbon Fiber and Fiberglass options to seamlessly fit:

  • Vans RV-4, RV-6, RV-7, RV-8 (KIT-0083 & KIT-0084)
  • Vans RV-10, RV-14 (KIT-0081 & KIT-0082)

The AeroSun VXi combines advanced lighting functionality with sleek design, delivering exceptional performance for navigation, landing, taxi, and more.

Key Features:

  • Landing/Taxi Lights for improved visibility.
  • Navigation Lighting exceeding TSO C-30c, Type I & II standards.
  • Anti-Collision Strobe exceeding TSO-C96a Class II standards.
  • Position and Anti-Collision Systems (ACS) surpassing TSO C-30c, Type III & TSO-C96a Class II standards.

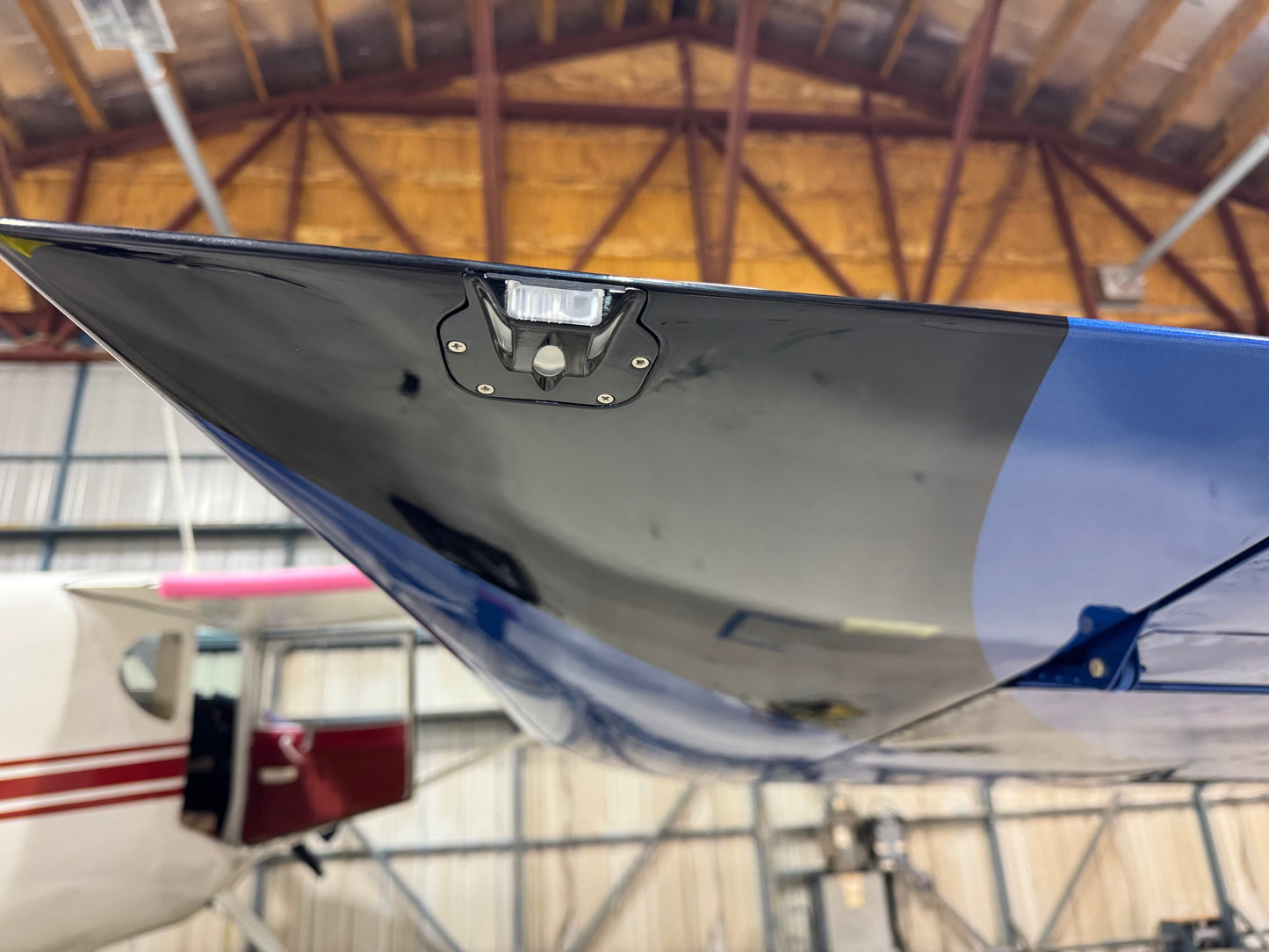

  • Underwing Inspection/Convenience Light for enhanced utility.
  • Built-in Pulse Mode (wig-wag) for recognition and collision avoidance.
  • Synchronization for multi-light setups.

Specifications:

  • Power Consumption: 100 watts max per wingtip
  • Lifespan: 30,000+ hours MTBF
  • Lens: UV-hardcoated polycarbonate
  • Construction: Aluminum heat sink with black powder coating
  • Wingtip Options: Carbon Fiber or Fiberglass

Redefine your flight experience with the AeroSun VXi, delivering durability, efficiency, and unmatched lighting performance

Part Numbers
Contact Us
View full details



Wingtips FOR VANS RV-4 | VANS RV-6 | VANS RV-7 | VANS RV-8 | VANS RV-10 | VANS RV-14

Now Available Thru AeroLEDs!



Tech Specs

Documents

Video



Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals
AeroSun VXi Light Package for Vans RV-10 & RV-14 (Fiberglass) KIT-0081 AeroSun Vxi Light Package with Wingtip for Vans RV-10 & RV-14 (Fiberglass) 14V.

CANDELA: 150,000 per side

LUMENS: 11,0000 per side

LANDING: 20ºx20º

TAXI: 20ºX50º

 Yes None
AeroSun VXi Light Package for Vans RV-10 & RV-14 (Carbon Fiber) KIT-0082 AeroSun Vxi Light Package with Wingtip for Vans RV-10 & RV-14 (Carbon Fiber) 14V.

CANDELA: 150,000 per side

LUMENS: 11,0000 per side

LANDING: 20ºx20º

TAXI: 20ºX50º

 Yes None
AeroSun VXi Light Package for Vans RV-4, RV-6, RV-7, RV-8 (Fiberglass) KIT-0083 AeroSun Vxi Light Package with Wingtip for Vans RV-4, RV-6, RV-7, RV-8 (Fiberglass) 14V.

CANDELA: 150,000 per side

LUMENS: 11,0000 per side

LANDING: 20ºx20º

TAXI: 20ºX50º

 Yes None
AeroSun VXi Light Package for Vans RV-4, RV-6, RV-7, RV-8 (Carbon Fiber) KIT-0084 AeroSun Vxi Light Package with Wingtip for Vans RV-4, RV-6, RV-7, RV-8 (Carbon Fiber) 14V.

CANDELA: 150,000 per side

LUMENS: 11,0000 per side

LANDING: 20ºx20º

TAXI: 20ºX50º

 Yes None
AeroSun Vxi Light Package Only KIT-0080 AeroSun VXi Light Package Only 14V.

CANDELA: 150,000 per side

LUMENS: 11,000 per side

LANDING: 20ºx20º

TAXI: 20ºX50º

 Yes None



Tech Specs



Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals
AeroSun VXi Light Package for Vans RV-10 & RV-14 (Fiberglass) KIT-0081 AeroSun Vxi Light Package with Wingtip for Vans RV-10 & RV-14 (Fiberglass) 14V.

CANDELA: 150,000 per side

LUMENS: 11,0000 per side

LANDING: 20ºx20º

TAXI: 20ºX50º

 Yes None
AeroSun VXi Light Package for Vans RV-10 & RV-14 (Carbon Fiber) KIT-0082 AeroSun Vxi Light Package with Wingtip for Vans RV-10 & RV-14 (Carbon Fiber) 14V.

CANDELA: 150,000 per side

LUMENS: 11,0000 per side

LANDING: 20ºx20º

TAXI: 20ºX50º

 Yes None
AeroSun VXi Light Package for Vans RV-4, RV-6, RV-7, RV-8 (Fiberglass) KIT-0083 AeroSun Vxi Light Package with Wingtip for Vans RV-4, RV-6, RV-7, RV-8 (Fiberglass) 14V.

CANDELA: 150,000 per side

LUMENS: 11,0000 per side

LANDING: 20ºx20º

TAXI: 20ºX50º

 Yes None
AeroSun VXi Light Package for Vans RV-4, RV-6, RV-7, RV-8 (Carbon Fiber) KIT-0084 AeroSun Vxi Light Package with Wingtip for Vans RV-4, RV-6, RV-7, RV-8 (Carbon Fiber) 14V.

CANDELA: 150,000 per side

LUMENS: 11,0000 per side

LANDING: 20ºx20º

TAXI: 20ºX50º

 Yes None
AeroSun Vxi Light Package Only KIT-0080 AeroSun VXi Light Package Only 14V.

CANDELA: 150,000 per side

LUMENS: 11,000 per side

LANDING: 20ºx20º

TAXI: 20ºX50º

 Yes None


Documents

Video



WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit aeroleds.com/regulatory.

Product Data Sheet
