NANO E SERIES EXPERIMENTAL LED FORWARD / TAIL POSITION/ANTI-COLLISION WINGTIP LIGHTS

NANO E SERIES EXPERIMENTAL LED FORWARD / TAIL POSITION/ANTI-COLLISION WINGTIP LIGHTS

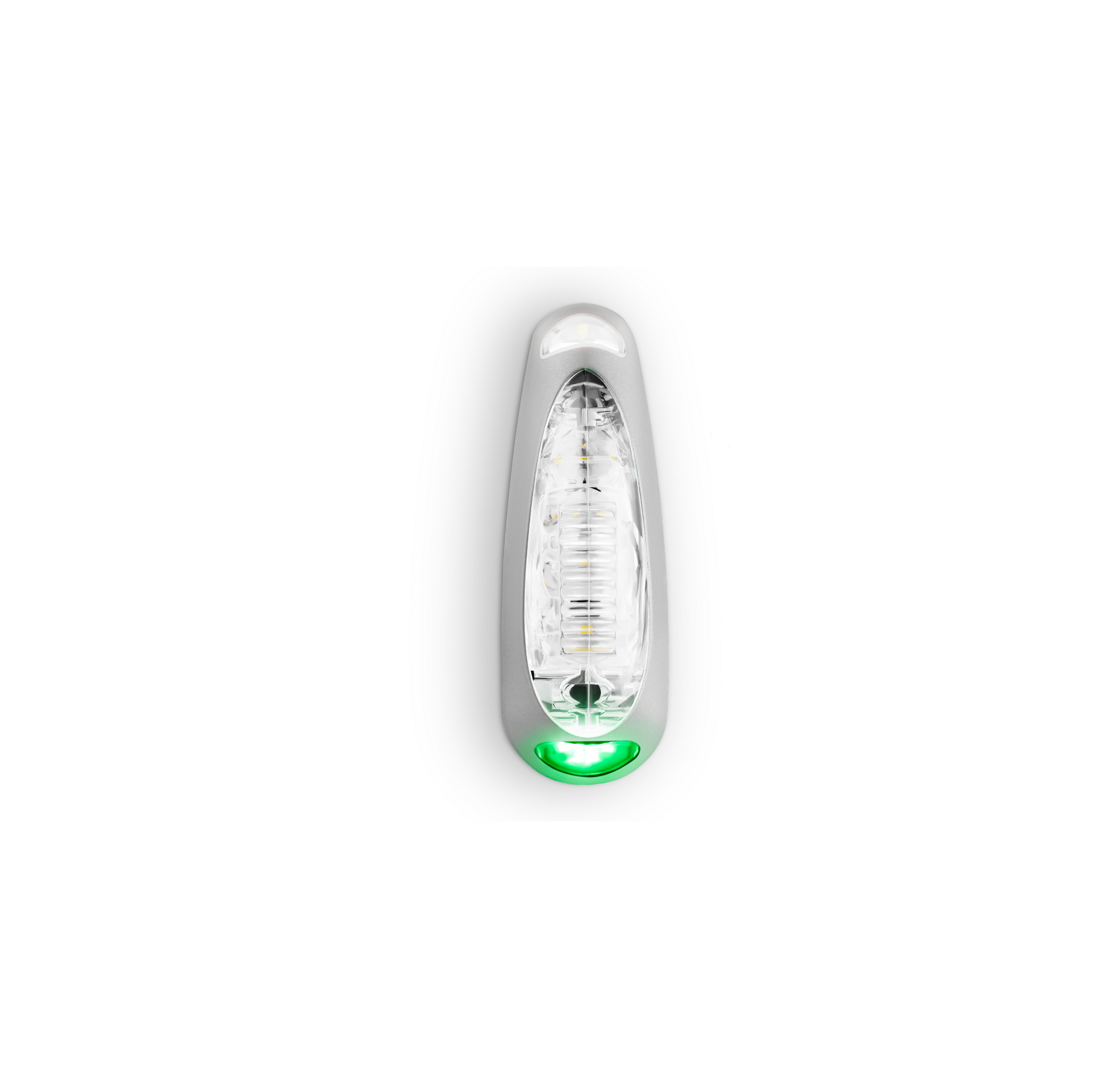

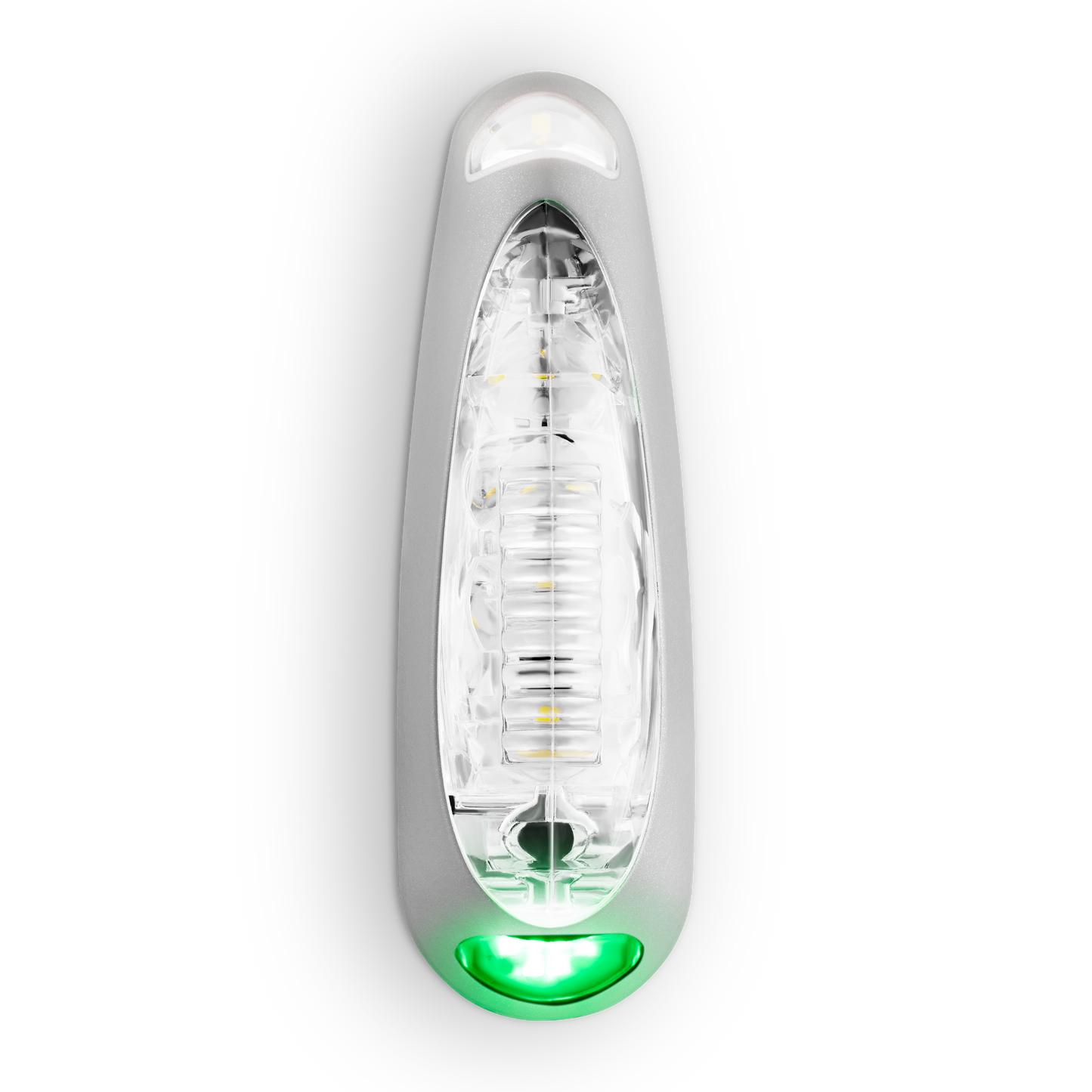

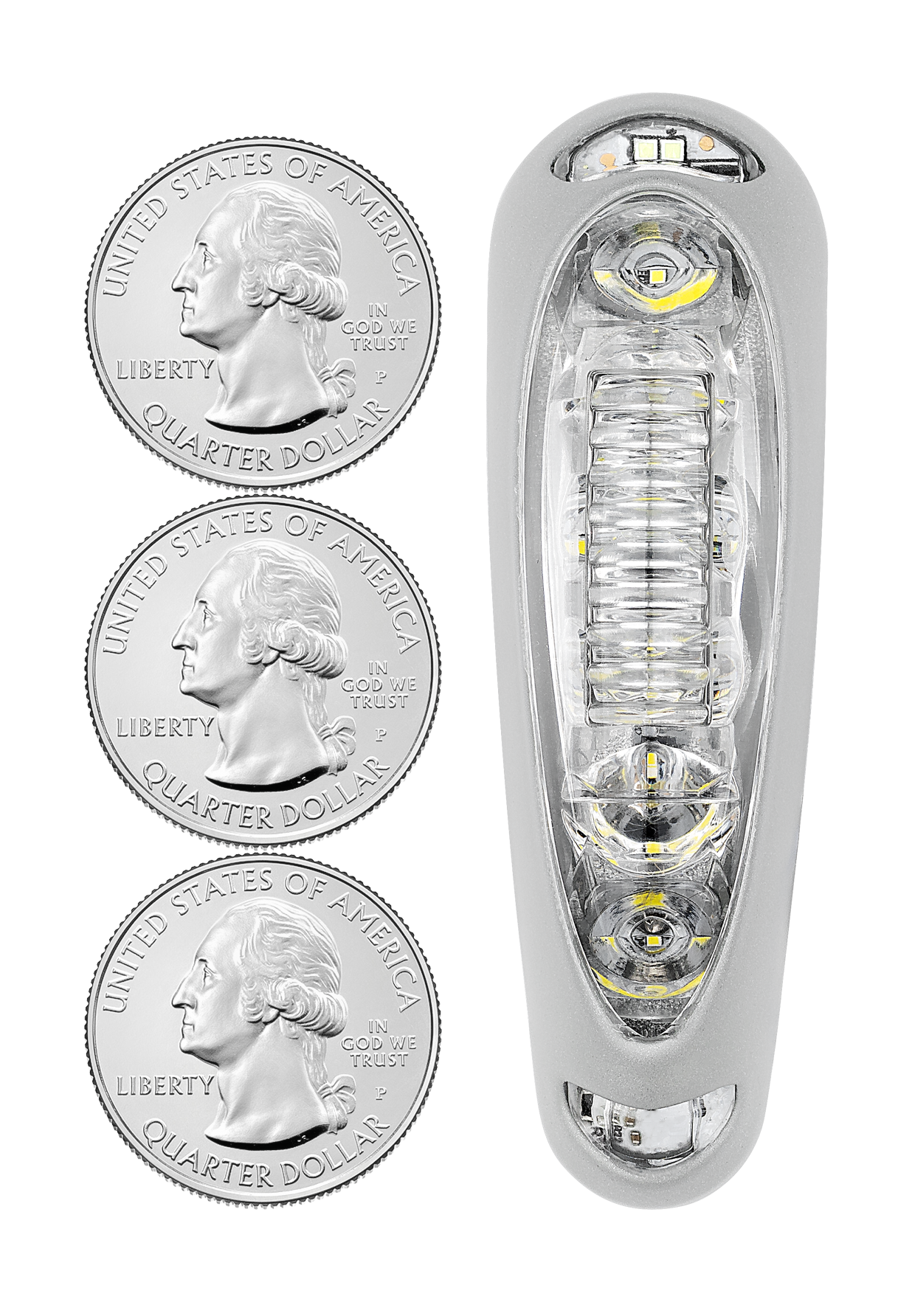

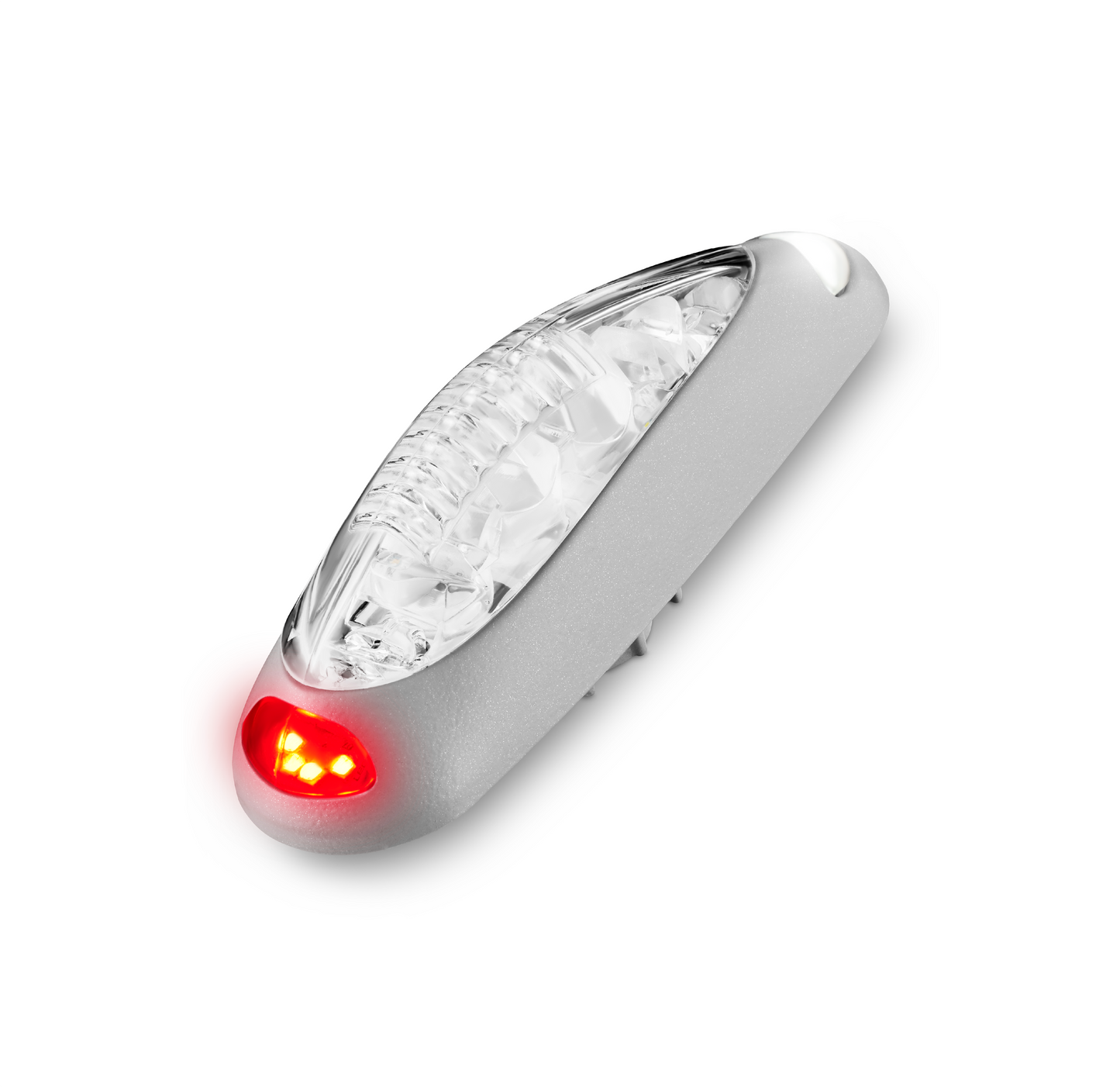

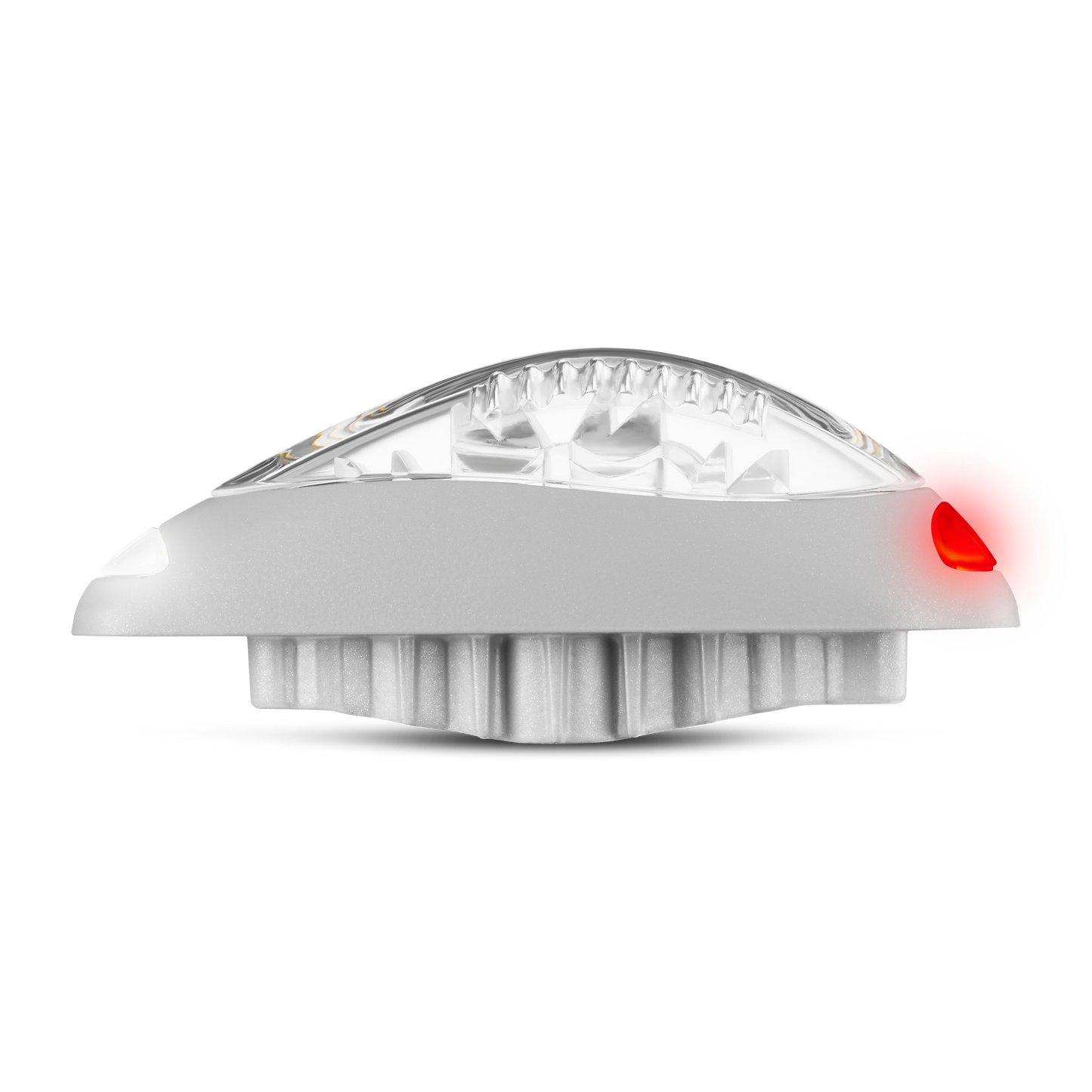

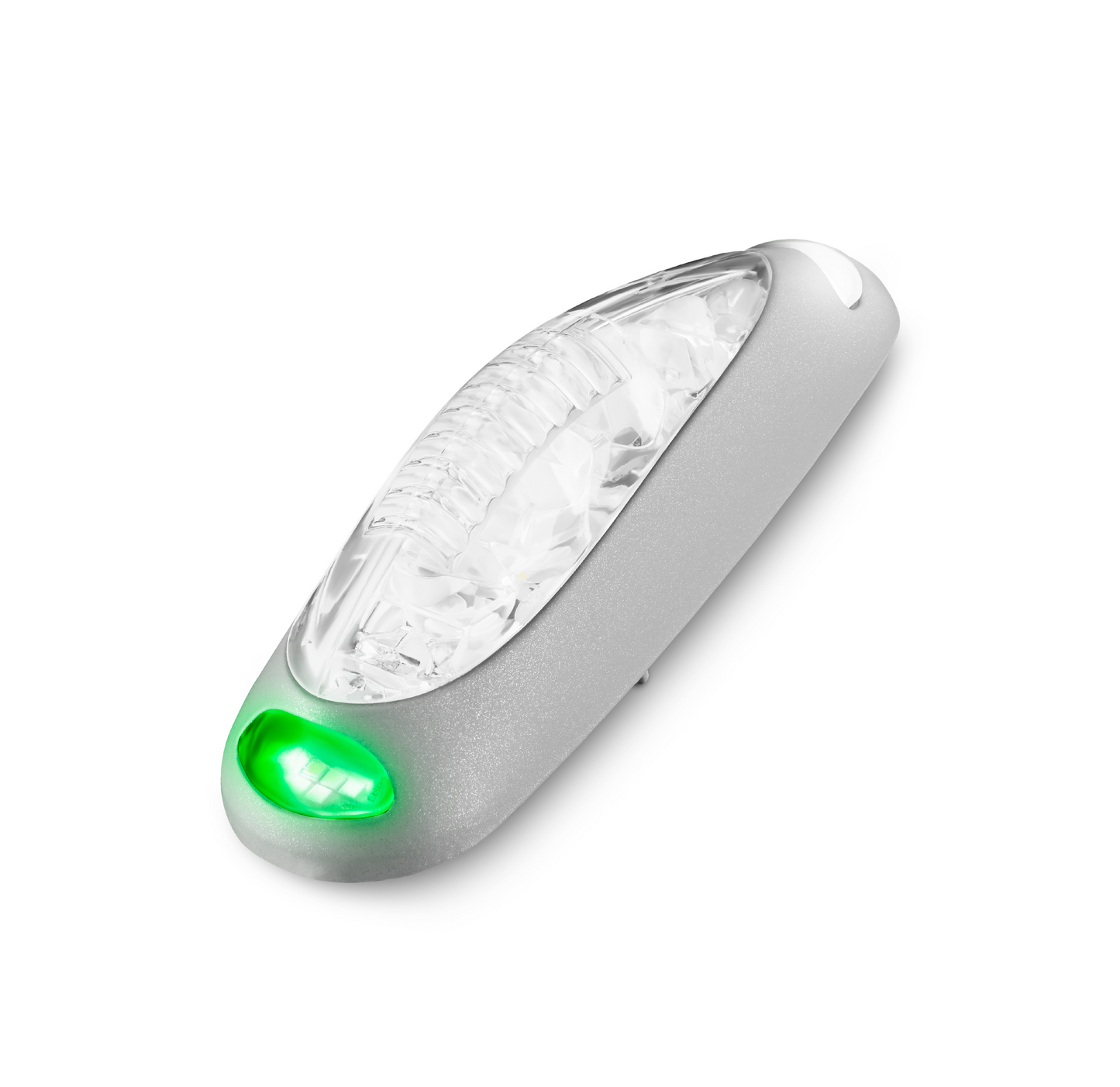

The NANO™ E redefines compact aviation lighting, delivering exceptional performance in our smallest footprint yet. Designed specifically for experimental aircraft, the NANO™ E offers up to three powerful lighting functions to enhance safety and visibility:

  • Position Light – Red and green directional lighting for clear navigation awareness.
  • Anti-Collision Strobe – Intense flashing for increased visibility during both daytime and nighttime operations.

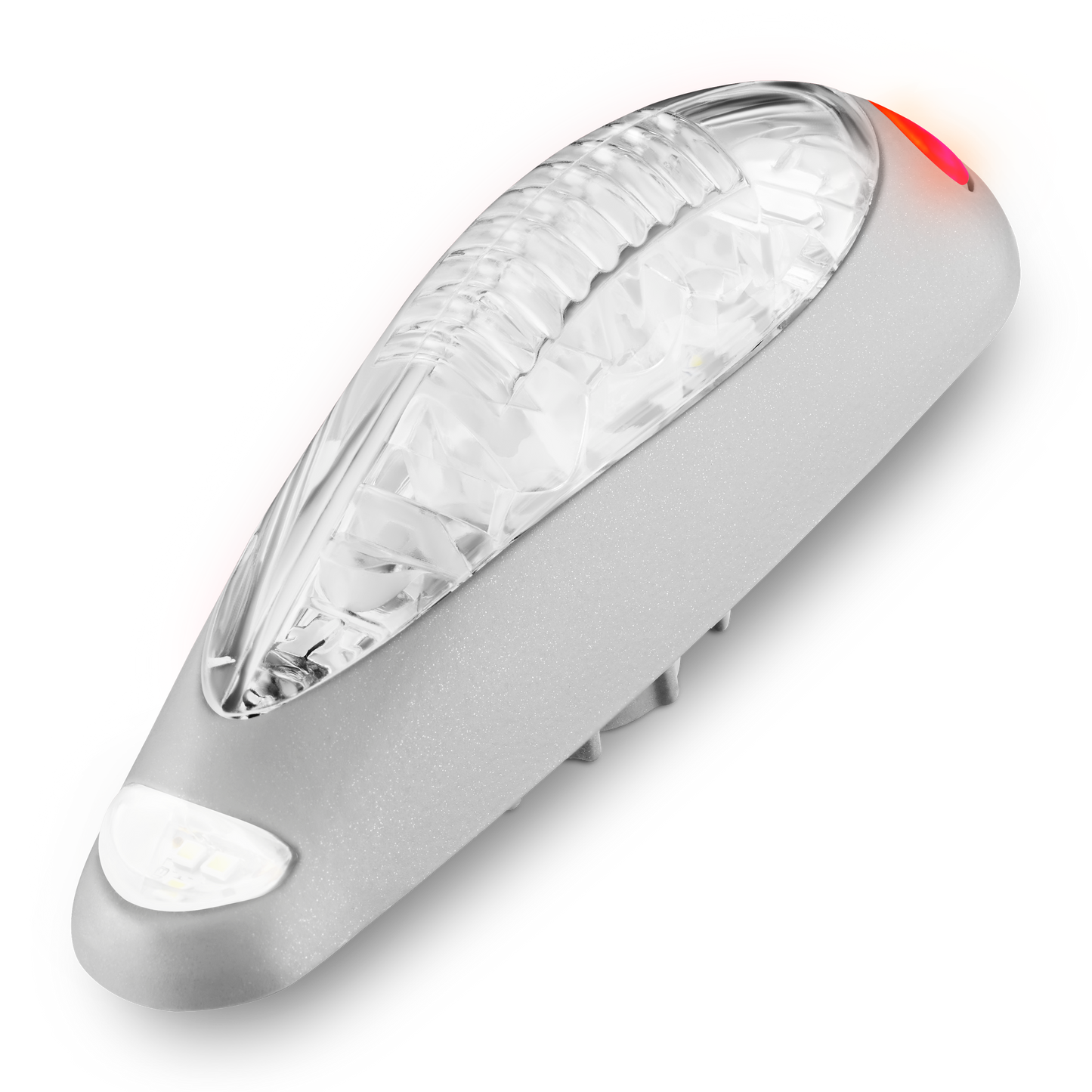

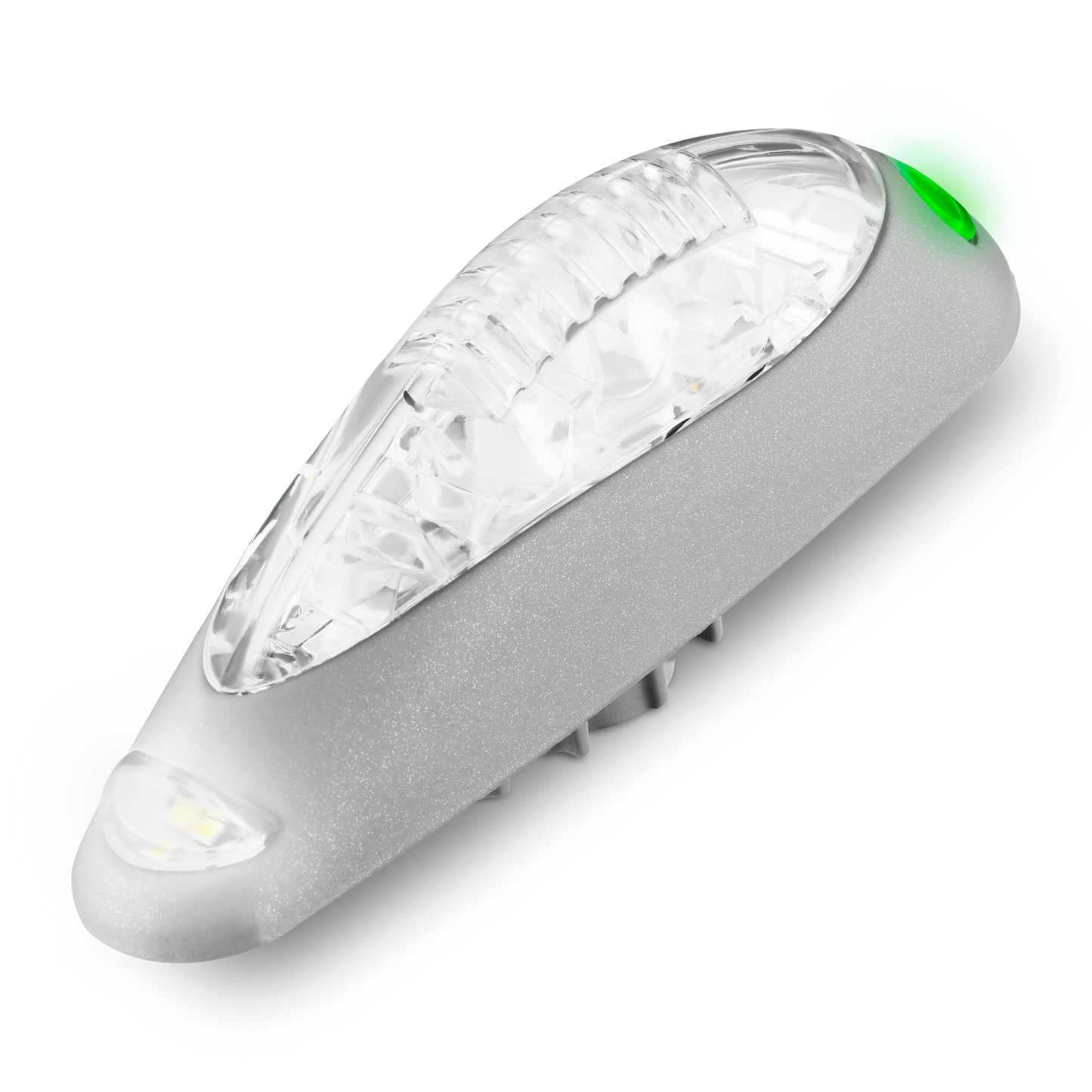

  • Optional Rear-Facing White Position Light – Adds an extra layer of recognition from behind for improved situational awareness.

Engineered with a low-drag, aerodynamic profile, the NANO™ E is built for quick and seamless installation and supports both 14V and 28V electrical systems.

Each light includes internal mount brackets, ideal for aircraft with removable wingtips and easy internal access. For aircraft requiring an external installation, external mount brackets are available for purchase separately.

Compact, powerful, and highly versatile, the NANO™ E is the perfect lighting solution for a wide range of experimental aircraft applications.

Part Numbers
Contact Reseller
View full details





EXPERIMENTAL - LED POSITION /ANTI-COLLISION WINGTIP LIGHTS

E-NSP



E-NS

Tech Specs

Documents

Video

  • Current Draw (ea):
    • 14VDC: Position Light: 0.8 Amps | Anti-Collision Light 0.7 Amps (Average) | 2.3 Amps (Peak)
    • 28VDC: Position Light: 0.46 Amps | Anti-Collision Light 0.275 Amps (Average) | 1 Amps (Peak)
  • Weight: 1.5 oz
  • Length: 3" Width: 1" Depth: .89"

All Listed Specifications above are per light

Model Part # Description Approvals
Nano E-NS 14V RED 01-1300-B-12-L

RED
EXPERIMENTAL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC.

  None
Nano E-NS 14V GREEN 01-1300-B-12-R
GREEN
EXPERIMENTAL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC.
  None
Nano E-NS 28V RED 01-1300-B-24-L
RED
EXPERIMENTAL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 28 VDC.
  None
Nano E-NS 28V GREEN 01-1300-B-24-R
GREEN
EXPERIMENTAL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 28 VDC..
  None
Nano E-NSP 14V RED 01-1300-C-12-L
RED
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
None
Nano E-NSP 14V GREEN 01-1300-C-12-R
GREEN
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
 None
Nano E-NSP 28V RED 01-1300-C-24-L
RED
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
None
Nano E-NSP 28V GREEN 01-1300-C-24-R
GREEN
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
None


Tech Specs

  • Current Draw (ea):
    • 14VDC: Position Light: 0.8 Amps | Anti-Collision Light 0.7 Amps (Average) | 2.3 Amps (Peak)
    • 28VDC: Position Light: 0.46 Amps | Anti-Collision Light 0.275 Amps (Average) | 1 Amps (Peak)
  • Weight: 1.5 oz
  • Length: 3" Width: 1" Depth: .89"

All Listed Specifications above are per light

Model Part # Description Approvals
Nano E-NS 14V RED 01-1300-B-12-L

RED
EXPERIMENTAL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC.

  None
Nano E-NS 14V GREEN 01-1300-B-12-R
GREEN
EXPERIMENTAL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC.
  None
Nano E-NS 28V RED 01-1300-B-24-L
RED
EXPERIMENTAL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 28 VDC.
  None
Nano E-NS 28V GREEN 01-1300-B-24-R
GREEN
EXPERIMENTAL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 28 VDC..
  None
Nano E-NSP 14V RED 01-1300-C-12-L
RED
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
None
Nano E-NSP 14V GREEN 01-1300-C-12-R
GREEN
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
 None
Nano E-NSP 28V RED 01-1300-C-24-L
RED
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
None
Nano E-NSP 28V GREEN 01-1300-C-24-R
GREEN
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
None

Documents

Video


WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit aeroleds.com/regulatory.

Product Data Sheet
