SUNTAIL CERTIFIED LED POSITION & ANTI-COLLISION TAIL LIGHT

SUNTAIL CERTIFIED LED POSITION & ANTI-COLLISION TAIL LIGHT

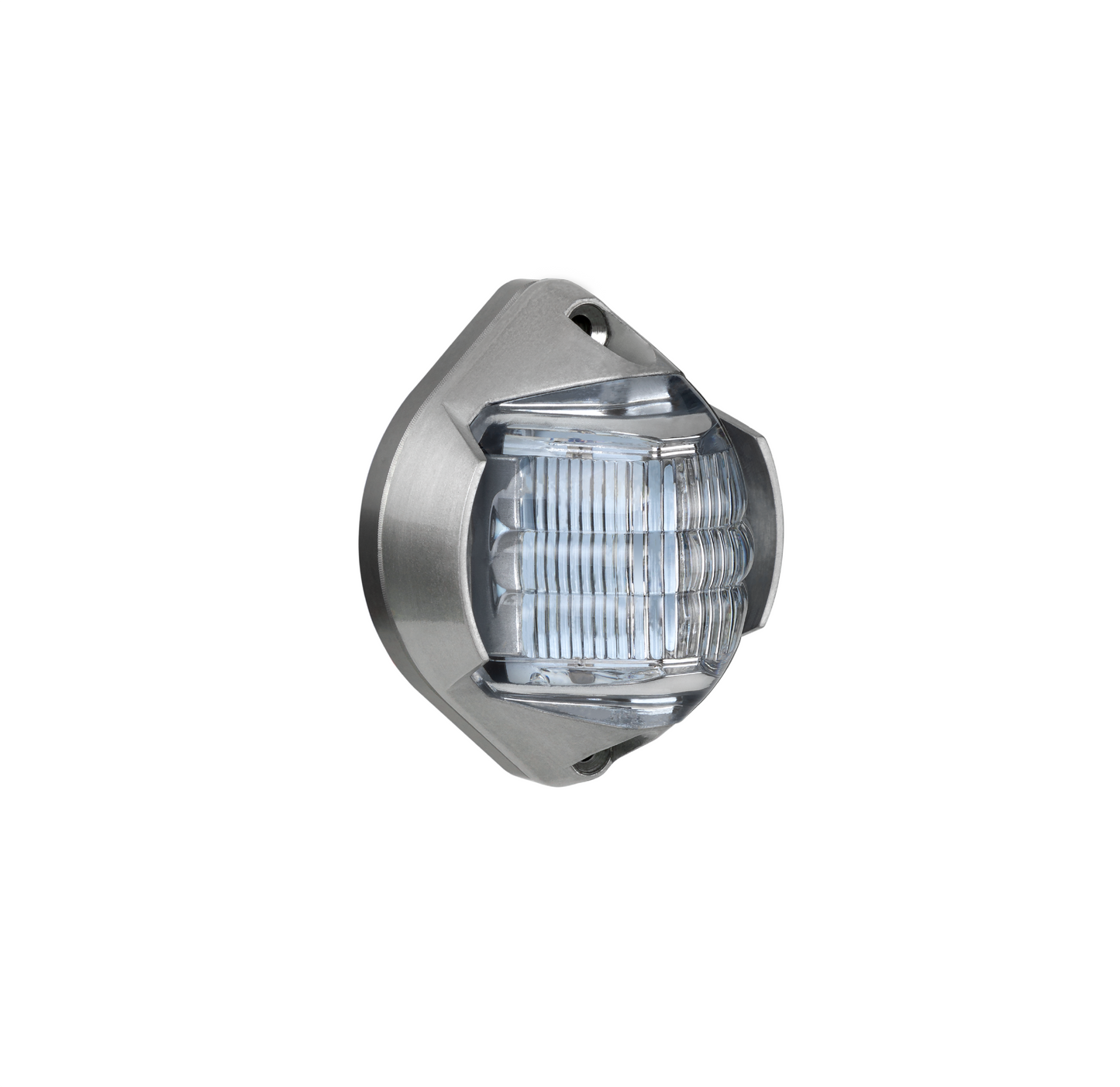

The SunTail is a high-performance LED light designed specifically for the tail of the aircraft, combining anti-collision strobe and position light functionality. It integrates seamlessly with other AeroLEDs products, offering strobe synchronization for enhanced visibility and safety.

Designed for easy installation, the SunTail features a horizontal mount that retrofits legacy lighting footprints without requiring an external power supply. The light meets and exceeds TSO-C30c Type III and TSO-C96a Class II standards, ensuring compliance and reliability.

Key Features:

  • Two-in-One Design: Anti-collision strobe and position light for tail installations.
  • Power Options: Compatible with 12V and 24V systems.
  • Energy Efficient: Low power consumption with no external power supply needed.
  • Strobe Synchronization: Seamlessly integrates with other AeroLEDs products.
  • Easy Installation: Simple drop-in replacement. Horizontal mount option available for purchase separately.
  • Certified for Safety: FAA-TSO/STC approved.

Part Numbers
Contact Reseller
View full details

CERTIFIED - LED POSITION & ANTI-COLLISION TAIL LIGHT

Tech Specs

Cross Reference Chart

Documents

Video

  • Current Draw :
    • 14VDC: Position Light: 0.4 Amps | Anti-Collision Light 0.52 Amps (Average) | 4.0 Amps (Peak)
    • 28VDC: Position Light: 0.2 Amps | Anti-Collision Light 0.26 Amps (Average) | 2.0 Amps (Peak)
  • Weight: 0.16 lbs.
  • Length: 2.2" Width: 1.7" Depth: 1.3"
Model Part # Description Approvals
SunTail - 14V 11-1260-12

CERTIFIED LED POSITION & ANTI-COLLISION TAIL LIGHT, 14 VDC
 FAA-TSOA/STC
SunTail - 28V 11-1260-24
CERTIFIED LED POSITION & ANTI-COLLISION TAIL LIGHT, 28 VDC
 FAA-TSOA/STC
Legacy Product Part Number Legacy Part Model Number SunTail Part Number SunTail  Model Number
01-0770024-00
 A500AV14
 11-1260-12
 SunTail - 14V
01-0770024-01 A500AV28
 11-1260-24
 SunTail - 28V
01-0770034-00 A555AV14 11-1260-12 SunTail - 14V
01-0770034-01 A555AV28 11-1260-24 SunTail - 28V

NOTE: Any highlighted RED ITEMS will require extra wiring for Anti-Collision function of the SunTail™ series.

Tech Specs

  • Current Draw :
    • 14VDC: Position Light: 0.4 Amps | Anti-Collision Light 0.52 Amps (Average) | 4.0 Amps (Peak)
    • 28VDC: Position Light: 0.2 Amps | Anti-Collision Light 0.26 Amps (Average) | 2.0 Amps (Peak)
  • Weight: 0.16 lbs.
  • Length: 2.2" Width: 1.7" Depth: 1.3"
Model Part # Description Approvals
SunTail - 14V 11-1260-12

CERTIFIED LED POSITION & ANTI-COLLISION TAIL LIGHT, 14 VDC
 FAA-TSOA/STC
SunTail - 28V 11-1260-24
CERTIFIED LED POSITION & ANTI-COLLISION TAIL LIGHT, 28 VDC
 FAA-TSOA/STC

Cross Reference Chart

Legacy Product Part Number Legacy Part Model Number SunTail Part Number SunTail  Model Number
01-0770024-00
 A500AV14
 11-1260-12
 SunTail - 14V
01-0770024-01 A500AV28
 11-1260-24
 SunTail - 28V
01-0770034-00 A555AV14 11-1260-12 SunTail - 14V
01-0770034-01 A555AV28 11-1260-24 SunTail - 28V

NOTE: Any highlighted RED ITEMS will require extra wiring for Anti-Collision function of the SunTail™ series.

Documents

Video

WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit aeroleds.com/regulatory.

Product Data Sheet
