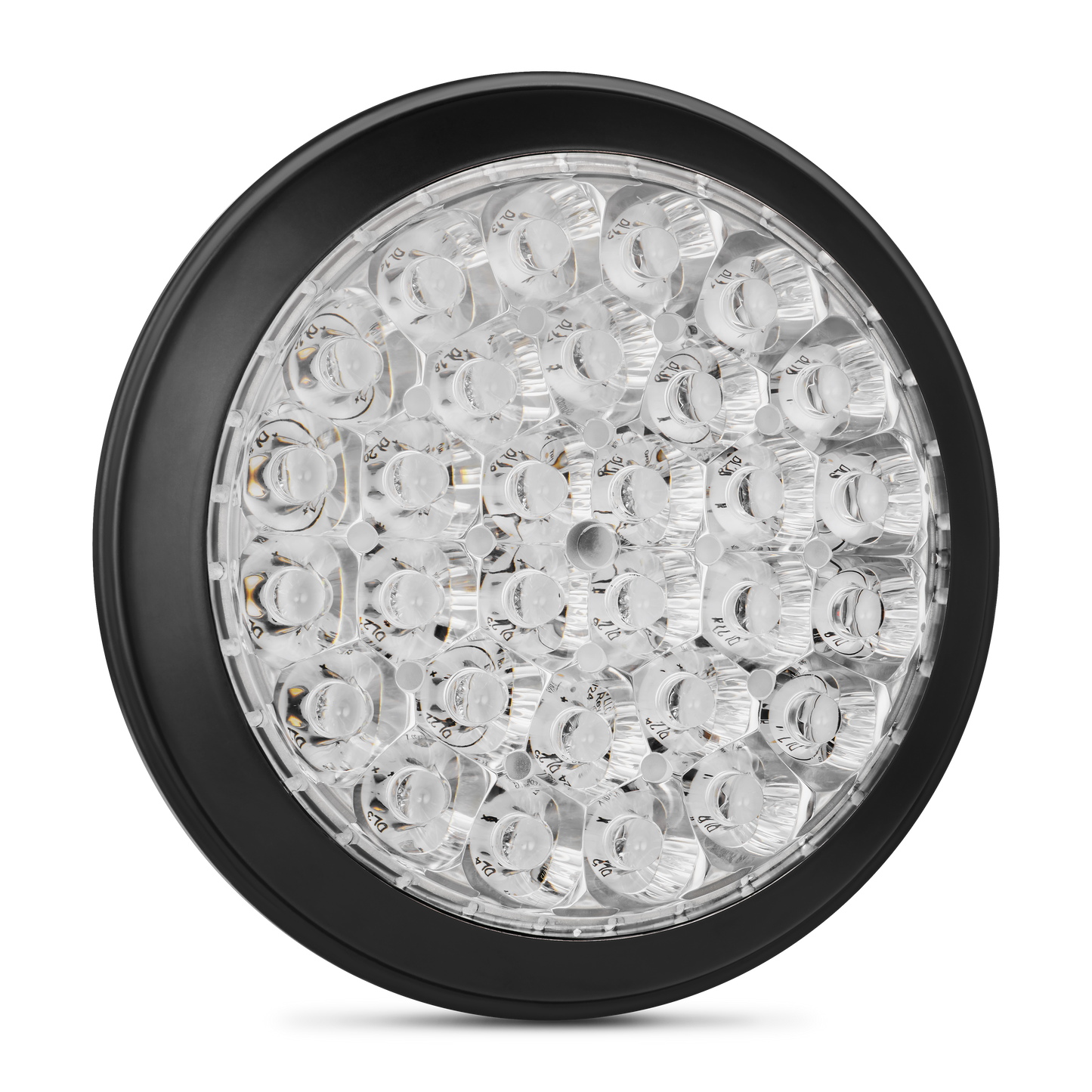

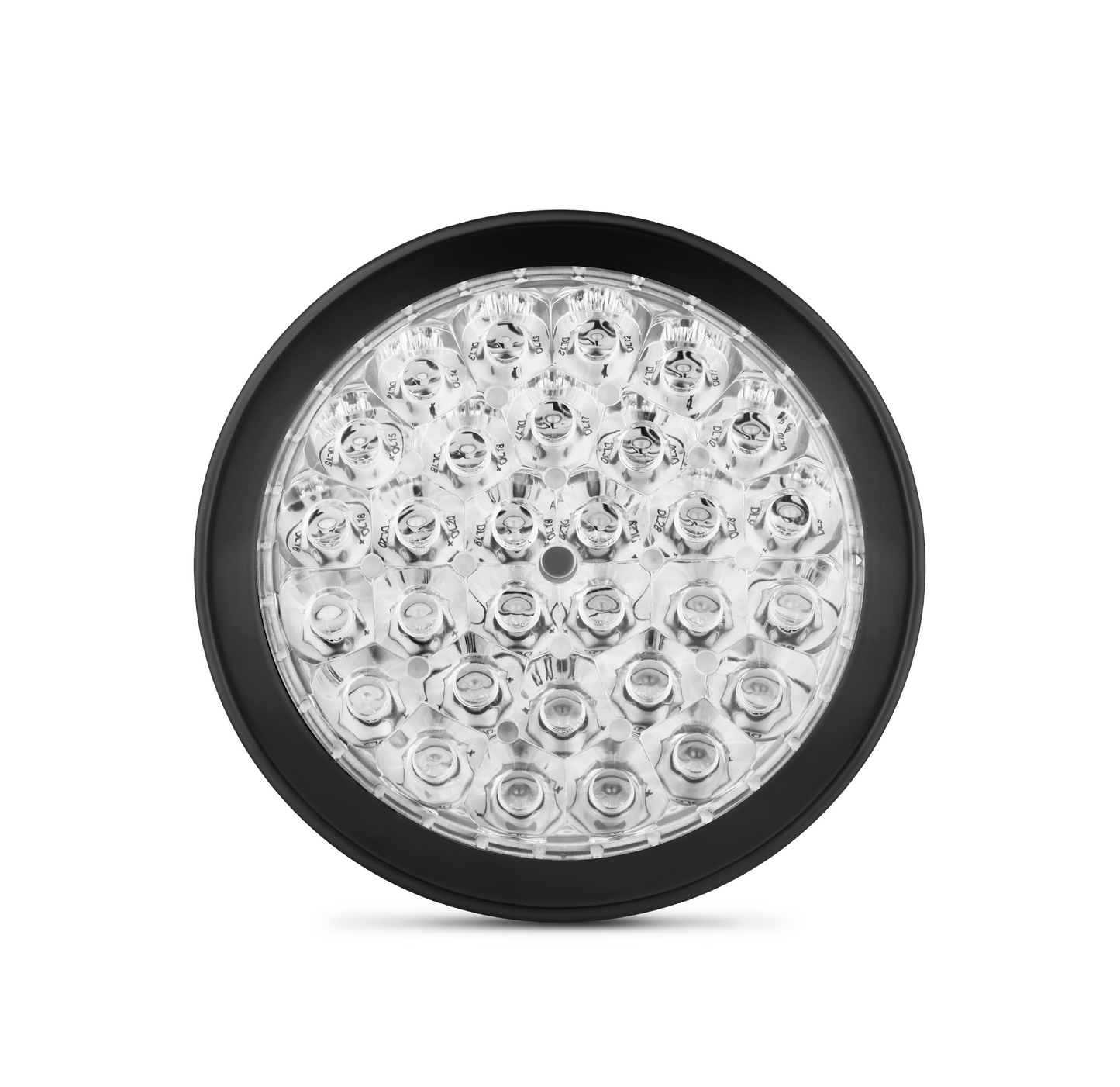

SUNSPOT 56-4000 LED Landing Light

SUNSPOT 56-4000 LED Landing Light

AeroLEDs SunSpot 56 Series offers industry-leading performance, significantly enhancing landing visibility and air recognition:

Landing Light: Produces superior illumination with enhanced ground visibility and air recognition from up to 30 miles away. The wider beam and aviation white color temperature provide exceptional color rendering, ensuring vivid, true-to-life illumination.

Designed for efficiency, the SunSpot 56 Series consumes less power, delivers more lumens, and is vibration-resistant, making it ideal for most aircraft. Installation is seamless with the standard PAR56 mounts and existing electrical connections.

-H Model Features:

  • Built-in Pulse (wig-wag) mode for enhanced recognition, aiding in collision avoidance and reducing bird strikes.
  • Self-contained pulse controller reduces electrical load by 50% in multi-light installations.
  • Optional synchronization for advanced operational capabilities.

Specifications:

  • Power Consumption: 175 watts max
  • Color Temperature: Aviation white for exceptional rendering
  • Lifespan: 30,000+ hours MTBF
  • Lens: UV-hardcoated polycarbonate

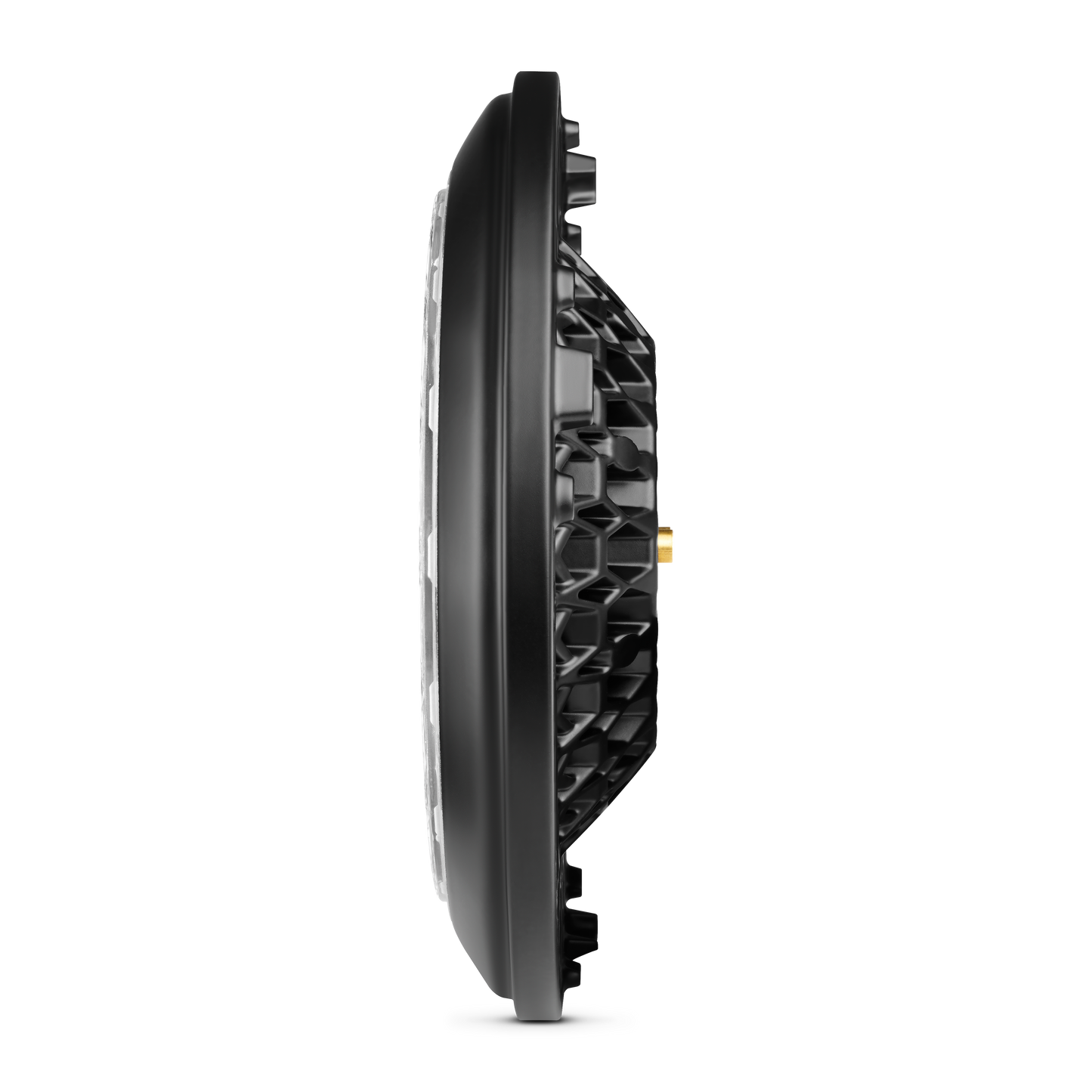

  • Construction: Aluminum with black powder-coated heat sink
  • Mounting: Standard PAR56 compatibility
  • Thermal Protection: Built-in for durability

Upgrade your aircraft lighting with the AeroLEDs SunSpot 56 Series for unparalleled visibility, safety, and efficiency.

Part Numbers
Contact Reseller
View full details

56-4000 Landing Light

Tech Specs

  • Max Current: 10.2A@14VDC, 6.3A@28VDC
  • Weight: 1.8 lbs.
  • Length: 6.9" Width: 6.9" Depth: 1.9"
Model Part # Description Candela Beam Profile Wigwag/Sync Approvals

56-4540

 01-2240-4540 PAR 56 LANDING LIGHT 14V.

180,000



 20ºx20º No None

56-4540-H

 01-2240-4540-H PAR 56 LANDING LIGHT WITH WIGWAG 14V.

180,000



 20ºx20º Yes None

56-4541

 01-2240-4541 PAR 56 LANDING LIGHT 28V.

250,000




 20ºx20º No None

56-4541-H

 01-2240-4541-H PAR 56 LANDING LIGHT WITH WIGWAG 28V.

250,000




 20ºx20º Yes None

Tech Specs

  • Max Current: 10.2A@14VDC, 6.3A@28VDC
  • Weight: 1.8 lbs.
  • Length: 6.9" Width: 6.9" Depth: 1.9"
Model Part # Description Candela Beam Profile Wigwag/Sync Approvals

56-4540

 01-2240-4540 PAR 56 LANDING LIGHT 14V.

180,000



 20ºx20º No None

56-4540-H

 01-2240-4540-H PAR 56 LANDING LIGHT WITH WIGWAG 14V.

180,000



 20ºx20º Yes None

56-4541

 01-2240-4541 PAR 56 LANDING LIGHT 28V.

250,000




 20ºx20º No None

56-4541-H

 01-2240-4541-H PAR 56 LANDING LIGHT WITH WIGWAG 28V.

250,000




 20ºx20º Yes None
