SUNSPOT 46-4000 LED Landing & Taxi Light

SUNSPOT 46-4000 LED Landing & Taxi Light

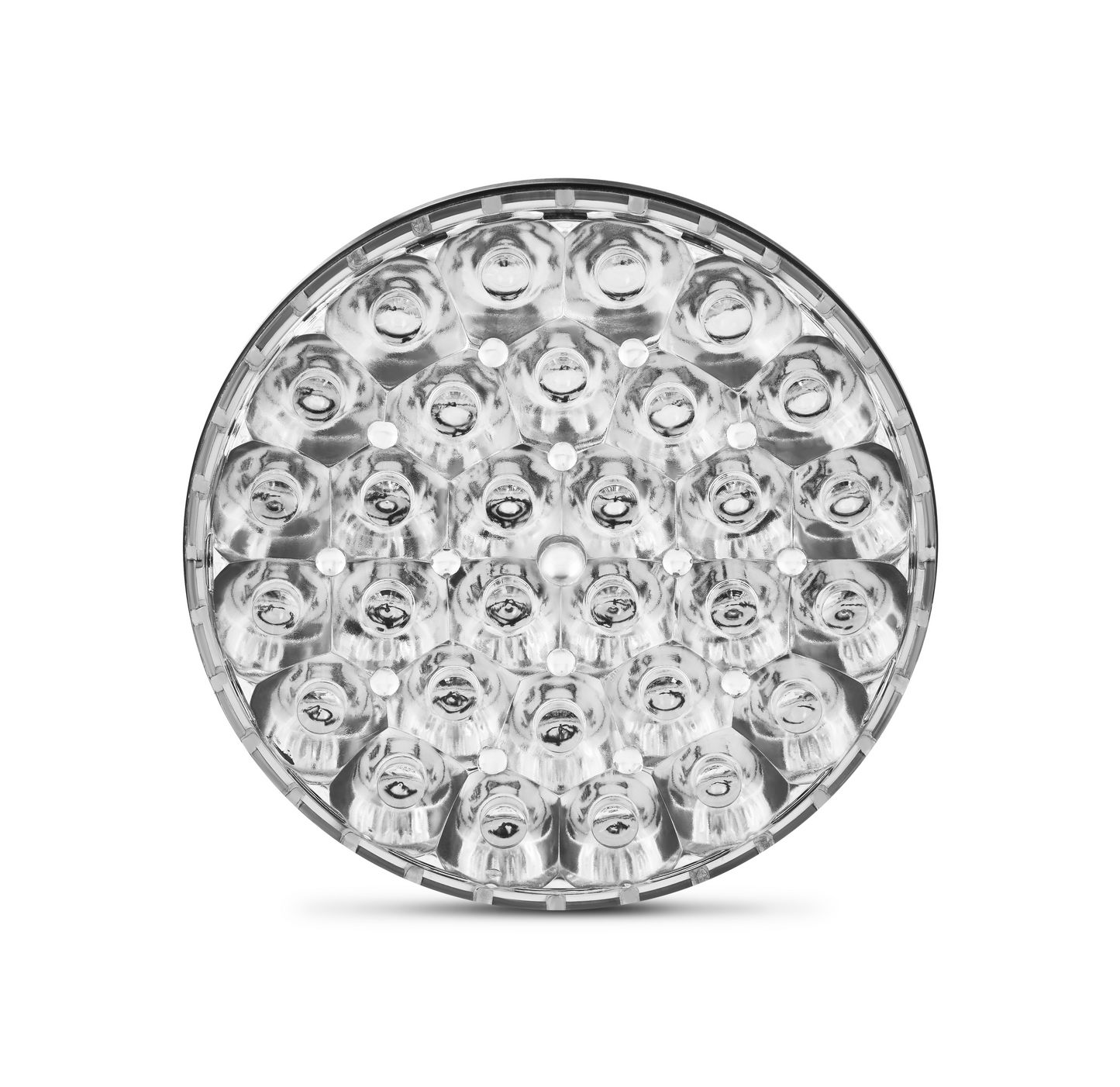

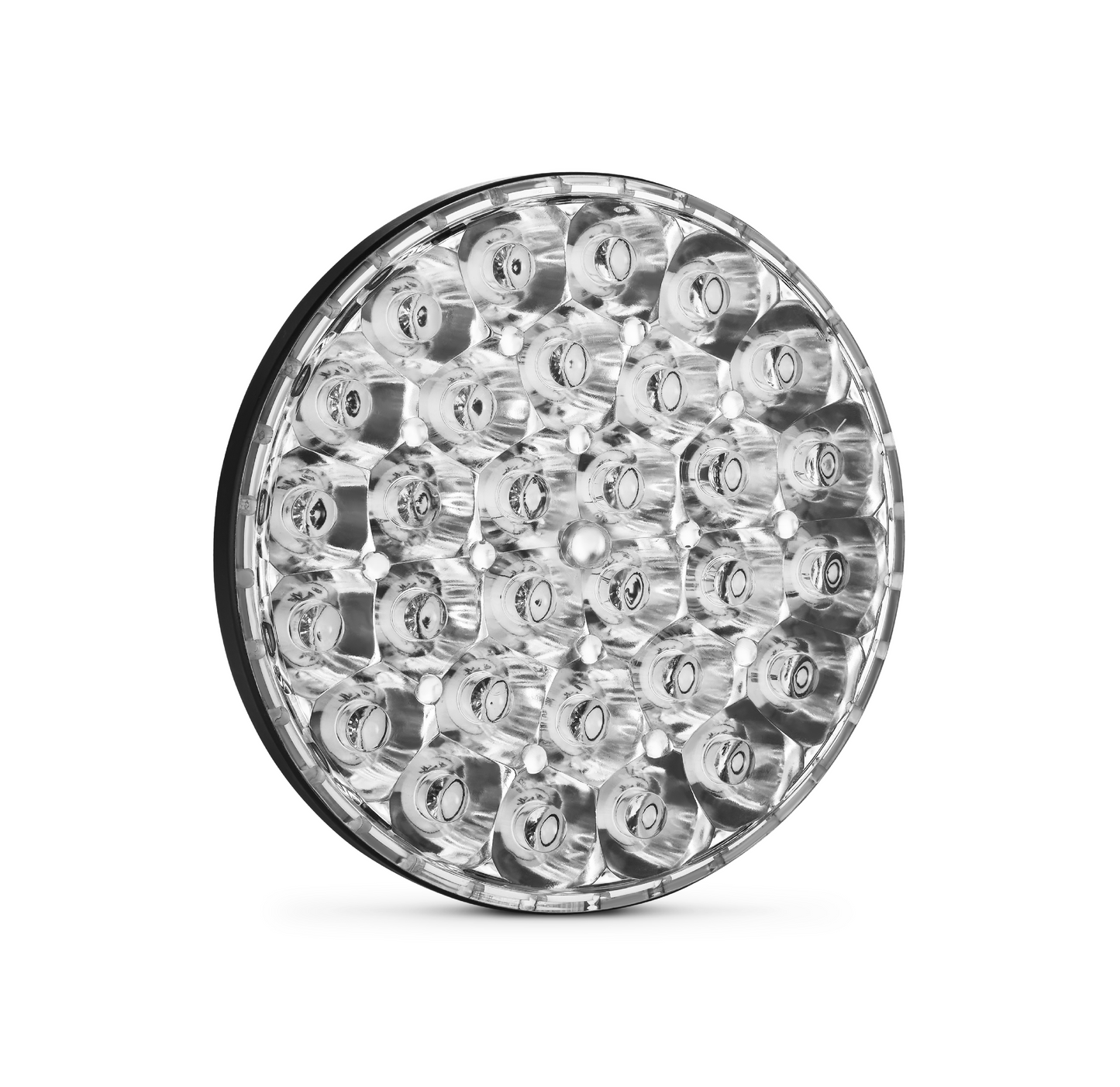

AeroLEDs SunSpot 46  sets the industry standard for high-performance landing and taxi lights:

  • Landing Light:  230,000+ Candela, 20ºx20º Broad aviation-white beam with vivid, true-to-life color rendering for improved visibility and safety.
  • Taxi Light: 100,000 Candela, 20°x40° beam for exceptional ground visibility and air recognition up to 30 miles.

These lights consume less power, resist vibrations, and integrate seamlessly with existing PAR46 mounts for easy installation.

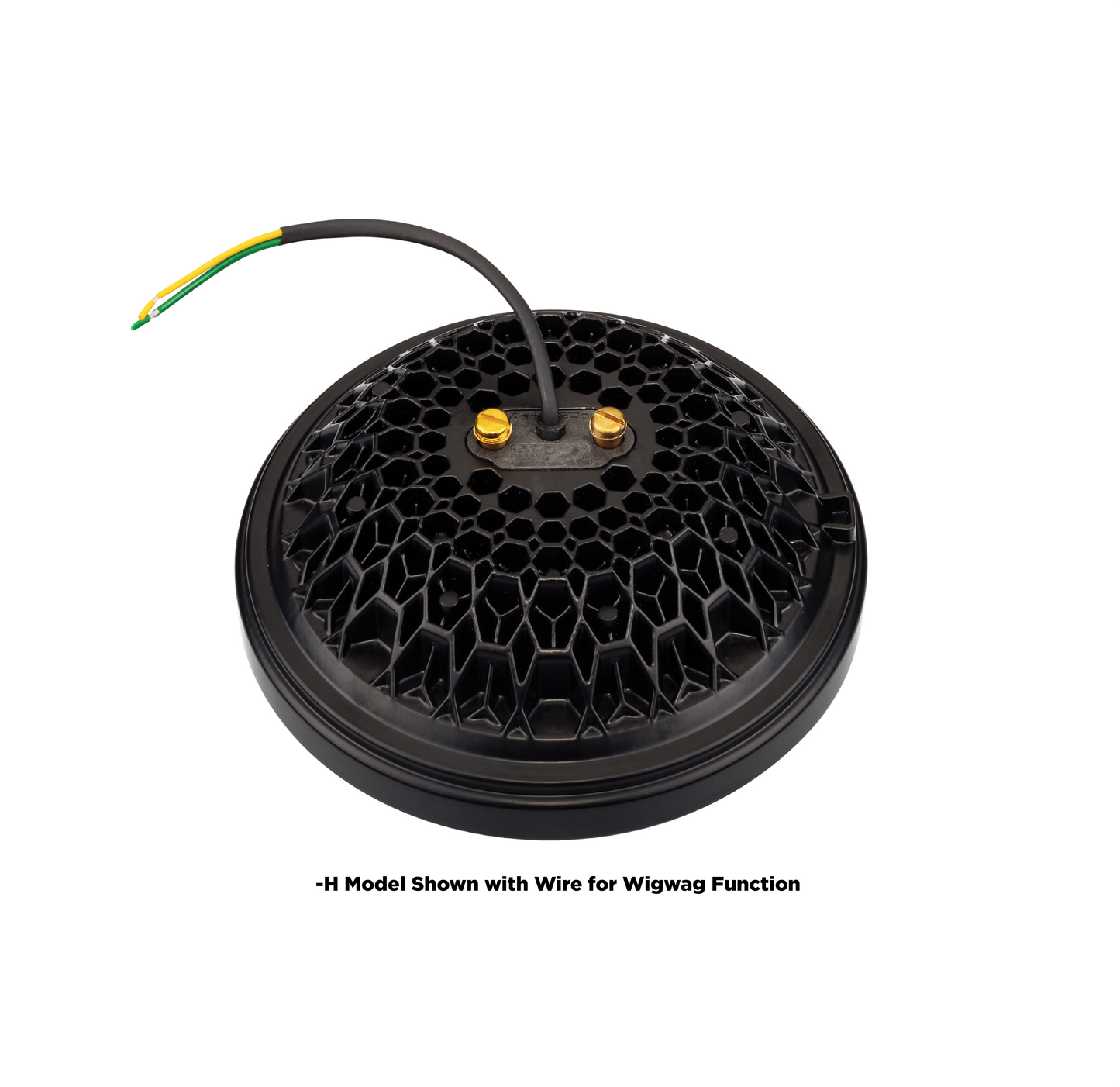

-H Model Features:

  • Built-in Pulse (wig-wag) mode for enhanced recognition and collision avoidance.
  • Reduces electrical load by 50% in multi-light installations.

Specifications:

  • Power Consumption: 175 watts max
  • Lifespan: 30,000+ hours MTBF
  • Lens: UV-hardcoated polycarbonate

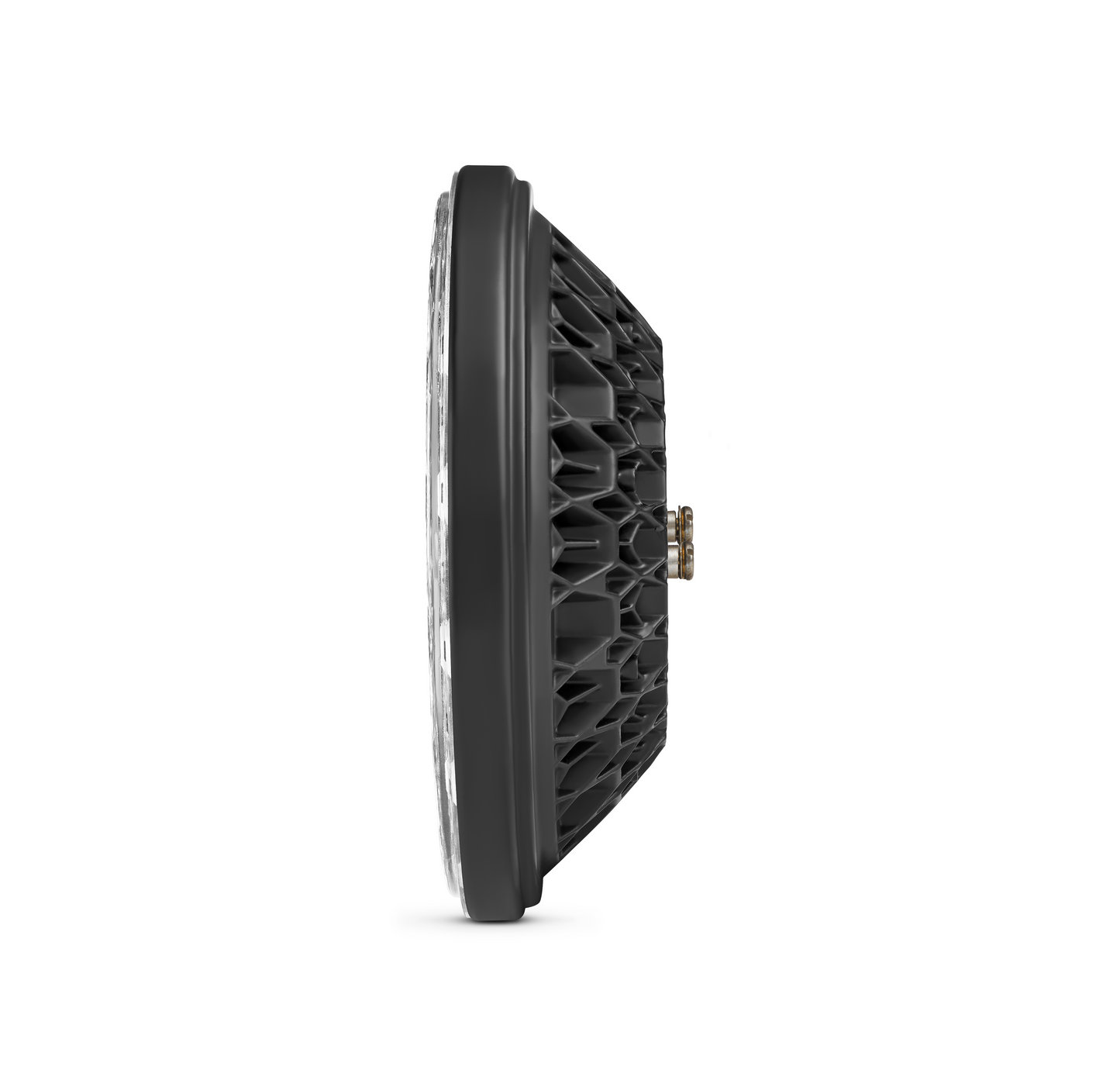

  • Construction: Aluminum, black powder-coated heat sink
  • Approvals: FAA-PMA/STC certified

Upgrade to SunSpot 46 Series for unmatched performance, reliability, and safety in all lighting conditions.

Part Numbers
Contact Reseller
View full details

46-4000 Landing & Taxi Lights

Tech Specs

Documents

  • Max Current: Landing Lights: 10.2A@14VDC, 6.3A@28VDC Taxi Lights:  6.3A@28VDC
  • Weight: 0.7 lbs.
  • Length: 5.6" Width: 5.6" Depth: 1.9"
Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals
46-4522 01-2230-4522 PAR 46 LANDING LIGHT 14V.

CANDELA: 230,000

LUMENS: 15,400

 20ºx20º No FAA-PMA/STC
46-4522-H 01-2230-4522-H PAR 46 LANDING LIGHT WITH WIGWAG 14V.

CANDELA: 230,000

LUMENS: 15,400

 20ºx20º Yes FAA-PMA/STC

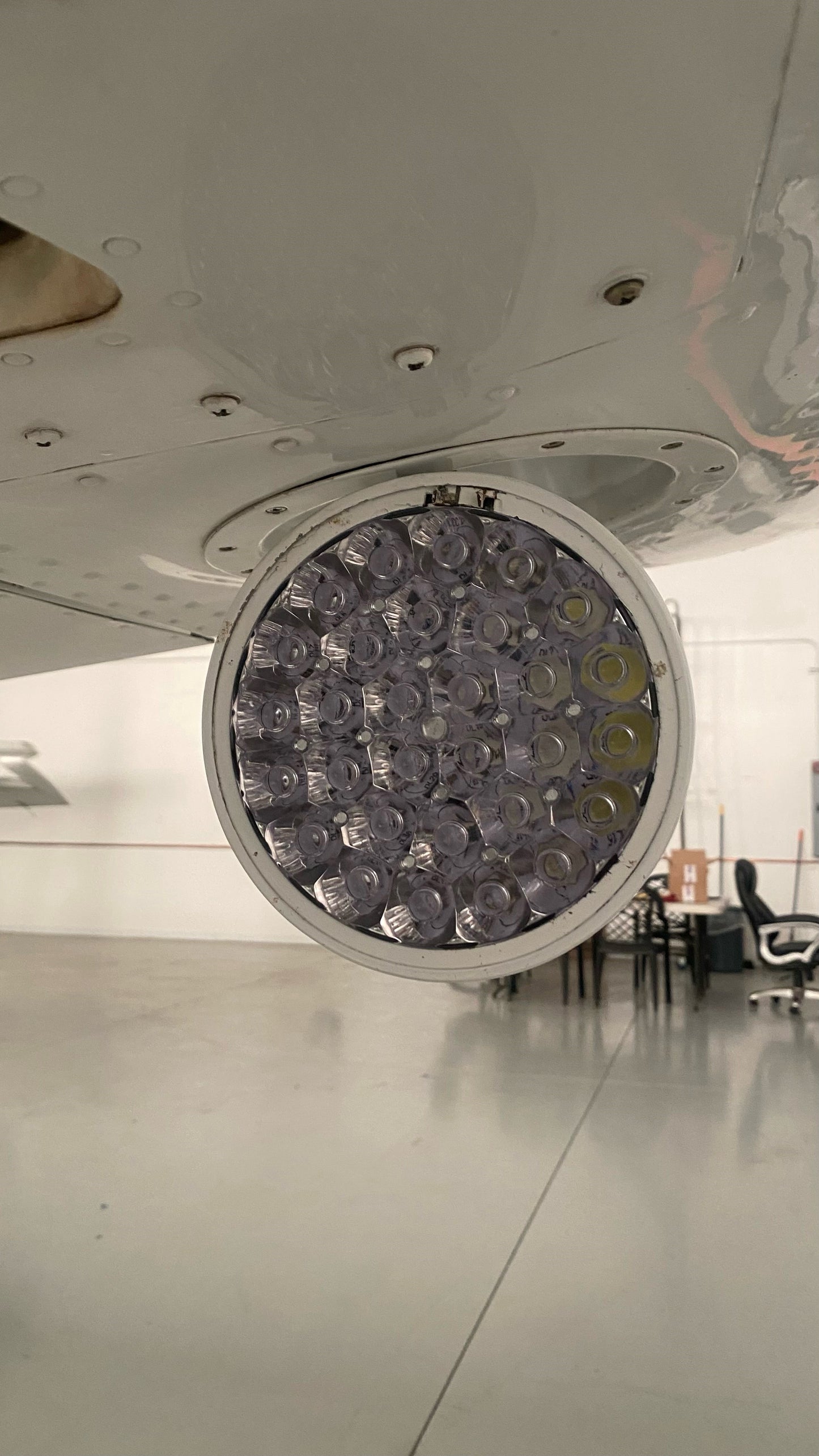

46-4580 01-2230-4580 PAR 46 LANDING LIGHT 28V.

CANDELA: 325,000

LUMENS: 20,000

 20ºx20º No FAA-PMA/STC
46-4580-H 01-2230-4580-H PAR 46 LANDING LIGHT WITH WIGWAG 28V.

CANDELA: 325,000

LUMENS: 20,000

 20ºx20º Yes FAA-PMA/STC

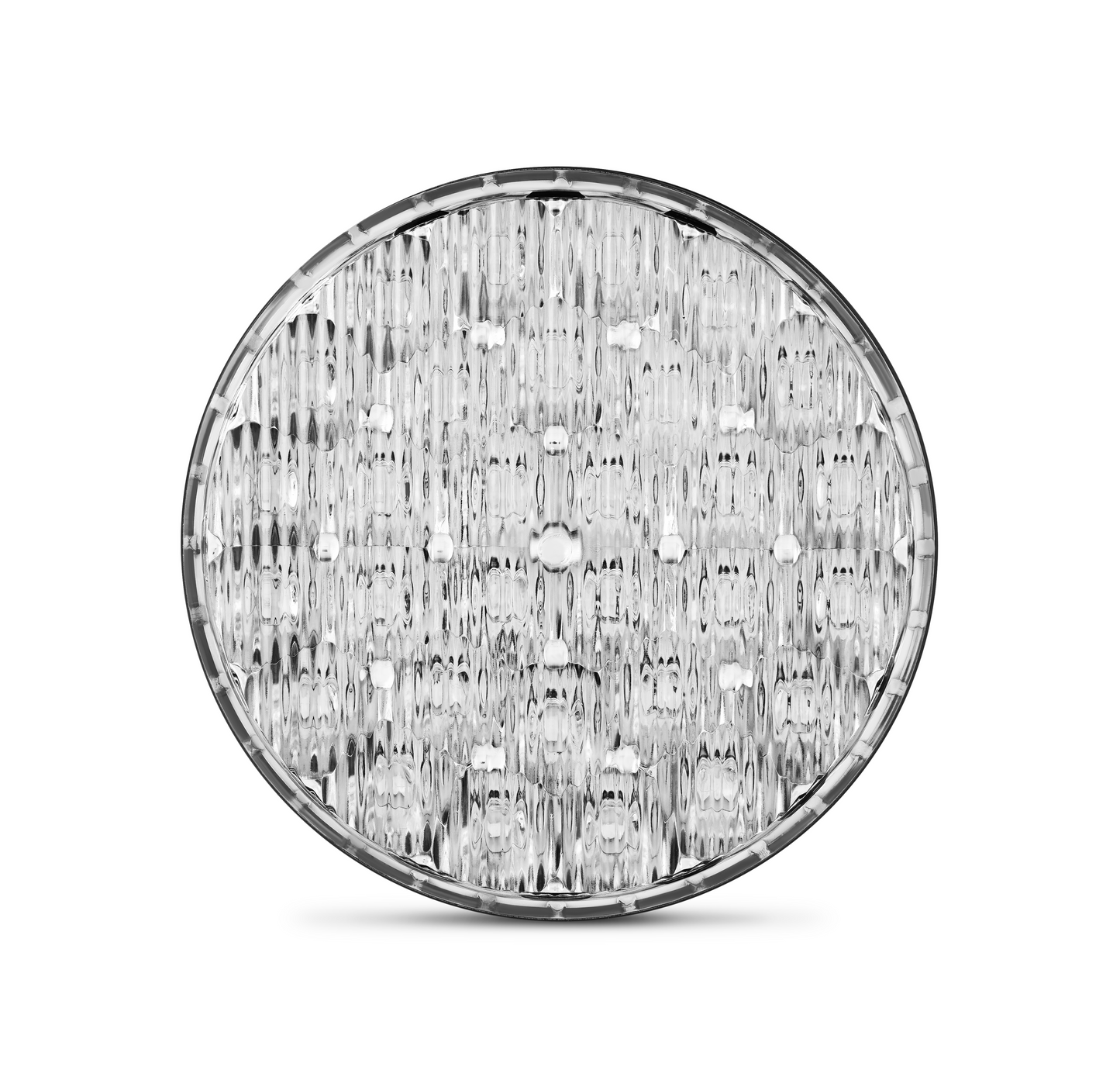

46-4554 Taxi 01-2230-4554 PAR 46 TAXI LIGHT 28V.

CANDELA: 100,000

LUMENS: 20,000

 20ºX40º No FAA-PMA/STC
46-4554-H Taxi 01-2230-4554-H PAR 46 TAXI LIGHT WITH WIGWAG 28V.

CANDELA: 100,000

LUMENS: 20,000

 20ºX40º Yes FAA-PMA/STC

Tech Specs

  • Max Current: Landing Lights: 10.2A@14VDC, 6.3A@28VDC Taxi Lights:  6.3A@28VDC
  • Weight: 0.7 lbs.
  • Length: 5.6" Width: 5.6" Depth: 1.9"
Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals
46-4522 01-2230-4522 PAR 46 LANDING LIGHT 14V.

CANDELA: 230,000

LUMENS: 15,400

 20ºx20º No FAA-PMA/STC
46-4522-H 01-2230-4522-H PAR 46 LANDING LIGHT WITH WIGWAG 14V.

CANDELA: 230,000

LUMENS: 15,400

 20ºx20º Yes FAA-PMA/STC
46-4580 01-2230-4580 PAR 46 LANDING LIGHT 28V.

CANDELA: 325,000

LUMENS: 20,000

 20ºx20º No FAA-PMA/STC
46-4580-H 01-2230-4580-H PAR 46 LANDING LIGHT WITH WIGWAG 28V.

CANDELA: 325,000

LUMENS: 20,000

 20ºx20º Yes FAA-PMA/STC
46-4554 Taxi 01-2230-4554 PAR 46 TAXI LIGHT 28V.

CANDELA: 100,000

LUMENS: 20,000

 20ºX40º No FAA-PMA/STC
46-4554-H Taxi 01-2230-4554-H PAR 46 TAXI LIGHT WITH WIGWAG 28V.

CANDELA: 100,000

LUMENS: 20,000

 20ºX40º Yes FAA-PMA/STC


Documents
