Important Update
As part of our efforts to streamline our offerings, we will be discontinuing this product, effective January 1, 2025.
In place of this product, we will be offering the Whelen Aerospace Technologies Parmetheus™ G3 Series at a comparable price point, along with alternative AeroLEDs high-powered lighting options.
| Replacement Product | Replacement PN (12V) | Replacement PN (24V) |
| Parmetheus G3 PAR 36 Landing Light | 01-0772102-10 | 01-0772102-10 |
| SunSpot 36-4000 (75W) Landing Light | 01-1030-4509 | 01-1030-4591 |

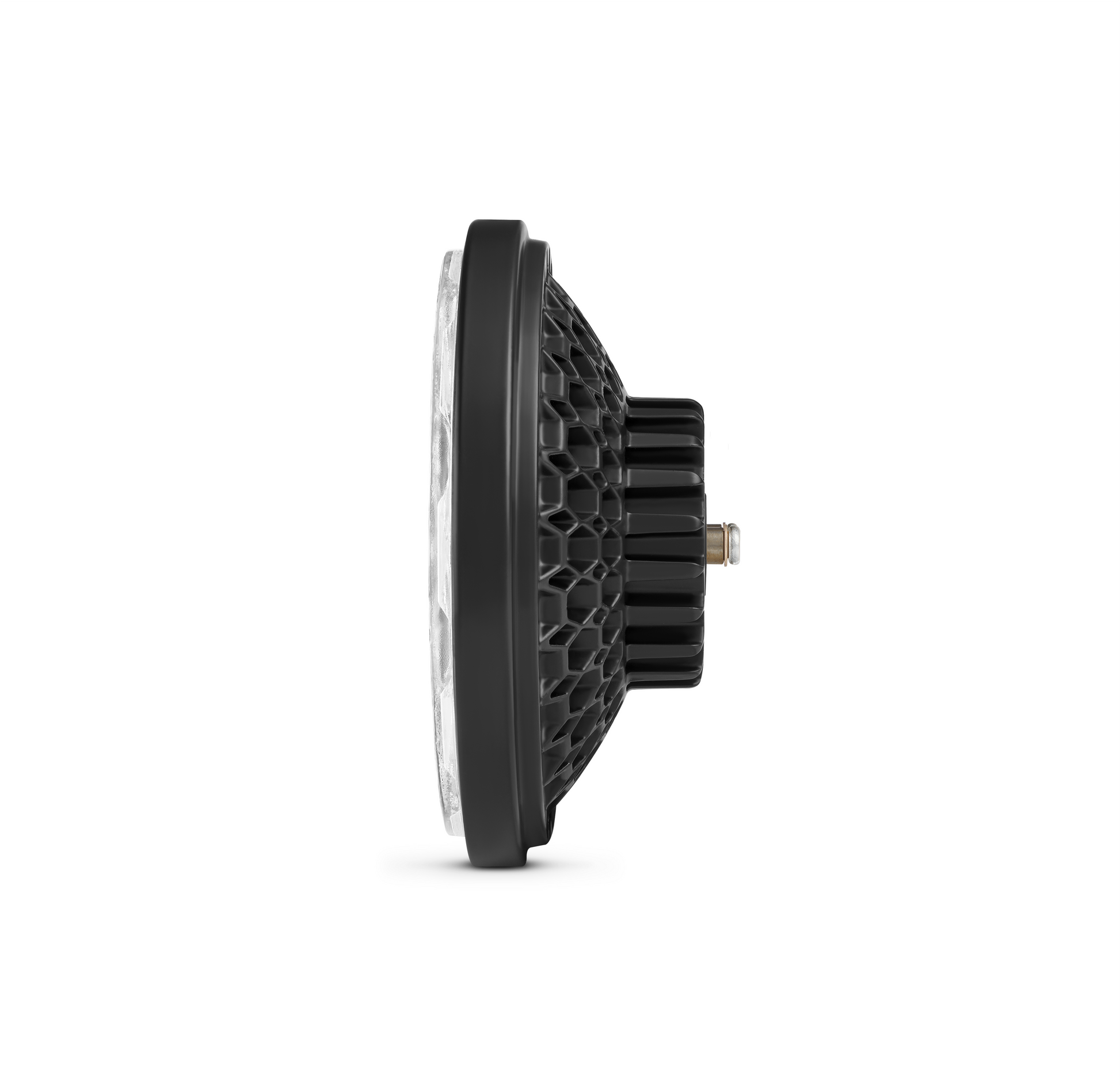

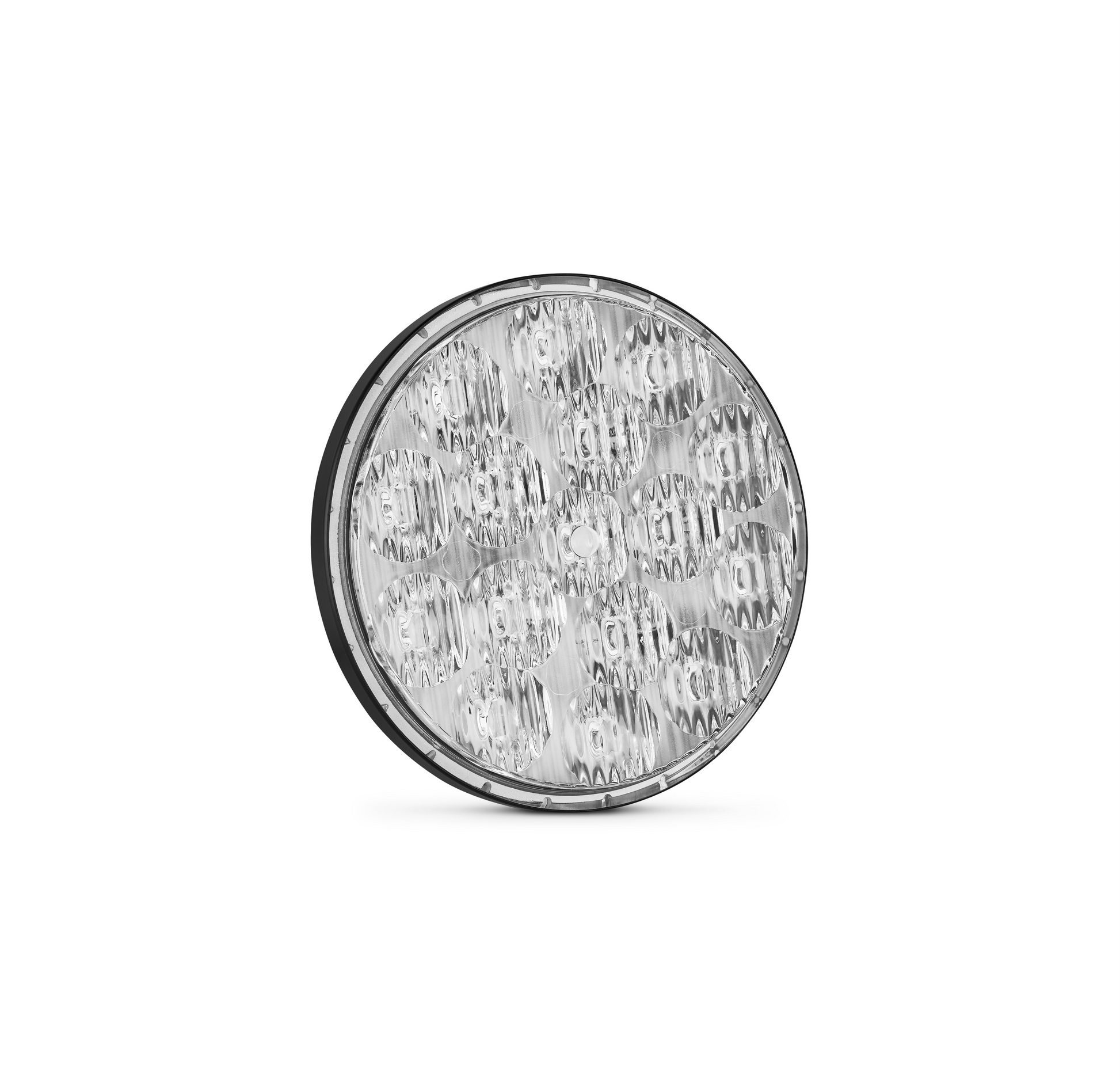

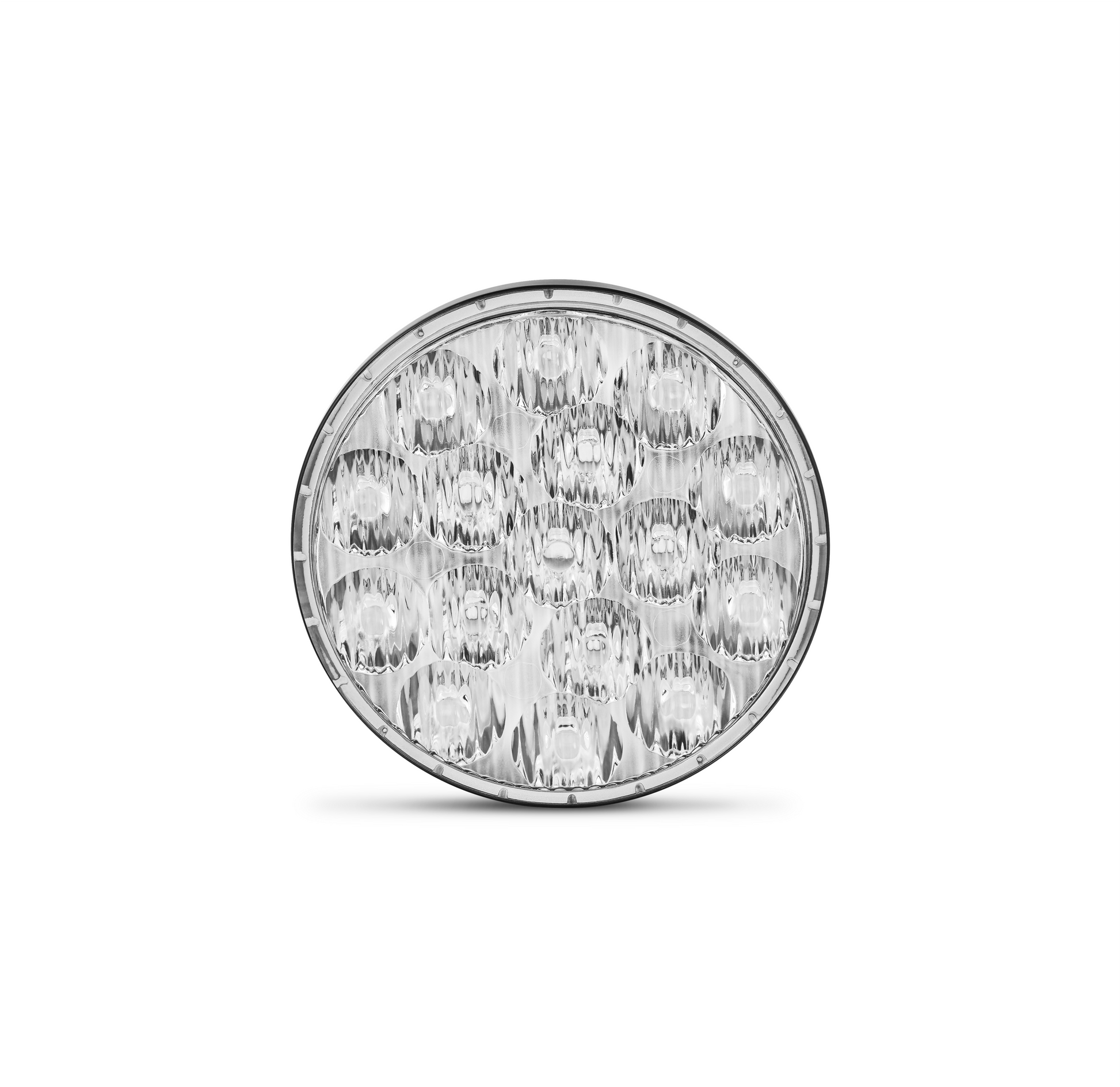

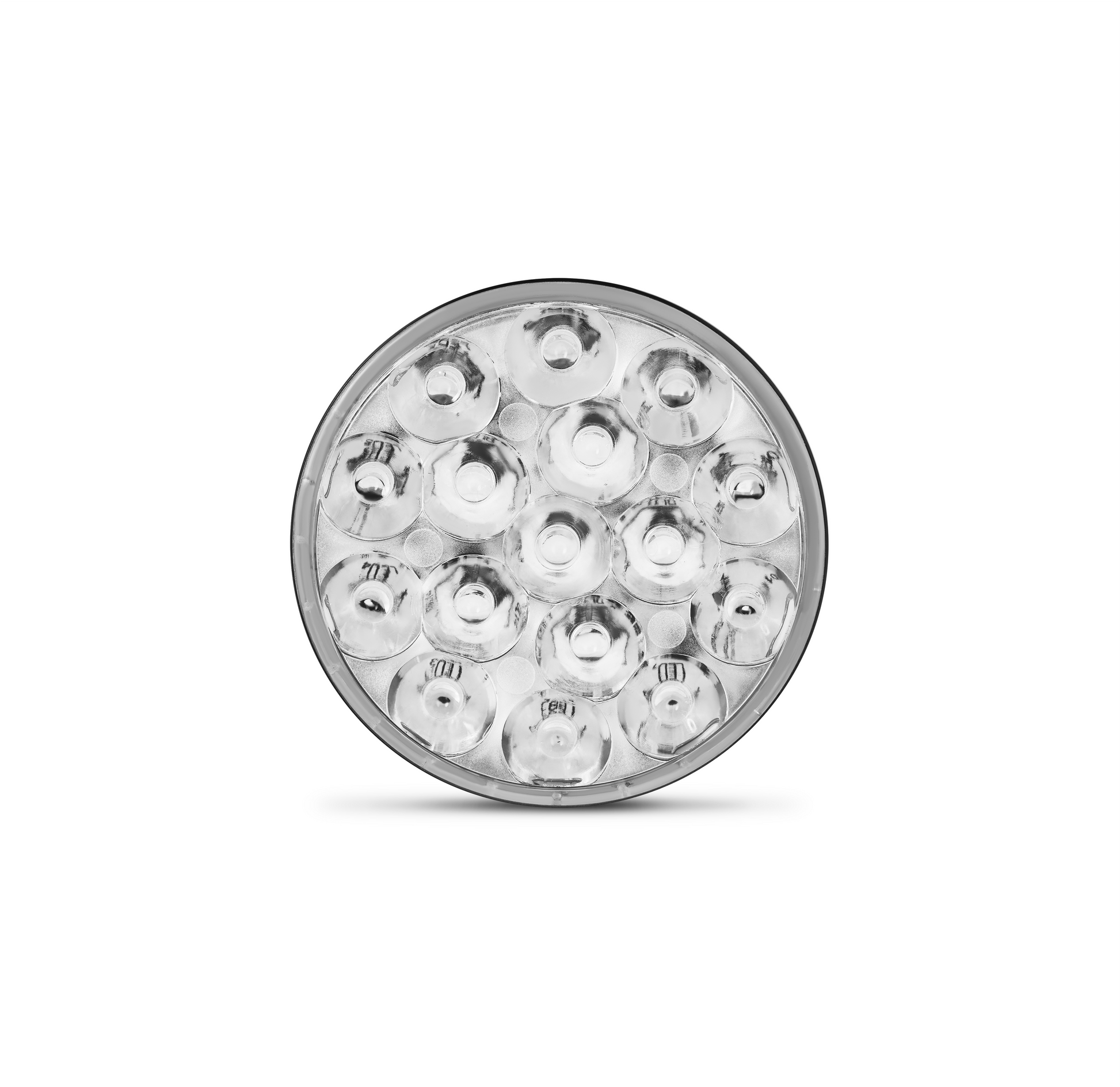

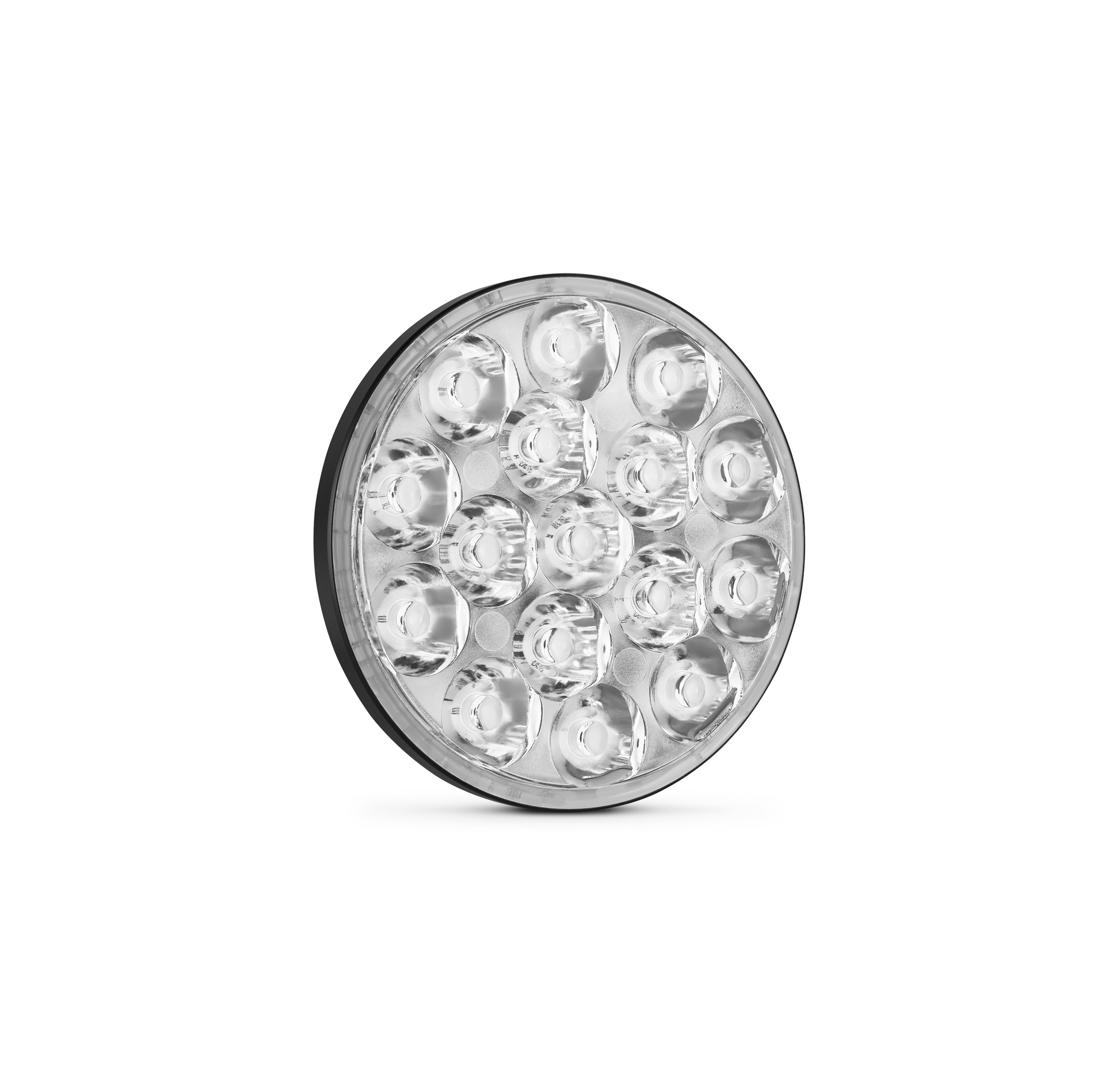

SunSpot 36 LXi is a new optimized version of our long-trusted SunSpot 36 LX Landing light. This economically priced light adds to our vastly expanded PAR36 lighting offerings, making LED lighting technology available to pilots with an array of budget options.
SunSpot 36 LXi boasts 2X the candela, and continues to provide the same key features that come standard with the SunSpot Series: Less power draw, more light output, unaffected by vibrations compared to incandescent bulbs.
The SunSpot 36 replacement LED’s utilize the existing PAR36 mount and electrical connections for ease of installation.
- Power consumption: 45W watts max
- Color – aviation white for exceptional color rendering
- Standard PAR 36 Mount
- 30k hr. MTBF
- Built-in thermal protection
- Aluminum/black powder coated heat sink
- UV hardcoated polycarbonate lens
- Approvals: FAA-PMA/STC
SunSpot 36 LXi (45W) Technical Specifications
| SunSpot 36 LXi | |
|---|---|
| Part Number | 01-1030-L-A (discontinued) |
| Voltage | 9-30 |
| Current | 3.5A @ 14VDC |
| Power | 45W |
| Lumens | 5,000 |
| Candela | 140,000 |
| Beam Profile | 14° x 14° |
| Length | 4.4" |
| Width | 4.4" |
| Depth | 2.0" |
| Weight | 11.2oz |
