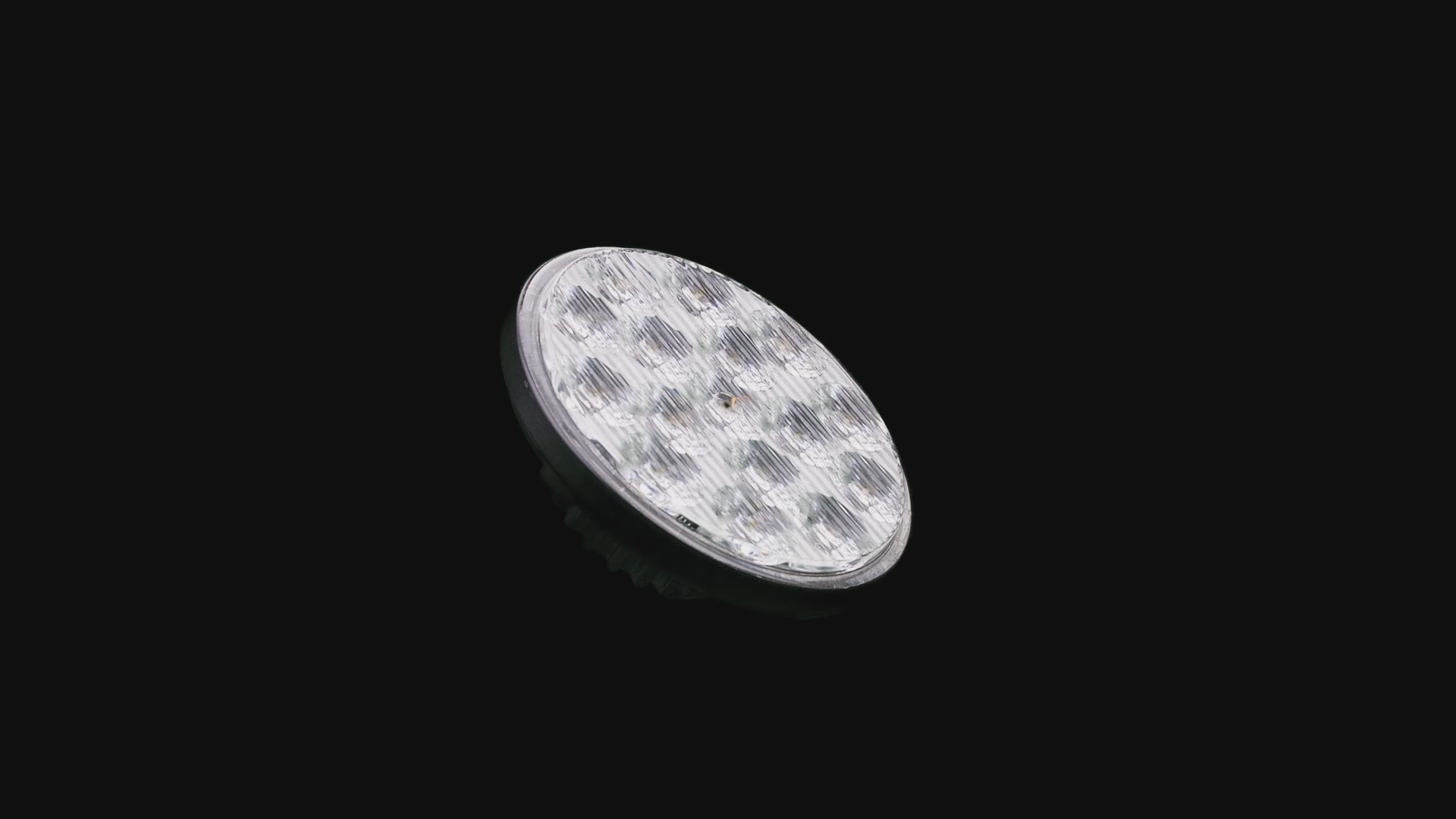

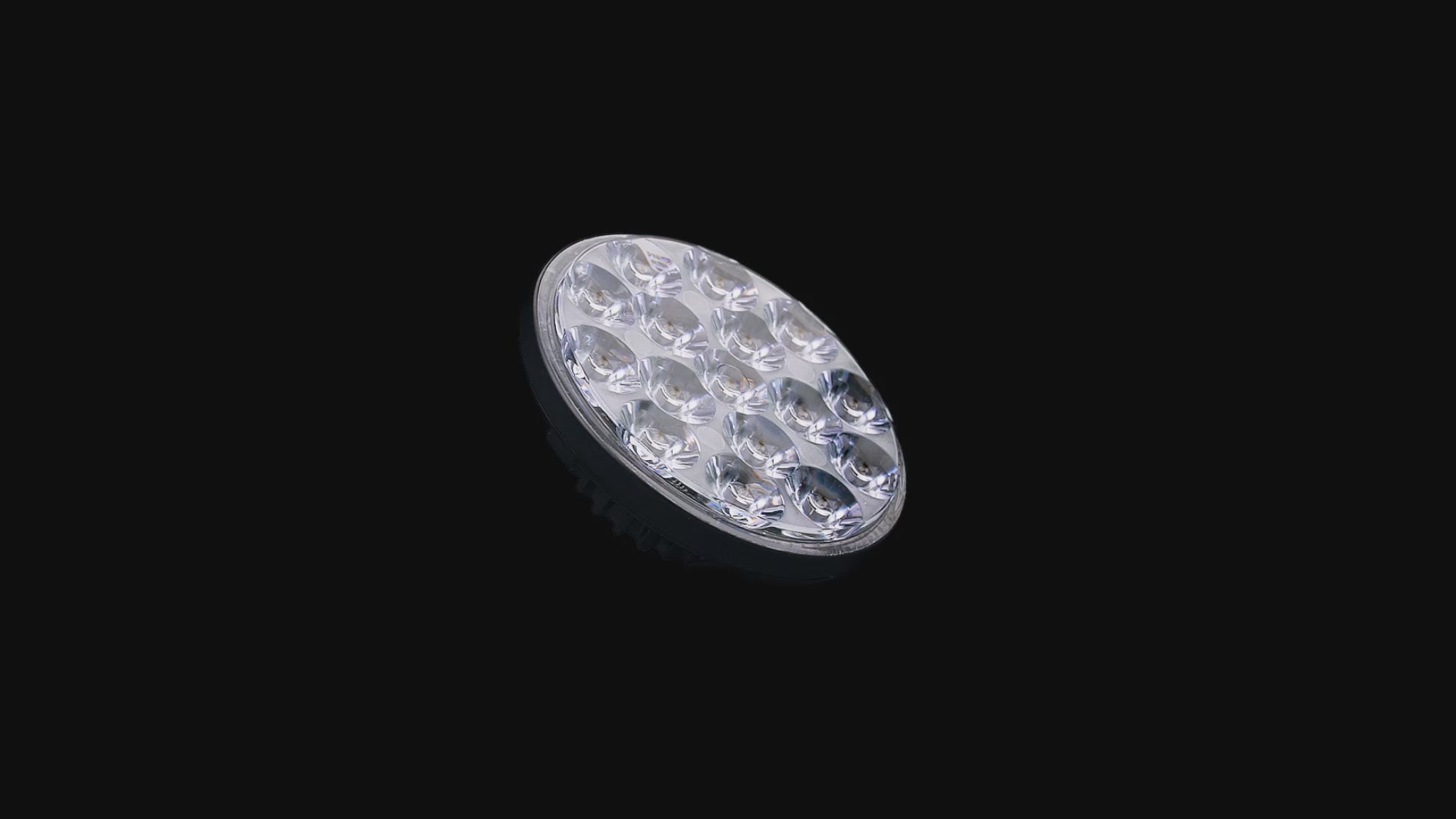

SUNSPOT 36-4000 (75W) LED Landing & Taxi Light

SUNSPOT 36-4000 (75W) LED Landing & Taxi Light

AeroLEDs SunSpot 36 75W delivers exceptional performance for both landing and taxi operations:

  • Landing Light: 200,000+ candela, 15°x15° beam, visible up to 30 miles for outstanding recognition in the air.
  • Taxi Light: 60,000 candela, 20°vertical x40° horizontal beam for superior ground visibility.

These advanced LED lights offer true-to-life illumination with exceptional color rendering, consume less power, and are resistant to vibrations. Designed for convenience, installation is seamless with the standard PAR36 mount and existing electrical connections.

-H Model Features:

  • Built-in Pulse (wig-wag) mode for enhanced safety, aiding collision avoidance and reducing bird strikes.
  • Self-contained Pulse controller requires no external circuitry.
  • Reduces electrical load by 50% in multi-light setups.

Specifications:

  • Power Consumption: 75 watts max
  • Lifespan: 30,000+ hours MTBF
  • Lens: UV-hardcoated polycarbonate
  • Construction: Aluminum, black powder-coated heat sink
  • Approvals: FAA-PMA/STC certified

Upgrade to AeroLEDs SunSpot 36 Series for unmatched visibility, reliability, and safety in all your aircraft lighting needs.

Part Numbers
Contact Reseller
View full details

75W Landing & Taxi Lights

Tech Specs

Cross Reference Chart

Documents

  • Max Current: Landing Lights: 5.4A@14VDC, 2.7A@28VDC Taxi Lights: 5.4A@14VDC, 2.7A@28VDC
  • Weight: 0.7 lbs.
  • Length: 4.4" Width: 4.4" Depth: 2.0"
Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals
36-4509 01-1030-4509 75W PAR 36 LANDING LIGHT 14V.

CANDELA: 200,000

LUMENS: 8,250

 15ºx15º No FAA-PMA/STC
36-4509-H 01-1030-4509-H 75W PAR 36 LANDING LIGHT WITH WIGWAG 14V.

CANDELA: 200,000

LUMENS: 8,250

 15ºx15º Yes FAA-PMA/STC
36-4591 01-1030-4591 75W PAR 36 LANDING LIGHT 28V.

CANDELA: 200,000

LUMENS: 8,250

 15ºx15º No FAA-PMA/STC
36-4591-H 01-1030-4591-H 75W PAR 36 LANDING LIGHT WITH WIGWAG 28V.

CANDELA: 200,000

LUMENS: 8,250

 15ºx15º Yes FAA-PMA/STC
36-4519 Taxi 01-1030-4519 75W PAR 36 TAXI LIGHT 14V.

CANDELA: 60,000

LUMENS: 8,250

 20º(VERT)X40º(HZTL) No FAA-PMA/STC
36-4519-H Taxi 01-1030-4519-H 75W PAR 36 TAXI LIGHT WITH WIGWAG 14V.

CANDELA: 60,000

LUMENS: 8,250

 20º(VERT)X40º(HZTL) Yes FAA-PMA/STC
36-4626 Taxi 01-1030-4626 75W PAR 36 TAXI LIGHT 28V.

CANDELA: 60,00

0LUMENS: 8,250

 20º(VERT)X40º(HZTL) No FAA-PMA/STC
36 4626-H Taxi 01-1030-4626-H 75W PAR 36 TAXI LIGHT WITH WIGWAG 28V.

CANDELA: 60,000

LUMENS: 8,250

 20º(VERT)X40º(HZTL) Yes FAA-PMA/STC
GE Bulb # SunSpot Model SunSpot Part # Voltage
4416 SunSpot 36-4509 01-1030-4509 14V
4416 SunSpot 36-4509-H 01-1030-4509-H 14V
4505 SunSpot 36-4591 01-1030-4591 28V
4505 SunSpot 36-4591-H 01-1030-4591-H 28V
4509 SunSpot 36-4509 01-1030-4509 14V
4509 SunSpot 36-4509-H 01-1030-4509-H 14V
4587 SunSpot 36-4626 Taxi 01-1030-4626 28V
4587 SunSpot 36 4626-H Taxi 01-1030-4626-H 28V
4591 SunSpot 36-4591 01-1030-4591 28V
4591 SunSpot 36-4591-H 01-1030-4591-H 28V
4593 SunSpot 36-4626 Taxi 01-1030-4626 28V
4593 SunSpot 36 4626-H Taxi 01-1030-4626-H 28V
4594 SunSpot 36-4591 01-1030-4591 28V
4594 SunSpot 36-4591-H 01-1030-4591-H 28V
4595 SunSpot 36-4509 01-1030-4509 14V
4595 SunSpot 36-4509-H 01-1030-4509-H 14V
4596 SunSpot 36-4591 01-1030-4591 28V
4596 SunSpot 36-4591-H 01-1030-4591-H 28V
4623 SunSpot 36-4626 Taxi 01-1030-4626 28V
4623 SunSpot 36 4626-H Taxi 01-1030-4626-H 28V
4626 SunSpot 36-4626 Taxi 01-1030-4626 28V
4626 SunSpot 36 4626-H Taxi 01-1030-4626-H 28V
4627 SunSpot 36-4626 Taxi 01-1030-4626 28V
4627 SunSpot 36 4626-H Taxi 01-1030-4626-H 28V
Q4631 SunSpot 36-4509 01-1030-4509 14V
Q4631 SunSpot 36-4509-H 01-1030-4509-H 14V
Q4632 SunSpot 36-4509 01-1030-4509 14V
Q4632 SunSpot 36-4509-H 01-1030-4509-H 14V

Tech Specs

  • Max Current: Landing Lights: 5.4A@14VDC, 2.7A@28VDC Taxi Lights: 5.4A@14VDC, 2.7A@28VDC
  • Weight: 0.7 lbs.
  • Length: 4.4" Width: 4.4" Depth: 2.0"
Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals
36-4509 01-1030-4509 75W PAR 36 LANDING LIGHT 14V.

CANDELA: 200,000

LUMENS: 8,250

 15ºx15º No FAA-PMA/STC
36-4509-H 01-1030-4509-H 75W PAR 36 LANDING LIGHT WITH WIGWAG 14V.

CANDELA: 200,000

LUMENS: 8,250

 15ºx15º Yes FAA-PMA/STC
36-4591 01-1030-4591 75W PAR 36 LANDING LIGHT 28V.

CANDELA: 200,000

LUMENS: 8,250

 15ºx15º No FAA-PMA/STC
36-4591-H 01-1030-4591-H 75W PAR 36 LANDING LIGHT WITH WIGWAG 28V.

CANDELA: 200,000

LUMENS: 8,250

 15ºx15º Yes FAA-PMA/STC
36-4519 Taxi 01-1030-4519 75W PAR 36 TAXI LIGHT 14V.

CANDELA: 60,000

LUMENS: 8,250

 20º(VERT)X40º(HZTL) No FAA-PMA/STC
36-4519-H Taxi 01-1030-4519-H 75W PAR 36 TAXI LIGHT WITH WIGWAG 14V.

CANDELA: 60,000

LUMENS: 8,250

 20º(VERT)X40º(HZTL) Yes FAA-PMA/STC
36-4626 Taxi 01-1030-4626 75W PAR 36 TAXI LIGHT 28V.

CANDELA: 60,00

0LUMENS: 8,250

 20º(VERT)X40º(HZTL) No FAA-PMA/STC
36 4626-H Taxi 01-1030-4626-H 75W PAR 36 TAXI LIGHT WITH WIGWAG 28V.

CANDELA: 60,000

LUMENS: 8,250

 20º(VERT)X40º(HZTL) Yes FAA-PMA/STC

Cross Reference Chart

GE Bulb # SunSpot Model SunSpot Part # Voltage
4416 SunSpot 36-4509 01-1030-4509 14V
4416 SunSpot 36-4509-H 01-1030-4509-H 14V
4505 SunSpot 36-4591 01-1030-4591 28V
4505 SunSpot 36-4591-H 01-1030-4591-H 28V
4509 SunSpot 36-4509 01-1030-4509 14V
4509 SunSpot 36-4509-H 01-1030-4509-H 14V
4587 SunSpot 36-4626 Taxi 01-1030-4626 28V
4587 SunSpot 36 4626-H Taxi 01-1030-4626-H 28V
4591 SunSpot 36-4591 01-1030-4591 28V
4591 SunSpot 36-4591-H 01-1030-4591-H 28V
4593 SunSpot 36-4626 Taxi 01-1030-4626 28V
4593 SunSpot 36 4626-H Taxi 01-1030-4626-H 28V
4594 SunSpot 36-4591 01-1030-4591 28V
4594 SunSpot 36-4591-H 01-1030-4591-H 28V
4595 SunSpot 36-4509 01-1030-4509 14V
4595 SunSpot 36-4509-H 01-1030-4509-H 14V
4596 SunSpot 36-4591 01-1030-4591 28V
4596 SunSpot 36-4591-H 01-1030-4591-H 28V
4623 SunSpot 36-4626 Taxi 01-1030-4626 28V
4623 SunSpot 36 4626-H Taxi 01-1030-4626-H 28V
4626 SunSpot 36-4626 Taxi 01-1030-4626 28V
4626 SunSpot 36 4626-H Taxi 01-1030-4626-H 28V
4627 SunSpot 36-4626 Taxi 01-1030-4626 28V
4627 SunSpot 36 4626-H Taxi 01-1030-4626-H 28V
Q4631 SunSpot 36-4509 01-1030-4509 14V
Q4631 SunSpot 36-4509-H 01-1030-4509-H 14V
Q4632 SunSpot 36-4509 01-1030-4509 14V
Q4632 SunSpot 36-4509-H 01-1030-4509-H 14V

Documents

WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit aeroleds.com/regulatory.

Product Data Sheet
