Pulsar 660 LED FORWARD & TAIL POSITION/ANTI-COLLISION WINGTIP LIGHTS

Pulsar 660 LED FORWARD & TAIL POSITION/ANTI-COLLISION WINGTIP LIGHTS

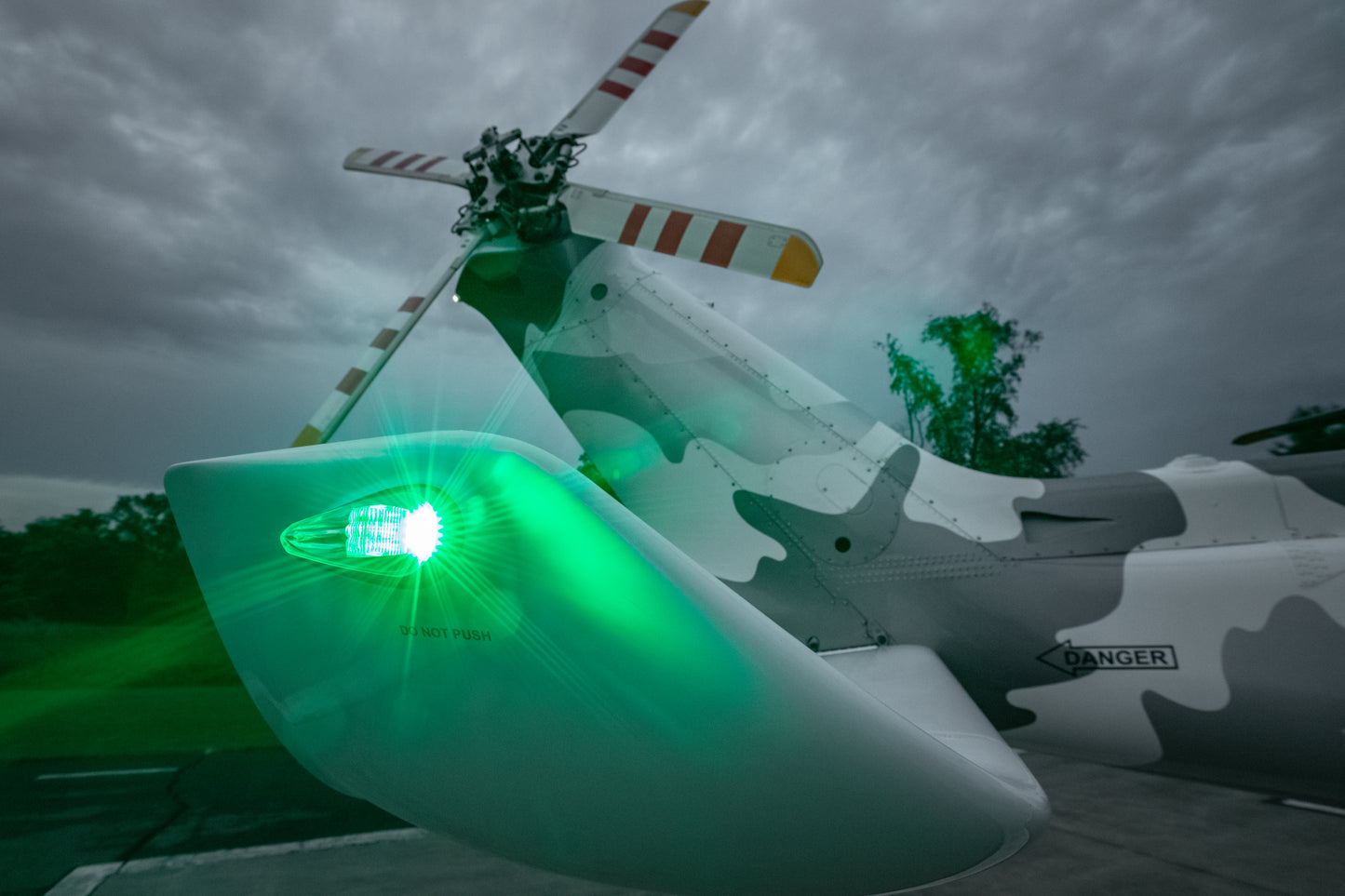

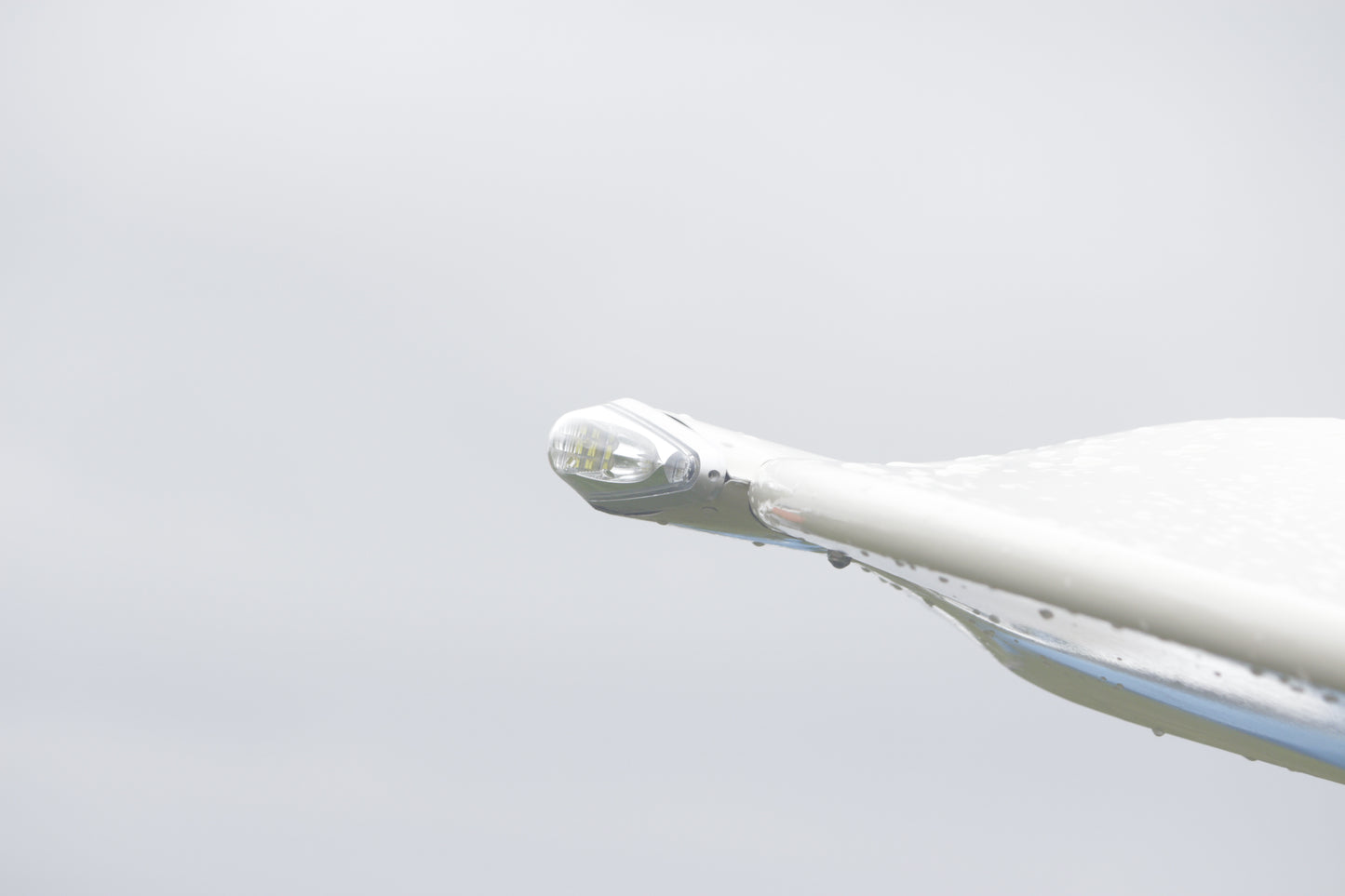

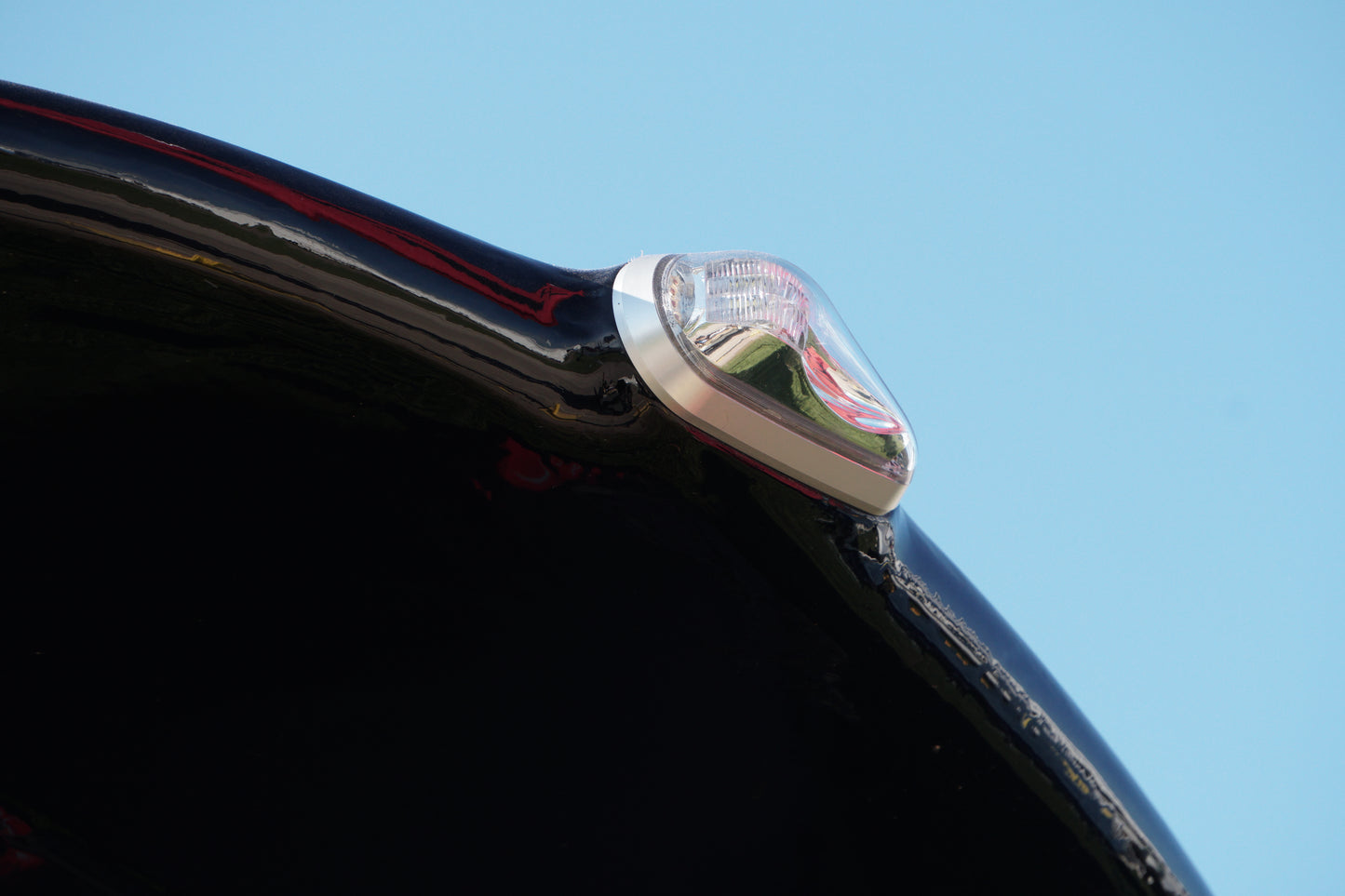

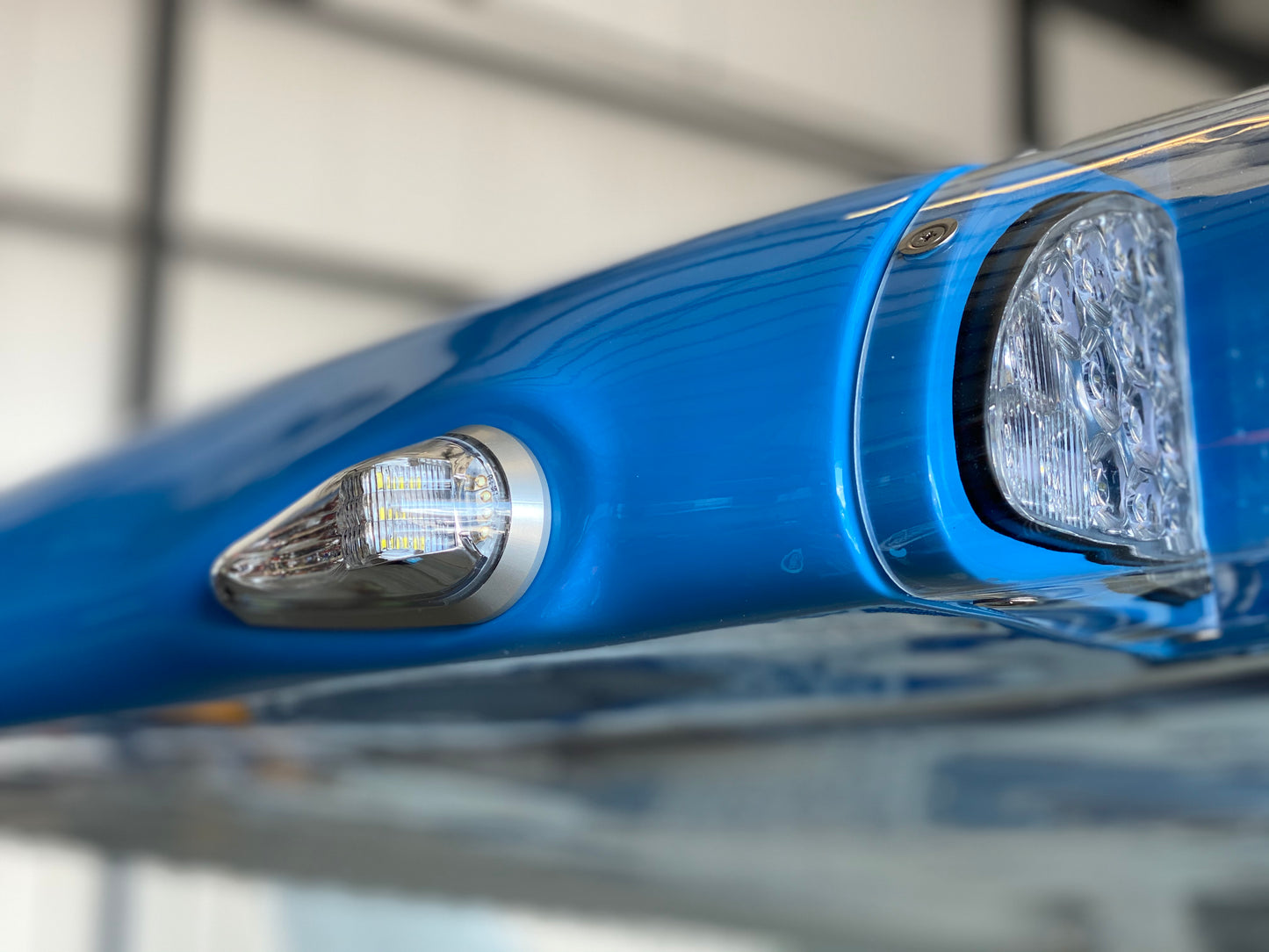

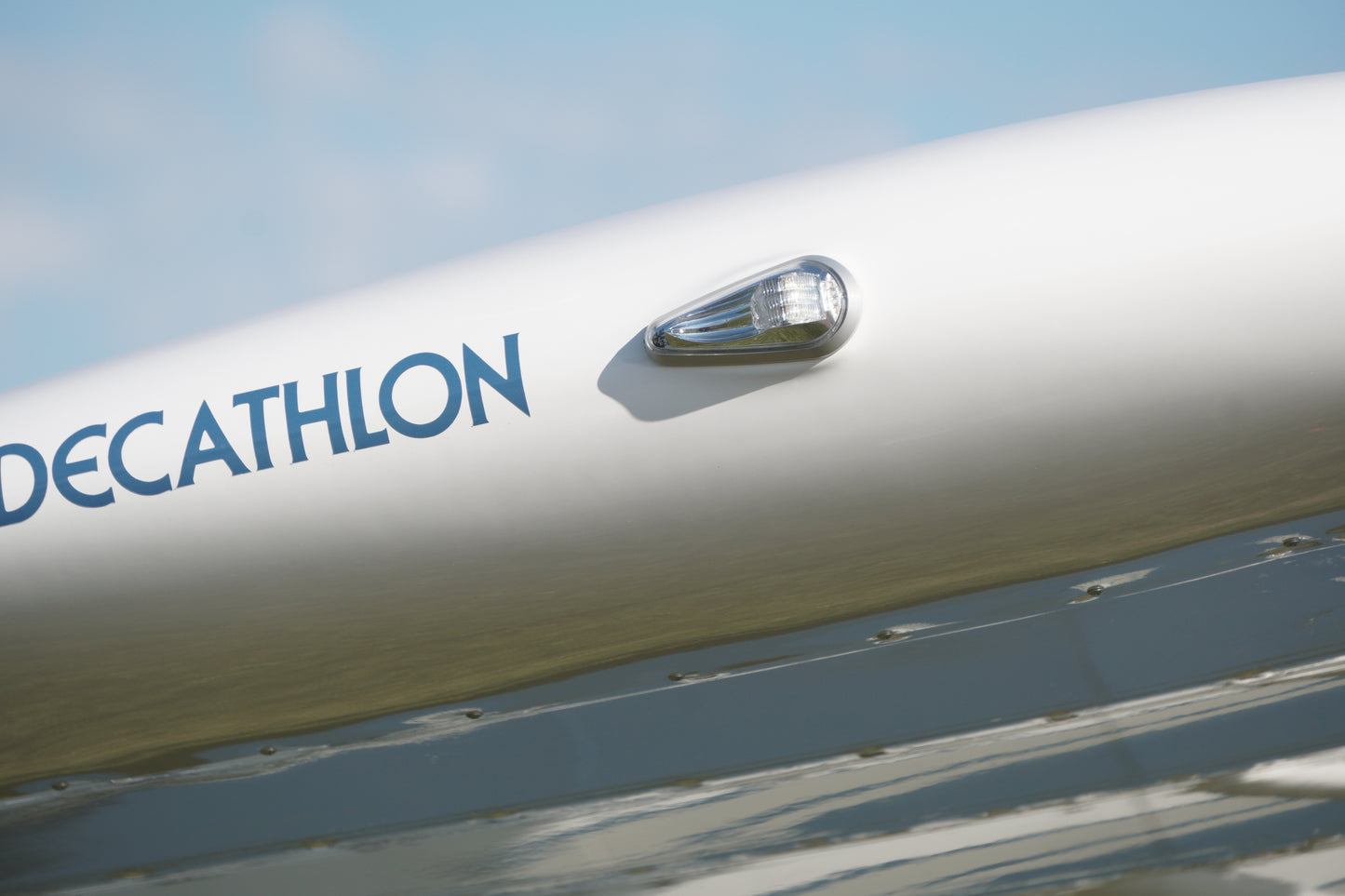

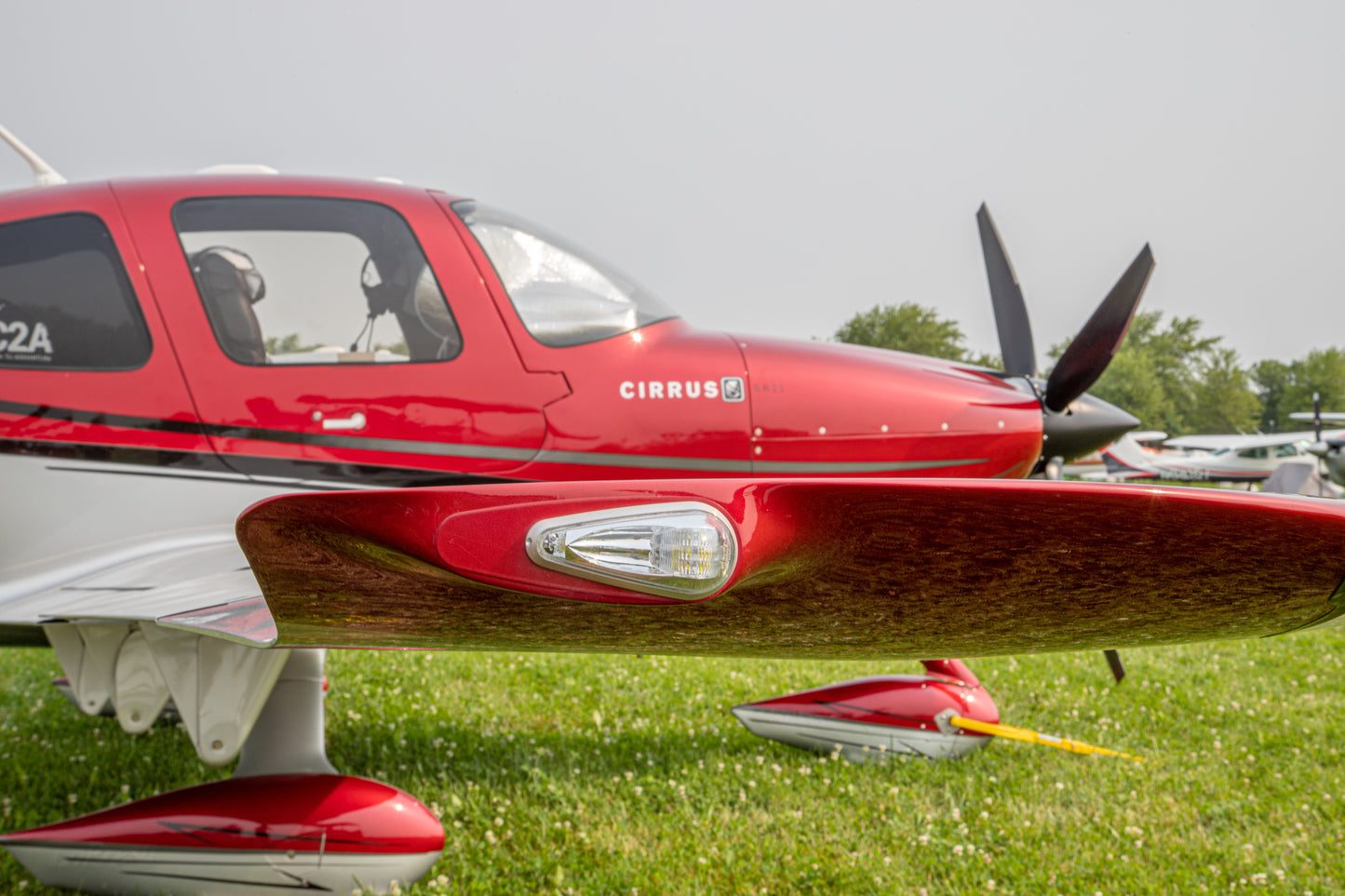

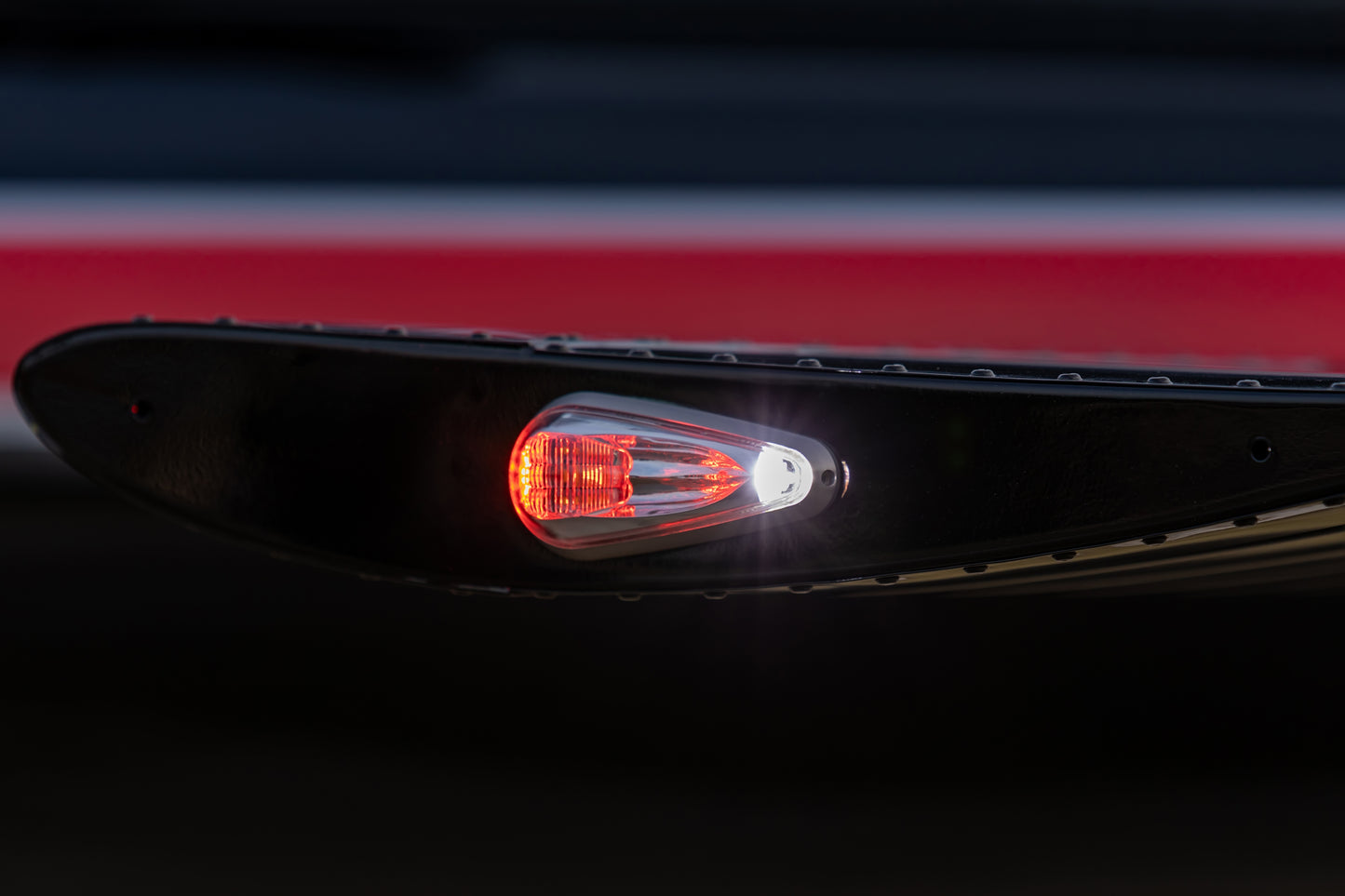

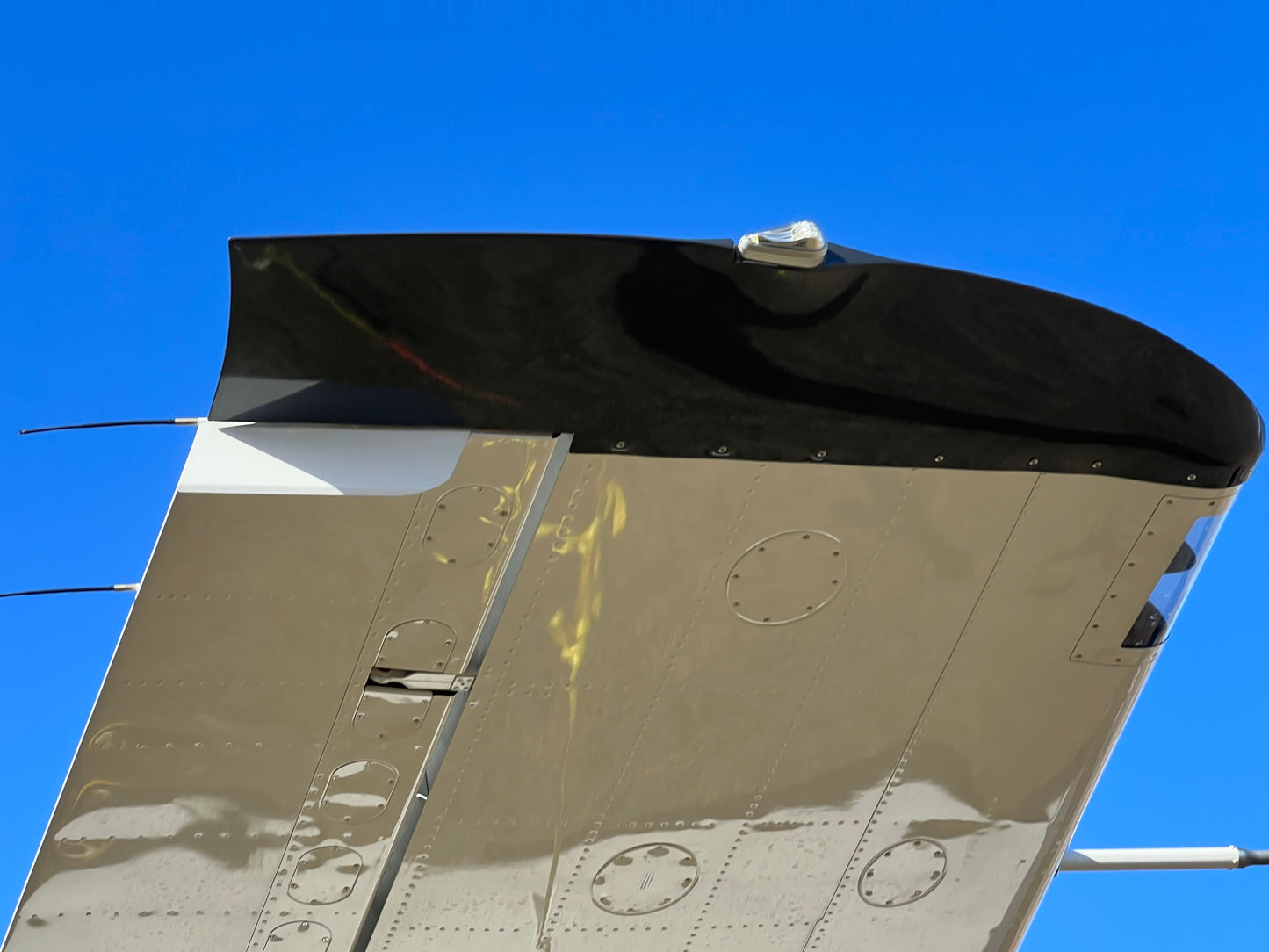

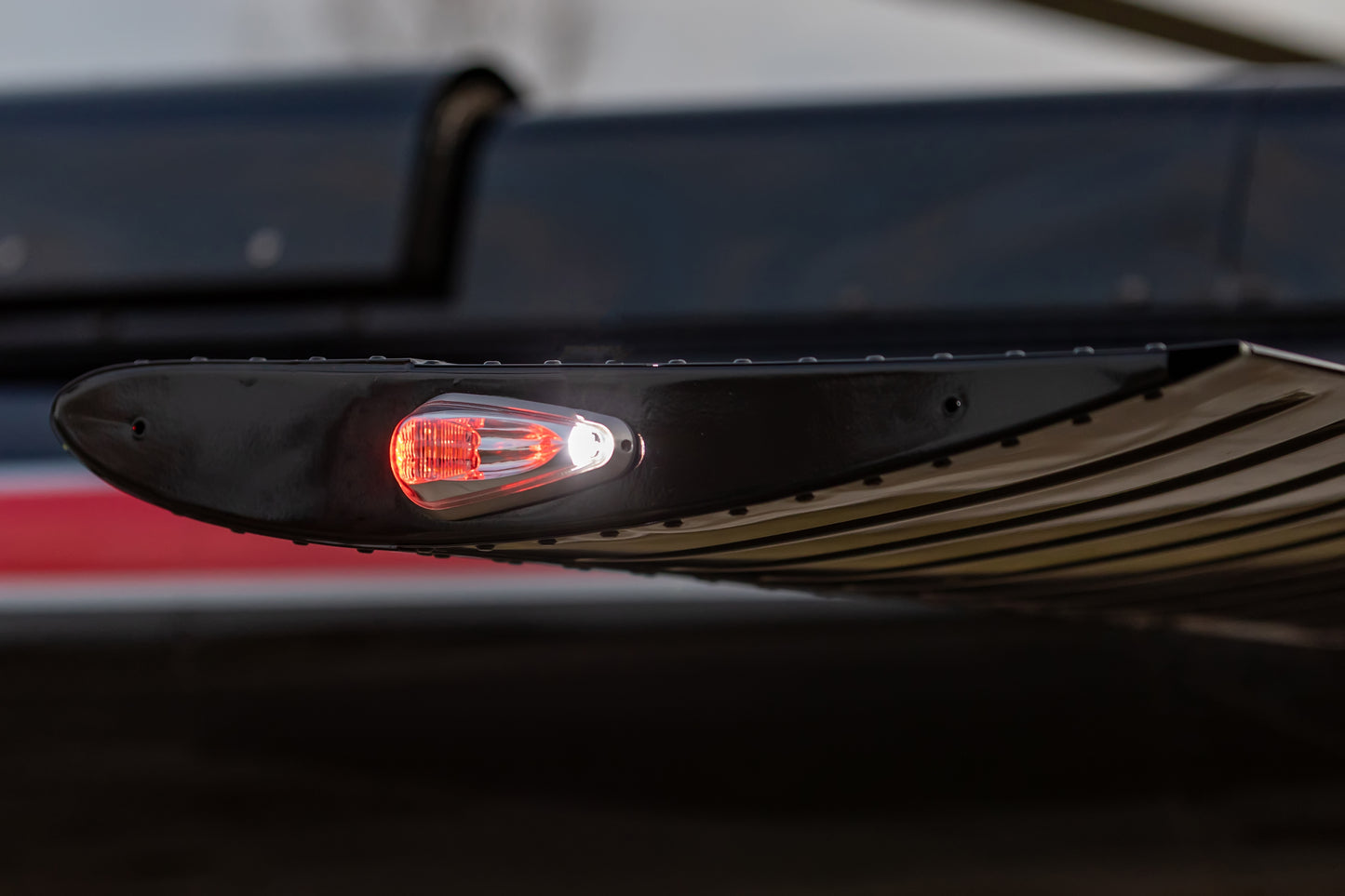

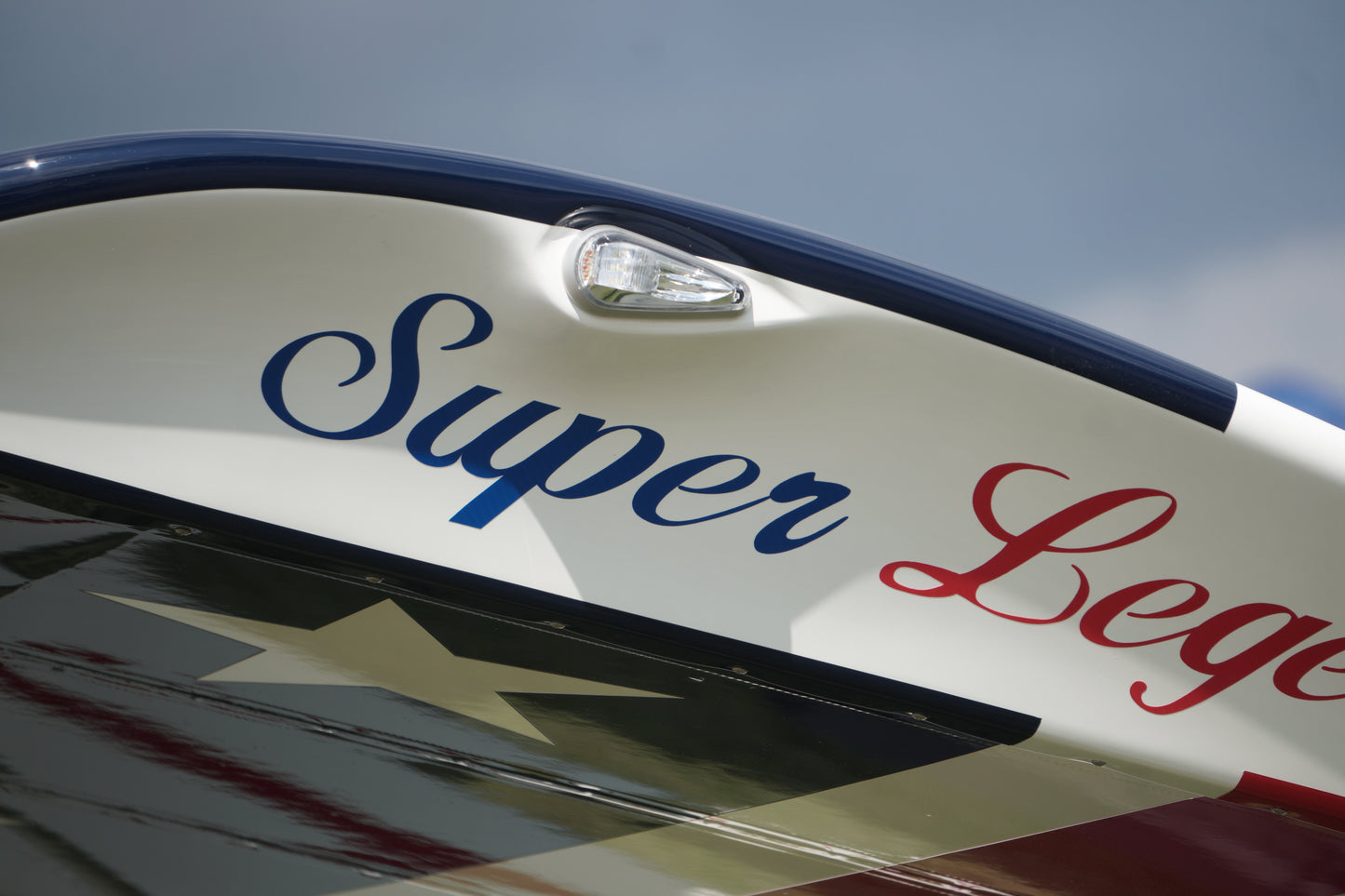

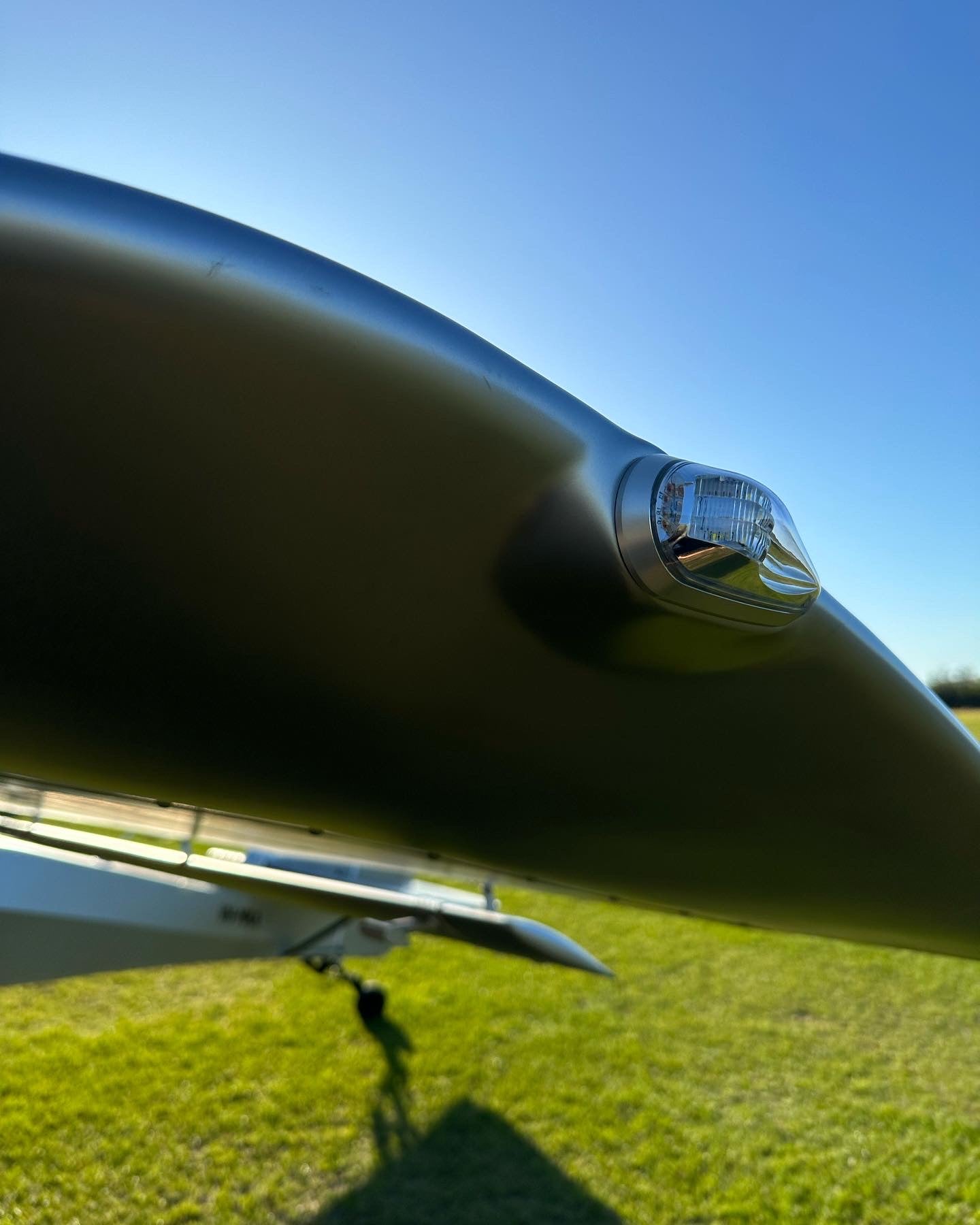

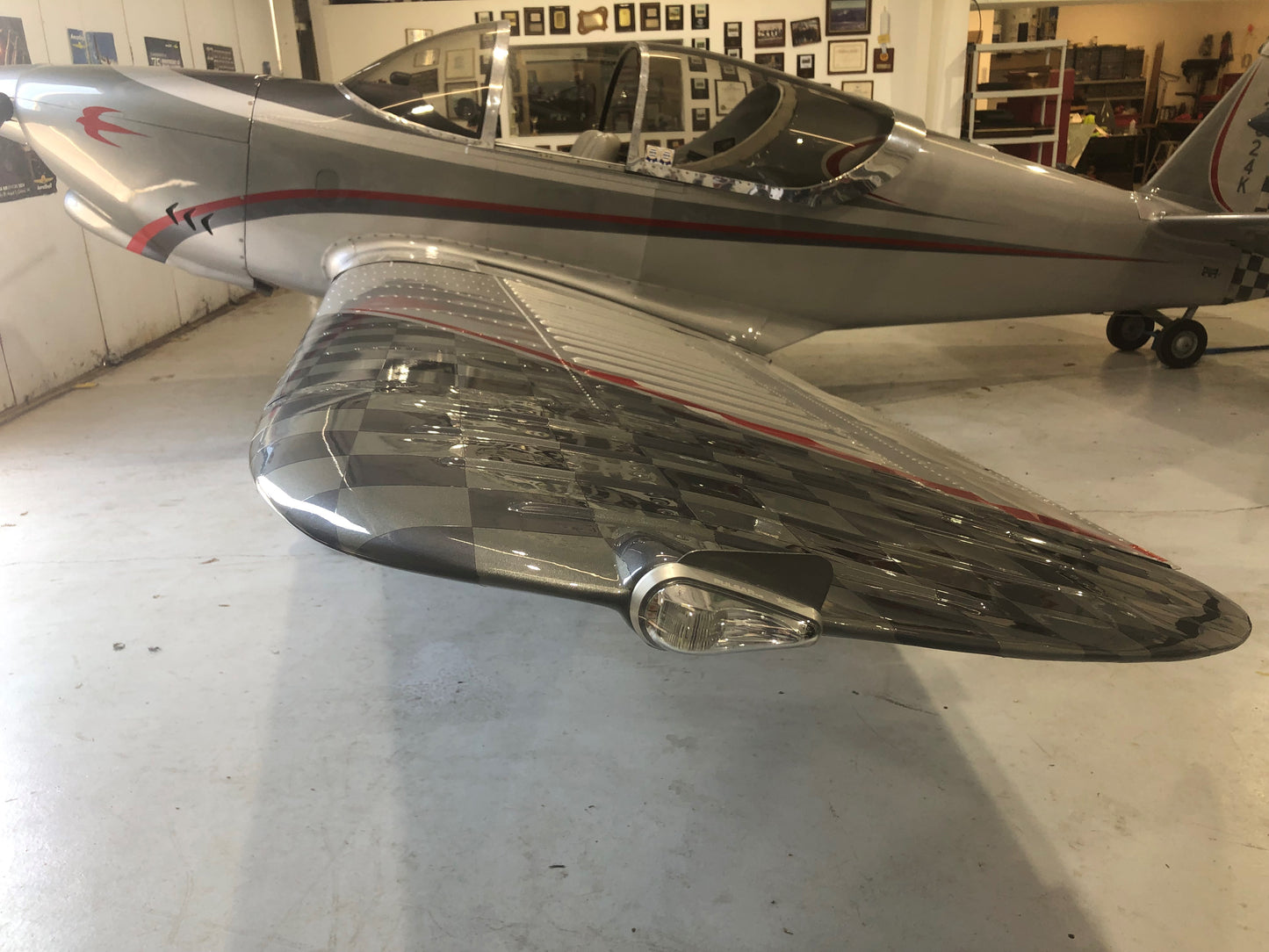

The Pulsar 660 (formally known as Pulsar NSP) offers a three-in-one lighting solution, combining a navigation light for directional red and green positioning, a strobe light for enhanced visibility during daylight and night flights, and a rear-facing white position light for added safety.

Designed for seamless installation, it features an industry-standard mounting footprint, a low-drag aerodynamic profile, and a patented three-position mounting bracket. This makes the Pulsar 660 an excellent replacement for legacy lighting systems.

Key Features:

  • Three-in-One Functionality: Navigation, strobe, and rear position light in a single unit.
  • Power Options: Compatible with 12V and 24V systems.
  • Energy Efficient: Low power consumption, no external power supply required.
  • Strobe Synchronization: Available for synchronized multi-light setups.
  • Easy Installation: Standard mounting design for simple upgrades.
  • Certified for Safety: FAA-TSOA/STC approved, meeting and exceeding C-30c (Type I, II, III) and C-96a (Class II) standards.

Enhance your aircraft’s lighting with the Pulsar 660, delivering exceptional performance, reliability, and compliance.

Part Numbers
Contact Reseller
View full details



CERTIFIED - LED FORWARD & TAIL POSITION/ANTI-COLLISION WINGTIP LIGHTS

Tech Specs

Documents

Video

  • Max Current: 0.65A@14VDC(average) 4.9A@14VDC(peak), 0.4A@28VDC(average) 3.0A@28VDC(peak)
  • Weight: 0.24 lbs.
  • Length: 4" Width: 1.9" Depth: 1.5"
Model Part # Description Approvals
Pulsar 660 - 14V RED 11-1280-C-12-L
RED
FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
 FAA-TSOA/STC
Pulsar 660 - 14V GREEN 11-1280-C-12-R
GREEN
FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
 FAA-TSOA/STC
Pulsar 660 - 28V RED 11-1280-C-24-L
RED
FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
 FAA-TSOA/STC
Pulsar 660 - 28V GREEN 11-1280-C-24-R
GREEN
FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
 FAA-TSOA/STC

Tech Specs

  • Max Current: 0.65A@14VDC(average) 4.9A@14VDC(peak), 0.4A@28VDC(average) 3.0A@28VDC(peak)
  • Weight: 0.24 lbs.
  • Length: 4" Width: 1.9" Depth: 1.5"
Model Part # Description Approvals
Pulsar 660 - 14V RED 11-1280-C-12-L
RED
FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
 FAA-TSOA/STC
Pulsar 660 - 14V GREEN 11-1280-C-12-R
GREEN
FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
 FAA-TSOA/STC
Pulsar 660 - 28V RED 11-1280-C-24-L
RED
FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
 FAA-TSOA/STC
Pulsar 660 - 28V GREEN 11-1280-C-24-R
GREEN
FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
 FAA-TSOA/STC

Documents

Video

WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit aeroleds.com/regulatory.

Product Data Sheet
