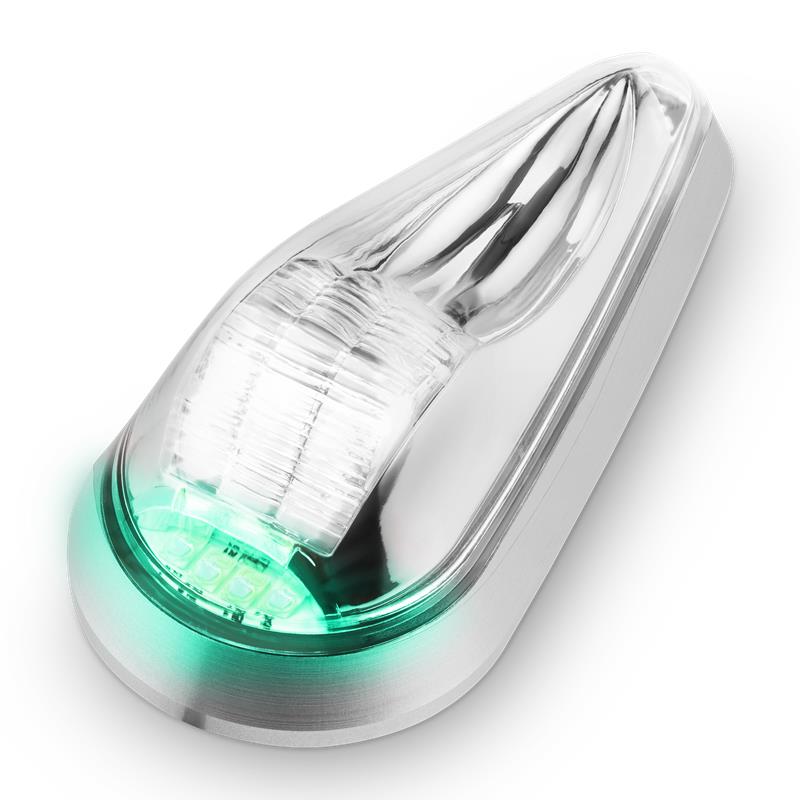

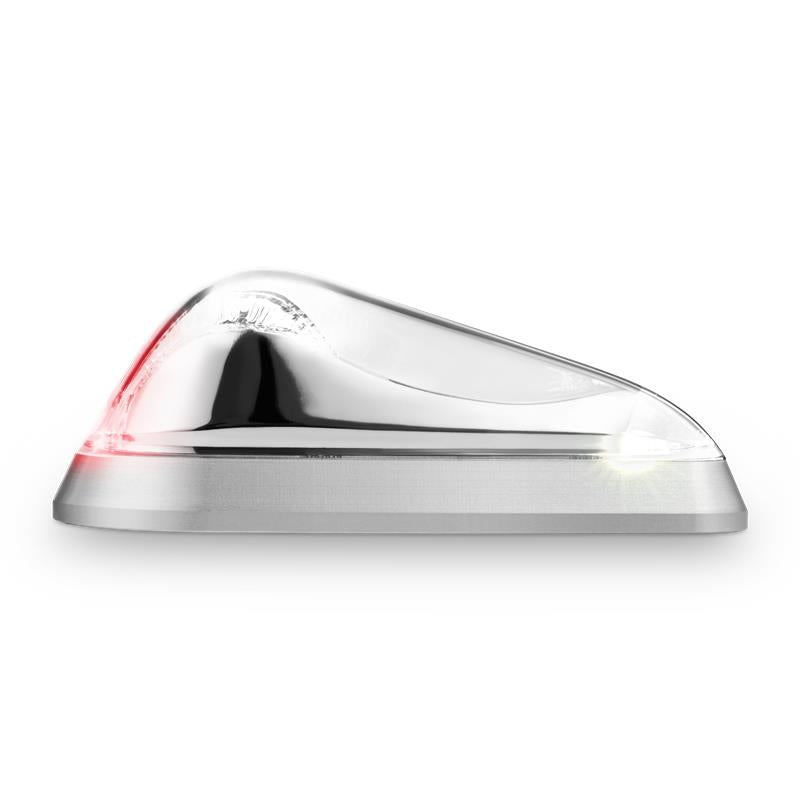

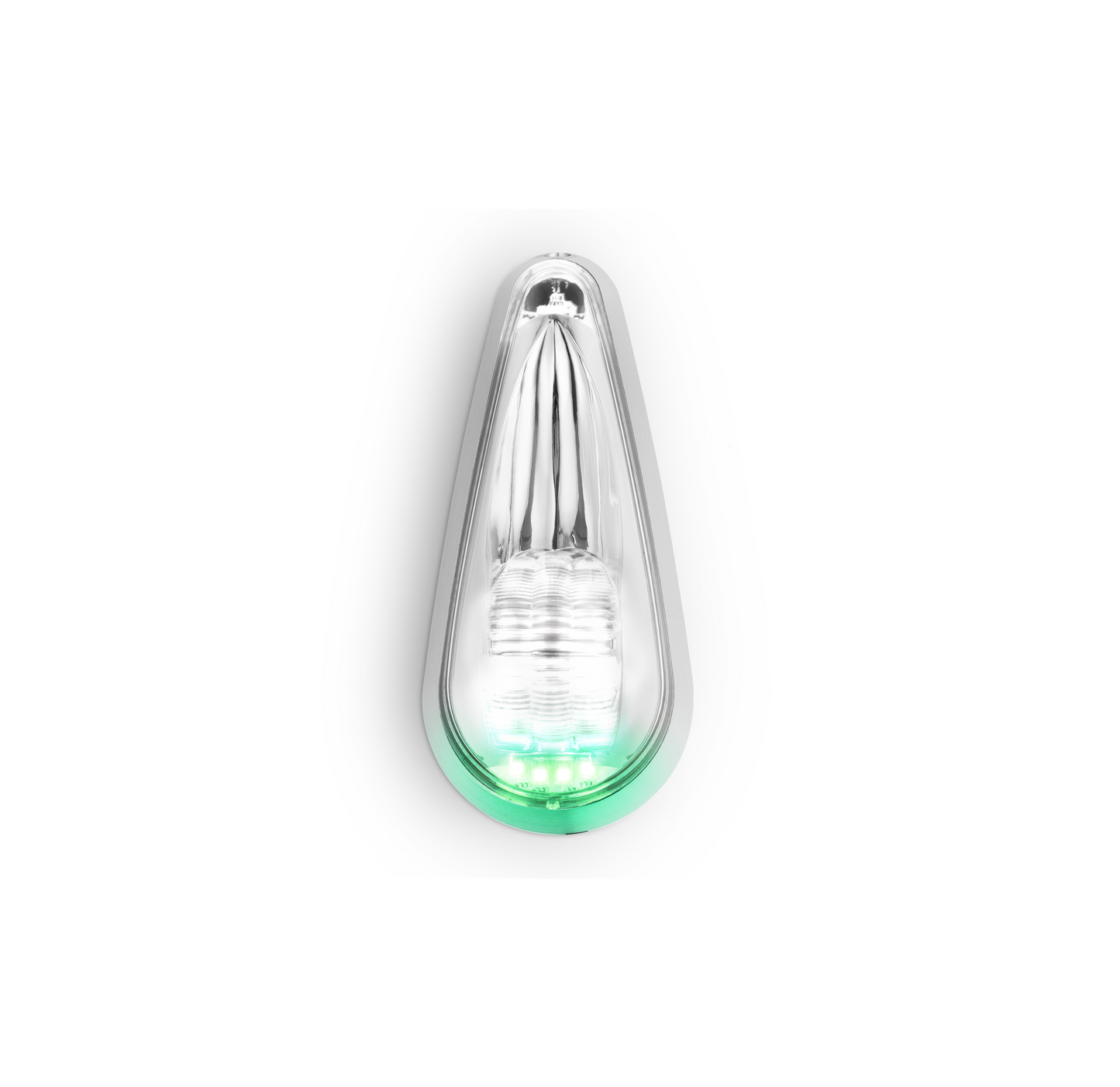

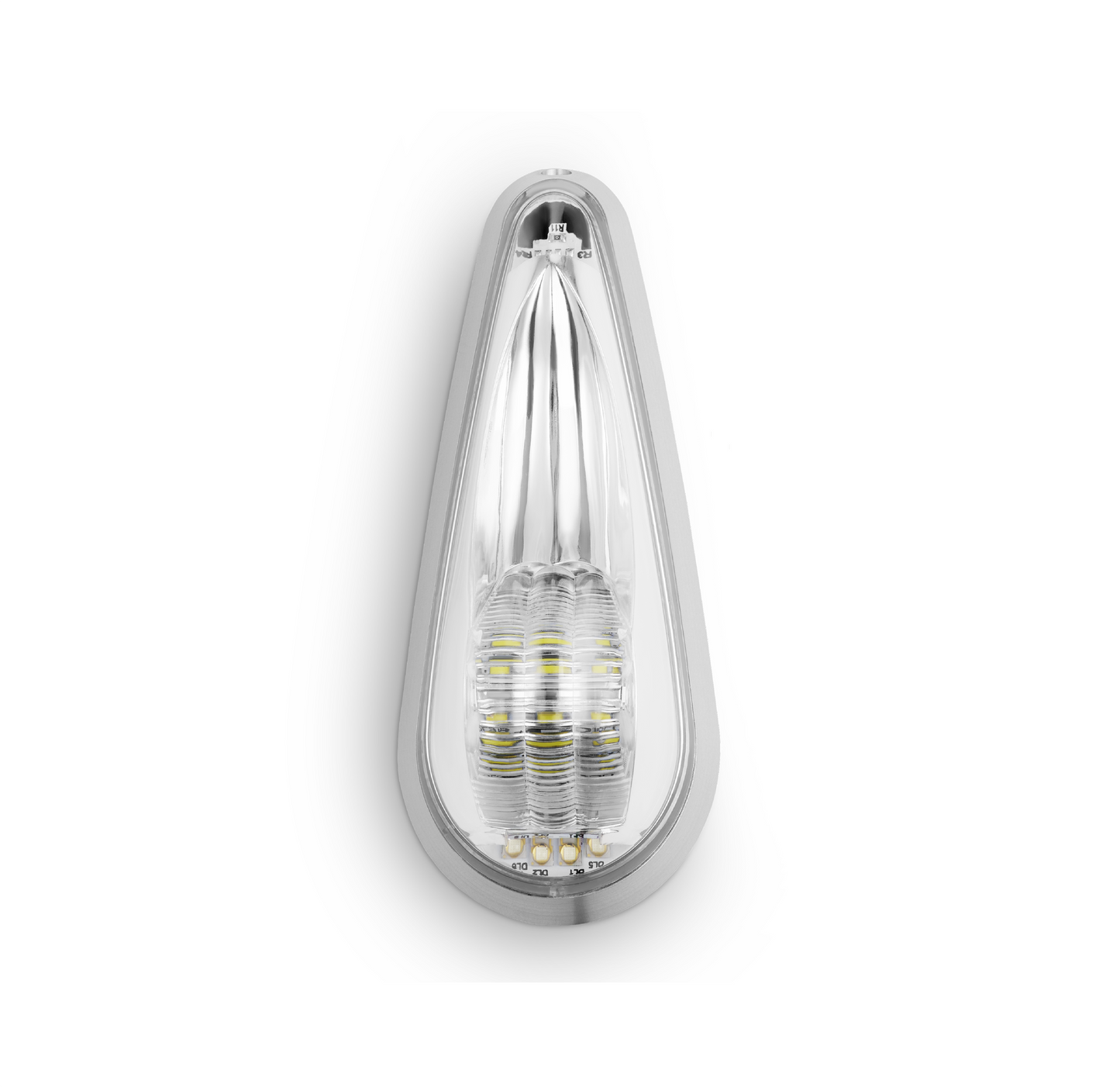

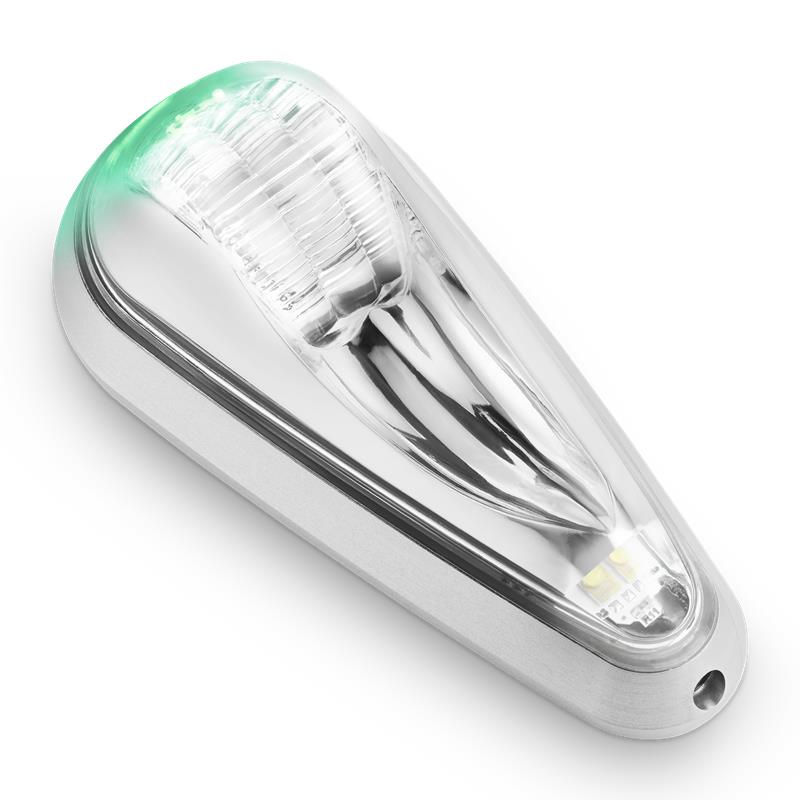

Pulsar 660 EXP LED FORWARD & TAIL POSITION/ANTI-COLLISION WINGTIP LIGHTS

Pulsar 660 EXP LED FORWARD & TAIL POSITION/ANTI-COLLISION WINGTIP LIGHTS

The Pulsar 660 EXP (formally known as Pulsar NSP) offers a versatile three-in-one lighting solution, combining a navigation lightfor directional red and green positioning, a strobe light for enhanced visibility in daylight and nighttime operations, and a rear-facing white position light for added safety.

With its aerodynamic low-drag profile, industry-standard mounting footprint, and patented three-position mounting bracket, the Pulsar 660 EXP is an ideal upgrade for replacing legacy light installations. The lights meet or exceed TSO C-30c (Type I, II, III) and C-96a (Class II) standards.

Key Features:

  • Three-in-One Design: Navigation, strobe, and rear position lighting.
  • Power Options: Compatible with 12V and 24V systems.
  • Energy Efficient: Low power consumption; no external power supply required.
  • Strobe Synchronization: Available for synchronized multi-light setups.
  • Easy Installation: Standard mounting design for seamless upgrades.
  • Category: For experimental aircraft.

Part Numbers
Contact Reseller
View full details





EXPERIMENTAL - LED FORWARD & TAIL POSITION/ANTI-COLLISION WINGTIP LIGHTS

Tech Specs

Documents

Video

  • Current Draw (ea):
    • 14VDC: Position Light: 0.8 Amps | Anti-Collision Light 0.65 Amps (Average) | 4.9 Amps (Peak)
    • 28VDC: Position Light: 0.4 Amps | Anti-Collision Light 0.4 Amps (Average) | 3.05 Amps (Peak)
  • Weight: 0.24 lbs.
  • Length: 4" Width: 1.9" Depth: 1.5"
  • Includes patented three-position mounting bracket
Model Part # Description Approvals
Pulsar 660 EXP - 14V RED 01-1280-C-12-L
RED
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
  None - Performance Exceeds TSO
Pulsar 660 EXP - 14V GREEN 01-1280-C-12-R
GREEN
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
  None - Performance Exceeds TSO
Pulsar 660 EXP - 28V RED 01-1280-C-24-L
RED
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
  None - Performance Exceeds TSO
Pulsar 660 EXP - 28V GREEN 01-1280-C-24-R
GREEN
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
  None - Performance Exceeds TSO

Tech Specs

  • Current Draw (ea):
    • 14VDC: Position Light: 0.8 Amps | Anti-Collision Light 0.65 Amps (Average) | 4.9 Amps (Peak)
    • 28VDC: Position Light: 0.4 Amps | Anti-Collision Light 0.4 Amps (Average) | 3.05 Amps (Peak)
  • Weight: 0.24 lbs.
  • Length: 4" Width: 1.9" Depth: 1.5"
  • Includes patented three-position mounting bracket
Model Part # Description Approvals
Pulsar 660 EXP - 14V RED 01-1280-C-12-L
RED
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
  None - Performance Exceeds TSO
Pulsar 660 EXP - 14V GREEN 01-1280-C-12-R
GREEN
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 14 VDC.
  None - Performance Exceeds TSO
Pulsar 660 EXP - 28V RED 01-1280-C-24-L
RED
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
  None - Performance Exceeds TSO
Pulsar 660 EXP - 28V GREEN 01-1280-C-24-R
GREEN
EXPERIMENTAL FORWARD POS & WHITE TAIL POS LIGHT / ACL WINGTIP ASSEMBLY, 28 VDC.
  None - Performance Exceeds TSO

Documents

Video

WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit aeroleds.com/regulatory.

Product Data Sheet
