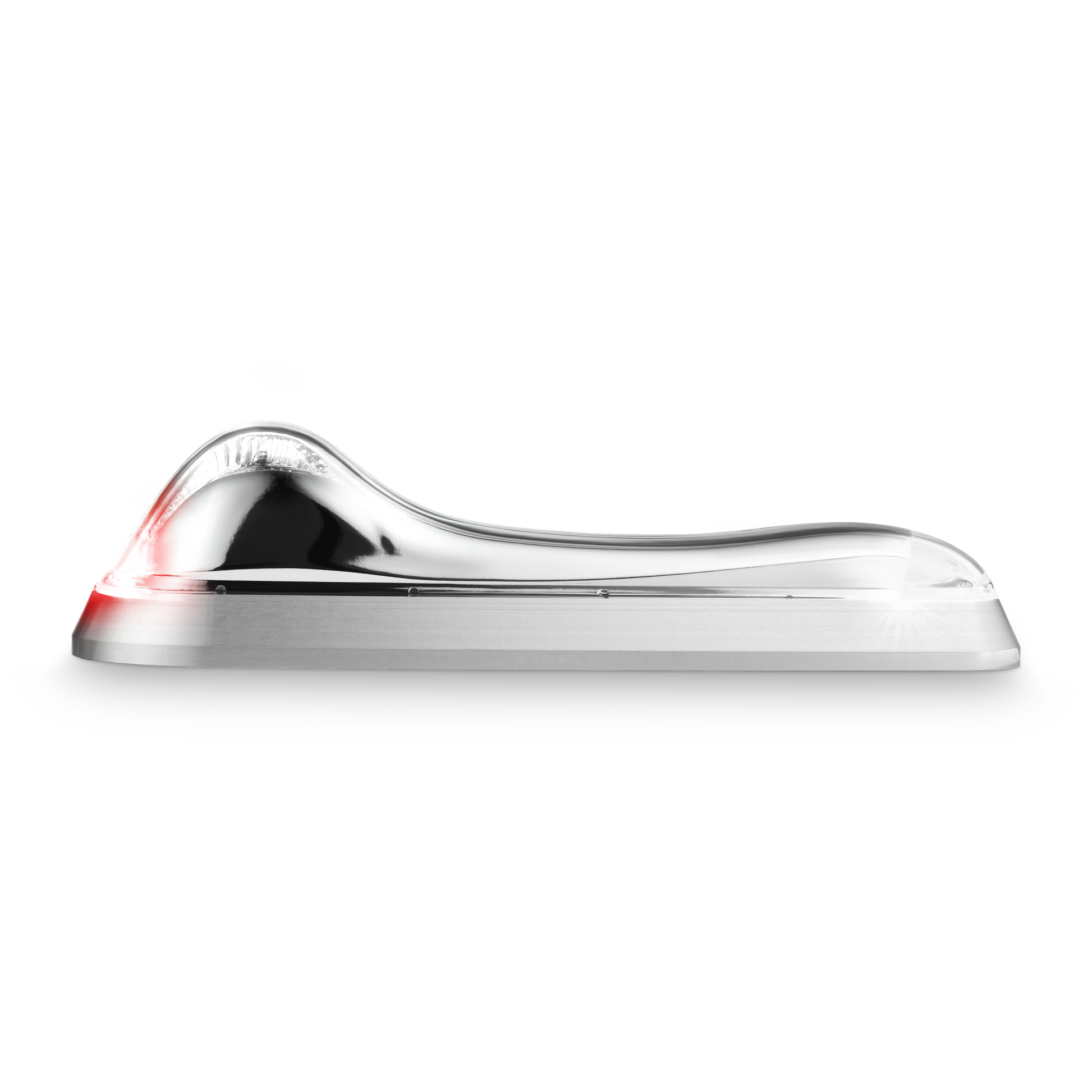

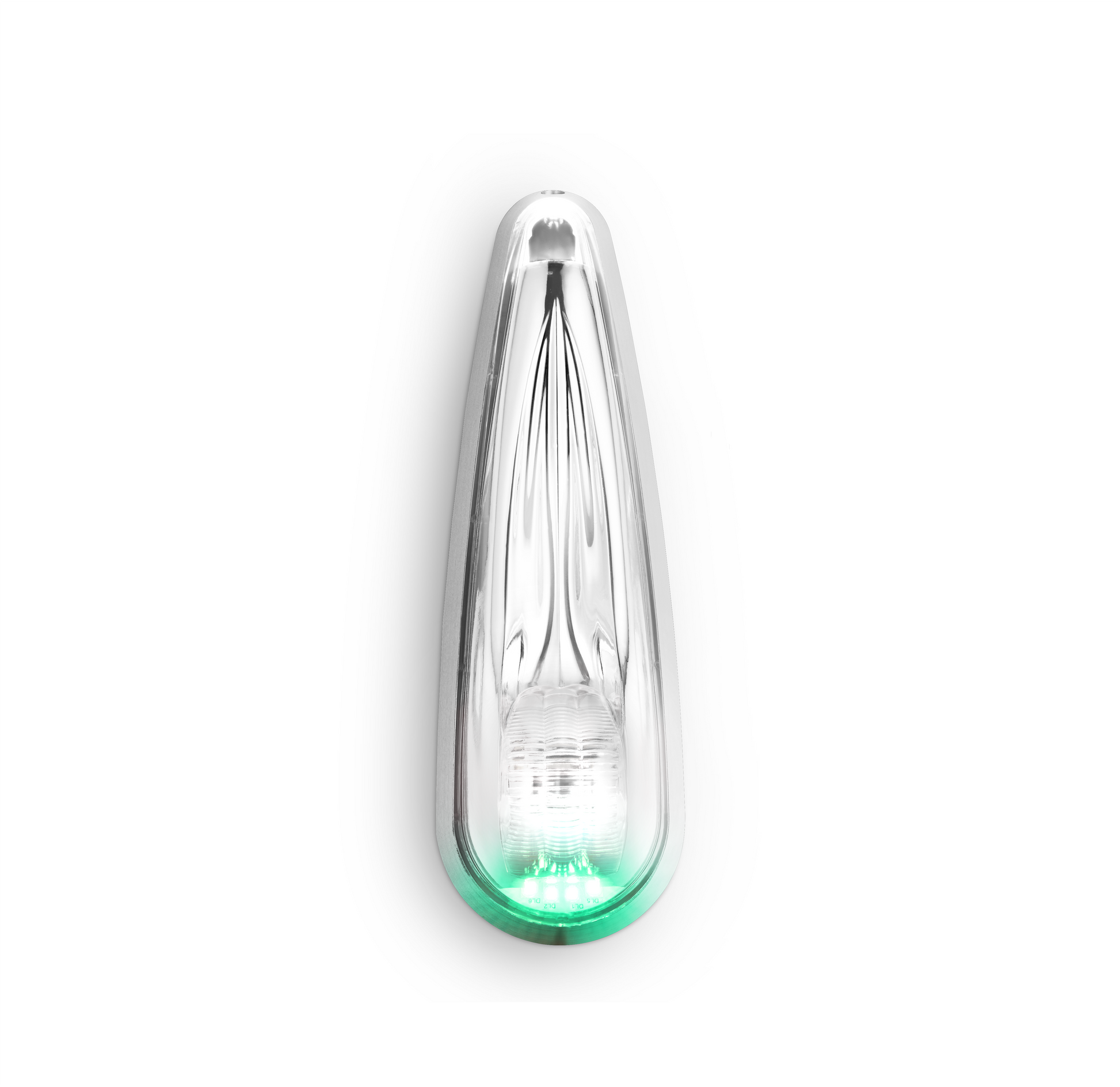

Pulsar 600 LED FORWARD & TAIL POSITION/ ANTI-COLLISION WINGTIP LIGHT

Pulsar 600 LED FORWARD & TAIL POSITION/ ANTI-COLLISION WINGTIP LIGHT

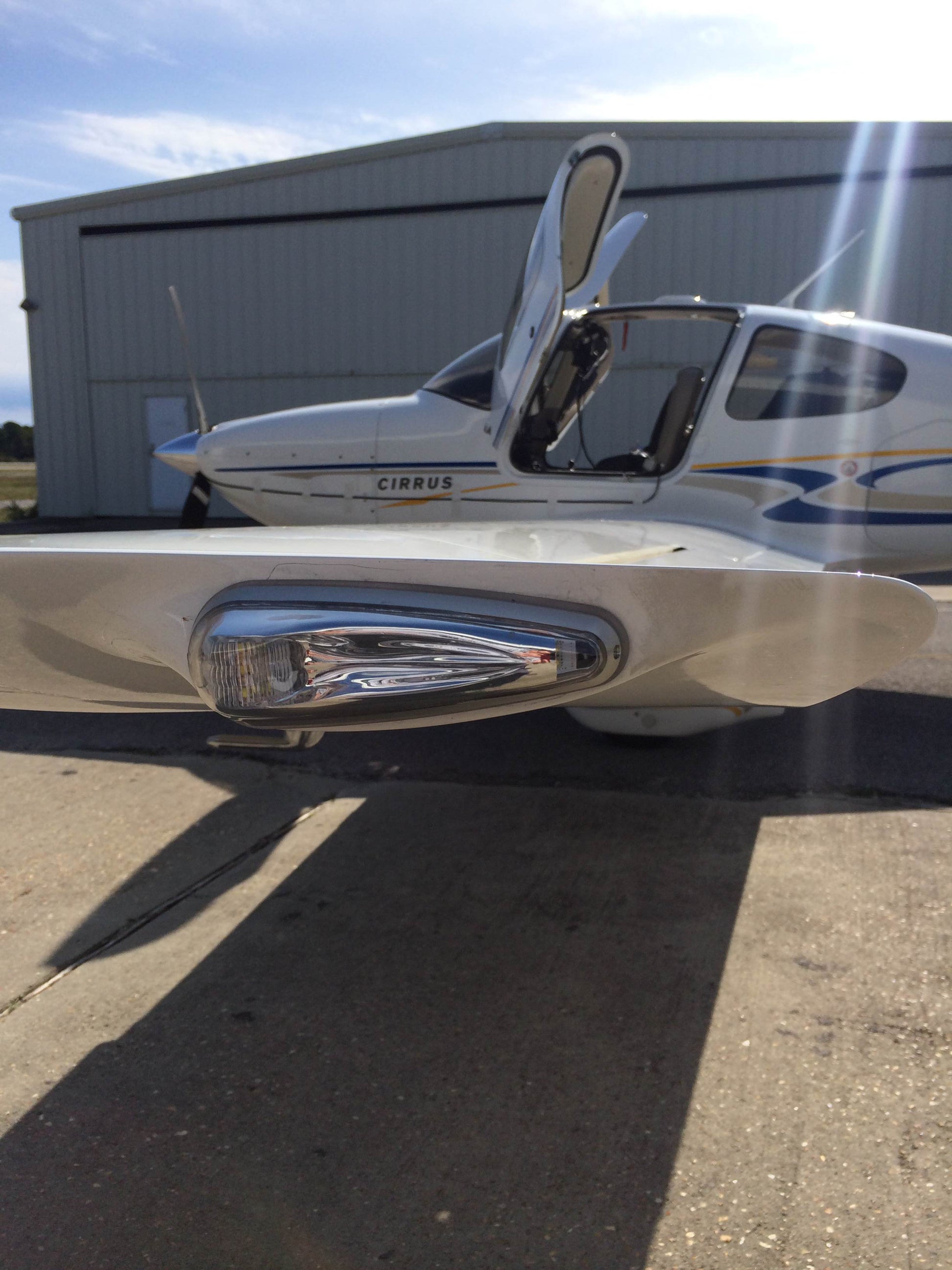

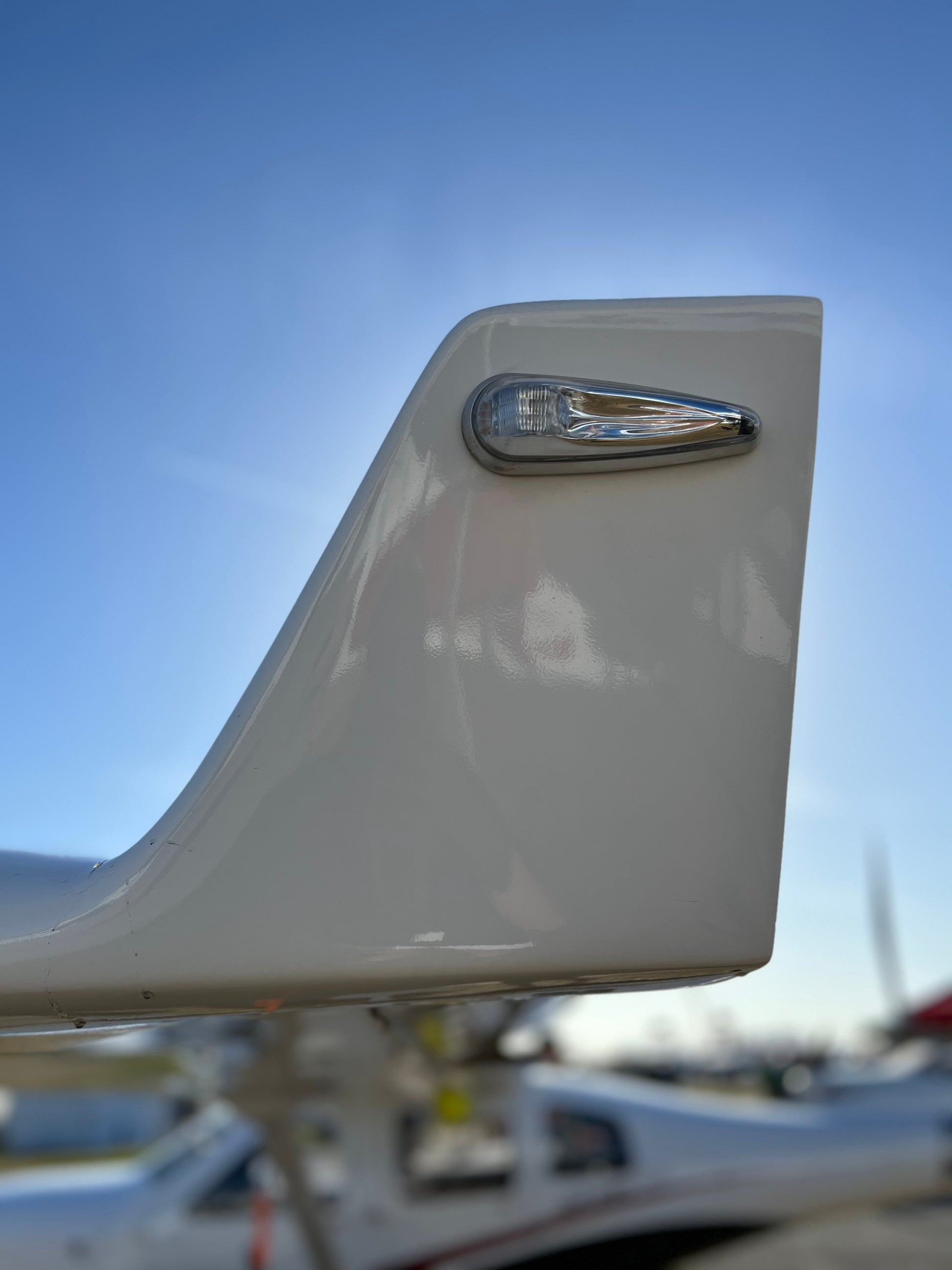

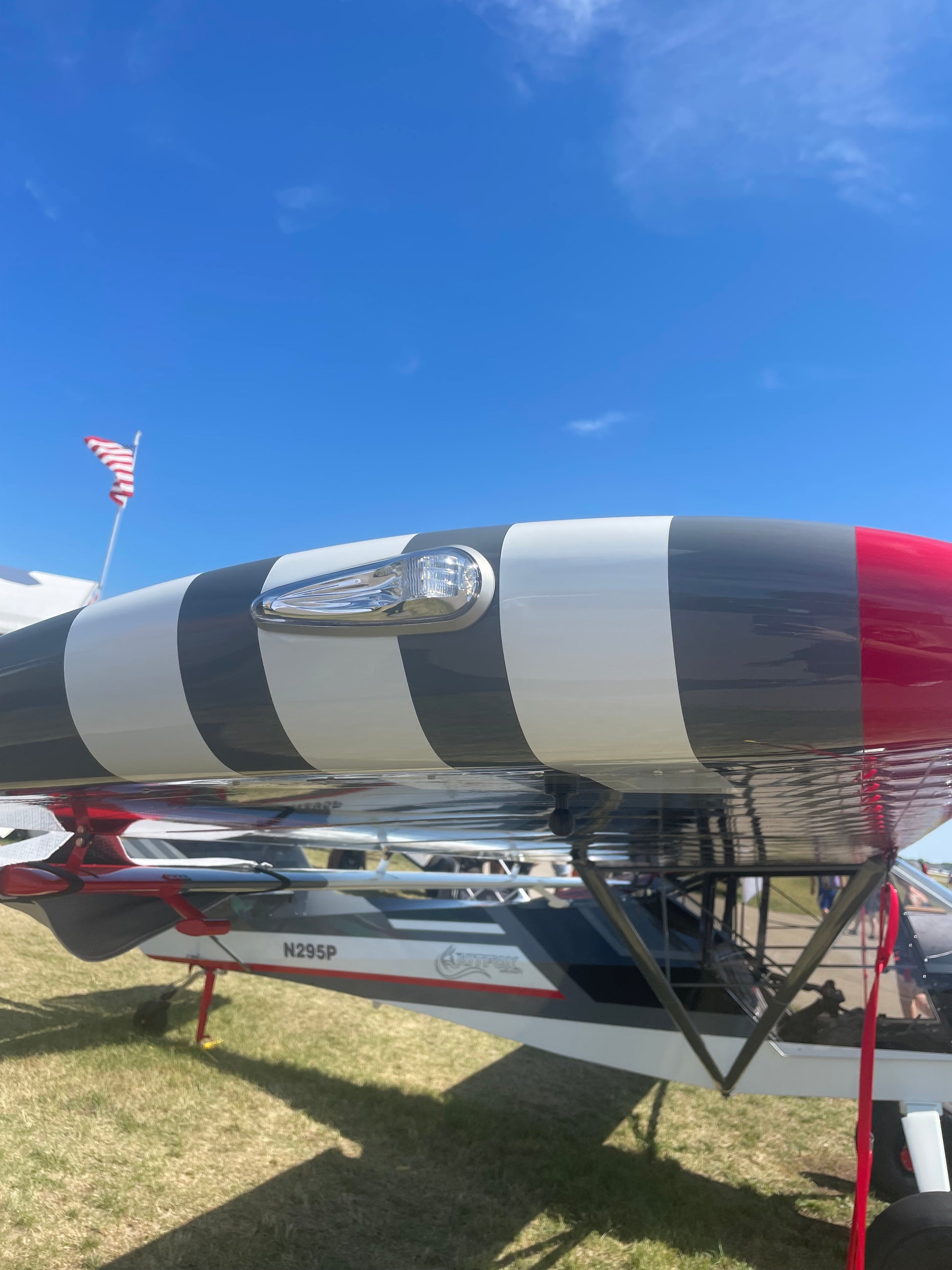

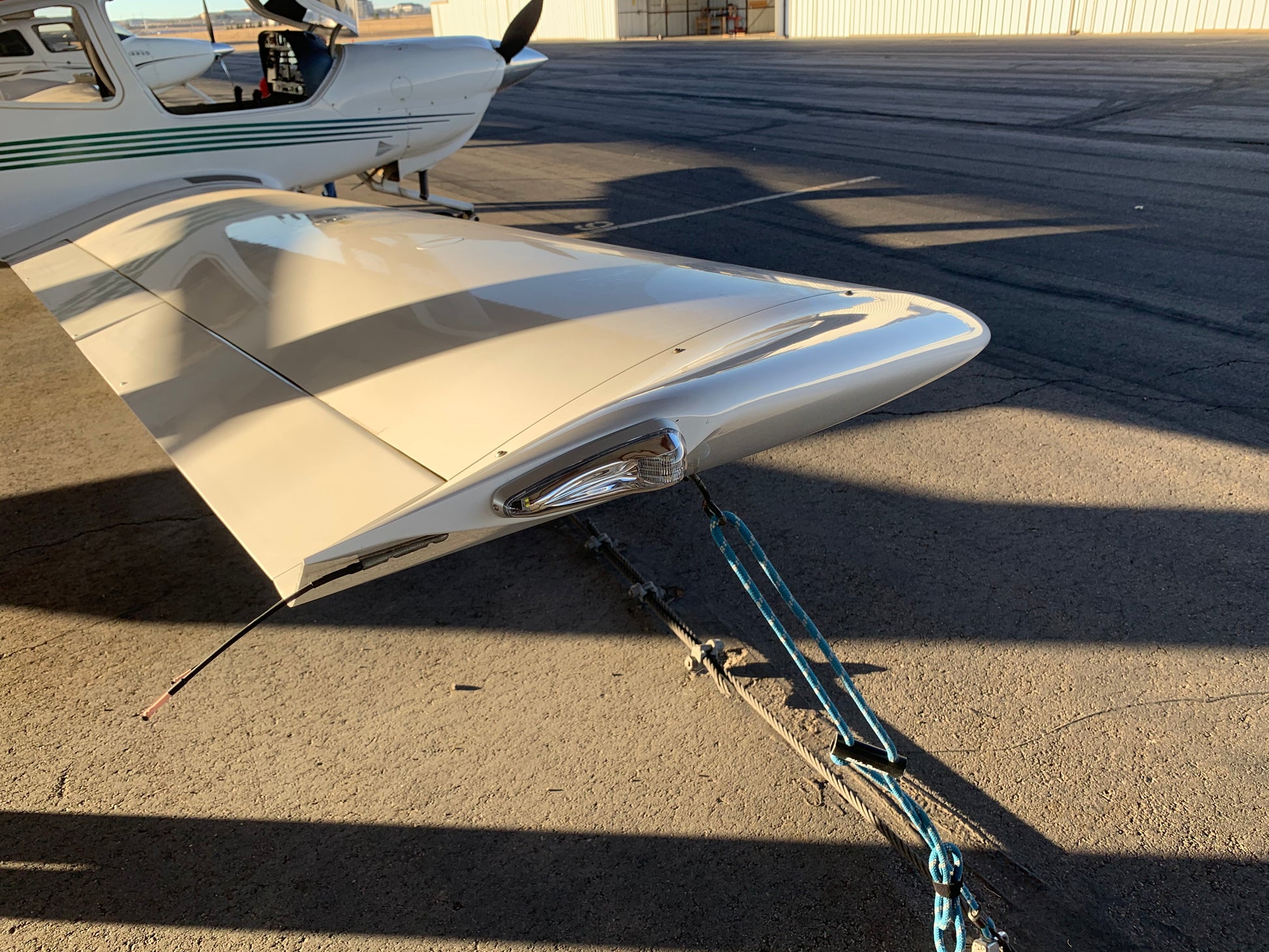

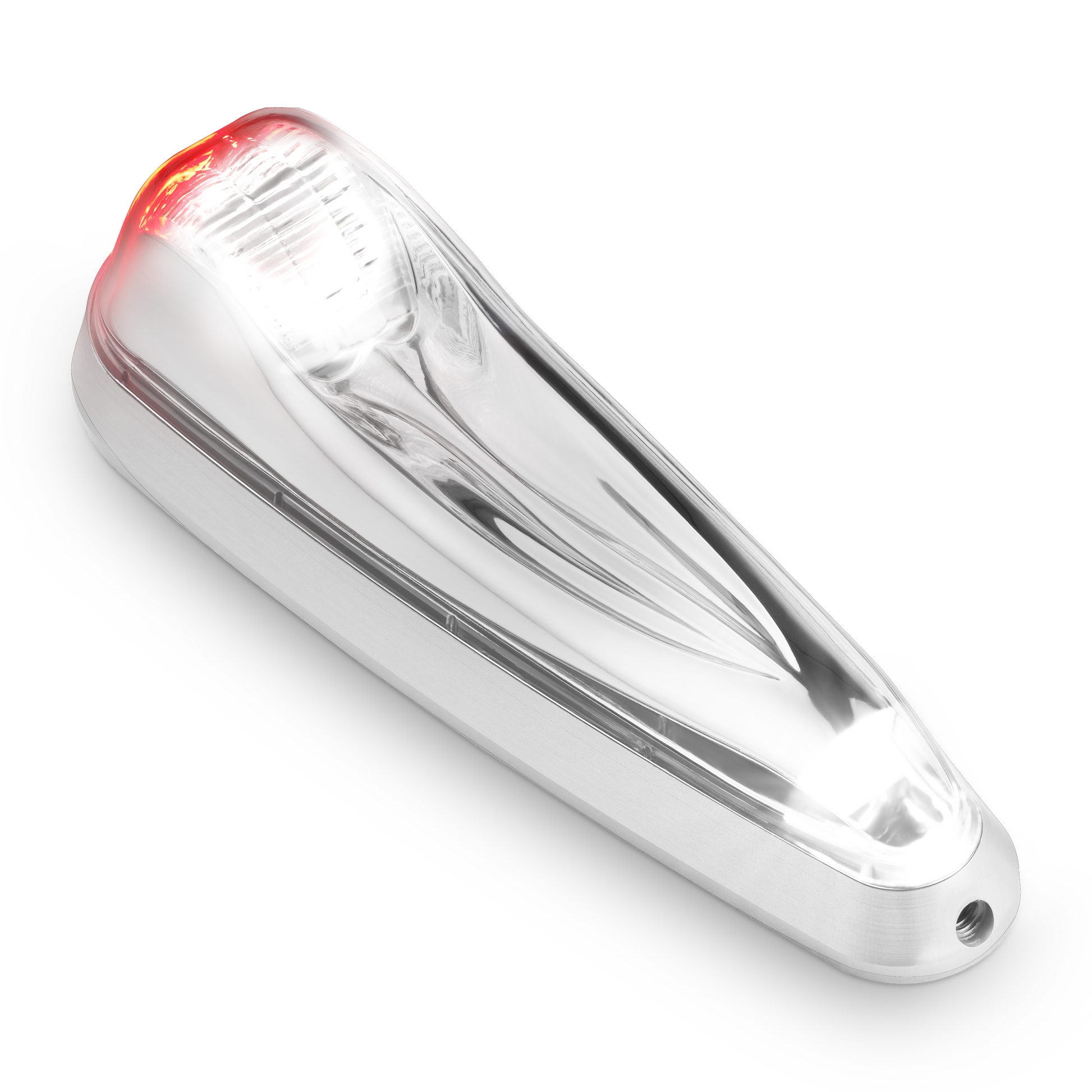

The Pulsar 600 Series (formally known as Pulsar)  combines navigation, strobe, and rear-facing position lights in one compact unit. Featuring an aerodynamic design and standard mounting footprint, it’s ideal for replacing legacy lights. FAA-TSO/STC approved, it exceeds industry standards for performance and compliance.

Key Features:

  • Three-in-One: Navigation, strobe, and rear-facing position light.
  • Power Options: Compatible with 14V and 28V systems.
  • Energy Efficient: Low power consumption, no external power supply required.
  • Easy Installation: Standard mounting pattern with patented bracket.

Upgrade to the Pulsar 600 Series for efficient, reliable, and compliant aircraft lighting.

Part Numbers
Contact Reseller
View full details

CERTIFIED - LED FORWARD & TAIL POSITION/ ANTI-COLLISION WINGTIP LIGHT

Tech Specs

Cross Reference Chart

Documents

Video

  • Max Current: 0.6A@14VDC(average) 4.9A@14VDC(peak), 0.4A@28VDC(average) 3.2A@28VDC(peak)
  • Weight: 0.25 lbs.
  • Length: 5.6" Width: 1.9" Depth: 1.4"
Model Part # Description Approvals

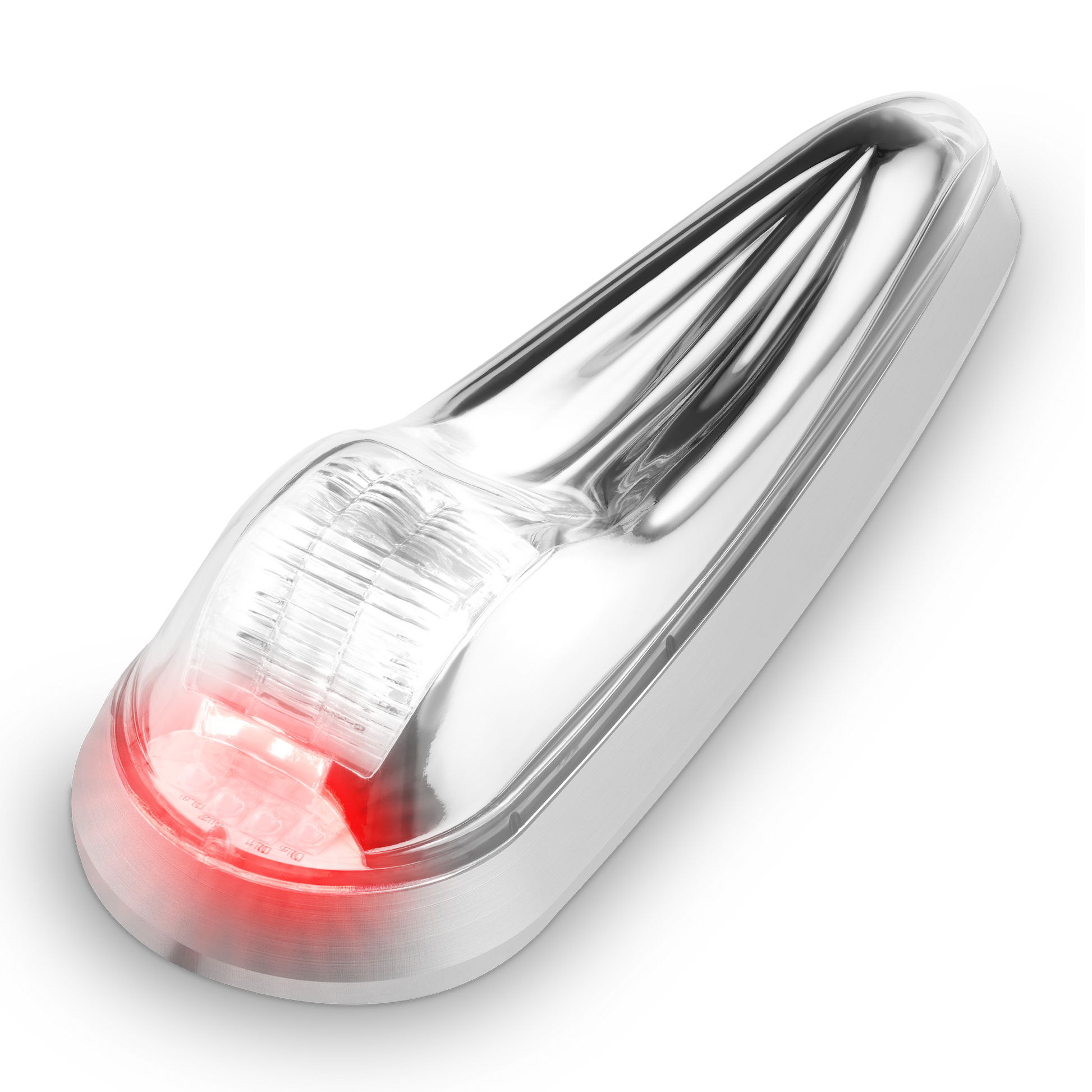

Pulsar 600 - 14V RED 11-1100-12-L
RED
CERTIFIED FORWARD POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC
 FAA-TSOA/STC

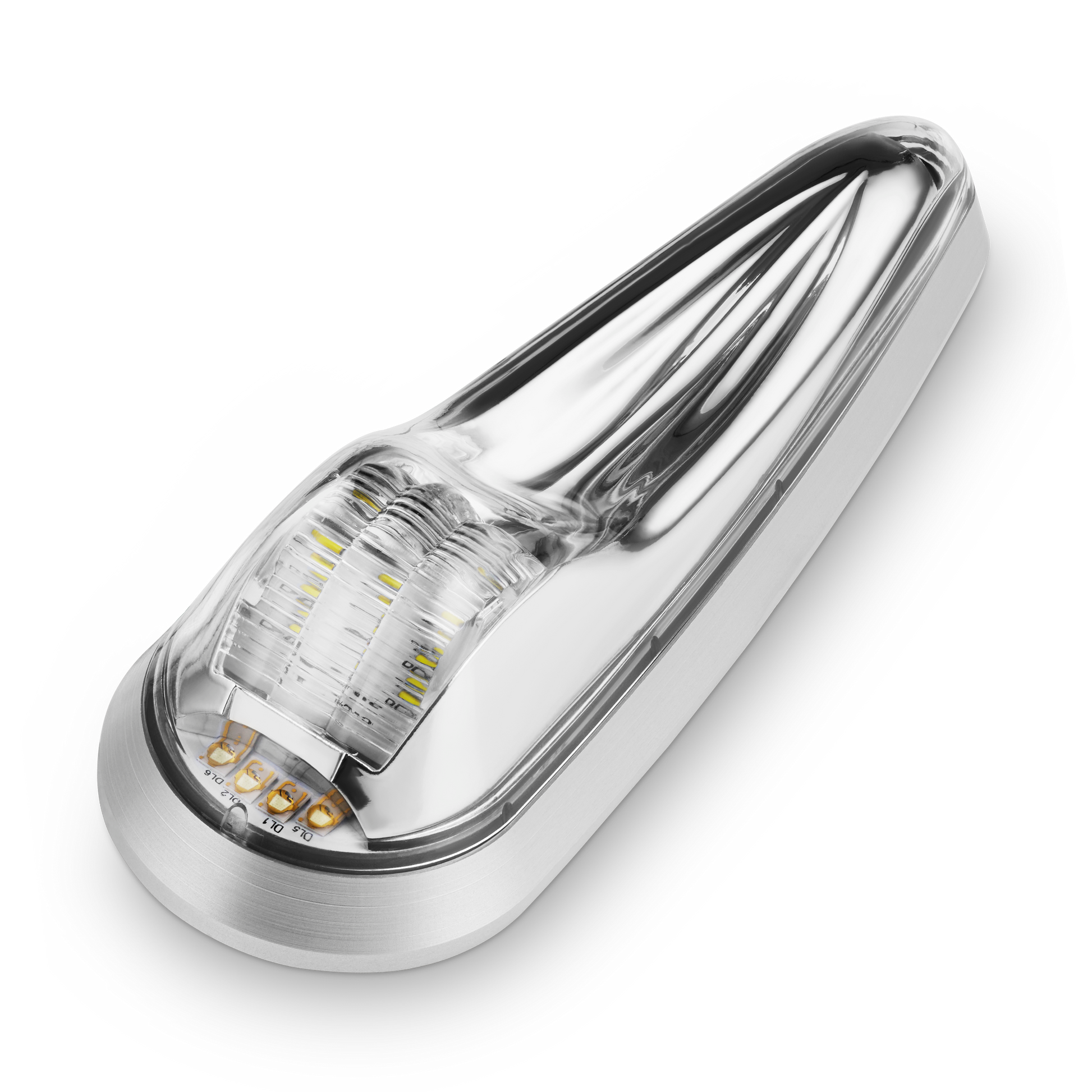

Pulsar 600 - 14V GREEN 11-1100-12-R
GREEN
CERTIFIED FORWARD POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC
 FAA-TSOA/STC
Pulsar 600 - 28V RED 11-1100-24-L
RED
CERTIFIED FORWARD POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 28 VDC
 FAA-TSOA/STC
Pulsar 600 - 28V GREEN 11-1100-24-R
GREEN
CERTIFIED FORWARD POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 28 VDC
 FAA-TSOA/STC
Legacy Product Part Number Legacy Product Model Number Pulsar™ 600 Part Number Pulsar™ 600 Model Number
01-0790006-03 A600PR28 11-1100-24-L Pulsar 600 - 28V RED
01-07900006-01 A600PG28 11-1100-24-R Pulsar 600 - 28V GREEN
01-0790006-02 A600PR14 11-1100-12-L Pulsar 600 - 14V RED
01-0790006-00 A600PG14 11-1100-12-R Pulsar 600 - 14V GREEN
01-0790340-03 9034003 11-1100-24-R Pulsar 600 - 28V GREEN
01-0790340-04 9034004 11-1100-24-L Pulsar 600 - 28V RED
01-0790340-01 9034001 11-1100-12-R Pulsar 600 - 14V GREEN
01-0790340-02 9034002 11-1100-12-L Pulsar 600 - 14V RED

Tech Specs

  • Max Current: 0.6A@14VDC(average) 4.9A@14VDC(peak), 0.4A@28VDC(average) 3.2A@28VDC(peak)
  • Weight: 0.25 lbs.
  • Length: 5.6" Width: 1.9" Depth: 1.4"
Model Part # Description Approvals
Pulsar 600 - 14V RED 11-1100-12-L
RED
CERTIFIED FORWARD POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC
 FAA-TSOA/STC
Pulsar 600 - 14V GREEN 11-1100-12-R
GREEN
CERTIFIED FORWARD POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC
 FAA-TSOA/STC
Pulsar 600 - 28V RED 11-1100-24-L
RED
CERTIFIED FORWARD POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 28 VDC
 FAA-TSOA/STC
Pulsar 600 - 28V GREEN 11-1100-24-R
GREEN
CERTIFIED FORWARD POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 28 VDC
 FAA-TSOA/STC

Cross Reference Chart

Legacy Product Part Number Legacy Product Model Number Pulsar™ 600 Part Number Pulsar™ 600 Model Number
01-0790006-03 A600PR28 11-1100-24-L Pulsar 600 - 28V RED
01-07900006-01 A600PG28 11-1100-24-R Pulsar 600 - 28V GREEN
01-0790006-02 A600PR14 11-1100-12-L Pulsar 600 - 14V RED
01-0790006-00 A600PG14 11-1100-12-R Pulsar 600 - 14V GREEN
01-0790340-03 9034003 11-1100-24-R Pulsar 600 - 28V GREEN
01-0790340-04 9034004 11-1100-24-L Pulsar 600 - 28V RED
01-0790340-01 9034001 11-1100-12-R Pulsar 600 - 14V GREEN
01-0790340-02 9034002 11-1100-12-L Pulsar 600 - 14V RED

Documents

Video

WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit aeroleds.com/regulatory.

Product Data Sheet
