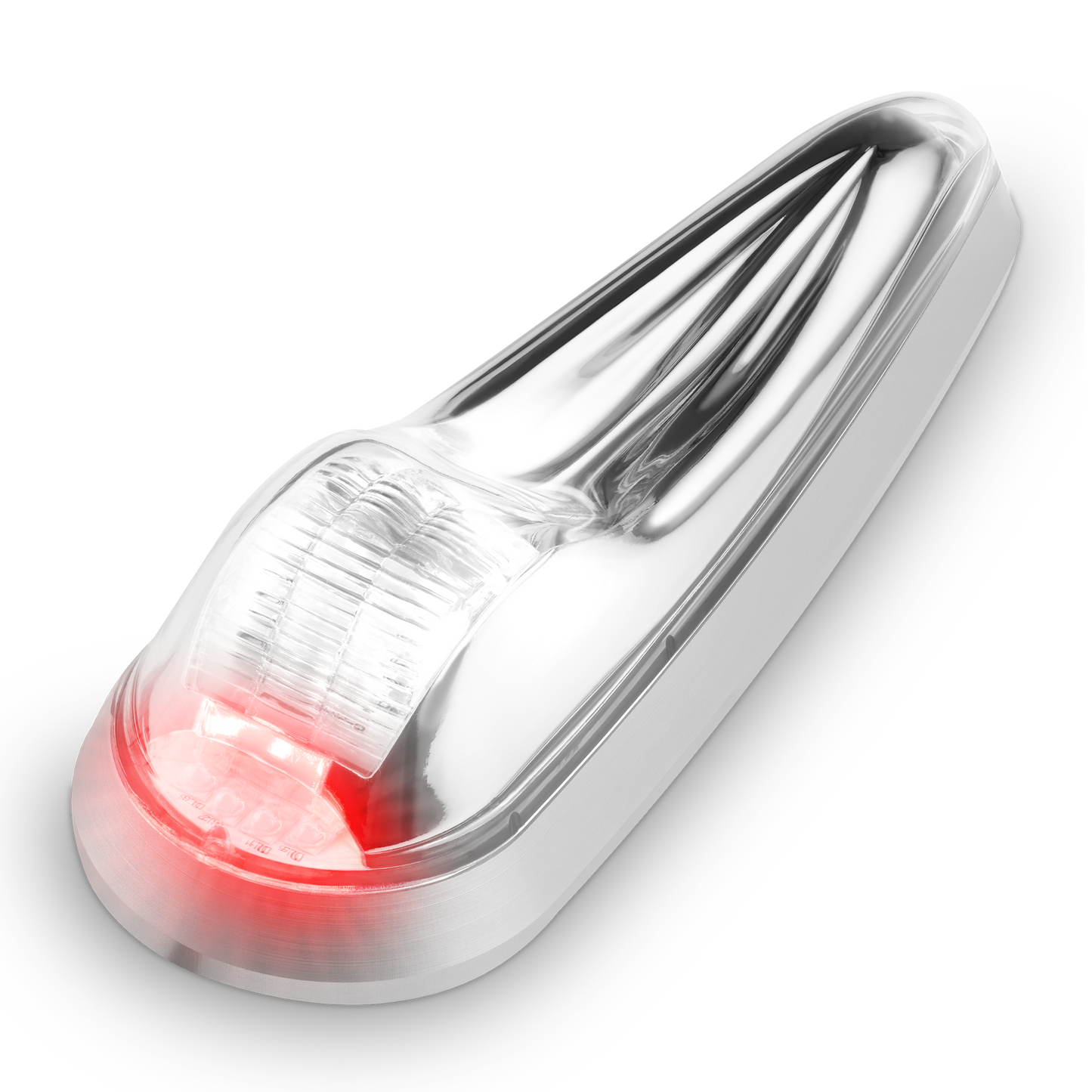

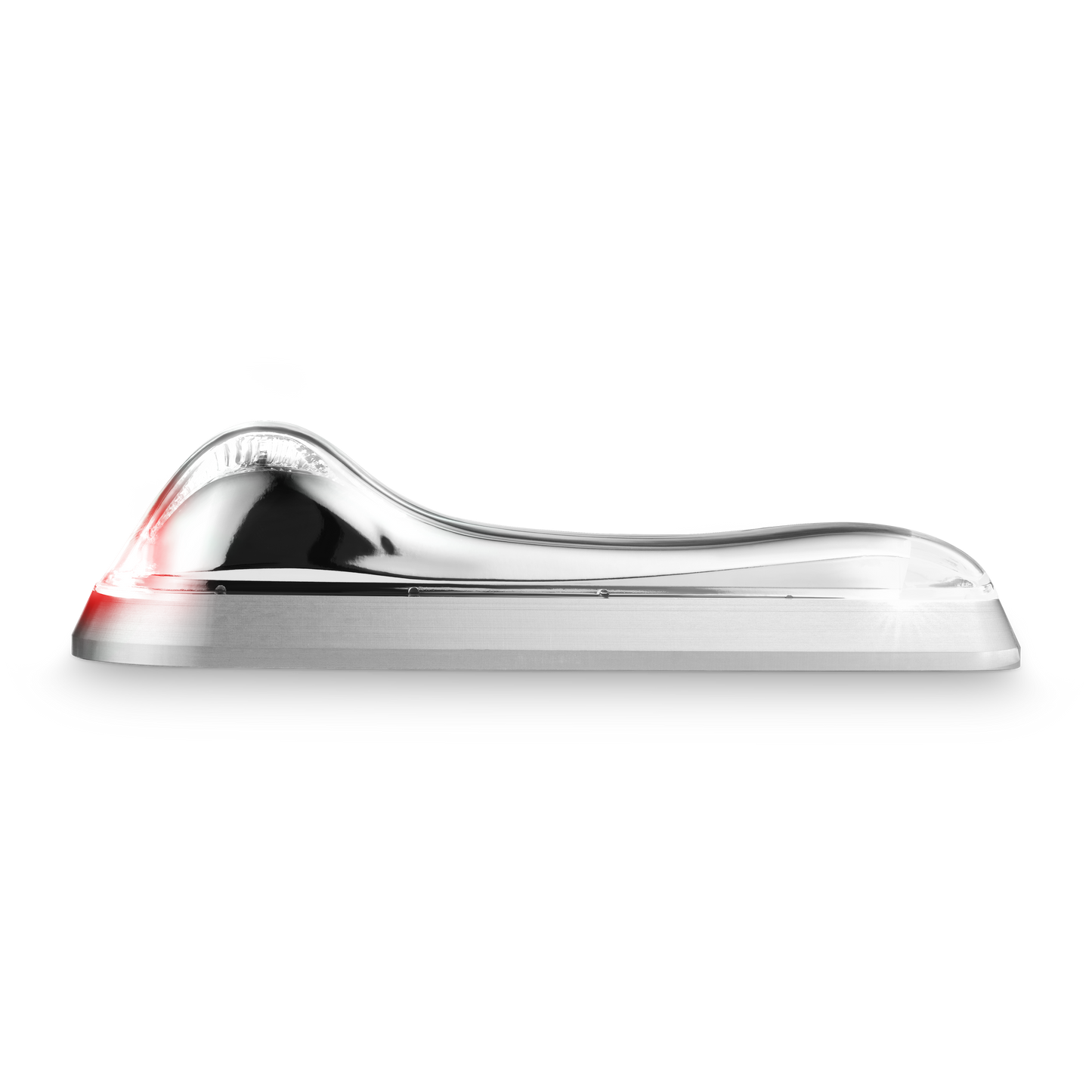

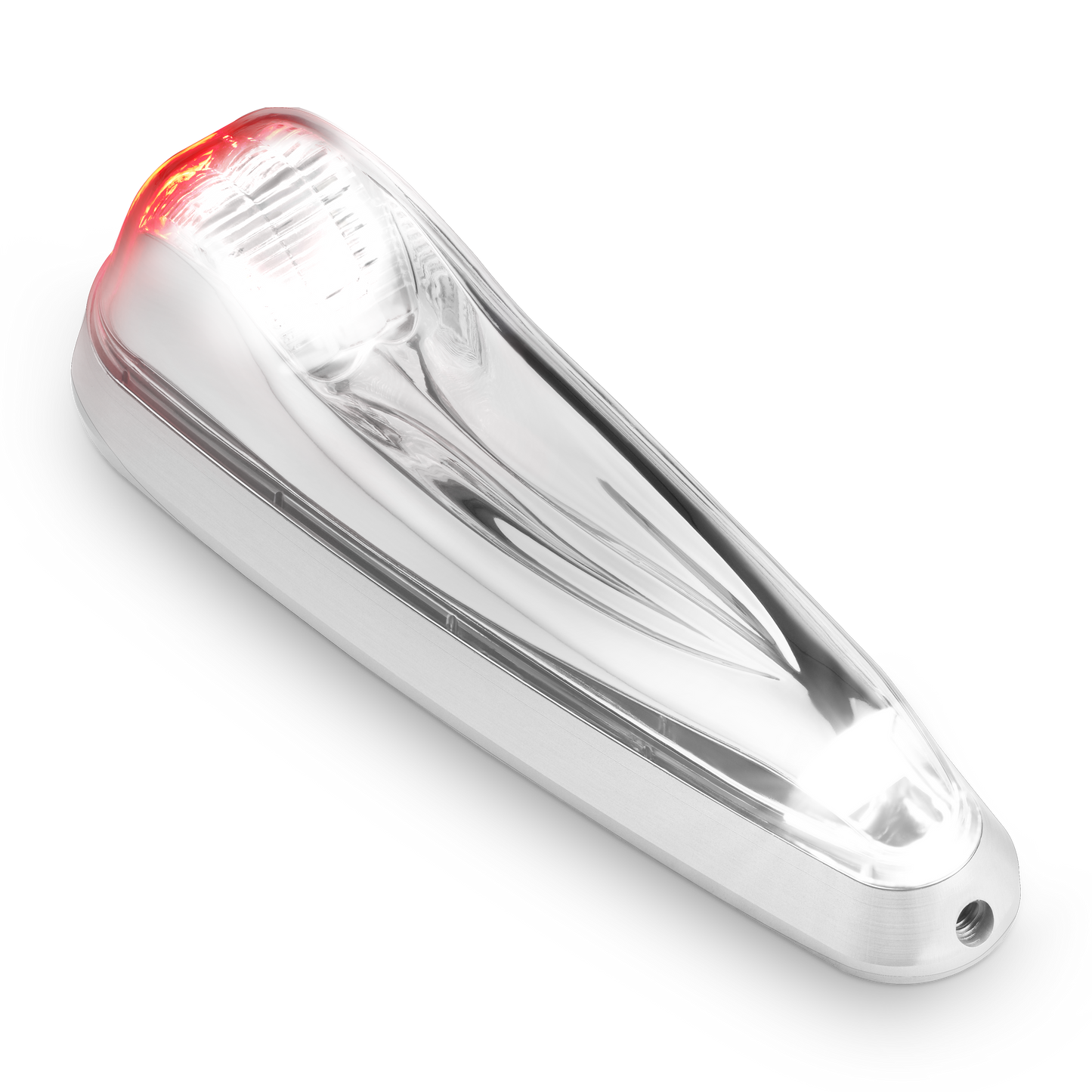

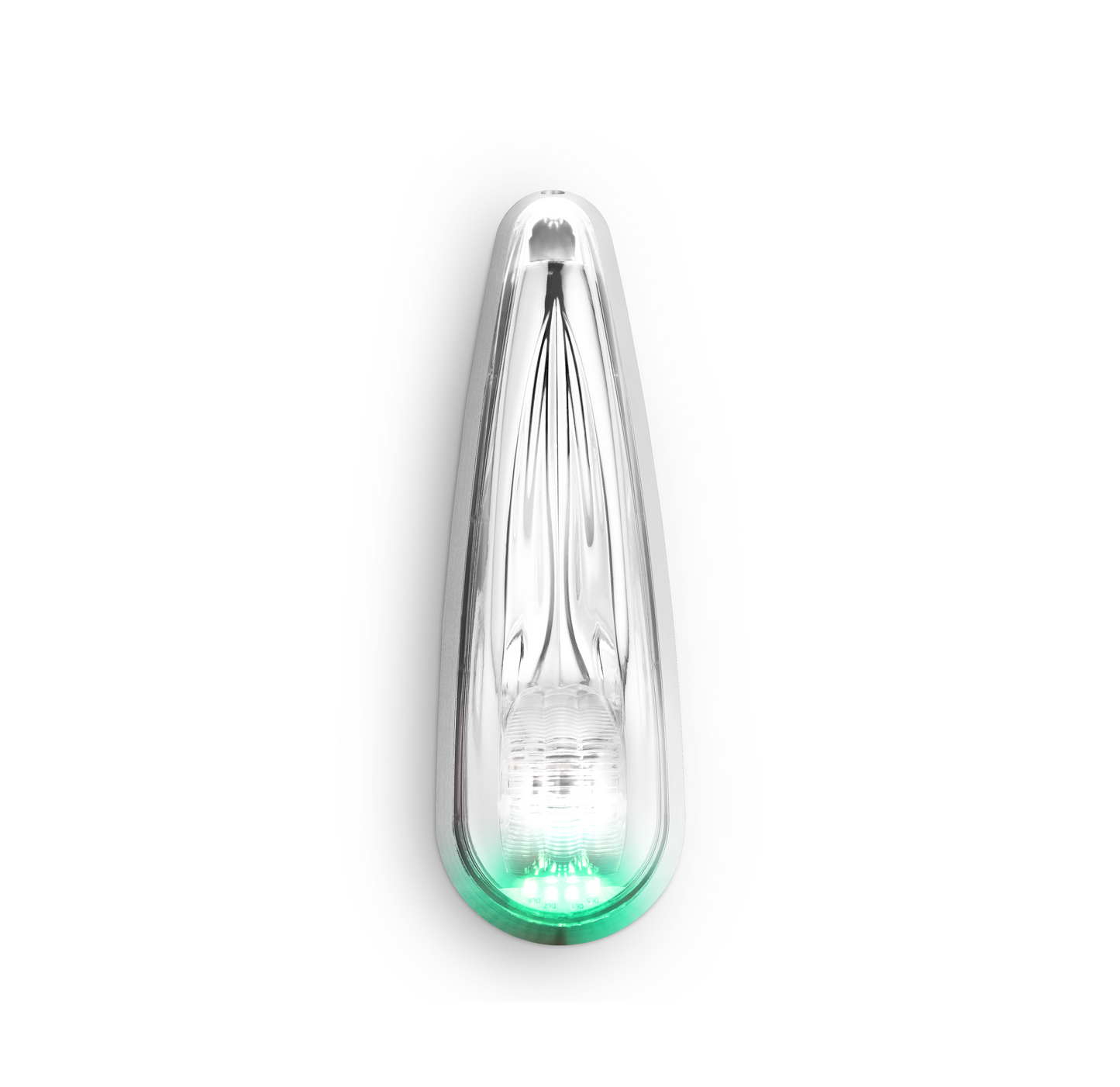

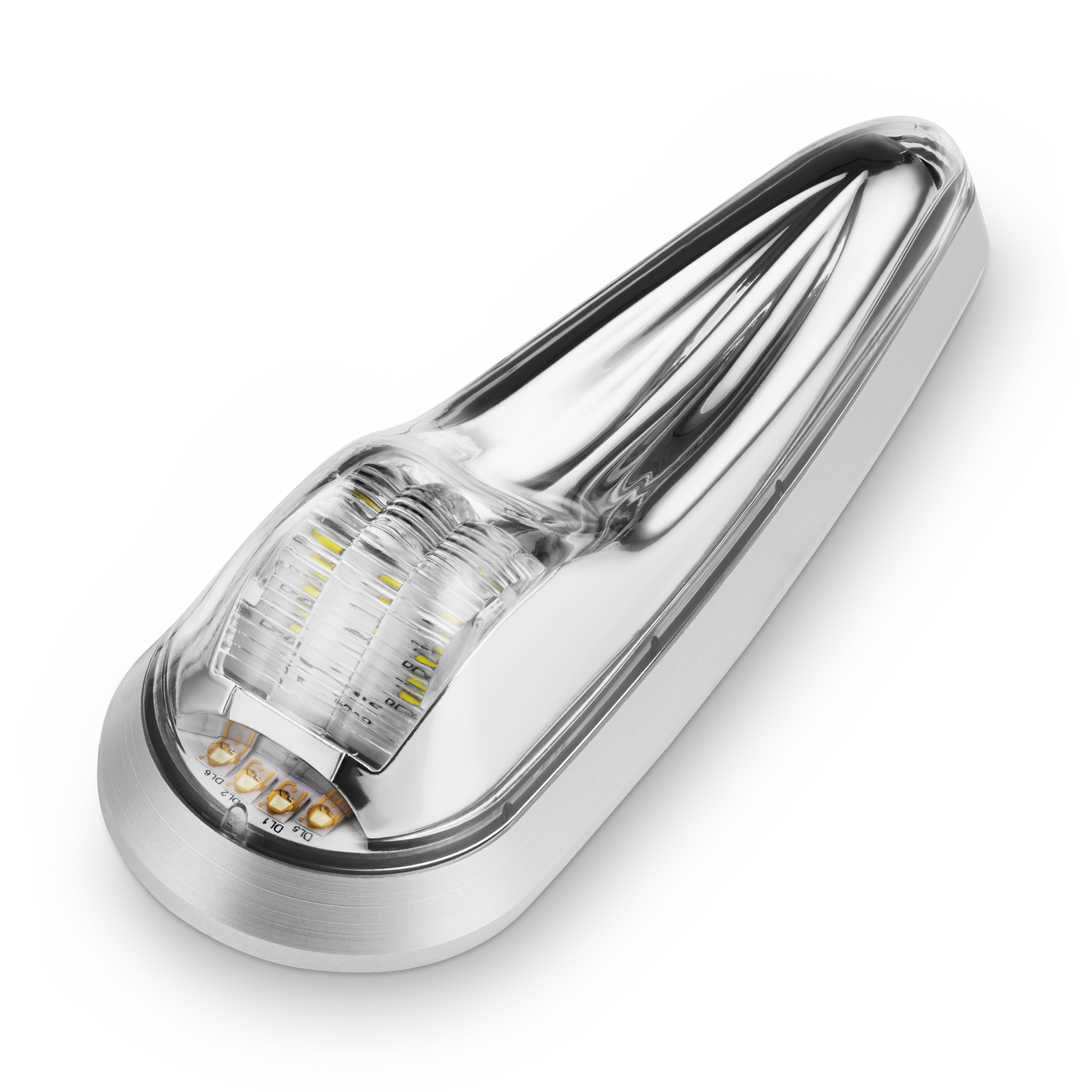

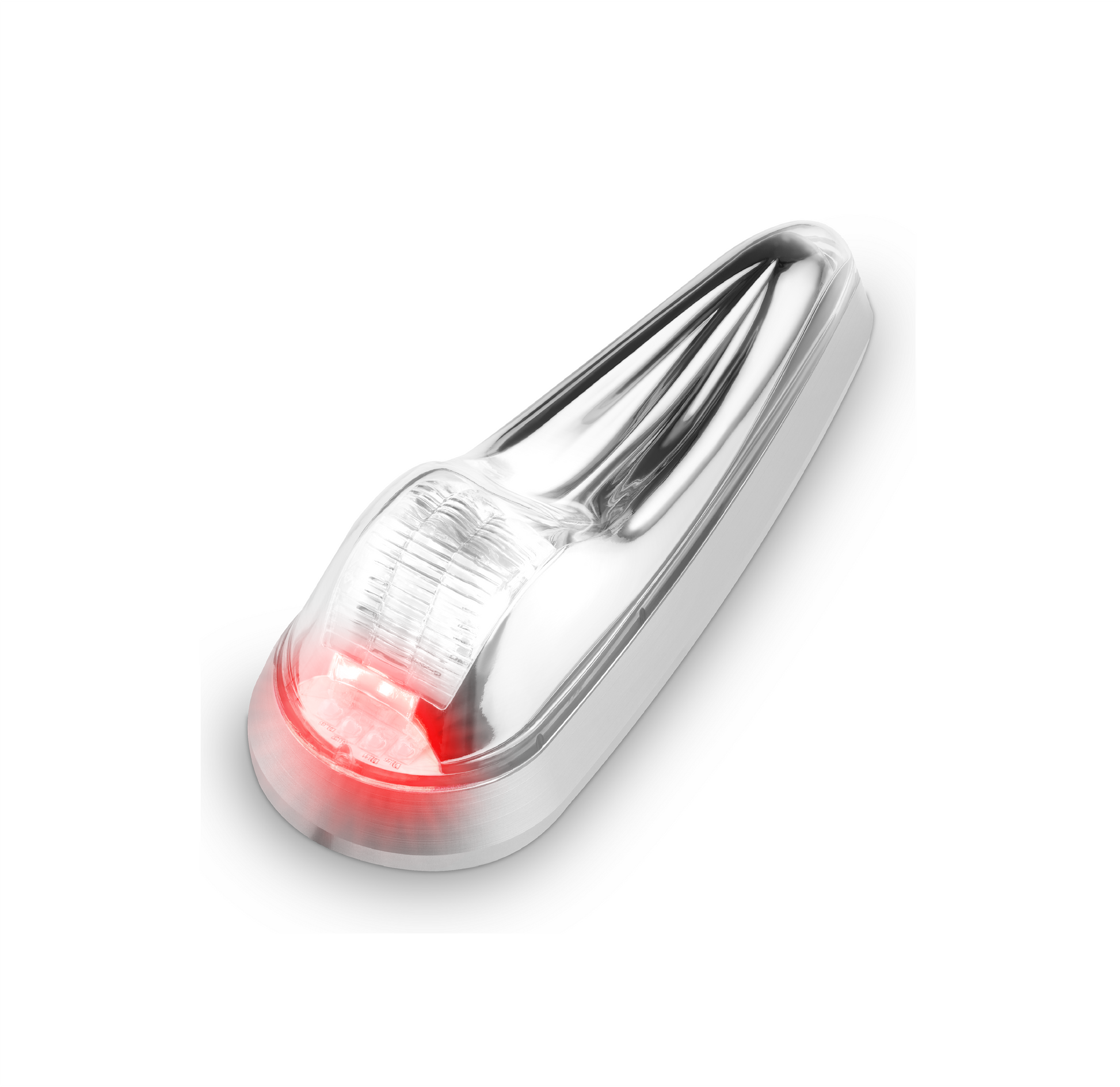

The Pulsar 600 EXP Series (formally known as the Pulsar)  is a three-in-one lighting solution, combining a navigation light for directional red and green positioning, a strobe light for enhanced visibility, and a rear-facing white position light for added safety.

With an aerodynamic low-drag profile and an industry-standard mounting footprint, it’s easy to install and perfect for replacing legacy systems. The lights meet or exceed TSO C-30c (Type I, II, III) and C-96a (Class II) standards.

Key Features:

  • Three-in-One Design: Navigation, strobe, and rear position lighting.
  • Power Efficient: Operates on 12V with low power consumption; no external power supply needed.
  • Strobe Synchronization: Available for multi-light setups.
  • Easy Installation: Standard mounting footprint for seamless upgrades.
  • Category: For experimental aircraft.

Part Numbers
Contact Reseller
View full details

EXPERIMENTAL - LED FORWARD & TAIL POSITION/ ANTI-COLLISION WINGTIP LIGHT

Tech Specs

Cross Reference Chart

Documents

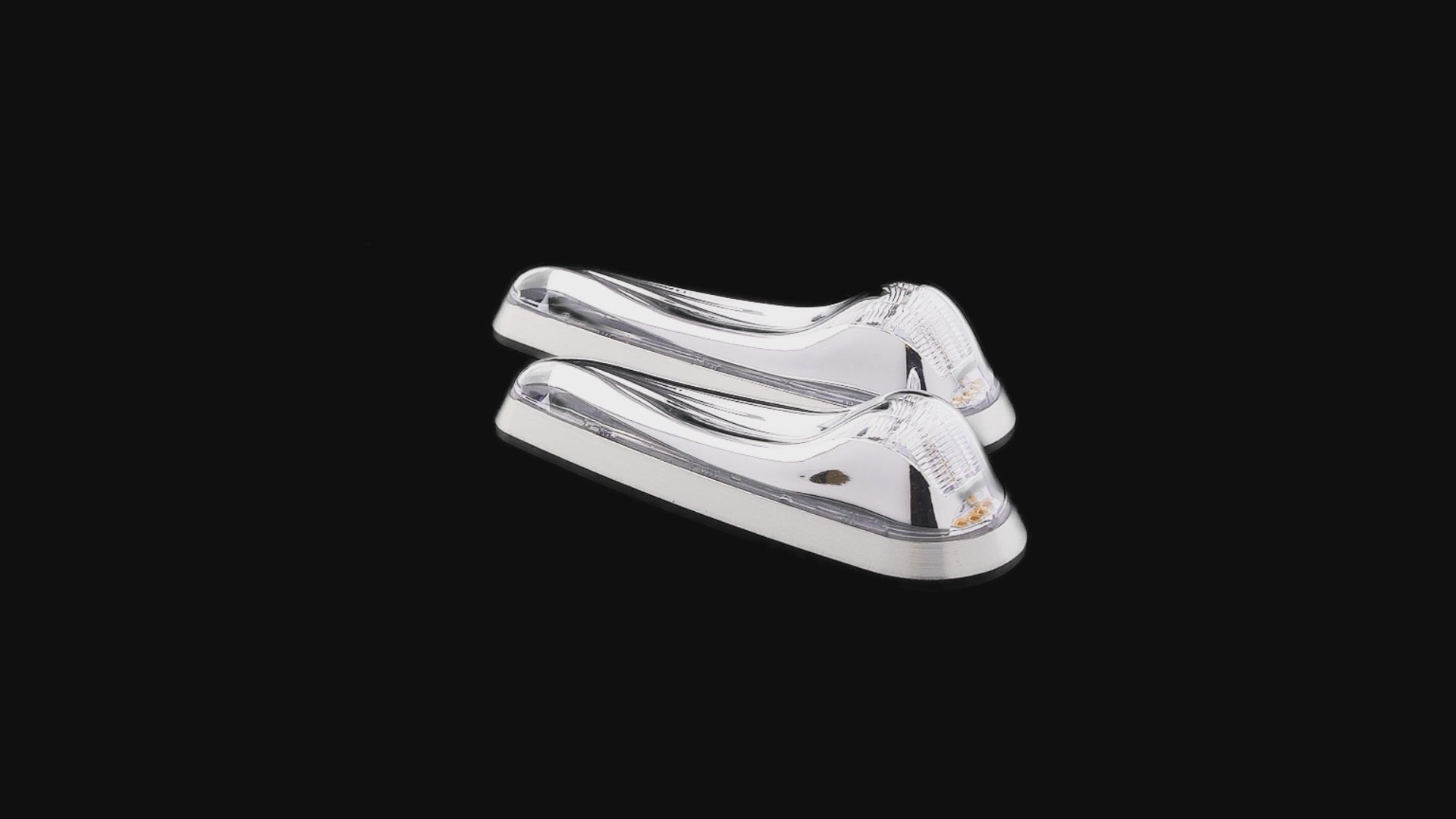

Video

  • Current Draw (ea):
    • 14VDC: Position Light: 0.8 Amps | Anti-Collision Light 0.6 Amps (Average) | 4.95 Amps (Peak)
  • Weight: 0.25 lbs.
  • Length: 5.6" Width: 1.9" Depth: 1.4"
  • Includes patented three-position mounting bracket
Model Part # Description Approvals
Pulsar 600 EXP - 14V RED

01-1100-12-L
RED
EXPERIMENTAL POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC
  None - Performance Exceeds TSO
Pulsar 600 EXP - 14V GREEN 01-1100-12-R
GREEN
EXPERIMENTAL FORWARD POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC
  None - Performance Exceeds TSO
Legacy Product Part Number Legacy Product Model Number Pulsar™ 600 EXP Part Number Pulsar™ 600 EXP Model Number
01-0790006-03 A600PR28 - -
01-07900006-01 A600PG28 - -
01-0790006-02 A600PR14 01-1100-12-L Pulsar 600 EXP - 14V RED
01-0790006-00 A600PG14 01-1100-12-R Pulsar 600 EXP - 14V GREEN
01-0790340-03 9034003 - -
01-0790340-04 9034004 - -
01-0790340-01 9034001 01-1100-12-R Pulsar 600 EXP - 14V GREEN
01-0790340-02 9034002 01-1100-12-L Pulsar 600 EXP - 14V RED

Tech Specs

  • Current Draw (ea):
    • 14VDC: Position Light: 0.8 Amps | Anti-Collision Light 0.6 Amps (Average) | 4.95 Amps (Peak)
  • Weight: 0.25 lbs.
  • Length: 5.6" Width: 1.9" Depth: 1.4"
  • Includes patented three-position mounting bracket
Model Part # Description Approvals
Pulsar 600 EXP - 14V RED

01-1100-12-L
RED
EXPERIMENTAL POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC
  None - Performance Exceeds TSO
Pulsar 600 EXP - 14V GREEN 01-1100-12-R
GREEN
EXPERIMENTAL FORWARD POSITION & WHITE TAIL POSITION LIGHT / ANTI-COLLISION LIGHT WINGTIP ASSEMBLY, 14 VDC
  None - Performance Exceeds TSO

Cross Reference Chart

Legacy Product Part Number Legacy Product Model Number Pulsar™ 600 EXP Part Number Pulsar™ 600 EXP Model Number
01-0790006-03 A600PR28 - -
01-07900006-01 A600PG28 - -
01-0790006-02 A600PR14 01-1100-12-L Pulsar 600 EXP - 14V RED
01-0790006-00 A600PG14 01-1100-12-R Pulsar 600 EXP - 14V GREEN
01-0790340-03 9034003 - -
01-0790340-04 9034004 - -
01-0790340-01 9034001 01-1100-12-R Pulsar 600 EXP - 14V GREEN
01-0790340-02 9034002 01-1100-12-L Pulsar 600 EXP - 14V RED

Documents

Video
