AeroSun VX - Van's RV Wingtip Lights

AeroSun VX - Van's RV Wingtip Lights

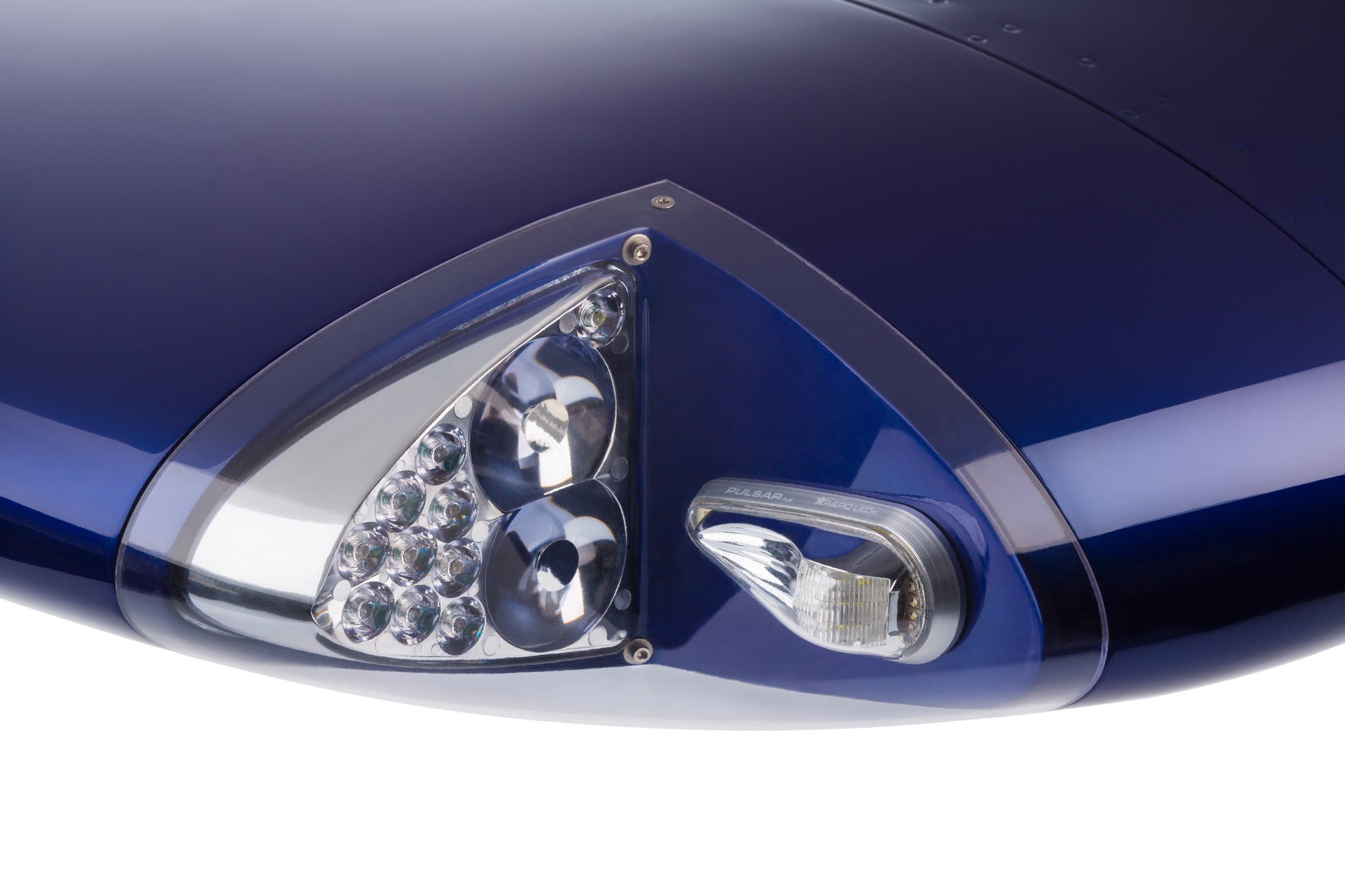

The AeroSun™ VX is the perfect lighting solution for Vans RV wingtips, delivering powerful performance and enhanced safety. Designed for both aluminum and composite aircraft, it serves as a reliable landing and taxi light while incorporating a built-in Pulse (wig-wag) mode. This feature significantly improves visibility in daylight and night operations, reducing the risk of midair collisions and bird strikes, all while drawing half the current of traditional systems.

Key Features:

  • Landing/Taxi Light with bright, aviation-grade white illumination.
  • Pulse Mode (wig-wag) for enhanced recognition and safety.
  • Energy Efficient: Draws only 60 watts per light max.

Upgrade your Vans RV with the versatile and efficient AeroSun™ VX for superior lighting performance.

Part Numbers
Contact Reseller
View full details



Van's RV Wingtip Landing & Taxi Lights

Tech Specs

Documents

  • Max Current (Pair):  Landing Light: 9.2A@14VDC, 4.6A@28VDC Taxi Light: 2.3A@14VDC, 1.2A@28VDC
  • Weight: 1.9 lbs. (pair)
  • Length: 6.3" Width: 5.7" Depth: 3.4"
Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals

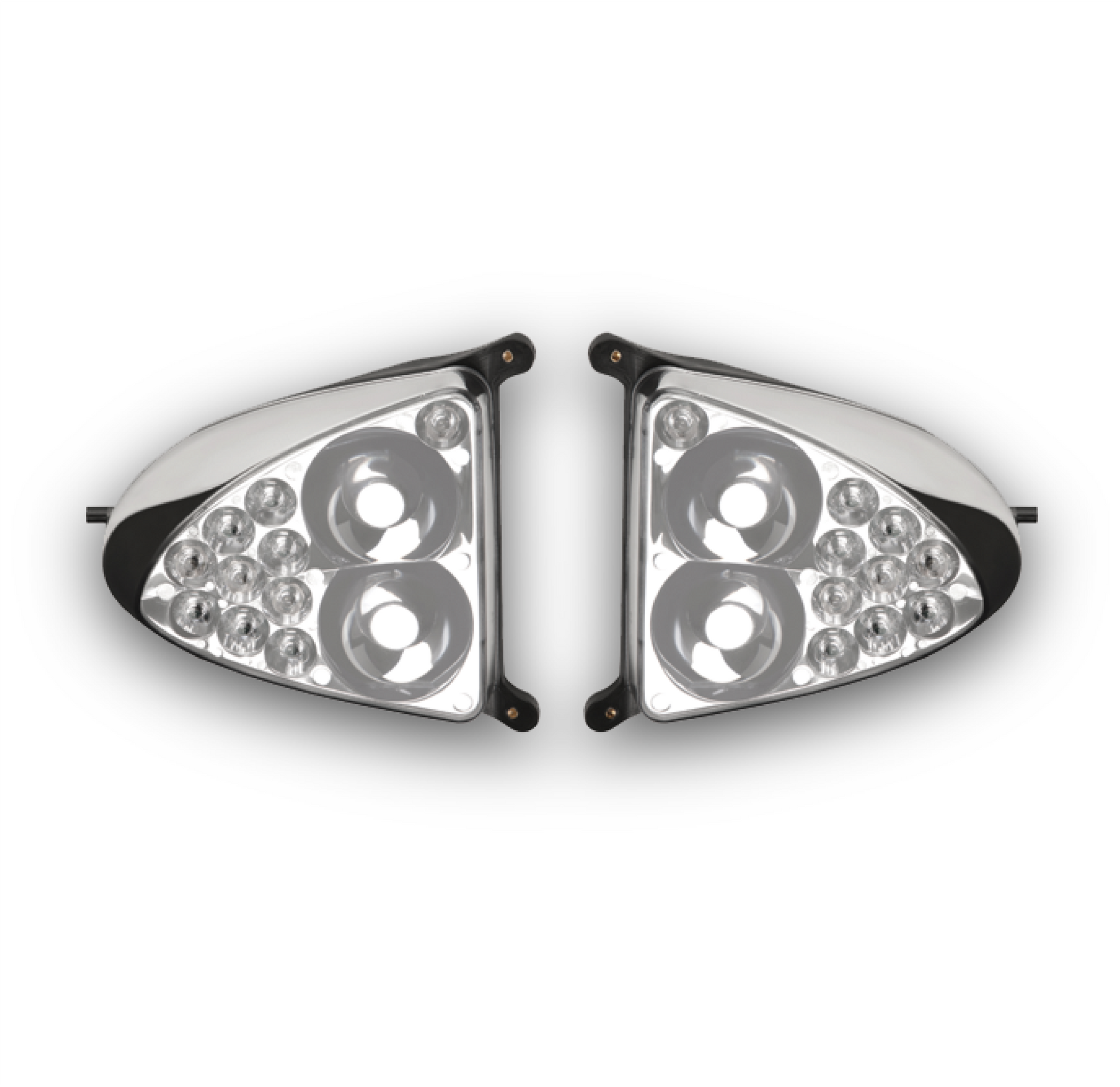

AeroSun VX (Pair)  01-2500 VAN'S RV PAIR WINGTIP LANDING & TAXI  LIGHT 9-32V.

CANDELA:

LANDING: 140,000 (pair)

TAXI: 16,000 (pair)

LUMENS: 14,000 (pair)

Landing: 20ºx20º

Taxi: 20ºx25º

 Yes None
AeroSun VX (Left)  01-2500-L VAN'S RV LEFT WINGTIP LANDING & TAXI  LIGHT 9-32V.

CANDELA:

LANDING: 140,000 (pair)

TAXI: 16,000 (pair)

LUMENS: 14,000 (pair)

Landing: 20ºx20º

Taxi: 20ºx25º

 Yes None
AeroSun VX (Right)  01-2500-R VAN'S RV RIGHT WINGTIP LANDING & TAXI  LIGHT 9-32V.

CANDELA:

LANDING: 140,000 (pair)

TAXI: 16,000 (pair)

LUMENS: 14,000 (pair)

Landing: 20ºx20º

Taxi: 20ºx25º

 Yes None

Tech Specs

  • Max Current (Pair):  Landing Light: 9.2A@14VDC, 4.6A@28VDC Taxi Light: 2.3A@14VDC, 1.2A@28VDC
  • Weight: 1.9 lbs. (pair)
  • Length: 6.3" Width: 5.7" Depth: 3.4"
Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals
AeroSun VX (Pair)  01-2500 VAN'S RV PAIR WINGTIP LANDING & TAXI  LIGHT 9-32V.

CANDELA:

LANDING: 140,000 (pair)

TAXI: 16,000 (pair)

LUMENS: 14,000 (pair)

Landing: 20ºx20º

Taxi: 20ºx25º

 Yes None
AeroSun VX (Left)  01-2500-L VAN'S RV LEFT WINGTIP LANDING & TAXI  LIGHT 9-32V.

CANDELA:

LANDING: 140,000 (pair)

TAXI: 16,000 (pair)

LUMENS: 14,000 (pair)

Landing: 20ºx20º

Taxi: 20ºx25º

 Yes None
AeroSun VX (Right)  01-2500-R VAN'S RV RIGHT WINGTIP LANDING & TAXI  LIGHT 9-32V.

CANDELA:

LANDING: 140,000 (pair)

TAXI: 16,000 (pair)

LUMENS: 14,000 (pair)

Landing: 20ºx20º

Taxi: 20ºx25º

 Yes None


Documents

WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit aeroleds.com/regulatory.

Product Data Sheet
