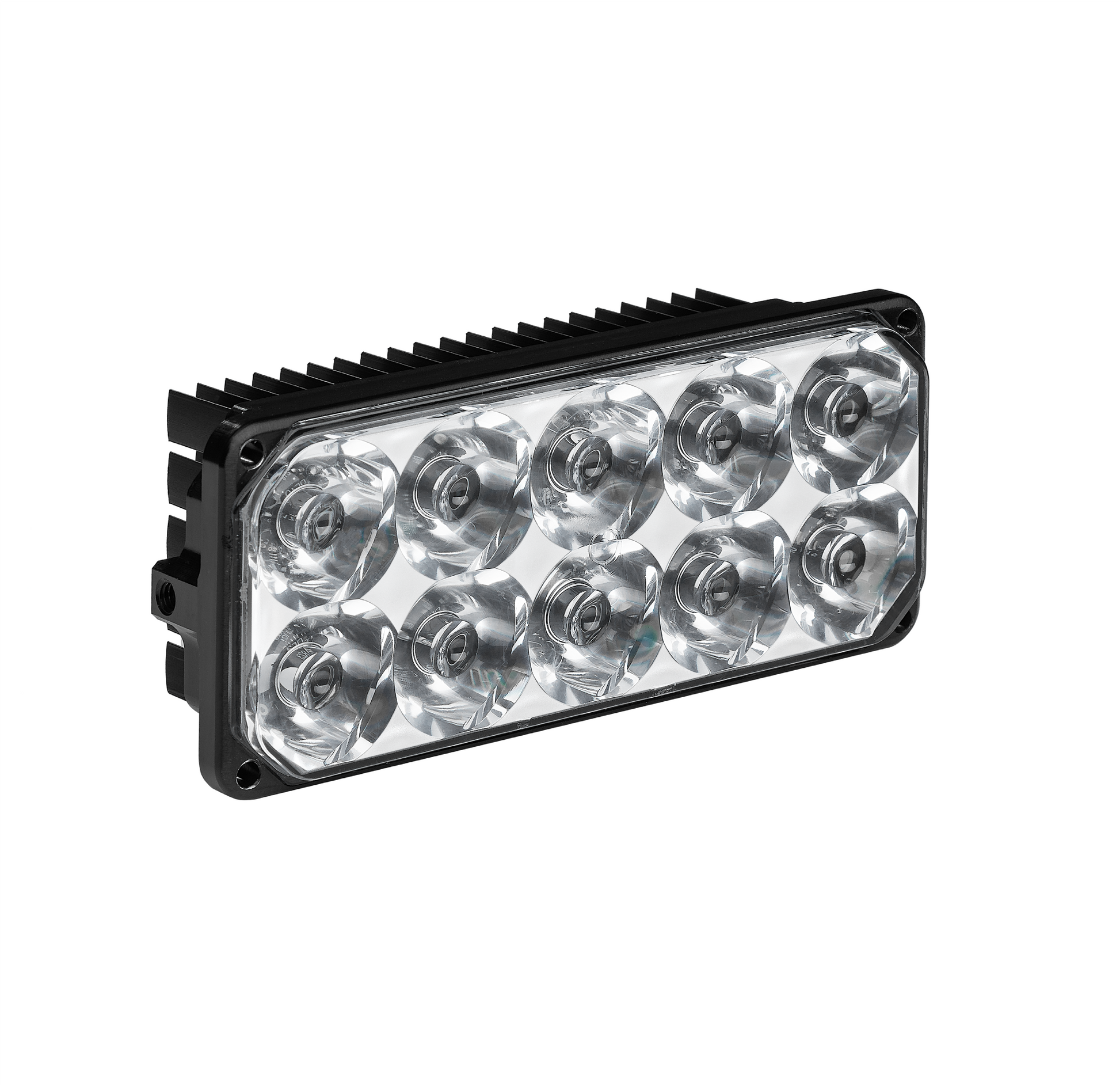

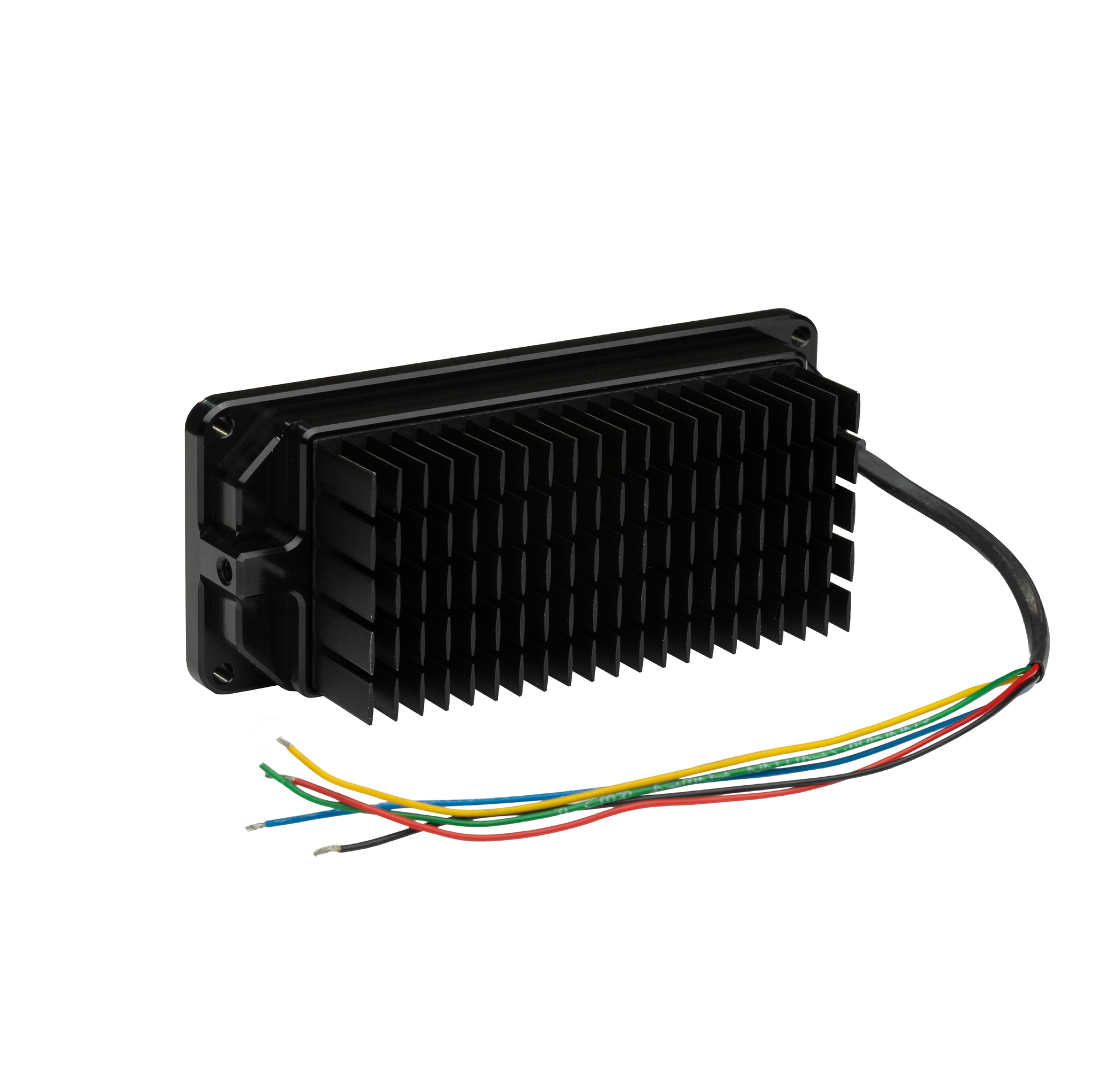

AeroSun EVO IV LED Landing/Recognition Light

The AeroSun EVO IV is the ultimate upgrade in aircraft lighting, delivering 3X the performance of its predecessor. Designed for versatility, this high-output LED can be mounted virtually anywhere on your aircraft (optional mount sold separately).

Key features include AeroLEDs’ signature Pulse (wig-wag) mode, fully integrated for enhanced recognition and collision avoidance. Ideal for dual or quad light setups, the self-contained pulse function reduces electrical load by 50% while aiding in bird strike prevention and improving safety in both daylight and night operations.

Specifications:

  • Power Consumption: 48 watts max
  • Color Temperature: Aviation white for true color rendering
  • Lifespan: 30,000+ hours MTBF
  • Built-in Features: Pulse mode, synchronization, thermal protection
  • Construction: Aluminum with black anodized heat sink
  • Lens: UV-hardcoated polycarbonate

Upgrade to the AeroSun EVO IV for unparalleled visibility, safety, and efficiency. Perfect for any aircraft, it combines performance, durability, and ease of installation.

Part Numbers
Contact Reseller
View full details



Landing & Recognition Light

Tech Specs

Documents

Video

  • Max Current:  3.4A@14VDC, 1.7A@28VDC
  • Weight: 0.6 lbs.
  • Length: 5" Width: 2.3" Depth: 1.8"
Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals
AeroSun EVO IV 01-2120 LANDING & RECOGNITION LIGHT 9-32V.

CANDELA: 150,000

LUMENS: 5,000

 15ºx15º Yes None

Tech Specs

  • Max Current:  3.4A@14VDC, 1.7A@28VDC
  • Weight: 0.6 lbs.
  • Length: 5" Width: 2.3" Depth: 1.8"
Model Part # Description Candela/ Lumens Beam Profile Wigwag/Sync Approvals
AeroSun EVO IV 01-2120 LANDING & RECOGNITION LIGHT 9-32V.

CANDELA: 150,000

LUMENS: 5,000

 15ºx15º Yes None
