SUNSPOT 36-4000 (100W) LED Landing & Taxi Light

SUNSPOT 36-4000 (100W) LED Landing & Taxi Light

AeroLEDs’ SunSpot 36 100W delivers top-tier performance for landing and taxi operations:

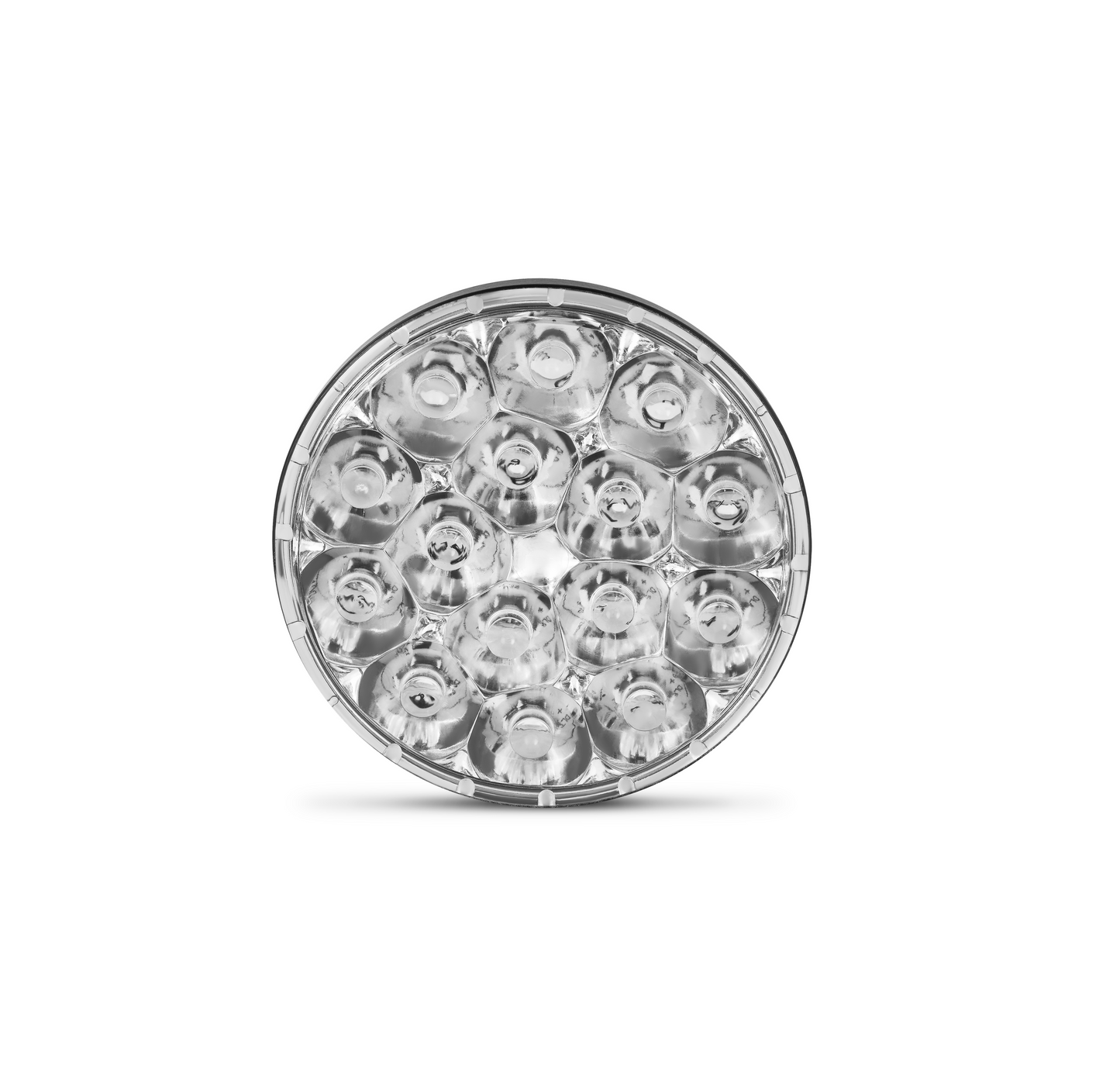

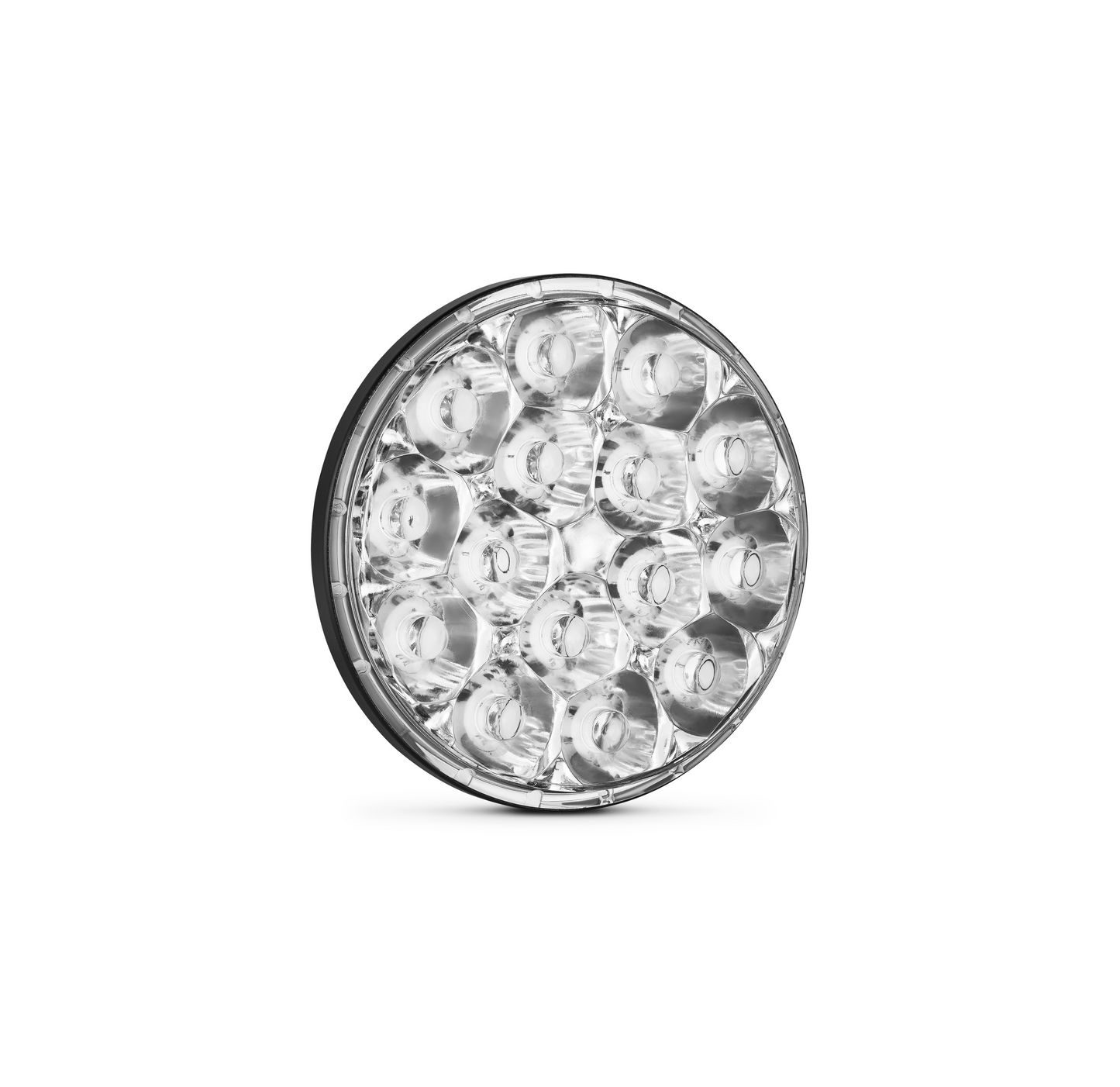

  • Landing Light: 200,000+ candela, 20°x20° beam, visible up to 30 miles.

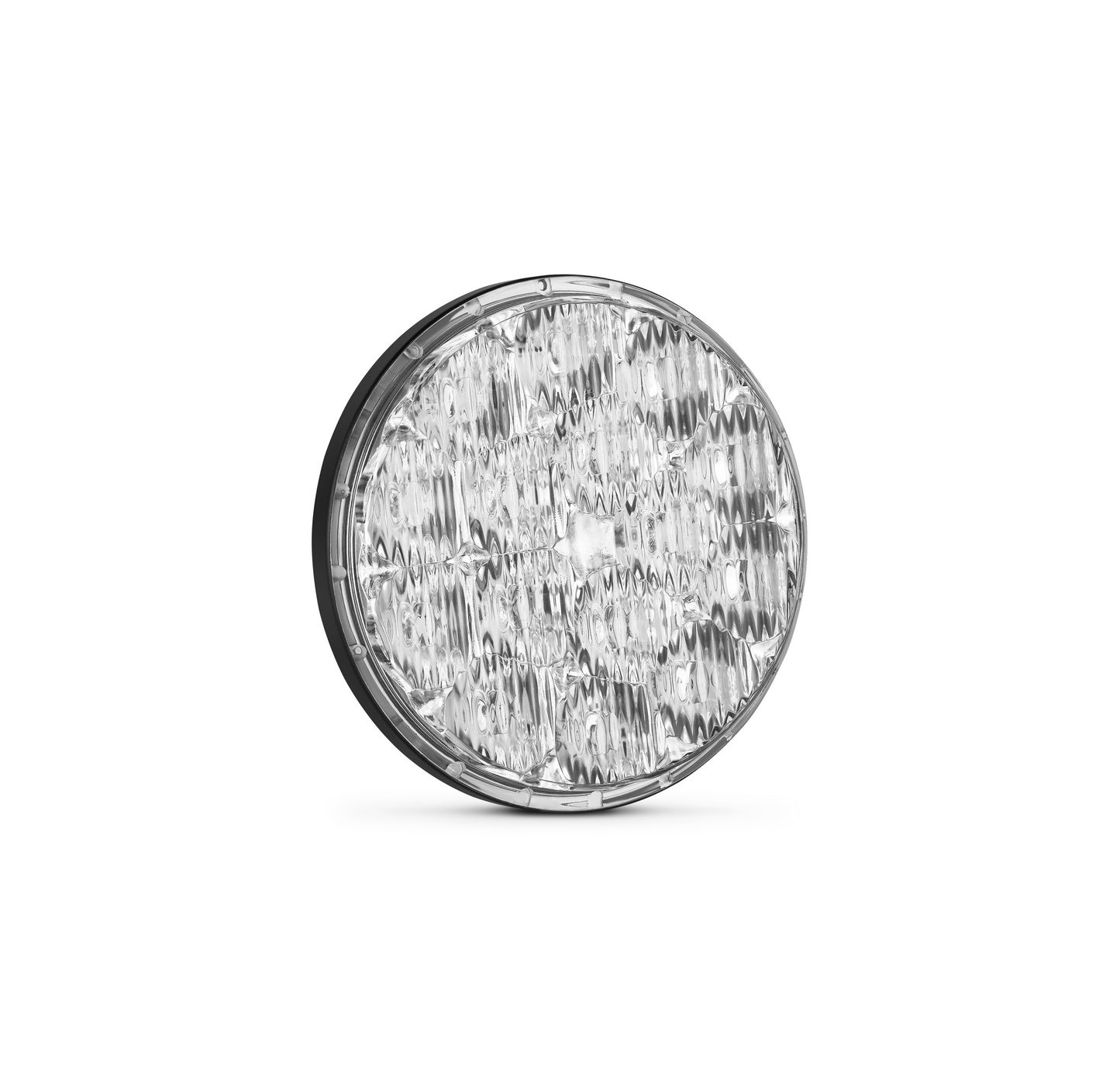

  • Taxi Light: 60,000+ candela, 20°x40° beam for superior ground visibility.

These lights provide vivid, true-to-life illumination, consume less power, and resist vibrations. Installation is easy with a standard PAR36 mount.

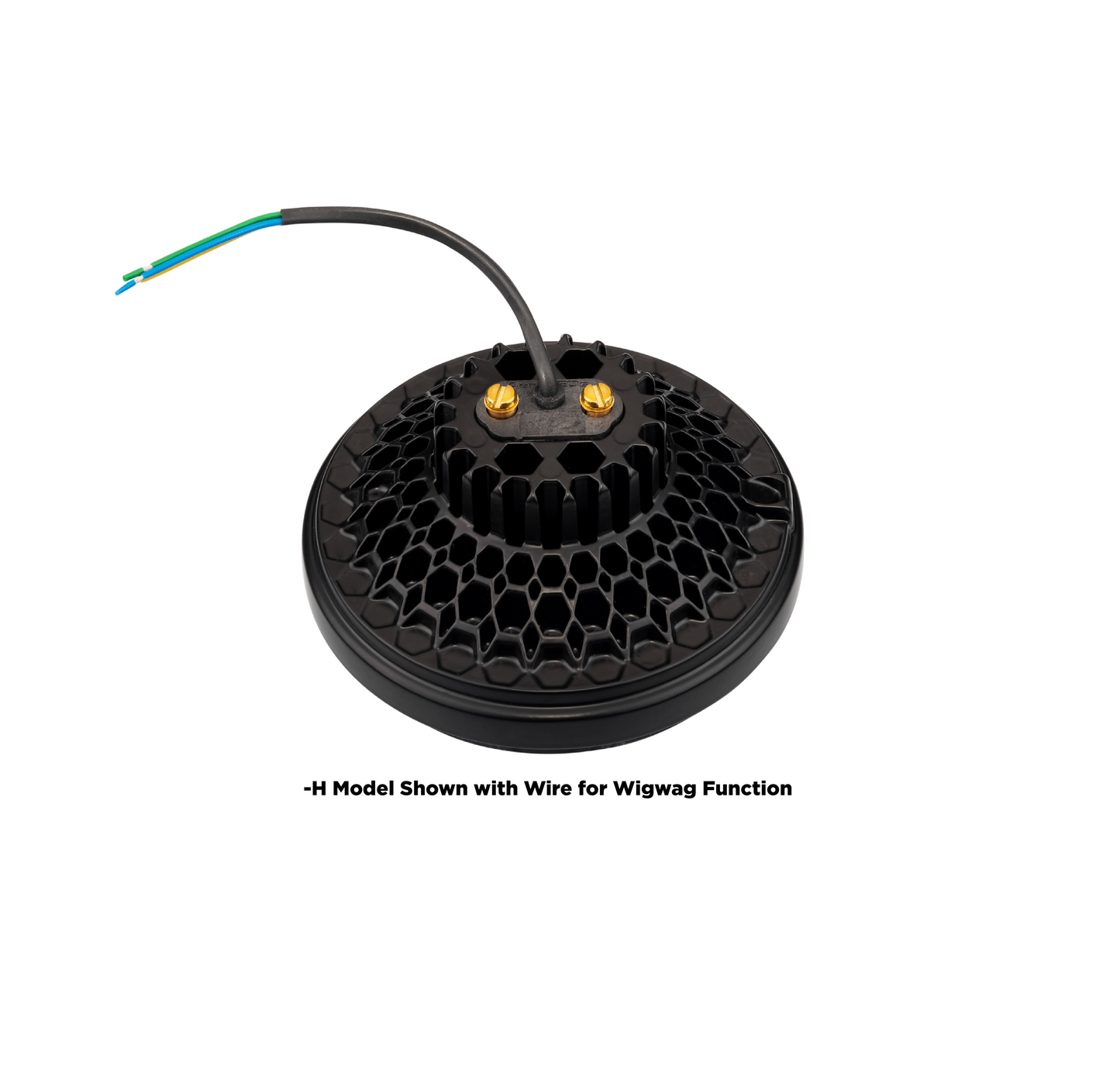

-H Model Features:

  • Built-in Pulse (wig-wag) mode for enhanced safety and collision avoidance.
  • Reduces electrical load by 50% in multi-light setups.

Specifications:

  • 100W max, 30,000-hour lifespan
  • UV-coated polycarbonate lens, FAA-PMA/STC approved

Upgrade your aircraft with SunSpot 36 Series for unmatched visibility and reliability.

Part Numbers
Contact Reseller
View full details

100W Landing & Taxi Lights

Tech Specs

Cross Reference Chart

Documents

Video

  • Max Current: Landing Lights: 6.8A@14VDC, 3.6A@28VDC Taxi Lights: 6.7A@14VDC, 3.6A@28VDC
  • Weight: 0.7 lbs.

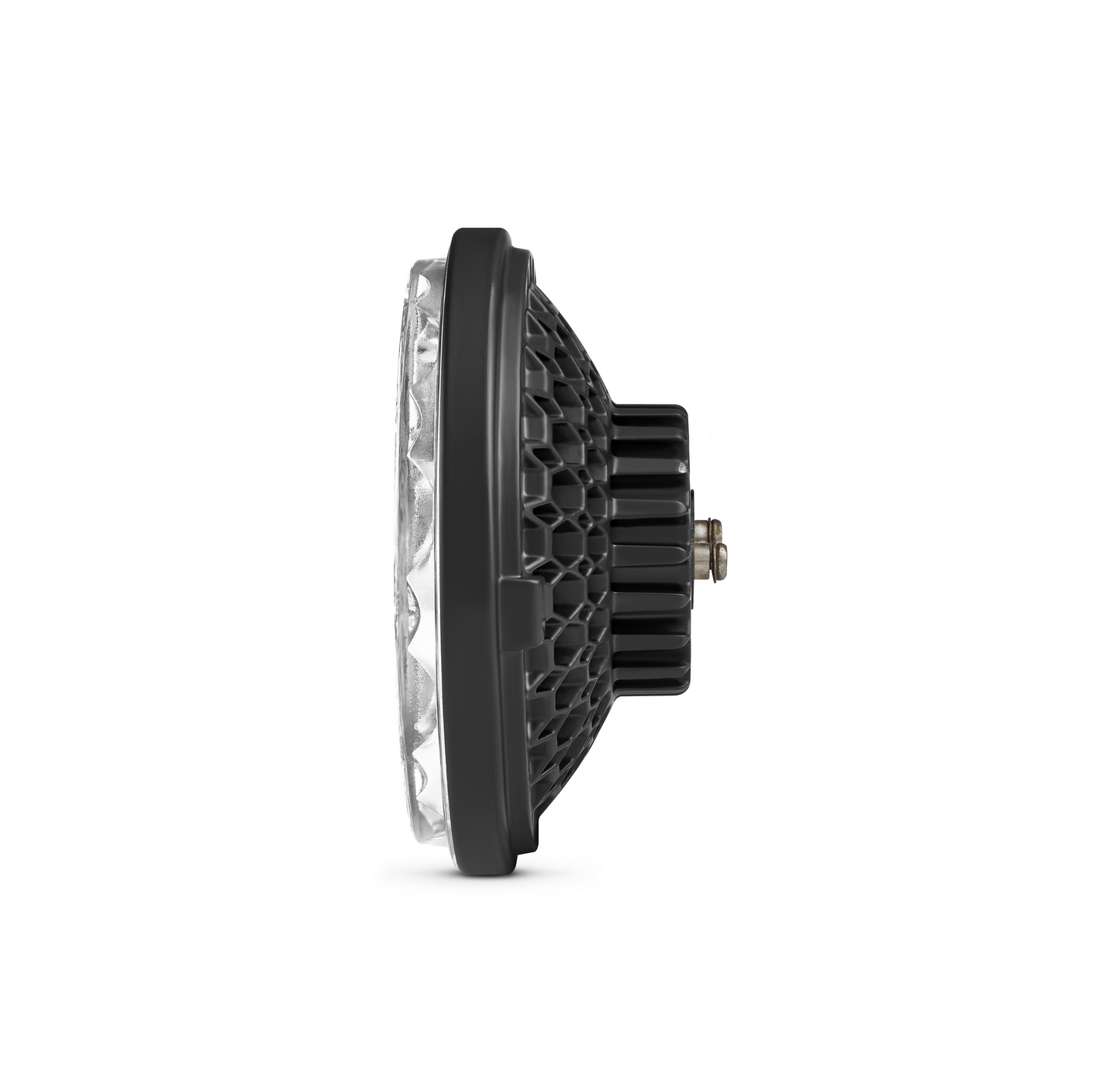

  • Length: 4.4" Width: 4.4" Depth: 2.1"
Model Part # Description Candela Beam Profile Wigwag/Sync Approvals
36-4313 01-1030-4313 100W PAR 36 LANDING LIGHT 14V.

200,000



 20ºx20º No FAA-PMA/STC
36-4313-H 01-1030-4313-H 100W PAR 36 LANDING LIGHT WITH WIGWAG 14V.

200,000



 20ºx20º Yes FAA-PMA/STC
36-4596 01-1030-4596 100W PAR 36 LANDING LIGHT 28V.

200,000



 20ºx20º No FAA-PMA/STC
36-4596-H 01-1030-4596-H 100W PAR 36 LANDING LIGHT WITH WIGWAG 28V.

200,000



 20ºx20º Yes FAA-PMA/STC
36-4314 TAXI 01-1030-4314  100W PAR 36 TAXI LIGHT 14V.

60,000



 20ºX40º No FAA-PMA/STC
36-4314-H TAXI 01-1030-4314-H 100W PAR 36 TAXI LIGHT WITH WIGWAG 14V.

60,000



 20ºX40º Yes FAA-PMA/STC
36-4587 TAXI 01-1030-4587 100W PAR 36 TAXI LIGHT 28V.

60,000



 20ºX40º No FAA-PMA/STC
36 4587-H TAXI 01-1030-4587-H 100W PAR 36 TAXI LIGHT WITH WIGWAG 28V.

60,000



 20ºX40º Yes FAA-PMA/STC
GE Bulb # SunSpot Model SunSpot Part # Voltage
4416 SunSpot 36-4313 01-1030-4313 14V
4416 SunSpot 36-4313-H 01-1030-4313-H 14V
4505 SunSpot 36-4596 01-1030-4596 28V
4505 SunSpot 36-4596-H 01-1030-4596-H 28V
4509 SunSpot 36-4313 01-1030-4313 14V
4509 SunSpot 36-4313-H 01-1030-4313-H 14V
4587 SunSpot 36-4587 Taxi 01-1030-4587 28V
4587 SunSpot 36 4587-H Taxi 01-1030-4587-H 28V
4591 SunSpot 36-4596 01-1030-4596 28V
4591 SunSpot 36-4596-H 01-1030-4596-H 28V
4593 SunSpot 36-4587 Taxi 01-1030-4587 28V
4593 SunSpot 36 4587-H Taxi 01-1030-4587-H 28V
4594 SunSpot 36-4596 01-1030-4596 28V
4594 SunSpot 36-4596-H 01-1030-4596-H 28V
4595 SunSpot 36-4313 01-1030-4313 14V
4595 SunSpot 36-4313-H 01-1030-4313-H 14V
4596 SunSpot 36-4596 01-1030-4596 28V
4596 SunSpot 36-4596-H 01-1030-4596-H 28V
4623 SunSpot 36-4587 Taxi 01-1030-4587 28V
4623 SunSpot 36 4587-H Taxi 01-1030-4587-H 28V
4626 SunSpot 36-4587 Taxi 01-1030-4587 28V
4626 SunSpot 36 4587-H Taxi 01-1030-4587-H 28V
4627 SunSpot 36-4587 Taxi 01-1030-4587 28V
4627 SunSpot 36 4587-H Taxi 01-1030-4587-H 28V
Q4631 SunSpot 36-4313 01-1030-4313 14V
Q4631 SunSpot 36-4313-H 01-1030-4313-H 14V
Q4632 SunSpot 36-4313 01-1030-4313 14V
Q4632 SunSpot 36-4313-H 01-1030-4313-H 14V

Tech Specs

  • Max Current: Landing Lights: 6.8A@14VDC, 3.6A@28VDC Taxi Lights: 6.7A@14VDC, 3.6A@28VDC
  • Weight: 0.7 lbs.
  • Length: 4.4" Width: 4.4" Depth: 2.1"
Model Part # Description Candela Beam Profile Wigwag/Sync Approvals
36-4313 01-1030-4313 100W PAR 36 LANDING LIGHT 14V.

200,000



 20ºx20º No FAA-PMA/STC
36-4313-H 01-1030-4313-H 100W PAR 36 LANDING LIGHT WITH WIGWAG 14V.

200,000



 20ºx20º Yes FAA-PMA/STC
36-4596 01-1030-4596 100W PAR 36 LANDING LIGHT 28V.

200,000



 20ºx20º No FAA-PMA/STC
36-4596-H 01-1030-4596-H 100W PAR 36 LANDING LIGHT WITH WIGWAG 28V.

200,000



 20ºx20º Yes FAA-PMA/STC
36-4314 TAXI 01-1030-4314  100W PAR 36 TAXI LIGHT 14V.

60,000



 20ºX40º No FAA-PMA/STC
36-4314-H TAXI 01-1030-4314-H 100W PAR 36 TAXI LIGHT WITH WIGWAG 14V.

60,000



 20ºX40º Yes FAA-PMA/STC
36-4587 TAXI 01-1030-4587 100W PAR 36 TAXI LIGHT 28V.

60,000



 20ºX40º No FAA-PMA/STC
36 4587-H TAXI 01-1030-4587-H 100W PAR 36 TAXI LIGHT WITH WIGWAG 28V.

60,000



 20ºX40º Yes FAA-PMA/STC

Cross Reference Chart

GE Bulb # SunSpot Model SunSpot Part # Voltage
4416 SunSpot 36-4313 01-1030-4313 14V
4416 SunSpot 36-4313-H 01-1030-4313-H 14V
4505 SunSpot 36-4596 01-1030-4596 28V
4505 SunSpot 36-4596-H 01-1030-4596-H 28V
4509 SunSpot 36-4313 01-1030-4313 14V
4509 SunSpot 36-4313-H 01-1030-4313-H 14V
4587 SunSpot 36-4587 Taxi 01-1030-4587 28V
4587 SunSpot 36 4587-H Taxi 01-1030-4587-H 28V
4591 SunSpot 36-4596 01-1030-4596 28V
4591 SunSpot 36-4596-H 01-1030-4596-H 28V
4593 SunSpot 36-4587 Taxi 01-1030-4587 28V
4593 SunSpot 36 4587-H Taxi 01-1030-4587-H 28V
4594 SunSpot 36-4596 01-1030-4596 28V
4594 SunSpot 36-4596-H 01-1030-4596-H 28V
4595 SunSpot 36-4313 01-1030-4313 14V
4595 SunSpot 36-4313-H 01-1030-4313-H 14V
4596 SunSpot 36-4596 01-1030-4596 28V
4596 SunSpot 36-4596-H 01-1030-4596-H 28V
4623 SunSpot 36-4587 Taxi 01-1030-4587 28V
4623 SunSpot 36 4587-H Taxi 01-1030-4587-H 28V
4626 SunSpot 36-4587 Taxi 01-1030-4587 28V
4626 SunSpot 36 4587-H Taxi 01-1030-4587-H 28V
4627 SunSpot 36-4587 Taxi 01-1030-4587 28V
4627 SunSpot 36 4587-H Taxi 01-1030-4587-H 28V
Q4631 SunSpot 36-4313 01-1030-4313 14V
Q4631 SunSpot 36-4313-H 01-1030-4313-H 14V
Q4632 SunSpot 36-4313 01-1030-4313 14V
Q4632 SunSpot 36-4313-H 01-1030-4313-H 14V
