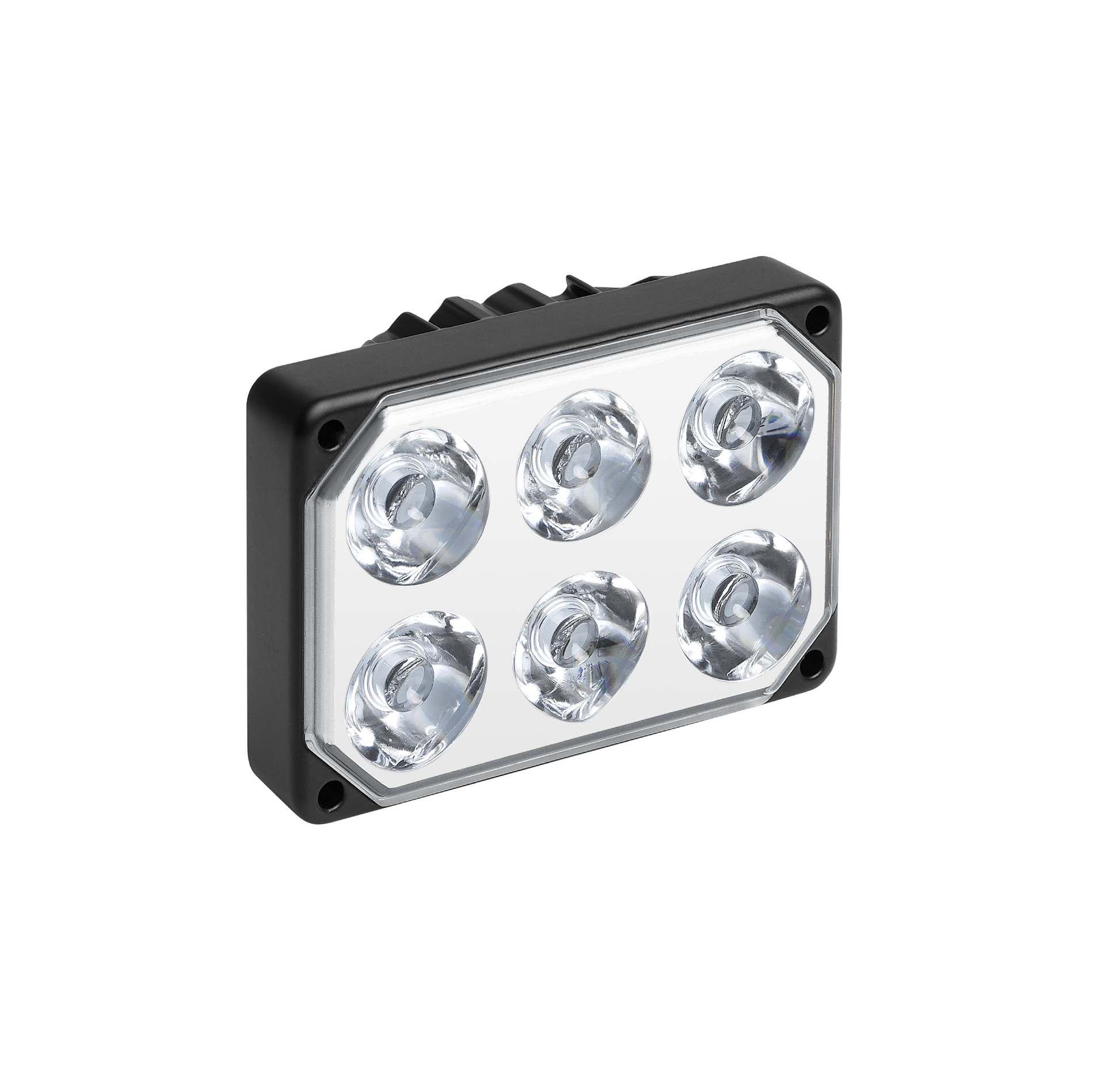

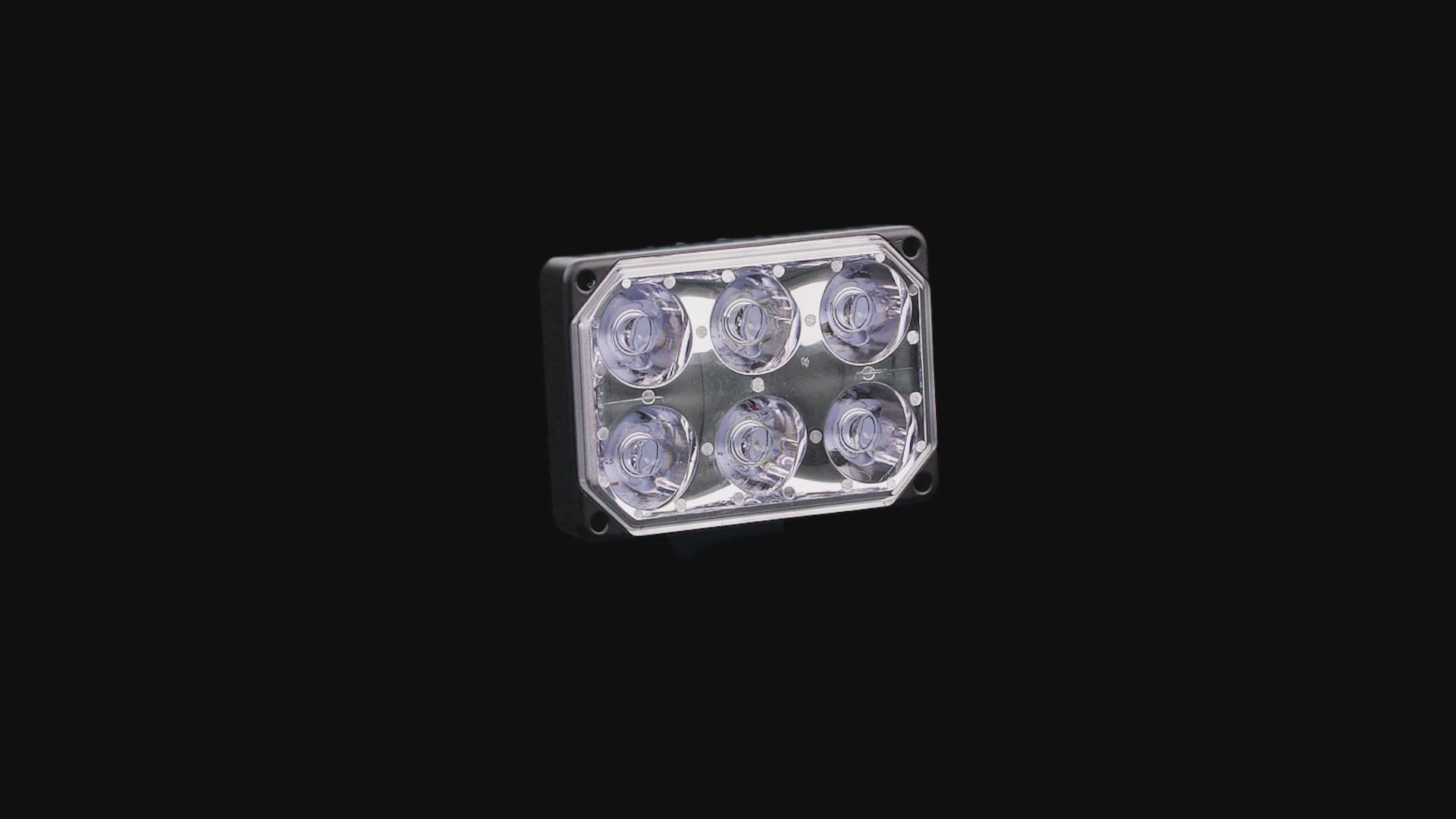

SunBeam LED Landing Light

SunBeam LED landing light with recognition is manufactured under FAA-PMA standards in a rectangular format for a completely versatile installation. It is also compatible as a drop-in replacement for the 70346 series lamp. Common installations include: Diamond DA-20/DA-40, Cessna Columbia, Liberty XL, some Cirrus models and some Grumman models. SunBeam comes standard with AeroLEDs signature integrated Pulse (WigWag), significantly increasing recognition in broad daylight as well as night operations to help avoid midair collisions and bird strikes while drawing half the current.

  • Over 65% more light output than the competition
  • Power consumption: 38 watts max
  • Color temperature – cool white
  • Built-in pulse mode (standard)
  • Synchronization
  • Easy installation
  • 30k hr MTBF
  • Built-in thermal protection

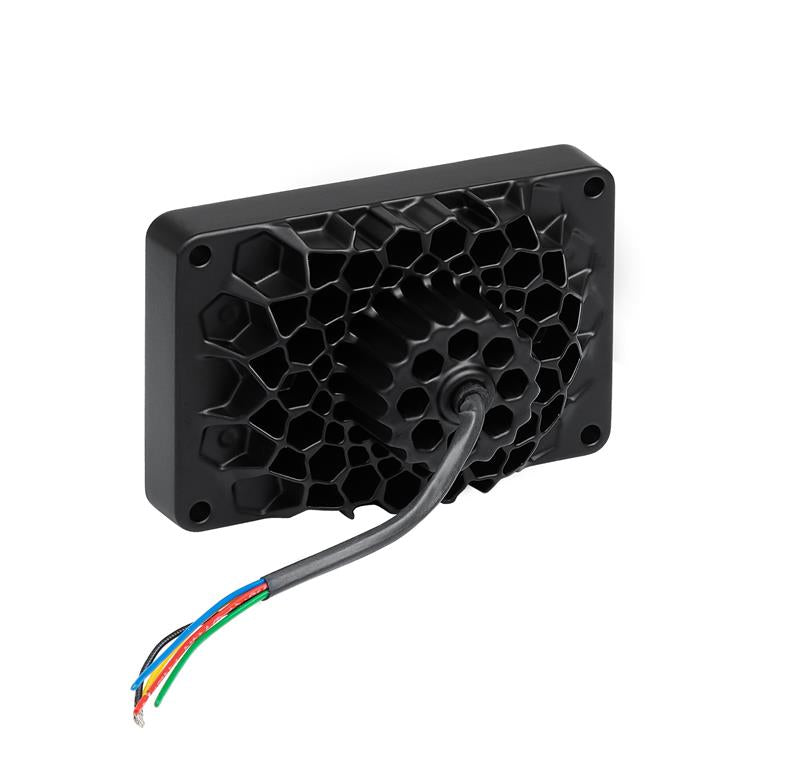

  • Aluminum/black powder coated heat sink
  • UV hardcoated polycarbonate
  • Approvals: FAA-PMA/STC

SunBeam LED Landing Light Technical Specifications

SunBeam 12vSunBeam 24v
Part Number90-1000-1290-1000-24
ColorWhiteWhite
Voltage1224
Current2.7A at 14V1.4A at 28V
Power38 Watts38 Watts
WigwagYesYes
SynchronizationYesYes
Lumens3,3003,300
Candela90,00090,000
Beam Profile20 x 2020 x 20
Length4"4"
Width2.8"2.8"
Depth2"2"
Weight8.8 oz8.8 oz

Still Have Questions?

Contact Us

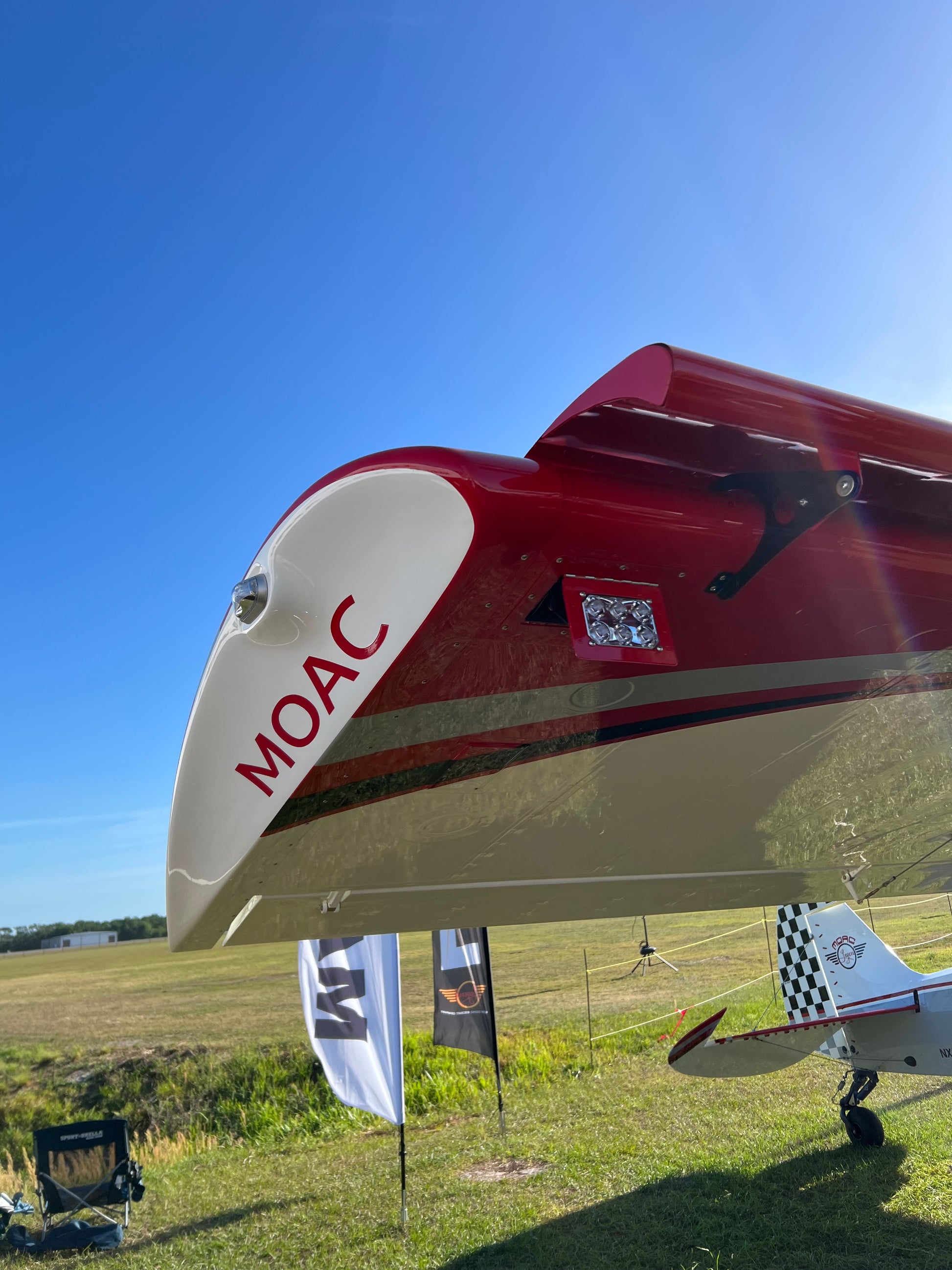

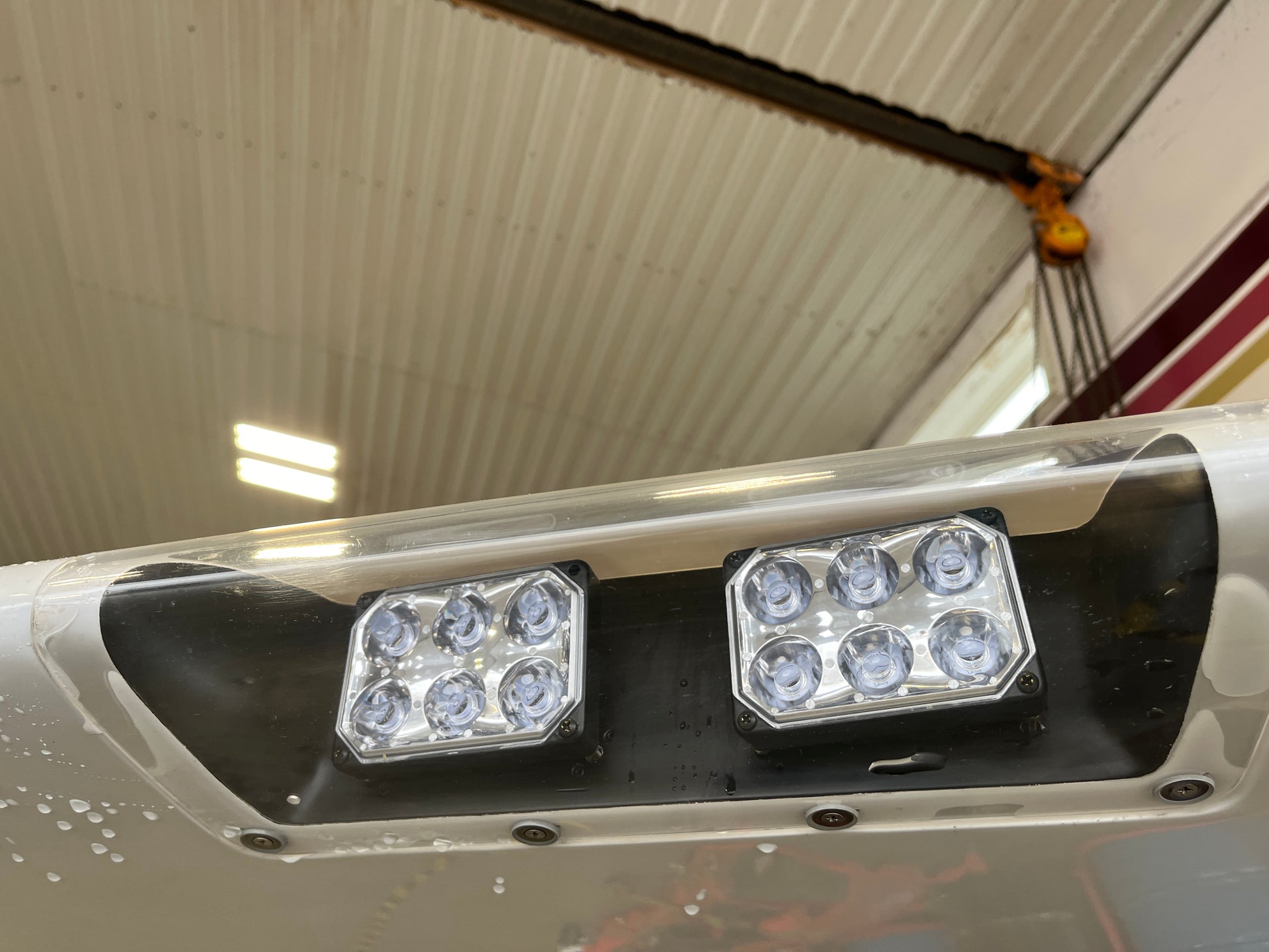

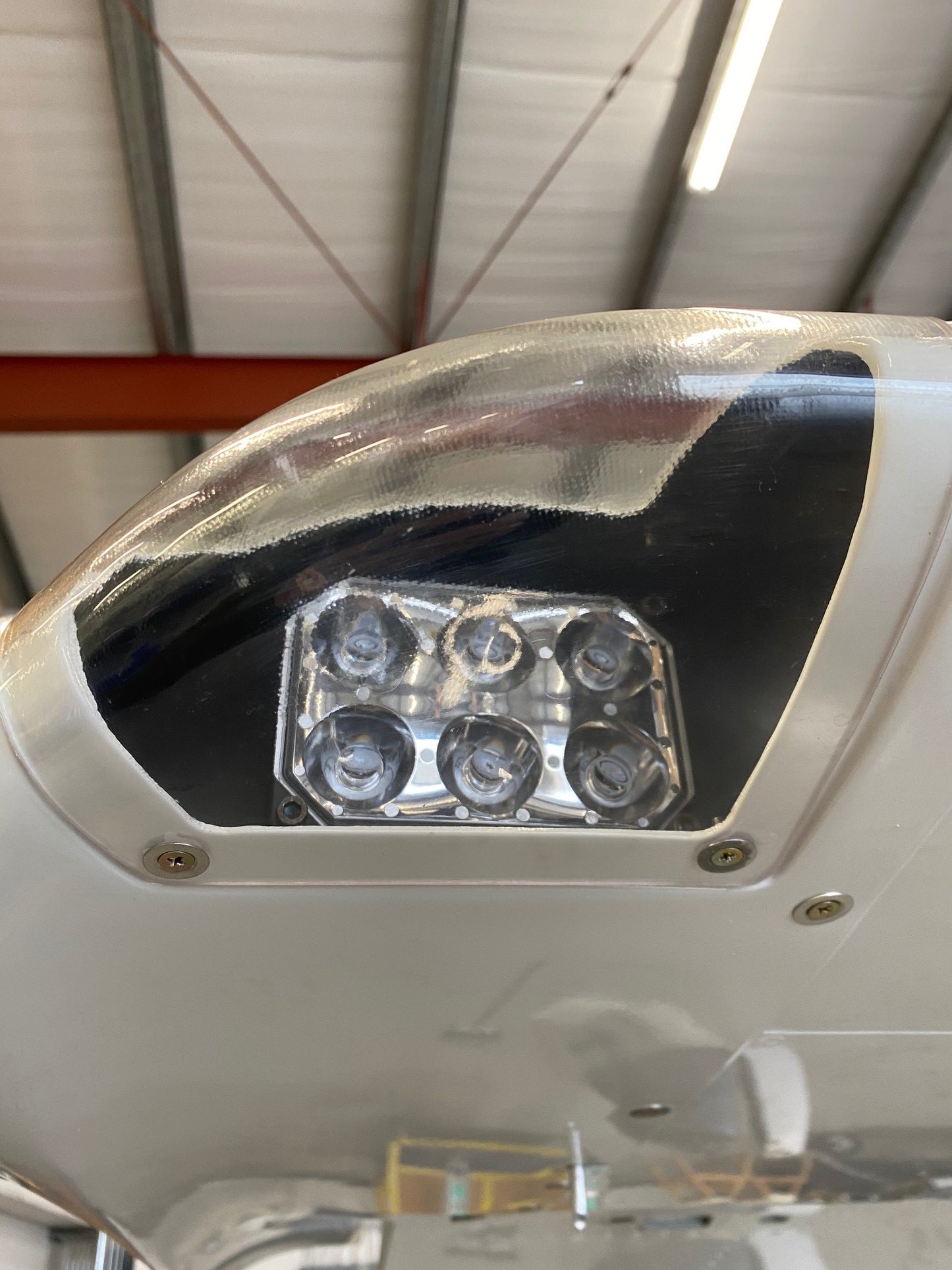

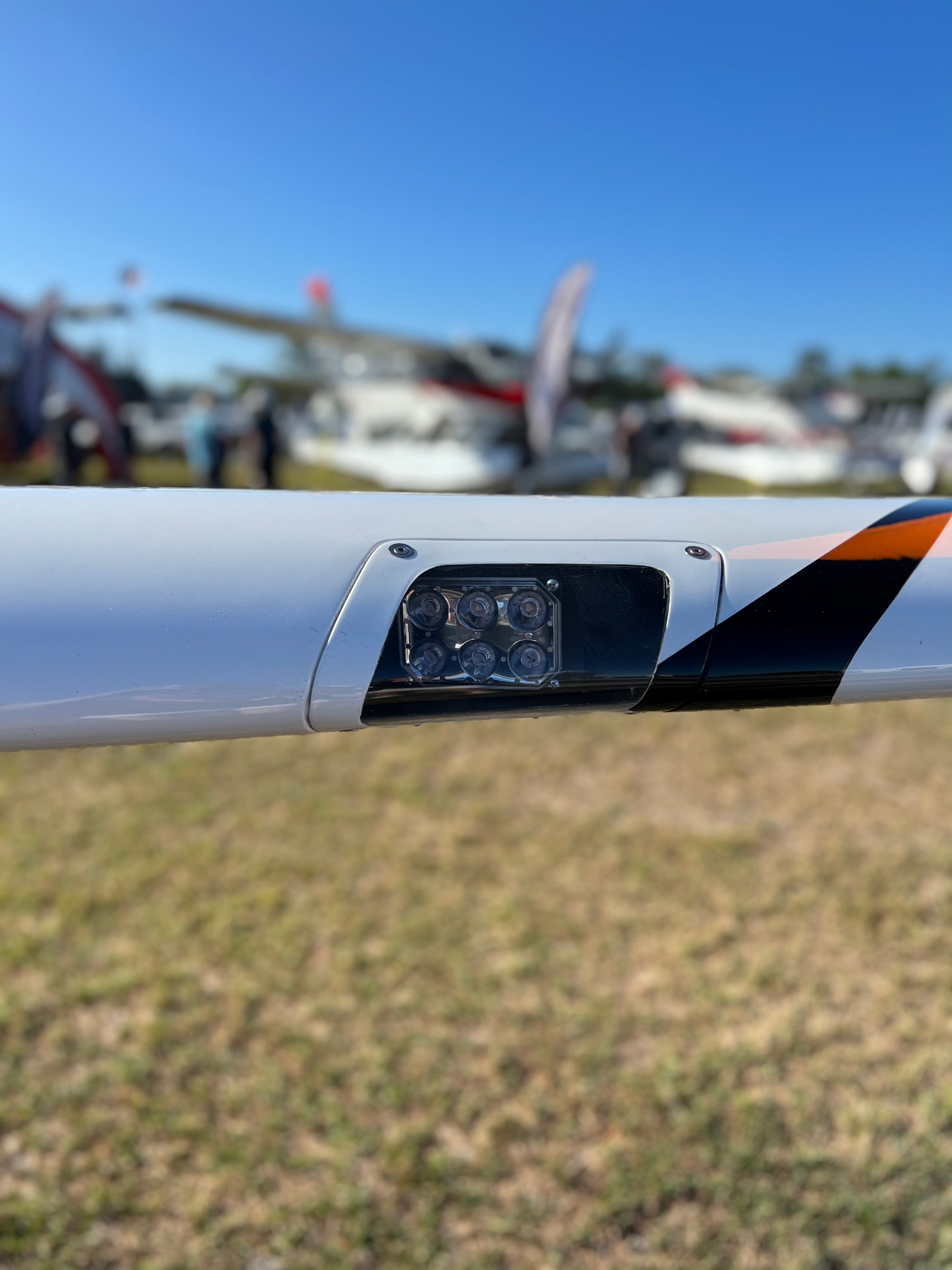

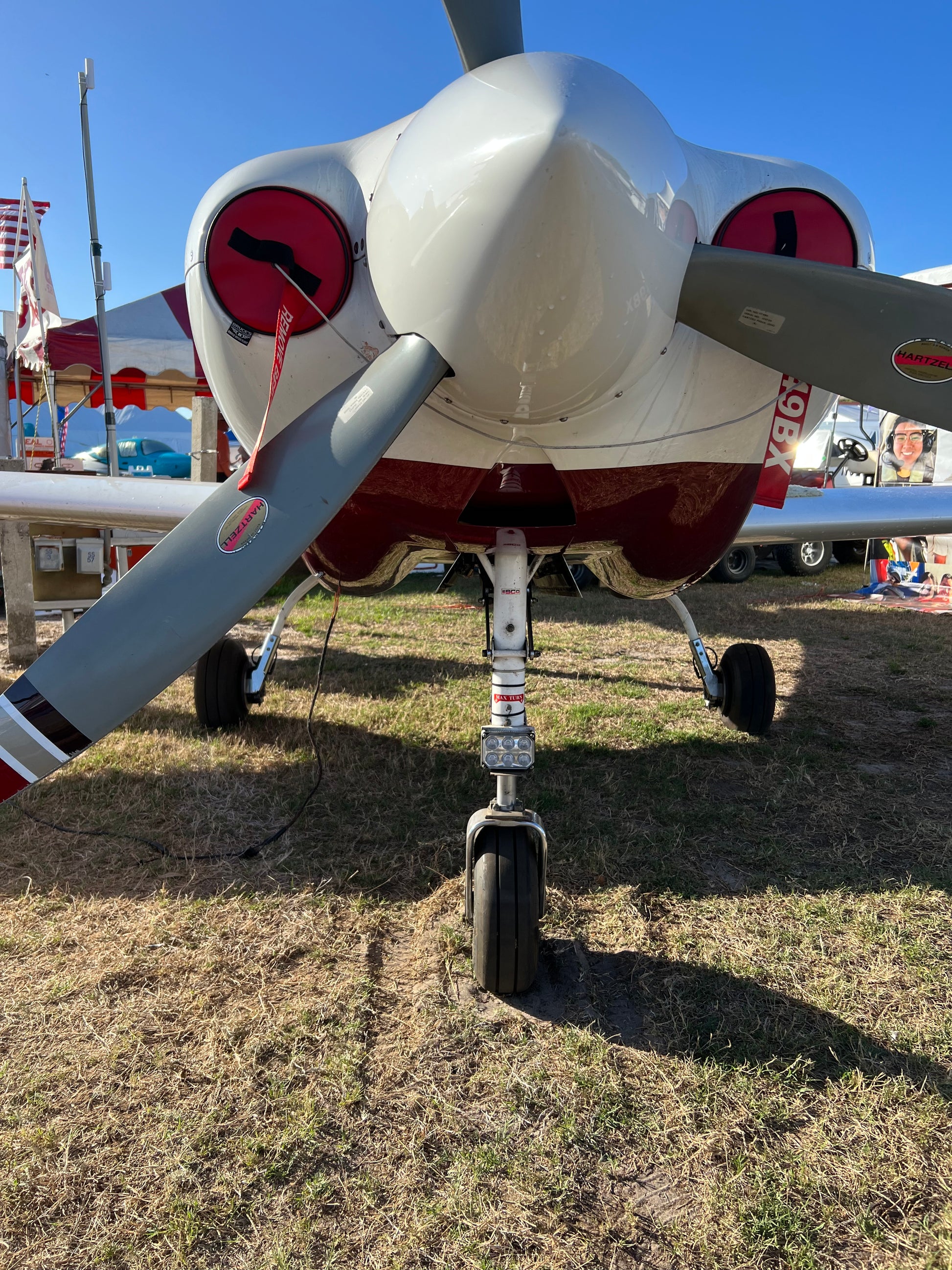

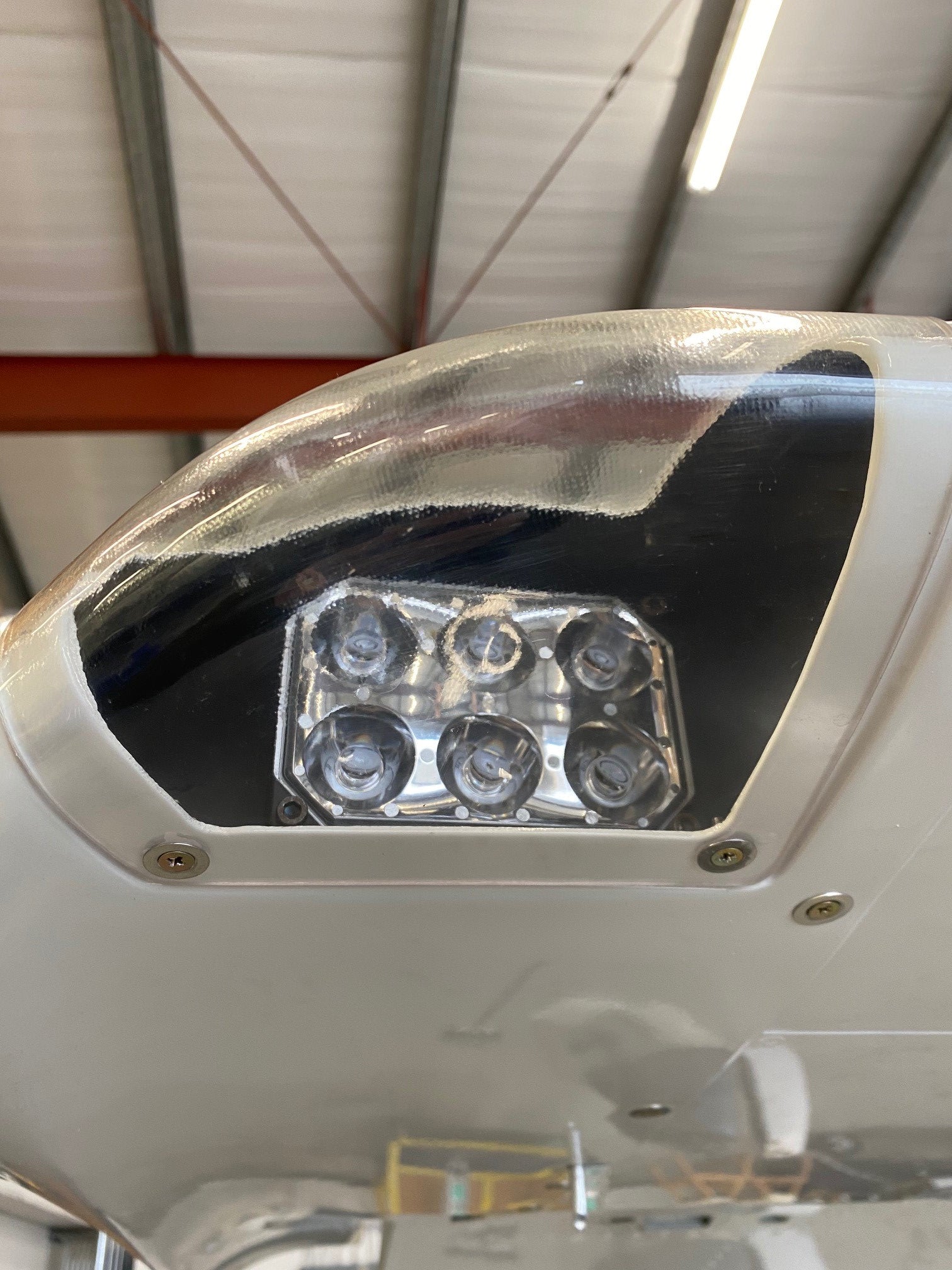

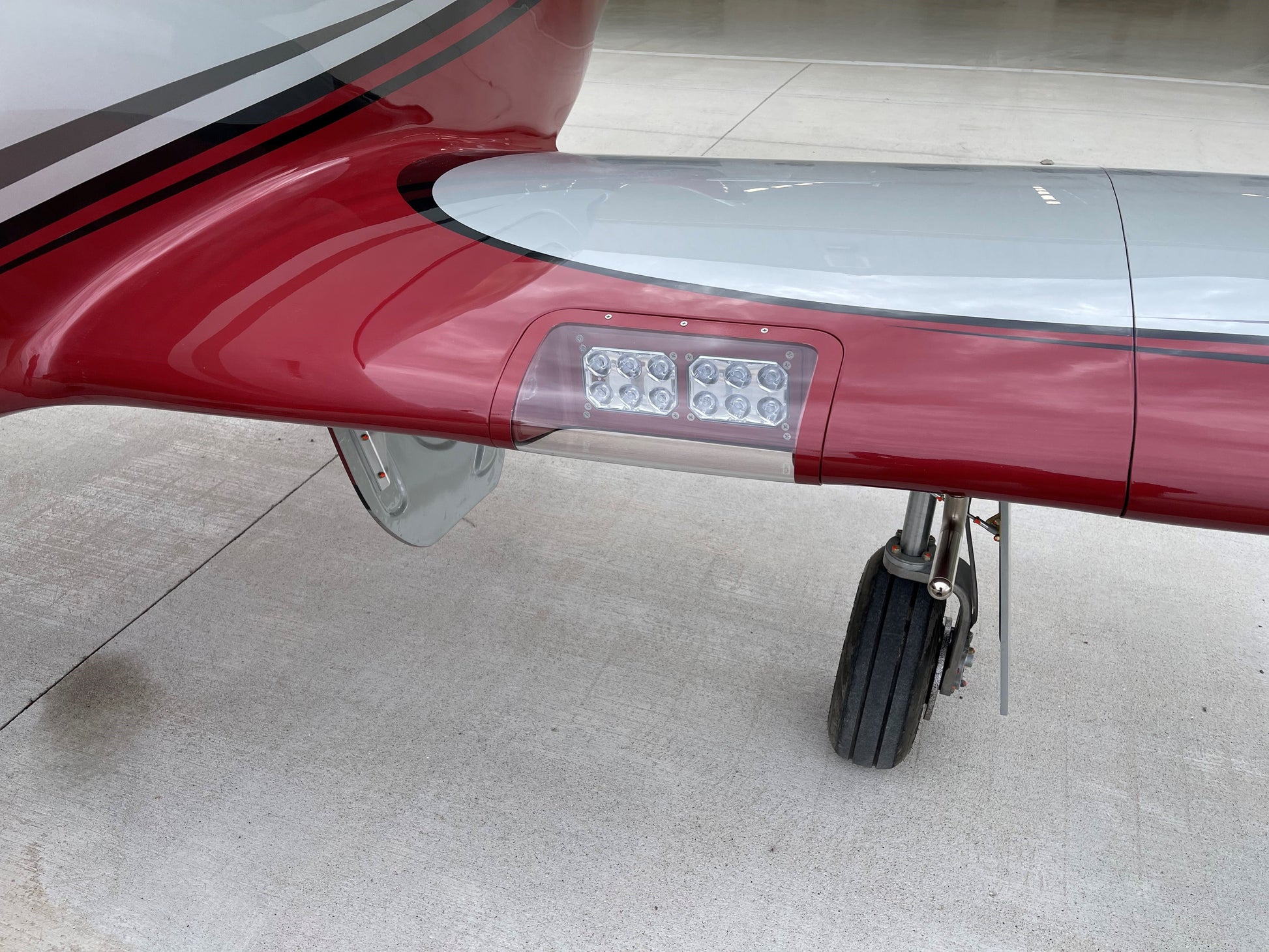

Installation Gallery
