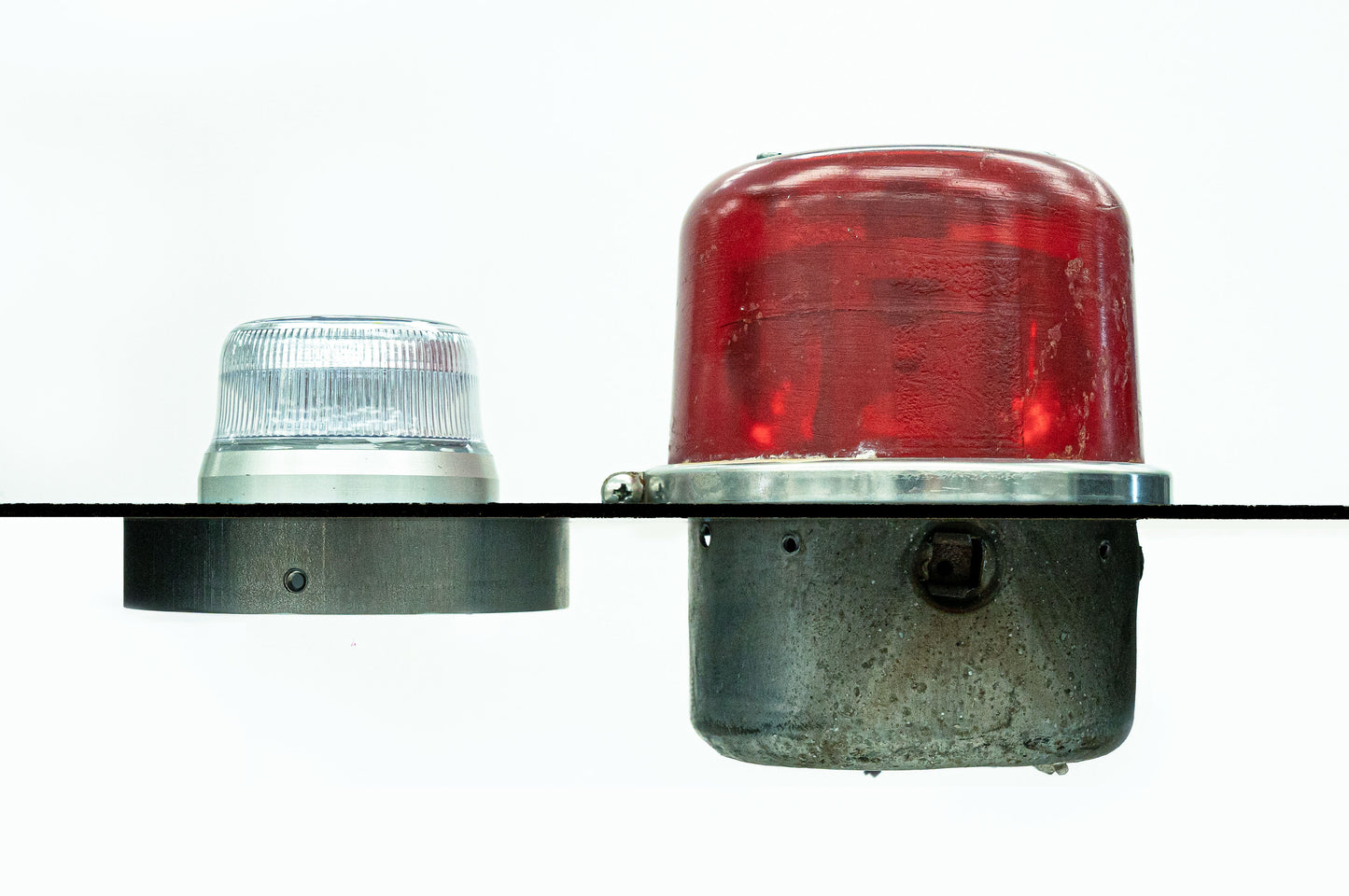

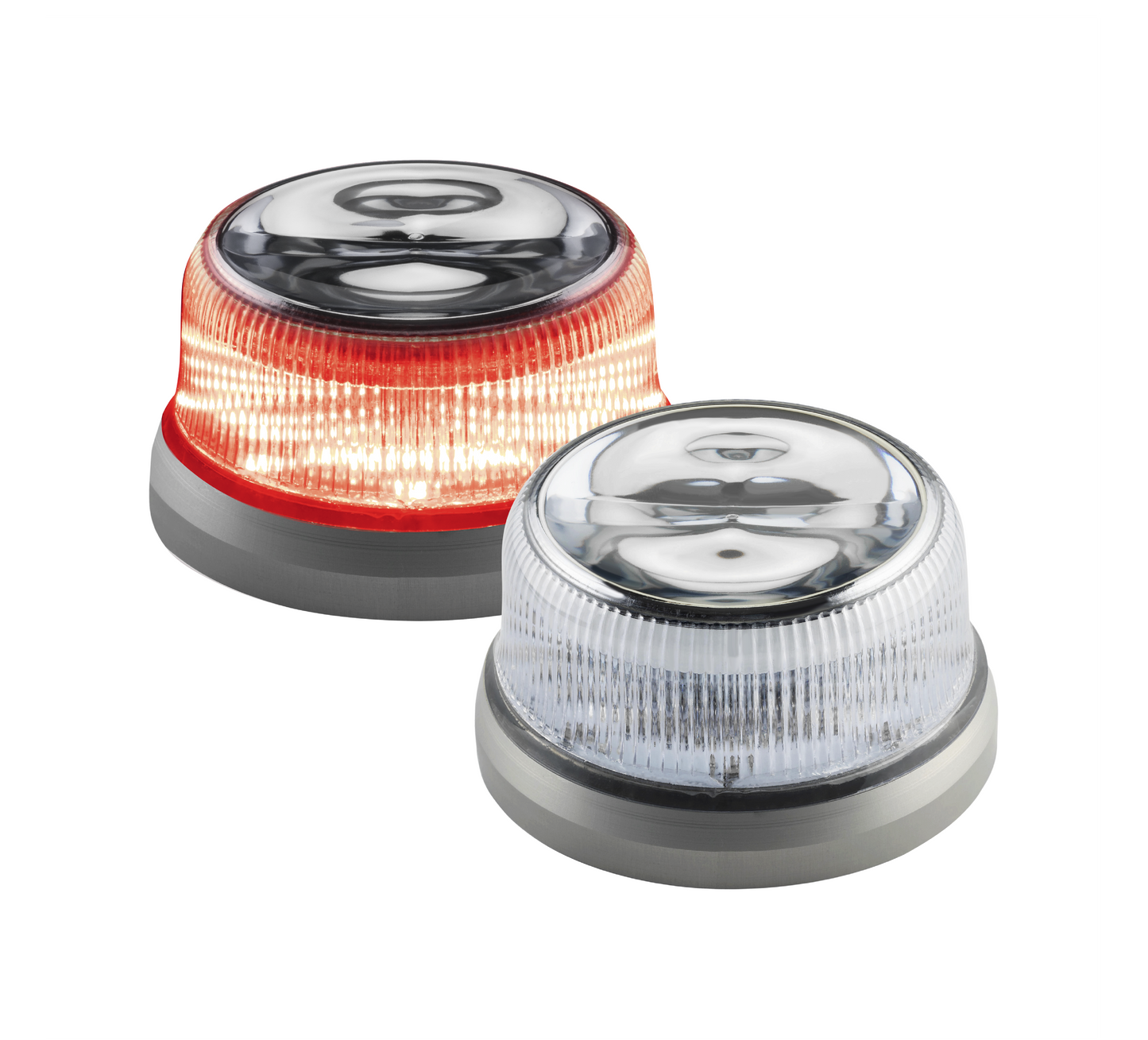

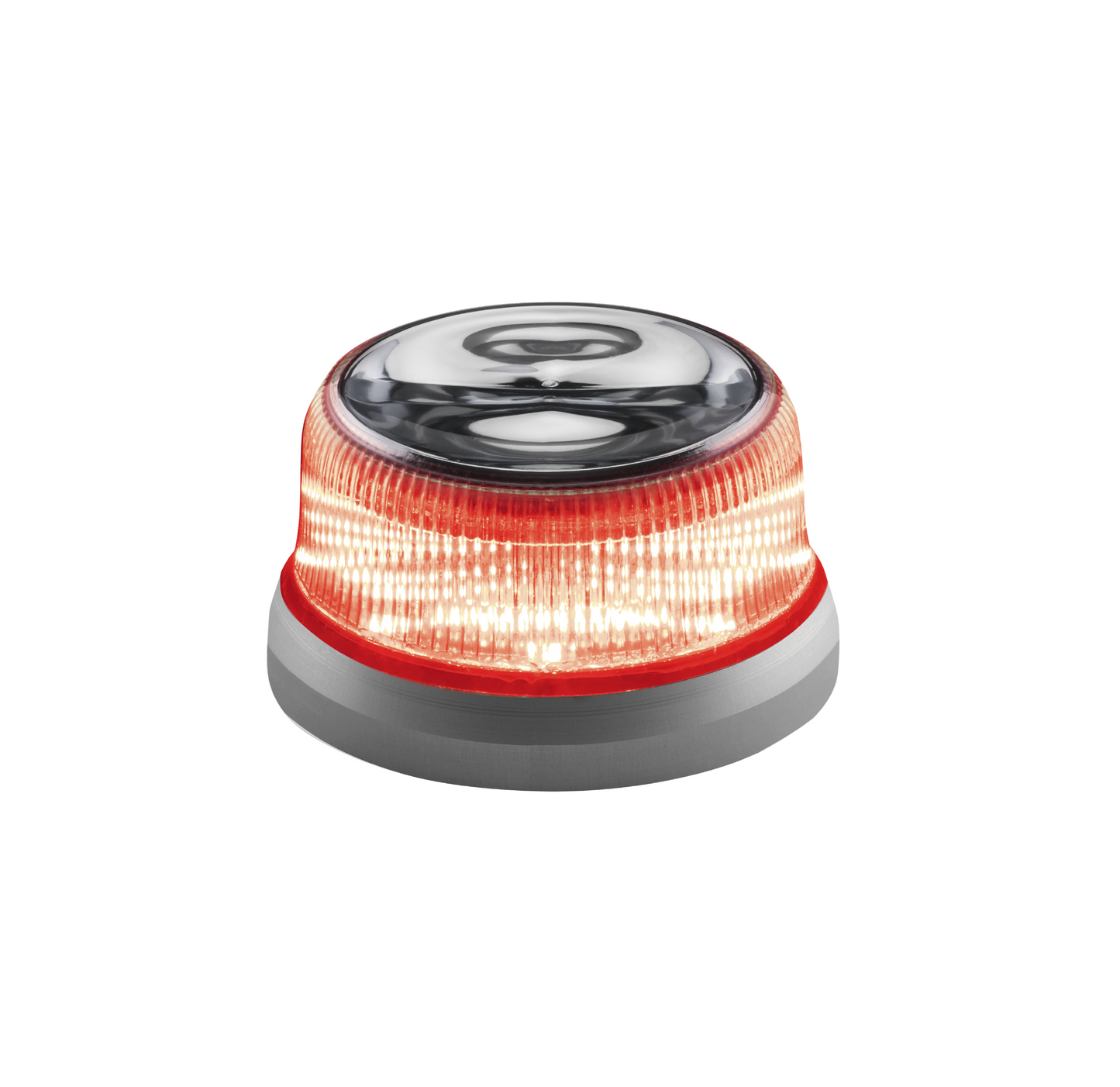

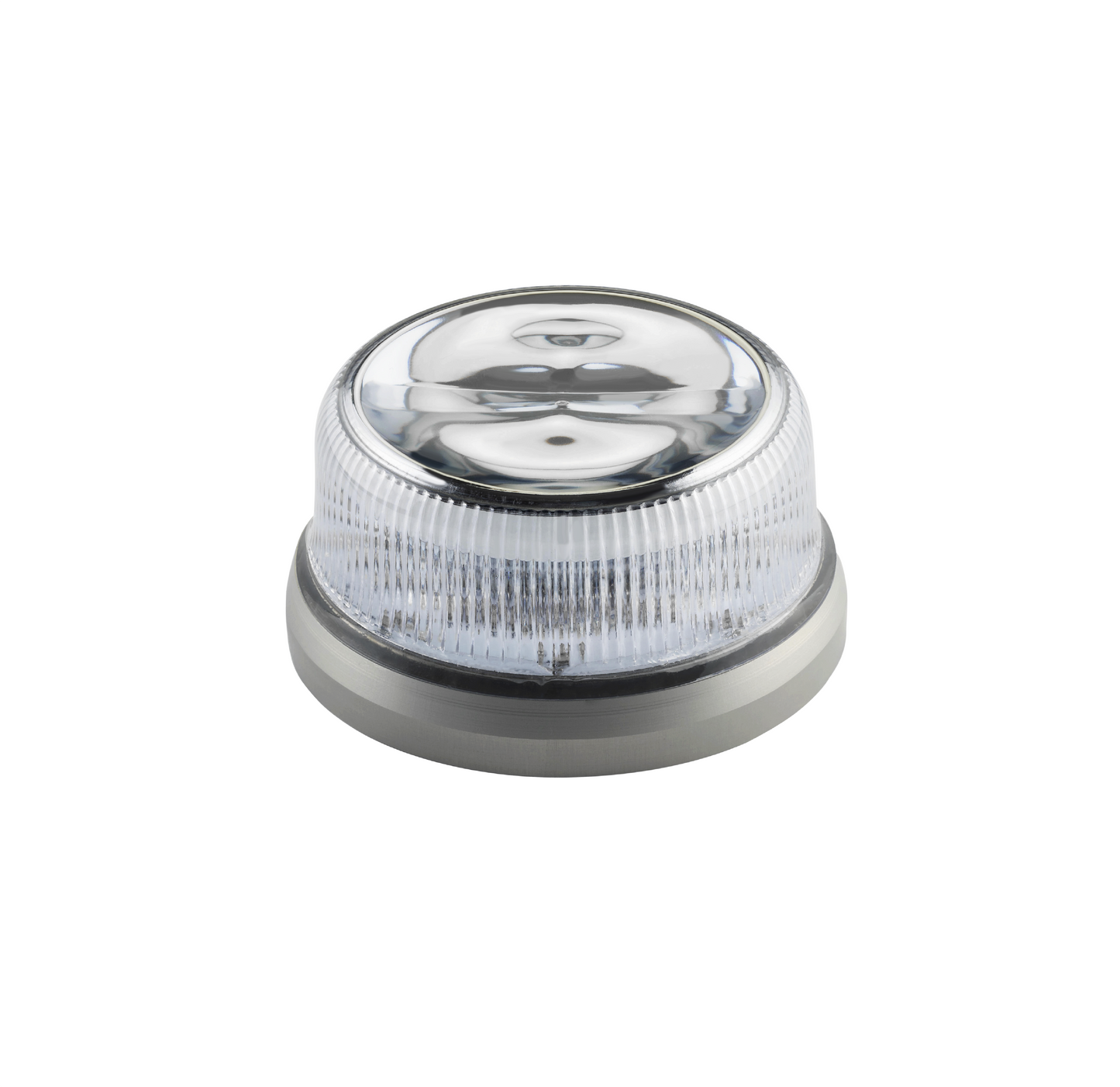

SunBeacon II™ is a high performance aircraft beacon light that provides a 360-degree flash pattern around its vertical axis. This compact aircraft beacon light comes standard with a clear lens – available with either white or red LEDs. The SunBeacon II™ is a direct replacement for standard rotating aircraft beacons and flashing beacons., This aircraft strobe light offers superior anti-collision benefits with more light output for less power. The SunBeacon II™ requires zero maintenance and has an extremely low profile for reduced drag compared to other aircraft beacon lights. Red TSO C96a Class I & III, White TSO C96a Class II.
- 12V and 24V
- No external power supply needed
- Low power consumption
- Strobe synchronization available
- Easy installation
- Optional twist mount or 3.75” cup mount (diagrams on page 7 and 8 of installation manual)
- Approvals: FAA-TSO
CERTIFIED SunBeacon II Technical Specifications
| SunBeacon II | SunBeacon II | SunBeacon II | SunBeacon II | |
|---|---|---|---|---|
| Part Number | 11-2200-A-12 | 11-2200-A-24 | 11-2200-B-12 | 11-2200-B-24 |
| Color | Red | Red | White | White |
| Voltage | 12 | 24 | 12 | 24 |
| Current | 1.2A @ 14VDC (average) - 4.4A @ 14VDC (peak) | .6A @ 28VDC (average) - 2.3A @ 28VDC (peak) | 1.2A @ 14VDC (average) - 4.4A @ 14VDC (peak) | .6A @ 28VDC (average) - 2.3A @ 28VDC (peak) |
| Power | 17 Watts | 17 Watts | 17 Watts | 17 Watts |
| Synchronization | Yes | Yes | Yes | Yes |
| Length | 2.5" | 2.5" | 2.5" | 2.5" |
| Width | 2.5" | 2.5" | 2.5" | 2.5" |
| Depth | 1.6" | 1.6" | 1.6" | 1.6" |
| Weight | 3.5 oz | 3.5 oz | 3.5 oz | 3.5 oz |
