MicroSun LED

Taxi/Recognition Light

MicroSun LED 1

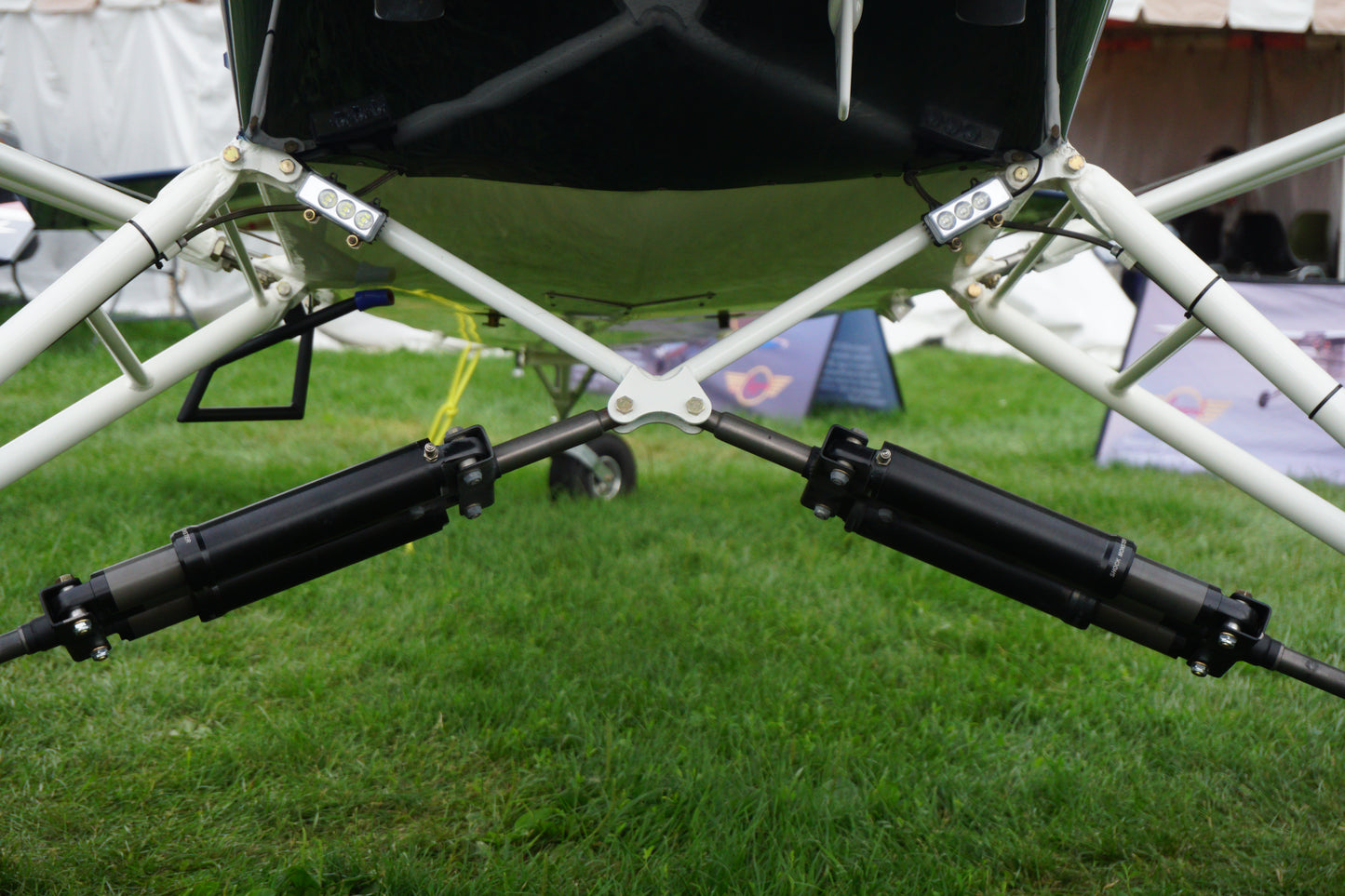

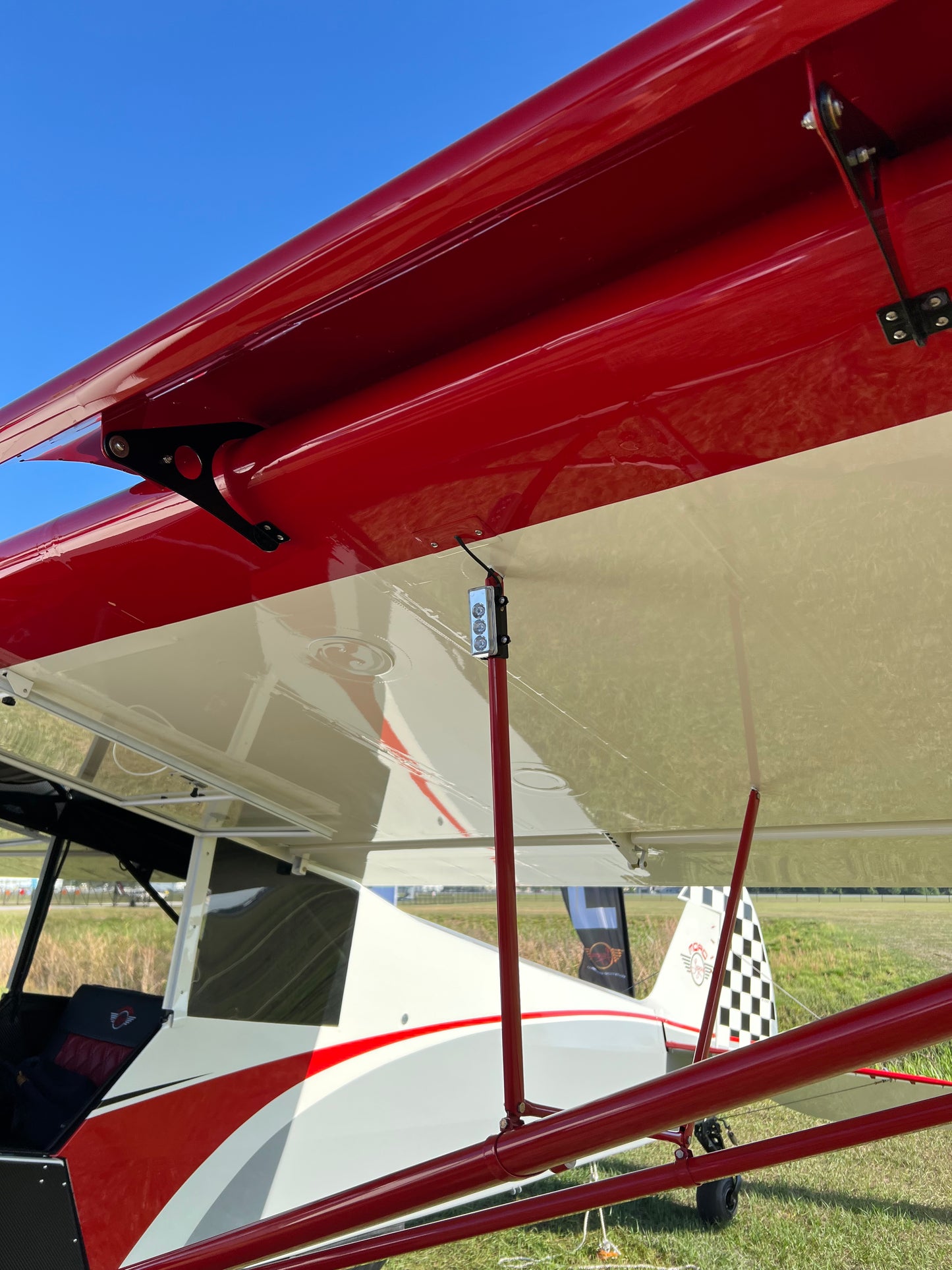

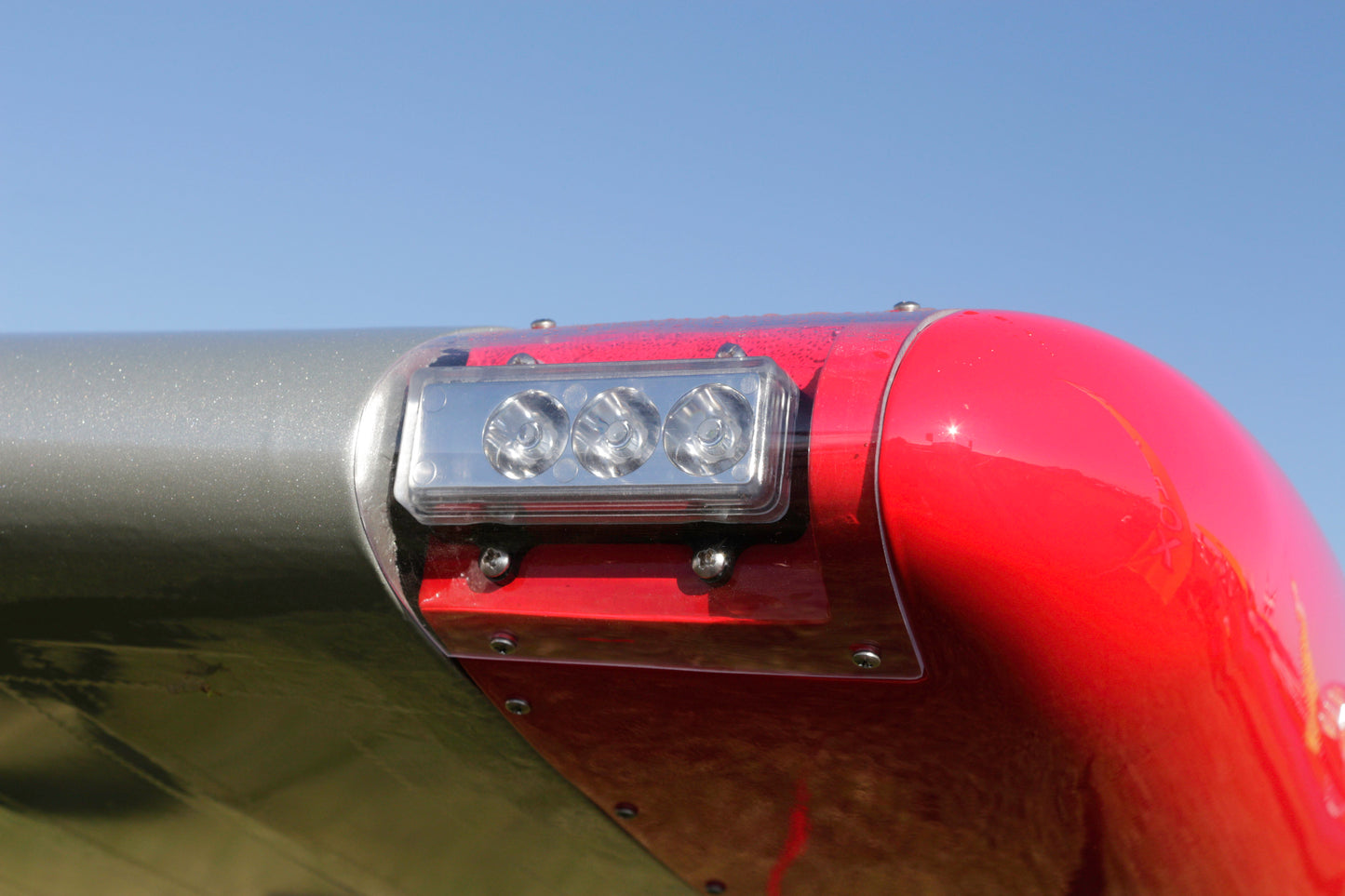

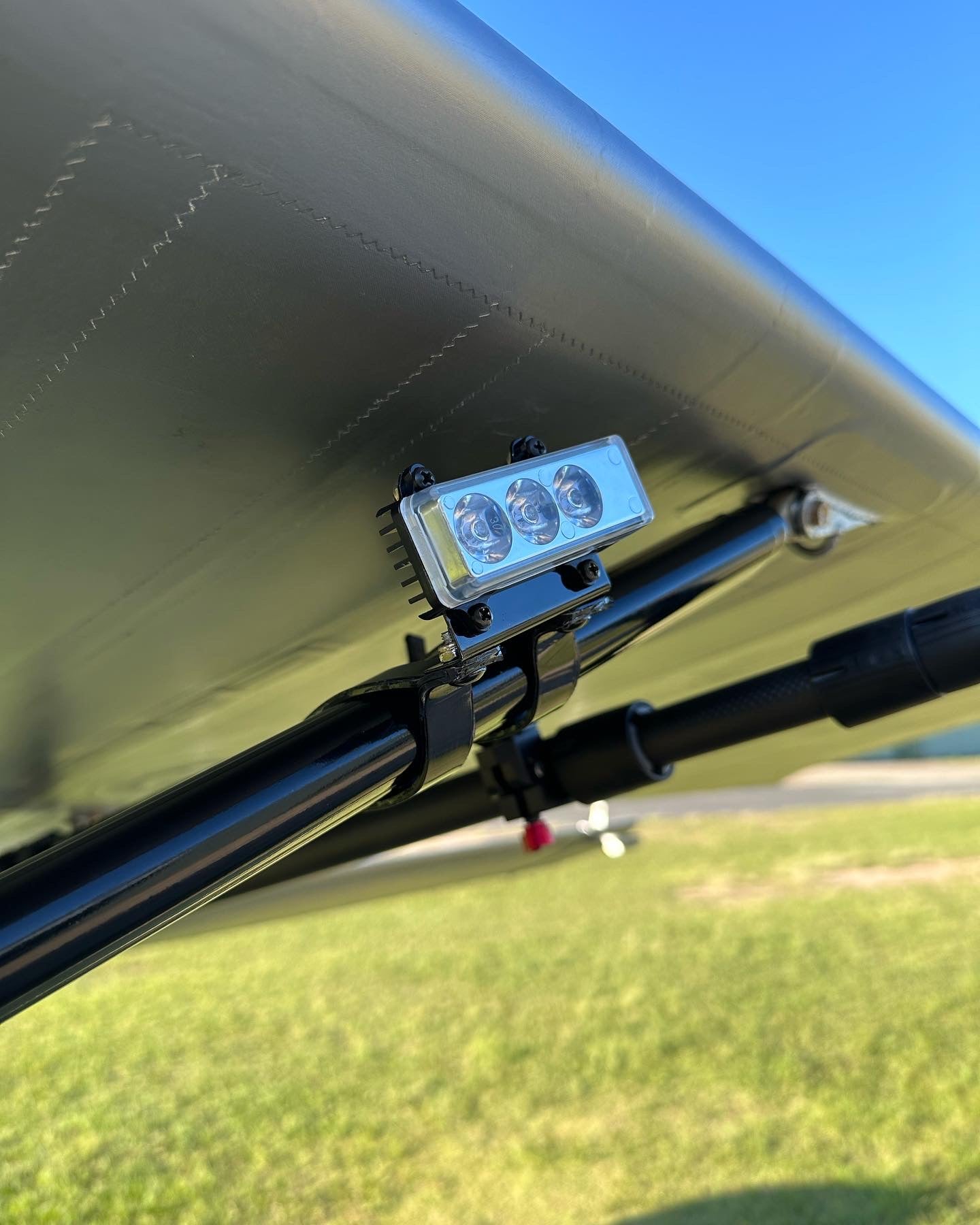

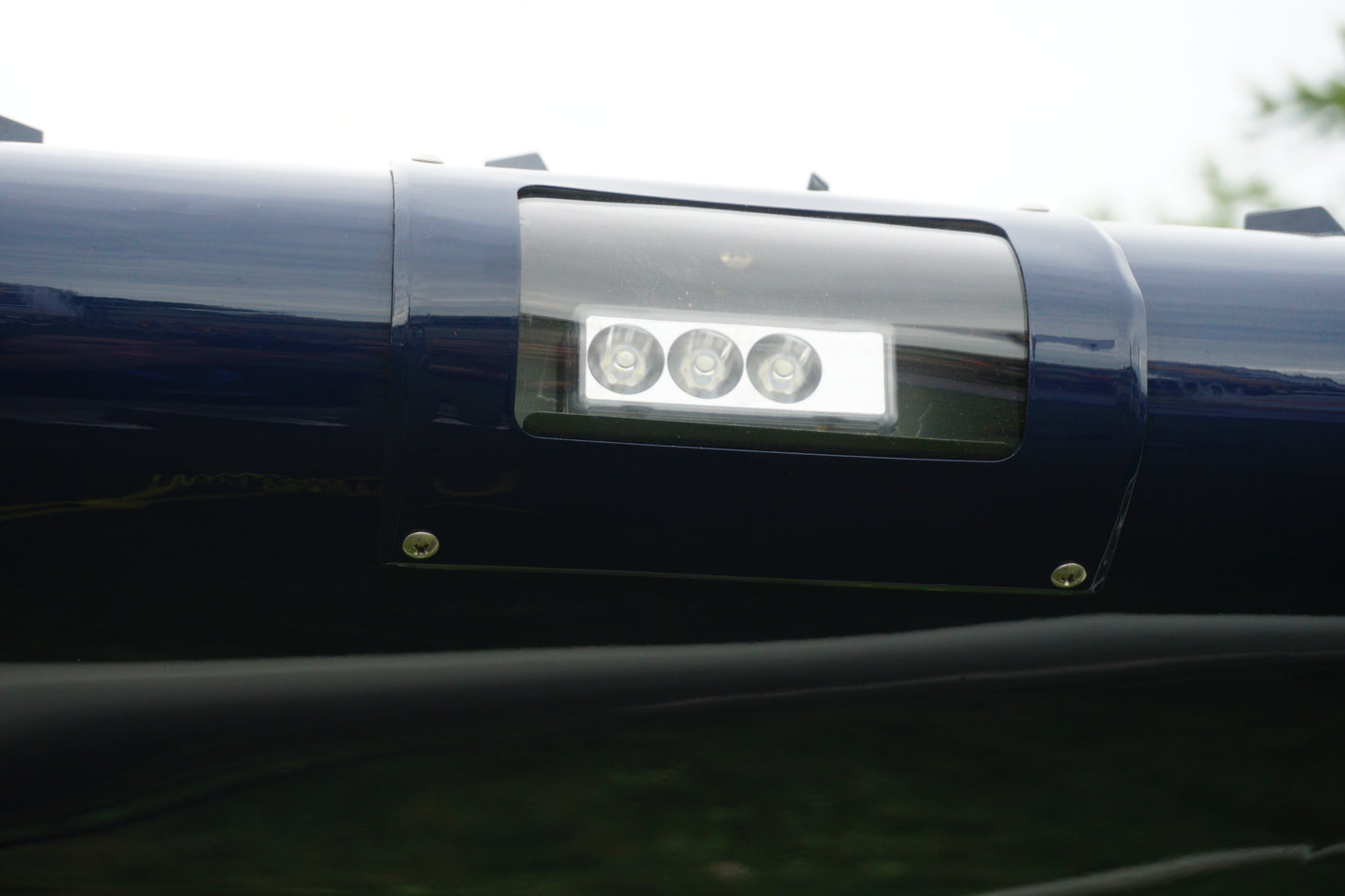

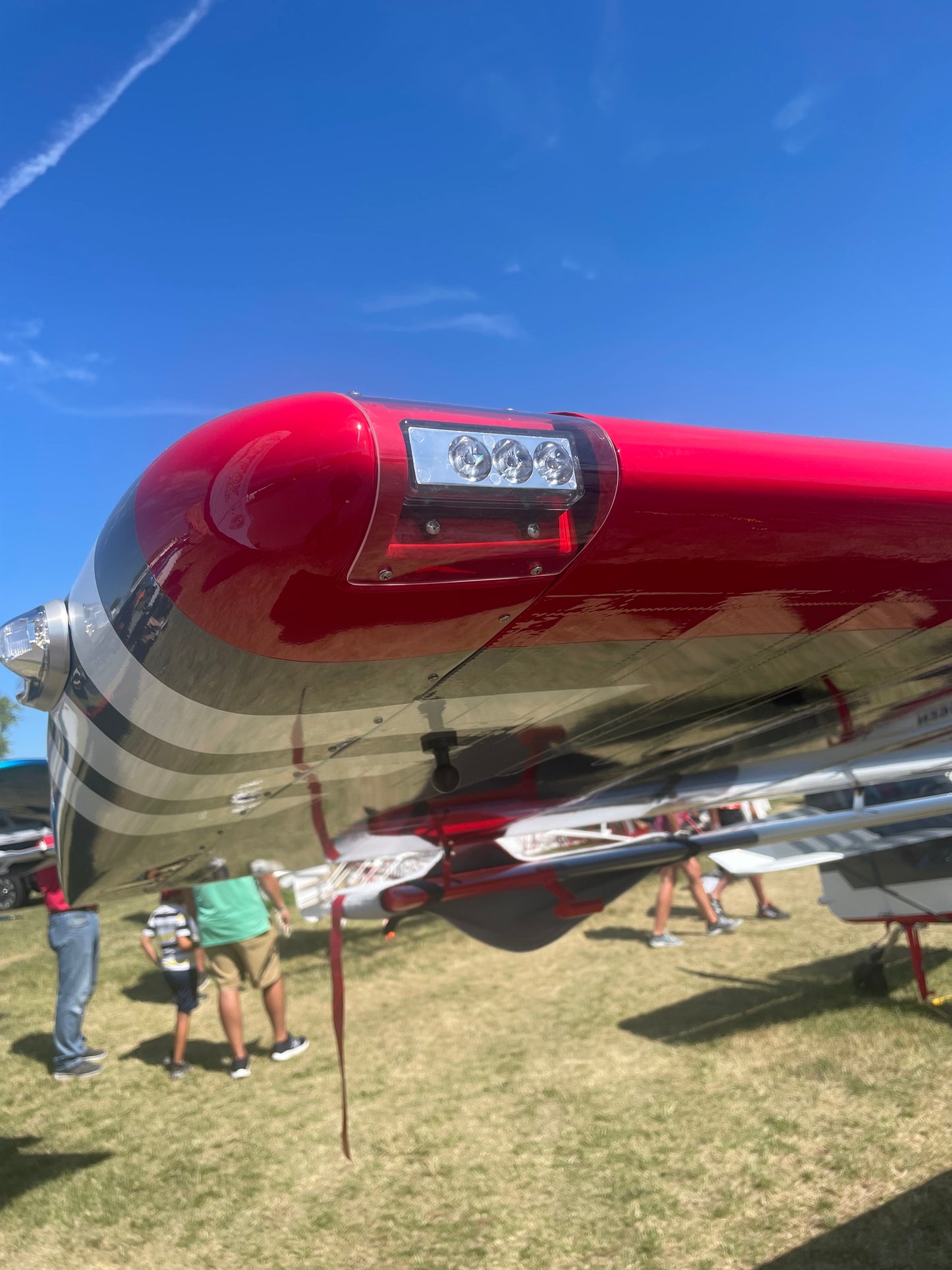

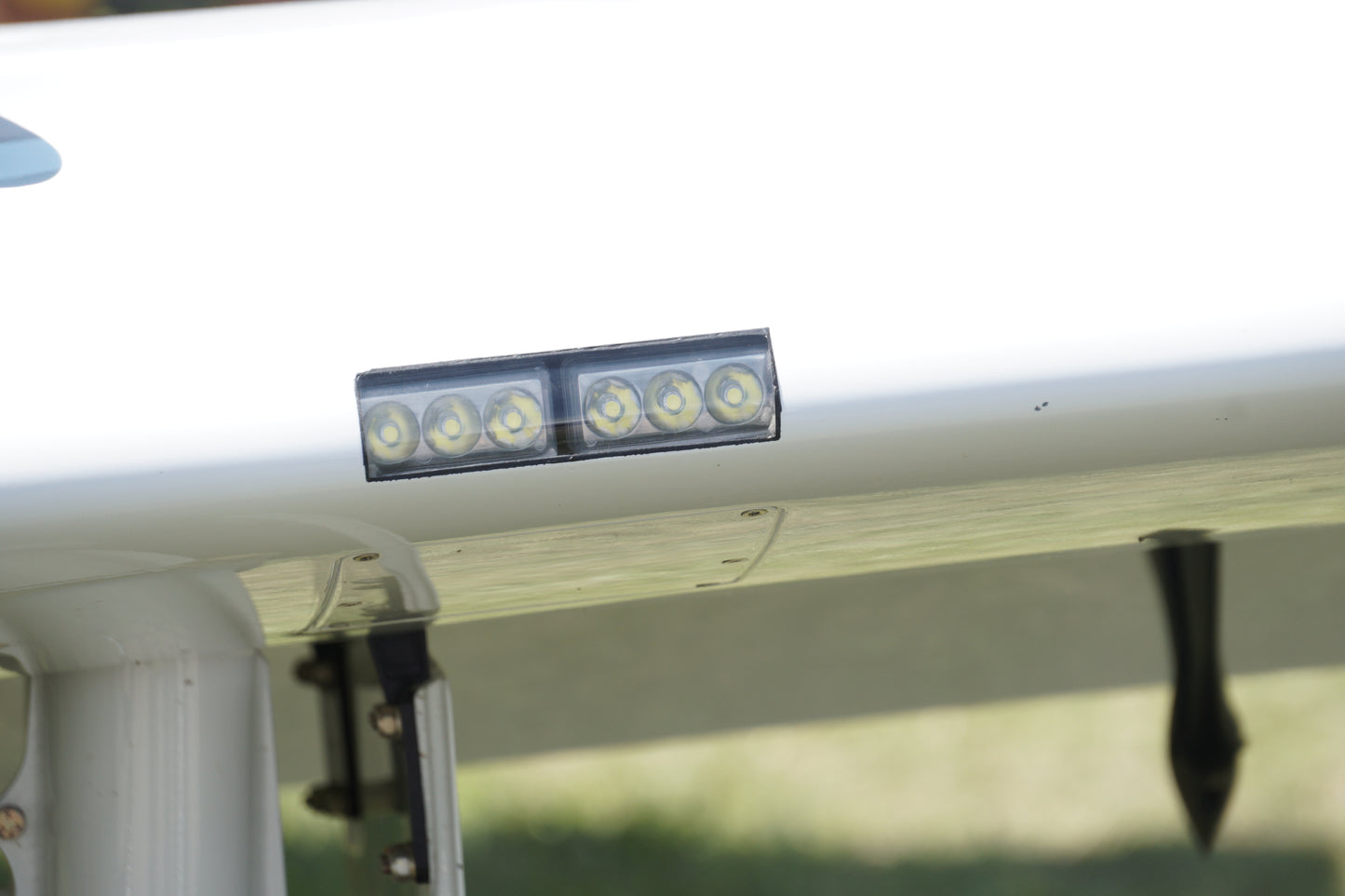

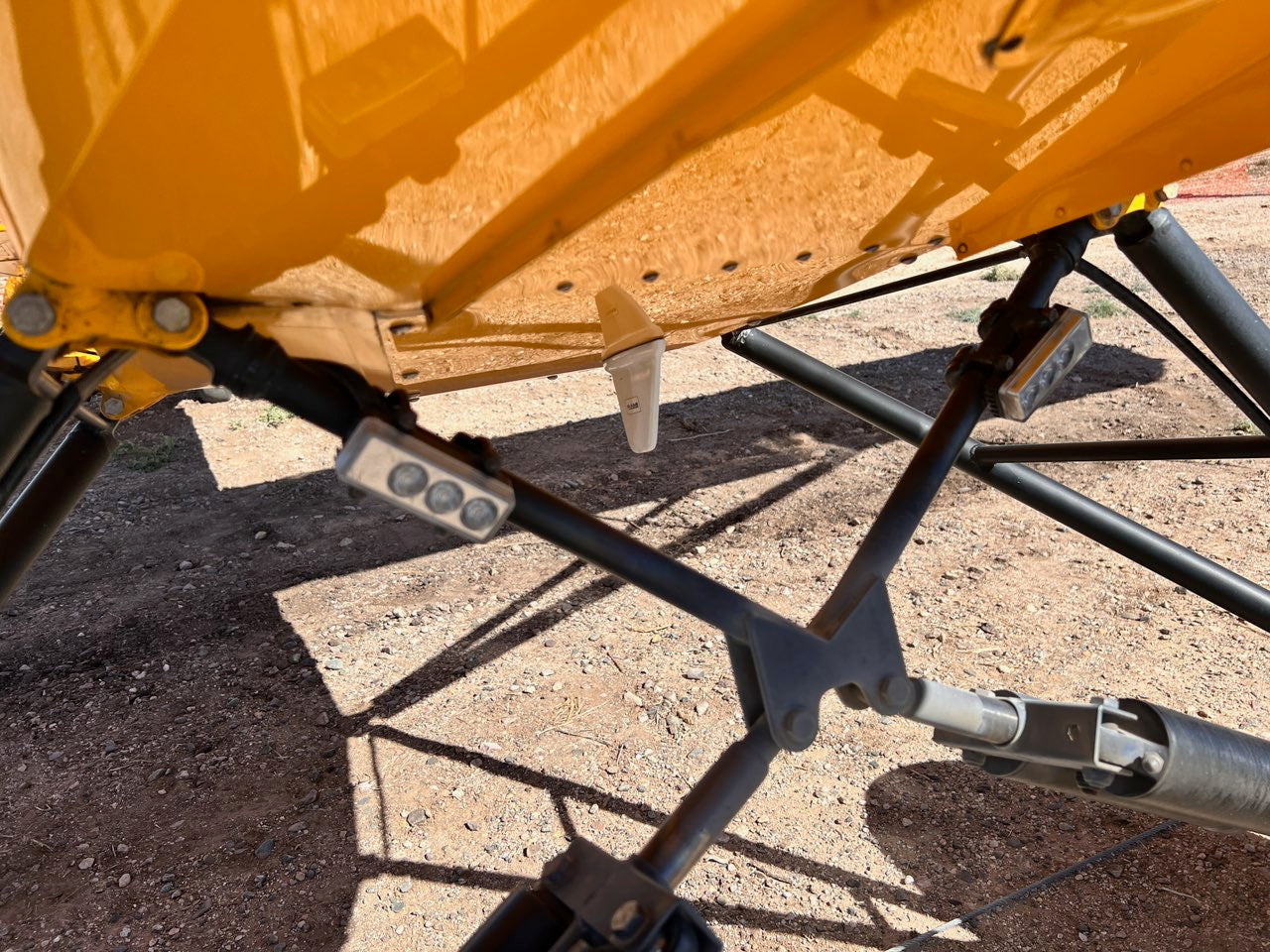

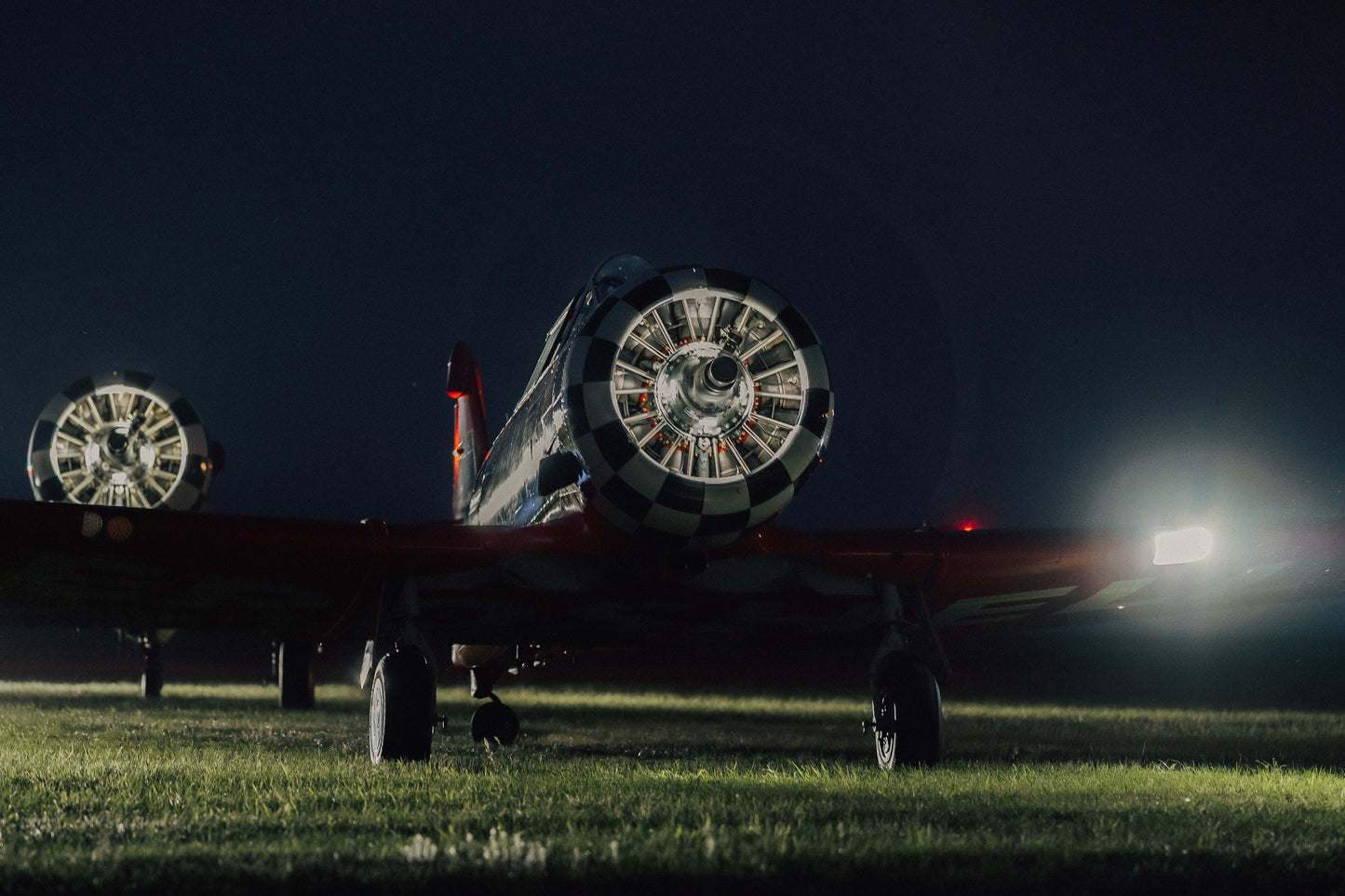

The ultra-powerful MicroSun™ LED is very versatile, with the ability to be mounted almost anywhere on an aircraft. In addition to its standard operation as a landing and taxi light, the MicroSun™ features integrated Pulse or “WigWag” significantly increasing recognition in broad daylight as well as night operations to help avoid midair collisions and bird strikes while drawing half the current. Their compact profile makes them the perfect option for lighter weight Experimental or Kit planes.

  • Power consumption: 24 watts max
  • Higher color temperature – White
  • Built-in pulse mode

MicroSun LED Technical Specifications

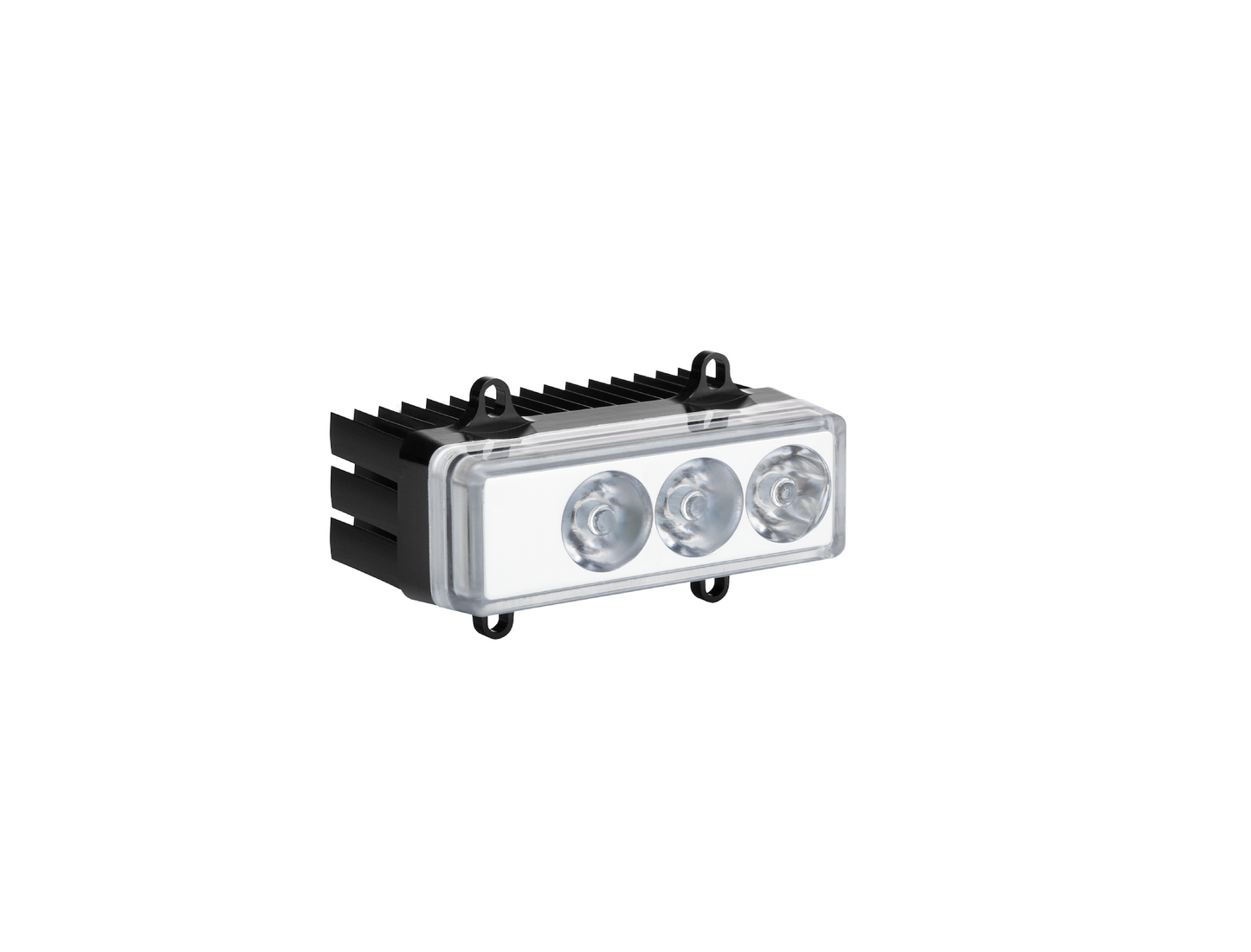

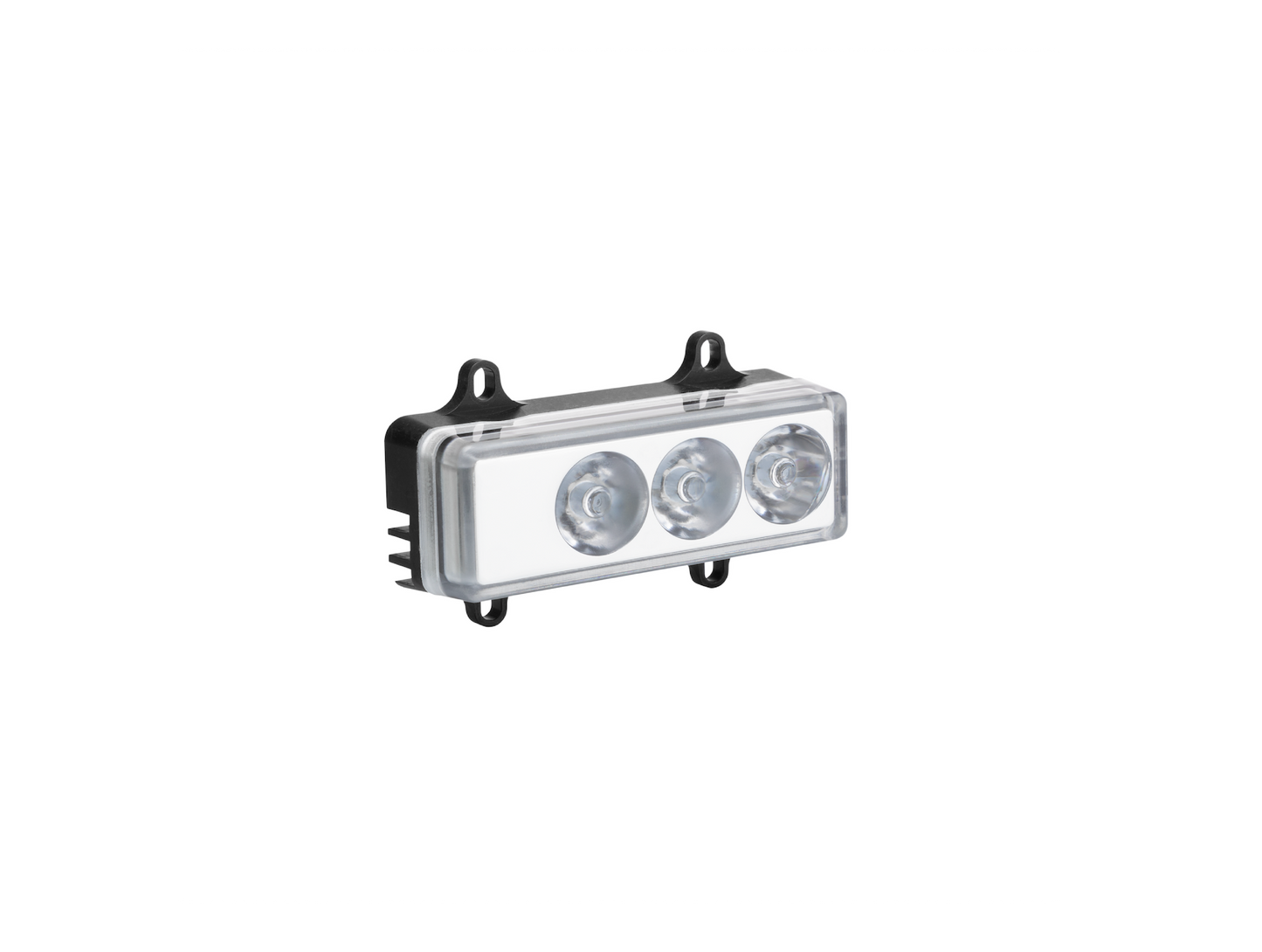

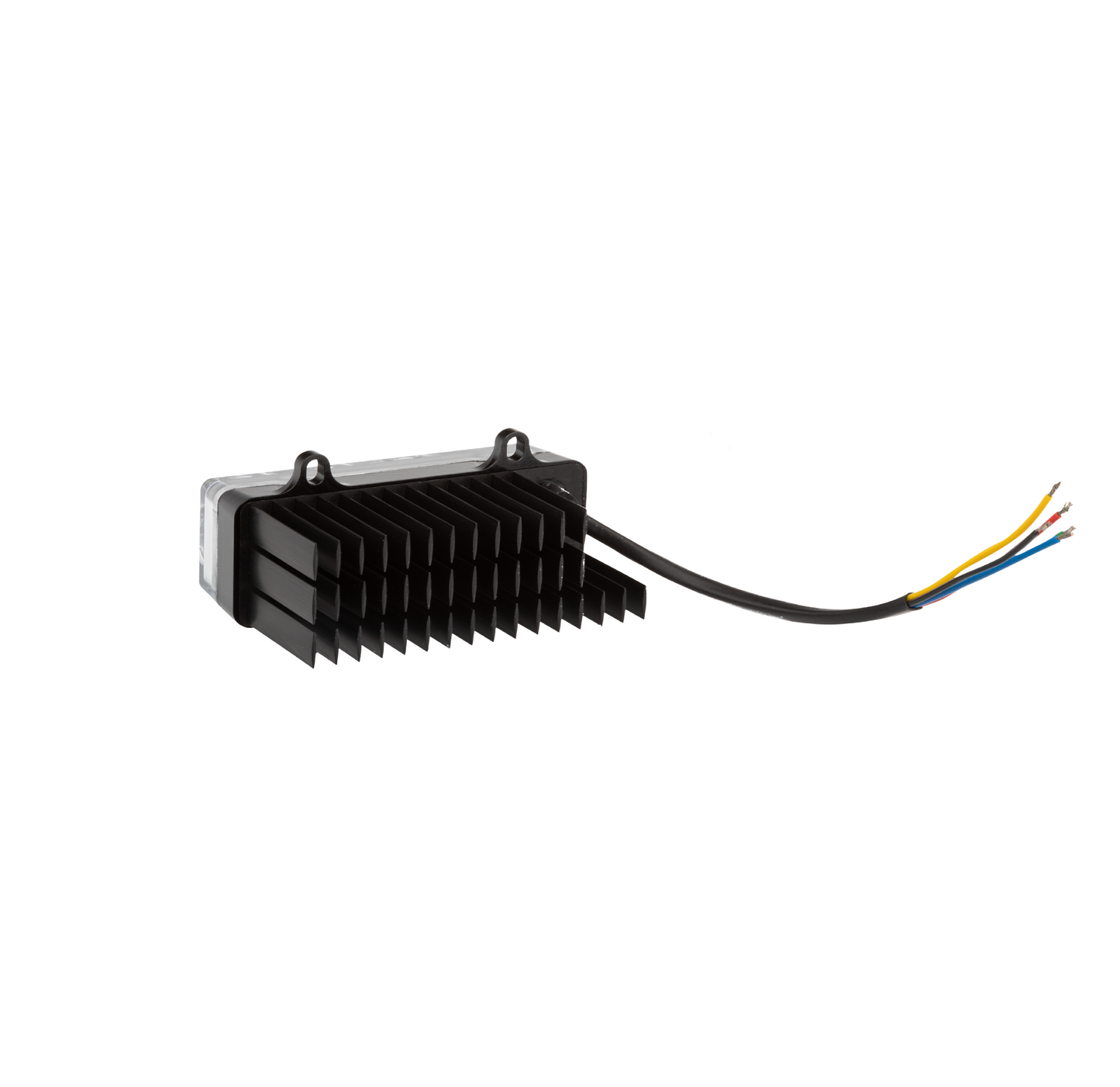

MicroSunMicroSun External Mount
Part Number01-117001-1170A
Voltage9-409-40
Power24 Watts24 Watts
WigwagYesYes
SynchronizationYesYes
Lumens2,6402,640
Candela15,00015,000
Beam Profile30 x 3030 x 30
Length3.1"3.1"
Width1.9"1.9"
Depth2.0"0.9"
Weight3.60 oz2.2 oz
