AeroSun VXi – Wingtips

for Vans RV-4 | Vans RV-6 | Vans RV-7 | Vans RV-8 | Vans RV-10 | Vans RV-14

AeroLEDs is proud to introduce the AeroSun VXi fully integrated wingtip lighting solution. Meticulously crafted in collaboration with Vans Aircraft, AeroSun VXi Wingtip Kits are tailored to suit the Vans RV-4, Vans RV-6, Vans RV-7, Vans RV-8, Vans RV-10, and Vans RV-14 models. Offering a choice between Carbon Fiber or Fiberglass material, these kits provide optimum performance, versatility and durability.

FEATURES INCLUDE:

  • Landing/Taxi
  • Navigation (exceeds TSO C-30c, Type I, II)
  • Anti-Collision Strobe (exceeds TSO-C96a Class II)
  • Position/ACS (exceeds TSO C-30c, Type III & TSO-C96a Class II)

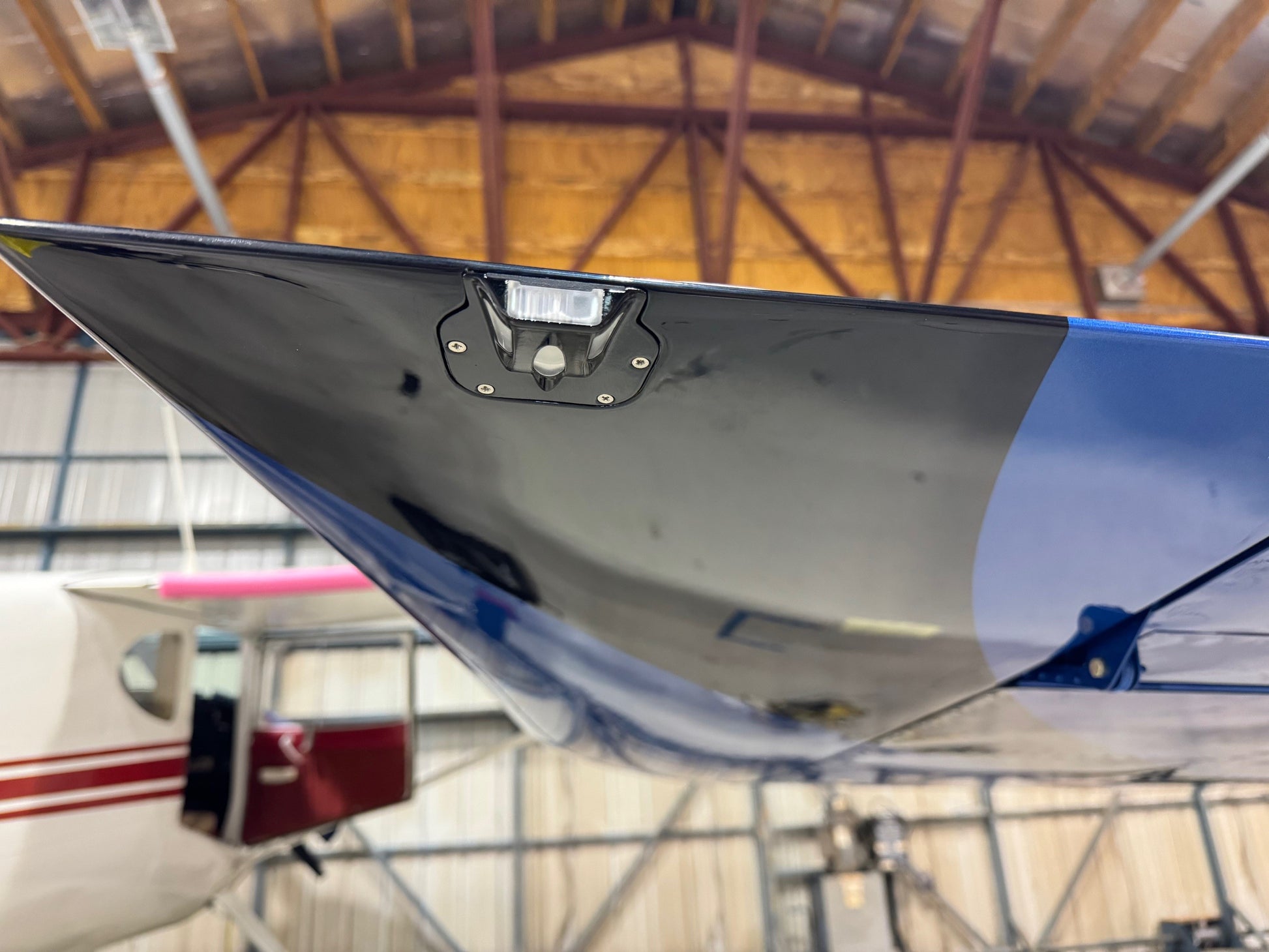

  • Underwing Inspection/Convenience Light
  • Power consumption: 100 watts max per wingtip
  • Built-in pulse mode for wig-wag
  • Synchronization
  • 30k hr. MTBF
  • Built-in thermal protection
  • Aluminum/black powder coated heat sink
  • UV hardcoated polycarbonate lens

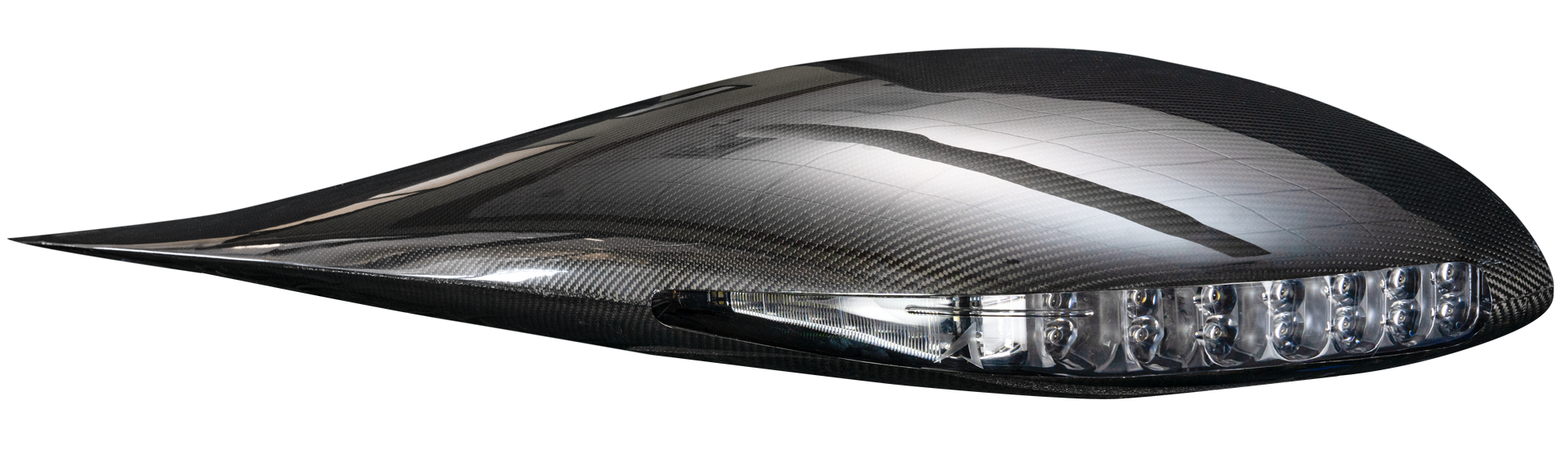

  • Carbon Fiber or Fiberglass Wingtip Options

AeroSun VXi – Wingtips Technical Specifications

AeroSun VXi Light Package with Wingtips for Vans RV-10 and RV-14 (Fiberglass)AeroSun VXi Light Package with Wingtips for Vans RV-10 and RV-14 (Carbon Fiber)AeroSun VXi Light Package with Wingtips for Vans RV-4, RV-6, RV-7, RV-8 (Fiberglass)AeroSun VXi Light Package with Wingtips for Vans RV-4, RV-6, RV-7, RV-8 (Carbon Fiber)AeroSun VXi Light Package Only
Part NumberKIT-0081KIT-0082KIT-0083KIT-0084KIT-0080
Voltage1212121212
Power100 watts100 watts100 watts100 watts100 watts
WigwagYesYesYesYesYes
SynchronizationYesYesYesYesYes
Lumens11,000 per side11,000 per side11,000 per side11,000 per side11,000 per side
Candela150,000 per side150,000 per side150,000 per side150,000 per side150,000 per side
Beam ProfileLanding: 20 X 20 / Taxi: 20 X 50Landing: 20 X 20 / Taxi: 20 X 50Landing: 20 X 20 / Taxi: 20 X 50Landing: 20 X 20 / Taxi: 20 X 50Landing: 20 X 20 / Taxi: 20 X 50

Installation

Ready to Buy?

Contact us

Still Have Questions?

Contact Us

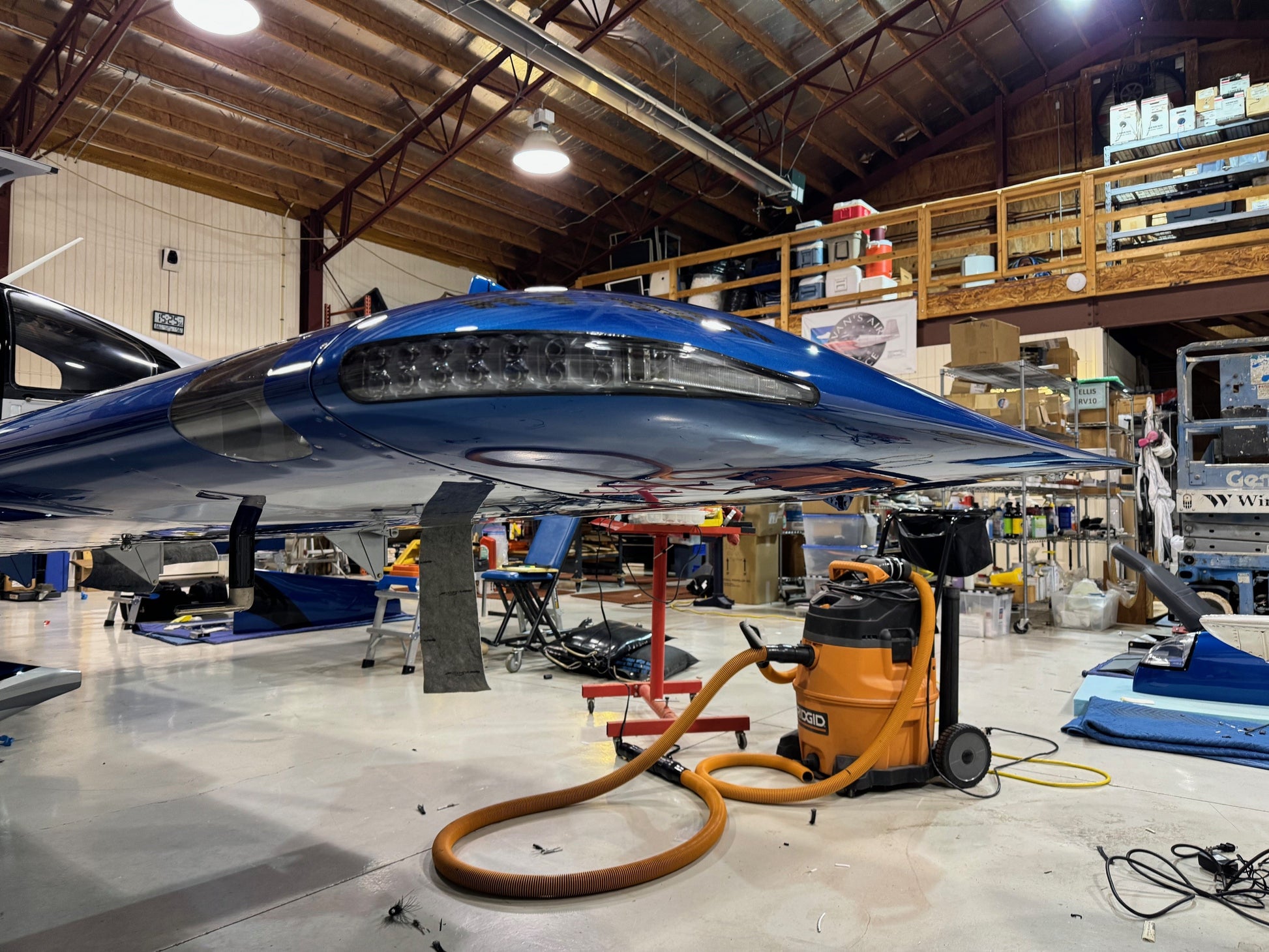

Installation Gallery
